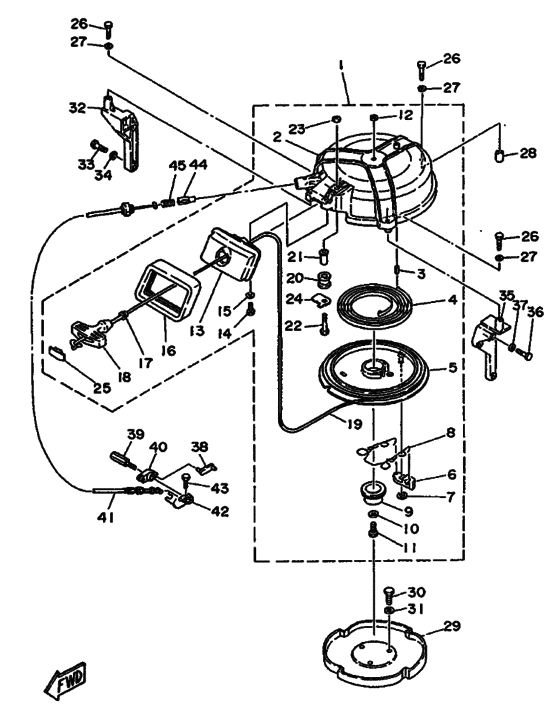

Starter Diagram Yamaha 40 M(E/O)S/L
- Year
- 1986
- Model
- 40H
- Model code
- 6H4
- Year
- 1986
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 40
- Sales region
- Europe (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6H4-15710-00-94
Starter Assy
|
6H4-15710-00-94 |
— | ||
| replacement | |||||
|
1
|
1
6H4-15710-03-4D
Starter Assembly
|
6H4-15710-03-4D |
— | ||
|
2
|
2
6H4-15711-00-94 Case, Starter |
6H4-15711-00-94 |
US $90.77 |
||
| replacement | |||||
|
2
|
2
6H4-15711-02-00 Case, Starter |
6H4-15711-02-00 |
from US $90.77 |
||
|
3
|
3
91690-40018-00 Pin, Spring |
91690-40018-00 |
from US $1.56 |
||
|
4
|
4
90510-08002-00 Spring, Spiral |
90510-08002-00 |
from US $24.09 |
||
|
5
|
5
6H4-15714-00-00 Drum, Sheave |
6H4-15714-00-00 |
from US $63.14 |
||
|
6
|
6
676-15741-03-00 Pawl, Drive |
676-15741-03-00 |
from US $7.62 |
||
|
7
|
7
93430-06M02-00 Circlip |
93430-06M02-00 |
from US $1.34 |
||
|
8
|
8
6H4-15705-00-00 Spring, Drive Pawl |
6H4-15705-00-00 |
from US $5.64 |
||
|
9
|
9
6H4-15717-00-00 Shaft, Starter |
6H4-15717-00-00 |
US $44.63 |
||
| replacement | |||||
|
9
|
9
6H4-15717-01-00 Shaft, Starter |
6H4-15717-01-00 |
from US $44.63 |
||
|
10
|
10
90201-06060-00 Washer, Plate |
90201-06060-00 |
from US $1.56 |
||
| replacements | |||||
|
10
|
10
90201-06020-00 Washer, Plate |
90201-06020-00 |
from US $1.56 |
||
|
10
|
10
902-01065-F3-00
Washer, Plate
|
902-01065-F3-00 |
— | ||
|
11
|
11
97313-06020-00 Bolt, Hexagon |
97313-06020-00 |
US $1.56 |
||
| replacement | |||||
|
11
|
11
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.56 |
||
|
12
|
12
953-03066-00-00
Nut, Hexagon
|
953-03066-00-00 |
— | ||
| replacement | |||||
|
12
|
12
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
13
|
13
6H4-15758-00-94
Guide, Rope
|
6H4-15758-00-94 |
— | ||
| replacement | |||||
|
13
|
13
6H4-15758-01-94
Guide Rope
|
6H4-15758-01-94 |
— | ||
|
14
|
14
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
14
|
14
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
14
|
14
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
15
|
15
929-03066-00-00
Washer, Plate
|
929-03066-00-00 |
— | ||
| replacement | |||||
|
15
|
15
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
16
|
16
6H4-15762-00-00 Seal, Rubber 2 |
6H4-15762-00-00 |
US $19.41 |
||
|
17
|
17
6A0-15789-00-00
Damper
|
6A0-15789-00-00 |
— | ||
| replacement | |||||
|
17
|
17
697-15789-00-00 Damper |
697-15789-00-00 |
US $4.39 |
||
|
18
|
18
619-15755-01-00 Handle, Starter |
619-15755-01-00 |
US $13.32 |
||
|
20
|
20
6H4-15752-00-00
Roller, Wire
|
6H4-15752-00-00 |
— | ||
|
21
|
21
90387-06M66-00 Collar |
90387-06M66-00 |
from US $3.64 |
||
|
22
|
22
973-13060-35-00
Bolt, Hexagon
|
973-13060-35-00 |
— | ||
| replacement | |||||
|
22
|
22
970-14060-35-00 Bolt, Hexagon |
970-14060-35-00 |
from US $2.41 |
||
|
23
|
23
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
24
|
24
6H4-15787-00-00 AdaptorStay |
6H4-15787-00-00 |
US $2.27 |
||
| replacement | |||||
|
24
|
24
6H4-15787-01-00 Stay |
6H4-15787-01-00 |
from US $2.27 |
||
|
25
|
25
689-15779-01-00 Cover |
689-15779-01-00 |
from US $4.53 |
||
|
26
|
26
973-13060-35-00
Bolt, Hexagon
|
973-13060-35-00 |
— | ||
| replacement | |||||
|
26
|
26
970-14060-35-00 Bolt, Hexagon |
970-14060-35-00 |
from US $2.41 |
||
|
27
|
27
929-03066-00-00
Washer, Plate
|
929-03066-00-00 |
— | ||
| replacement | |||||
|
27
|
27
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
28
|
28
91830-21014-00 Pin, Dowel |
91830-21014-00 |
from US $1.07 |
||
| replacements | |||||
|
28
|
28
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $1.66 |
||
|
28
|
28
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
|
29
|
29
6H4-15723-00-94
Pulley, Starter
|
6H4-15723-00-94 |
— | ||
| replacement | |||||
|
29
|
29
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
30
|
30
97313-08016-00 Bolt, Hexagon |
97313-08016-00 |
from US $2.07 |
||
| replacement | |||||
|
30
|
30
97013-08016-00 Bolt |
97013-08016-00 |
from US $1.42 |
||
|
31
|
31
92903-08600-00 Washer, Plate |
92903-08600-00 |
from US $1.56 |
||
| replacements | |||||
|
31
|
31
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
31
|
31
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.34 |
||
|
32
|
32
6H4-15771-00-94
Stay 1
|
6H4-15771-00-94 |
— | ||
|
33
|
33
973-13080-30-00
Bolt
|
973-13080-30-00 |
— | ||
| replacements | |||||
|
33
|
33
970-24080-30-00 Bolt |
970-24080-30-00 |
from US $1.55 |
||
|
33
|
33
970-17080-30-00 Bolt |
970-17080-30-00 |
from US $1.70 |
||
|
33
|
33
970-13080-30-00 Bolt |
970-13080-30-00 |
from US $3.47 |
||
|
34
|
34
92903-08600-00 Washer, Plate |
92903-08600-00 |
from US $1.56 |
||
| replacements | |||||
|
34
|
34
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
34
|
34
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.34 |
||
|
35
|
35
6H4-15772-00-94 Stay 2 |
6H4-15772-00-94 |
US $22.39 |
||
| replacement | |||||
|
35
|
35
6H4-15772-02-00 Stay 2 |
6H4-15772-02-00 |
from US $22.39 |
||
|
36
|
36
97313-06025-00 Bolt |
97313-06025-00 |
US $1.35 |
||
| replacement | |||||
|
36
|
36
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.35 |
||
|
37
|
37
929-03066-00-00
Washer, Plate
|
929-03066-00-00 |
— | ||
| replacement | |||||
|
37
|
37
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
38
|
38
6H4-15747-00-00
Link
|
6H4-15747-00-00 |
— | ||
|
39
|
39
90109-06M04-00 Bolt |
90109-06M04-00 |
US $4.11 |
||
| replacement | |||||
|
39
|
39
90109-06MA1-00 Bolt |
90109-06MA1-00 |
from US $4.11 |
||
|
40
|
40
682-15746-00-00 Arm |
682-15746-00-00 |
US $6.46 |
||
|
41
|
41
6H4-15770-00-00
Cable Cmpl, Str Stp
|
6H4-15770-00-00 |
— | ||
| replacement | |||||
|
41
|
41
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
42
|
42
6H4-15774-00-00
Stay 4
|
6H4-15774-00-00 |
— | ||
|
43
|
43
97313-06012-00 Bolt |
97313-06012-00 |
from US $3.12 |
||
| replacements | |||||
|
43
|
43
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
43
|
43
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
|
44
|
44
656-15748-00-00 Plunger, Starter Stop |
656-15748-00-00 |
from US $11.33 |
||
|
45
|
45
90501-10227-00 Spring, Compression |
90501-10227-00 |
from US $2.55 |
||
