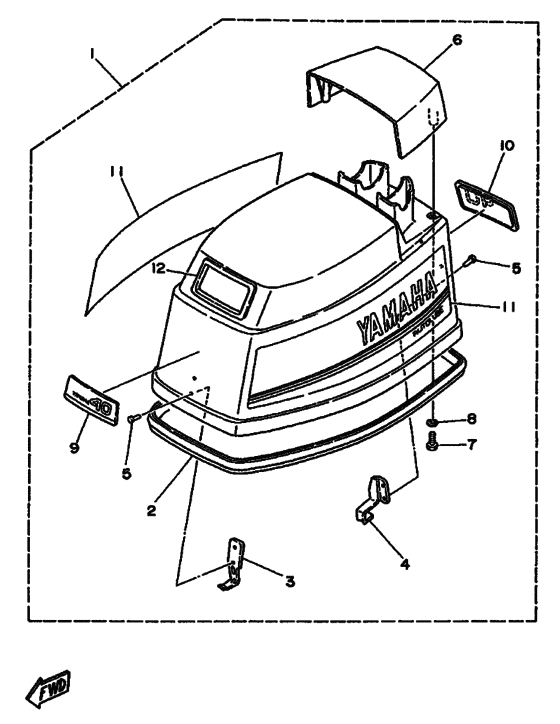

Top cowling Diagram Yamaha 40 M(E/O)S/L
- Year
- 1991
- Model
- 40H
- Model code
- 6H4
- Year
- 1991
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 40
- Sales region
- Europe (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6H4-42610-N3-EJ
Top Cowling Assy
UR(40HR0) |
6H4-42610-N3-EJ |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
UR(40HR0) |
999-99999-99-00 |
— | ||
|
1
|
1
6H4-42610-V2-EJ
Top Cowling Assy
UR(40HM0) |
6H4-42610-V2-EJ |
— | ||
| replacement | |||||
|
1
|
1
6H4-42630-V0-EJ
Top Cowling Assy
UR(40HM0) |
6H4-42630-V0-EJ |
— | ||
|
2
|
2
6H4-42615-00-00 Seal |
6H4-42615-00-00 |
from US $54.30 |
||
|
3
|
3
6H4-42651-00-00 Hook |
6H4-42651-00-00 |
from US $13.03 |
||
|
4
|
4
6H4-42652-00-00 Hook |
6H4-42652-00-00 |
from US $13.03 |
||
|
5
|
5
90266-04M01-00 Rivet |
90266-04M01-00 |
from US $2.83 |
||
|
6
|
6
6H4-42613-00-EJ
Molding, Air Duct
|
6H4-42613-00-EJ |
— | ||
| replacement | |||||
|
6
|
6
6H4-42613-01-EJ
M0Lding Air Duct
|
6H4-42613-01-EJ |
— | ||
|
7
|
7
973-95060-16-00
Bolt, Hex
|
973-95060-16-00 |
— | ||
| replacements | |||||
|
7
|
7
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
7
|
7
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
8
|
8
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
9
|
9
6H4-42686-02-00
Emblem, Front
|
6H4-42686-02-00 |
— | ||
|
10
|
10
6H4-42687-01-00
Emblem, Rear
|
6H4-42687-01-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
11
|
11
6H4-W0070-N2-00
Graphic Set
UR(40HR0) |
6H4-W0070-N2-00 |
— | ||
| replacement | |||||
|
11
|
11
999-99999-99-00
Not Available
UR(40HR0) |
999-99999-99-00 |
— | ||
|
11
|
11
6H4-W0070-V1-00
Graphic Set
UR(40HM0) |
6H4-W0070-V1-00 |
— | ||
| replacement | |||||
|
11
|
11
999-99999-99-00
Not Available
UR(40HM0) |
999-99999-99-00 |
— | ||
|
12
|
12
6H4-15761-00-00 Seal, Rubber 1 |
6H4-15761-00-00 |
from US $12.04 |
||
