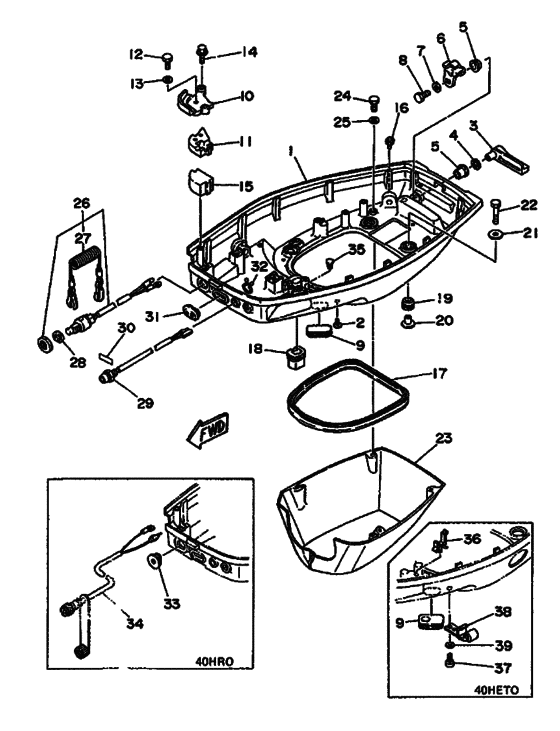

Bottom cowling Diagram Yamaha 40 M(E/O)S/L
- Year
- 1994
- Model
- 40H
- Model code
- 6H4
- Year
- 1994
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 40
- Sales region
- Europe (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6H4-42711-05-4D
Cowling, Bottom
UR 40HMO/RG/EO/EPO |
6H4-42711-05-4D |
— | ||
|
1
|
1
6H4-42711-23-4D
Cowling, Bottom
UR 40HETO |
6H4-42711-23-4D |
— | ||
|
2
|
2
90338-05M03-00 Plug |
90338-05M03-00 |
from US $1.84 |
||
|
3
|
3
6H4-42815-00-00 Lever, Clamp |
6H4-42815-00-00 |
from US $17.01 |
||
|
4
|
4
902-06120-52-00 Washer, Wave |
902-06120-52-00 |
from US $2.32 |
||
|
5
|
5
90386-12069-00 Bush |
90386-12069-00 |
from US $1.84 |
||
|
6
|
6
6H4-42816-00-00 Lever, Clamp |
6H4-42816-00-00 |
from US $8.08 |
||
|
7
|
7
90201-06M02-00 Washer,plate (6K8) |
90201-06M02-00 |
from US $2.27 |
||
|
8
|
8
97313-06010-00 Bolt, Hexagon |
97313-06010-00 |
from US $1.15 |
||
| replacement | |||||
|
8
|
8
97085-06010-00 Bolt |
97085-06010-00 |
from US $1.28 |
||
|
9
|
9
6H4-42726-00-00 GrommetUR 40HMO/RO/EO |
6H4-42726-00-00 |
US $3.68 |
||
|
9
|
9
688-42726-10-00 GrommetUR 40HETO |
688-42726-10-00 |
US $4.11 |
||
|
9
|
9
6H5-42726-00-00
Grommet
UR 40HEPO |
6H5-42726-00-00 |
— | ||
|
10
|
10
6H4-48531-00-94 Bracket, Remote Control 1UR 40HMO |
6H4-48531-00-94 |
US $30.40 |
||
|
10
|
10
6H4-48531-10-94 Bracket, Remote Control 1UR |
6H4-48531-10-94 |
from US $17 |
||
| replacement | |||||
|
10
|
10
6H4-48531-11-94 Bracket, Remote Control 1UR |
6H4-48531-11-94 |
from US $17 |
||
|
11
|
11
6H4-48532-00-94
Bracket, Remote Control 2
UR 40HMO |
6H4-48532-00-94 |
— | ||
|
11
|
11
6H4-48532-10-94
Bracket, Remote Control 2
UR |
6H4-48532-10-94 |
— | ||
| replacement | |||||
|
11
|
11
6H4-48532-11-94 Bracket, Remote Control 2UR |
6H4-48532-11-94 |
from US $31.17 |
||
|
12
|
12
97395-05016-00 Bolt |
97395-05016-00 |
from US $0.97 |
||
| replacement | |||||
|
12
|
12
970-95050-16-00 Bolt |
970-95050-16-00 |
from US $1.55 |
||
|
13
|
13
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
14
|
14
975-95065-20-00
Bolt, With Washer
|
975-95065-20-00 |
— | ||
| replacements | |||||
|
14
|
14
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.56 |
||
|
14
|
14
97E95-06520-00 Bolt, Hexagon W/w De |
97E95-06520-00 |
from US $1.07 |
||
|
15
|
15
6H4-42724-00-00 GrommetUR 40HMO/RO |
6H4-42724-00-00 |
from US $9.78 |
||
| replacement | |||||
|
15
|
15
6H4-42724-01-00 GrommetUR 40HMO/RO |
6H4-42724-01-00 |
from US $9.78 |
||
|
15
|
15
6H4-42724-20-00 GrommetUR 40HEO/EPO/ETO |
6H4-42724-20-00 |
US $8.78 |
||
|
16
|
16
6E5-44391-00-00 Nipple, Hose |
6E5-44391-00-00 |
from US $5.10 |
||
|
17
|
17
6H4-42716-00-00 Rubber, Seal 1 |
6H4-42716-00-00 |
US $12.33 |
||
|
18
|
18
682-42727-00-00 Grommet |
682-42727-00-00 |
US $6.80 |
||
|
19
|
19
90480-09M21-00 Grommet |
90480-09M21-00 |
from US $2.66 |
||
|
20
|
20
90387-06M41-00 Collar |
90387-06M41-00 |
from US $3.64 |
||
|
21
|
21
90201-06416-00 Washer, Plate |
90201-06416-00 |
from US $2.69 |
||
|
22
|
22
970-95060-30-00
Bolt
|
970-95060-30-00 |
— | ||
| replacement | |||||
|
22
|
22
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
23
|
23
6H4-42741-01-00
Apron
|
6H4-42741-01-00 |
— | ||
|
24
|
24
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
| replacement | |||||
|
24
|
24
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
25
|
25
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
26
|
26
6H4-82575-02-00 Engine Stop Switch Assembly40HMO |
6H4-82575-02-00 |
US $108.18 |
||
| replacement | |||||
|
26
|
26
699-82575-09-00 Engine Stop Switch Assy40HMO |
699-82575-09-00 |
from US $108.18 |
||
|
27
|
27
682-82556-00-00 Lanyard, Stop Switch40HMO |
682-82556-00-00 |
from US $10.13 |
||
|
28
|
28
6H4-82537-00-00
Attachment, Stop Switch
|
6H4-82537-00-00 |
— | ||
|
29
|
29
6J8-85410-00-00 Emergency Signal Light Assy40HMO/RO |
6J8-85410-00-00 |
from US $37.86 |
||
|
30
|
30
6H4-85415-10-00 Mark, Signal Lamp40HMO/RO |
6H4-85415-10-00 |
from US $1.98 |
||
|
31
|
31
6H3-42727-00-00 Grommet40HMO/RO |
6H3-42727-00-00 |
US $6.38 |
||
|
32
|
32
904-65181-47-00 Clamp40HMO/RO |
904-65181-47-00 |
from US $1.70 |
||
|
33
|
33
6H4-42726-40-00 Grommet40HRO |
6H4-42726-40-00 |
from US $4.11 |
||
|
34
|
34
6F5-84340-00-00
Socket Cord Assy 1
40HRO |
6F5-84340-00-00 |
— | ||
|
35
|
35
703-82119-00-00 Cover, Lead Wire40HMO/RO |
703-82119-00-00 |
from US $2.13 |
||
|
36
|
36
90464-15M08-00 Clamp40HETO |
90464-15M08-00 |
from US $1.84 |
||
|
37
|
37
90157-06M01-00 Screw, Pan Head40HETO |
90157-06M01-00 |
from US $2.69 |
||
|
38
|
38
6E5-24367-01-00 Clamp, Fuel Pipe 240HETO |
6E5-24367-01-00 |
from US $10.26 |
||
|
39
|
39
929-90066-00-00 Washer, Plain (646)40HETO |
929-90066-00-00 |
from US $1.07 |
||
