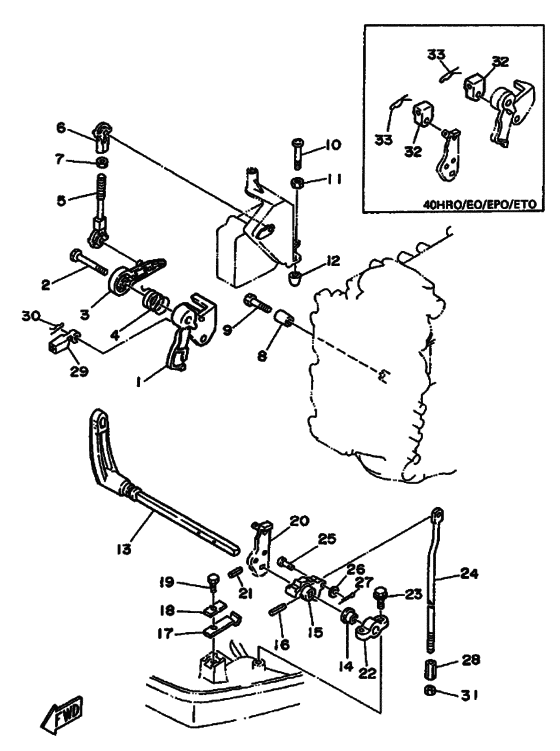

Control Diagram Yamaha 40 M(E/O)S/L
- Year
- 1994
- Model
- 40H
- Model code
- 6H4
- Year
- 1994
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 40
- Sales region
- Europe (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6H4-41213-14-00
Cam, Accel
UR 40HMO |
6H4-41213-14-00 |
— | ||
|
1
|
1
6H4-41213-04-00
Cam, Accel
UR 40HRO/EO/EPO/ETO |
6H4-41213-04-00 |
— | ||
|
2
|
2
90109-06M43-00 Bolt |
90109-06M43-00 |
from US $2.36 |
||
|
3
|
3
6H4-41632-01-00
Lever, Magneto Control
|
6H4-41632-01-00 |
— | ||
|
4
|
4
905-0826M-20-00
Spring, Torsion
|
905-0826M-20-00 |
— | ||
|
5
|
5
6G5-41636-01-00 Rod, Magneto Control |
6G5-41636-01-00 |
from US $12.24 |
||
|
6
|
6
6H4-41237-00-00 Joint, Link |
6H4-41237-00-00 |
from US $3.64 |
||
|
7
|
7
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
8
|
8
90387-06M19-00 Collar |
90387-06M19-00 |
from US $1.98 |
||
|
9
|
9
97313-06025-00 Bolt |
97313-06025-00 |
US $1.35 |
||
| replacement | |||||
|
9
|
9
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.35 |
||
|
10
|
10
90157-06M13-00 Screw, Pan Head |
90157-06M13-00 |
from US $2.69 |
||
|
11
|
11
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
12
|
12
688-44194-00-00 Cap |
688-44194-00-00 |
from US $5.95 |
||
|
13
|
13
6H4-44111-00-00
Handle, Gear Shift
UR 40HM0 |
6H4-44111-00-00 |
— | ||
|
13
|
13
6H4-44111-10-00
Handle, Gear Shift
UR 40HMO/EOEPO/ETO |
6H4-44111-10-00 |
— | ||
|
14
|
14
682-44132-00-00 Bushing |
682-44132-00-00 |
from US $7.93 |
||
|
15
|
15
6H4-44121-02-00
Lever, Shift Rod
|
6H4-44121-02-00 |
— | ||
|
16
|
16
91690-30318-00 Goupille, Elastique |
91690-30318-00 |
US $2.69 |
||
| replacement | |||||
|
16
|
16
90254-03M04-00 Pin, Spring |
90254-03M04-00 |
from US $2.69 |
||
|
17
|
17
6H4-44116-00-00
Spring
|
6H4-44116-00-00 |
— | ||
|
18
|
18
382-44117-00-00
Bracket
|
382-44117-00-00 |
— | ||
|
19
|
19
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
19
|
19
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
19
|
19
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
20
|
20
6H4-44125-01-00 Lever, Shift Rod |
6H4-44125-01-00 |
US $9.45 |
||
|
21
|
21
91690-30316-00 Pin, Spring |
91690-30316-00 |
US $2.69 |
||
| replacement | |||||
|
21
|
21
90254-03M03-00 Pin, Spring |
90254-03M03-00 |
from US $2.69 |
||
|
22
|
22
6F5-41662-00-00 Bracket 2 |
6F5-41662-00-00 |
from US $16.20 |
||
|
23
|
23
975-95065-20-00
Bolt, With Washer
|
975-95065-20-00 |
— | ||
| replacements | |||||
|
23
|
23
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.56 |
||
|
23
|
23
97E95-06520-00 Bolt, Hexagon W/w De |
97E95-06520-00 |
from US $1.07 |
||
|
24
|
24
6H4-44143-00-00
Rod, Shift
|
6H4-44143-00-00 |
— | ||
|
25
|
25
91790-05020-00 Pin, Clevis |
91790-05020-00 |
US $2.64 |
||
|
26
|
26
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
27
|
27
91490-16010-00 Pin. Cotter |
91490-16010-00 |
from US $1.34 |
||
|
28
|
28
648-44146-00-00 Connector, Shift Rod 2 |
648-44146-00-00 |
from US $6.30 |
||
|
29
|
29
663-48344-00-00
Cable End, Remote Control
|
663-48344-00-00 |
— | ||
| replacement | |||||
|
29
|
29
6FM-48344-00-00 CABLE END, REMOTE CONTROL |
6FM-48344-00-00 |
from US $2.69 |
||
|
30
|
30
90468-18008-00 Clip |
90468-18008-00 |
from US $1.70 |
||
|
31
|
31
90170-07021-00 Nut |
90170-07021-00 |
from US $3.97 |
||
|
32
|
32
6H4-48344-00-00 Cable End, Remote Control40HRO/EO/EPO/ETO |
6H4-48344-00-00 |
from US $10.48 |
||
|
33
|
33
90468-18008-00 Clip40HRO/EO/EPO/ETO |
90468-18008-00 |
from US $1.70 |
||
