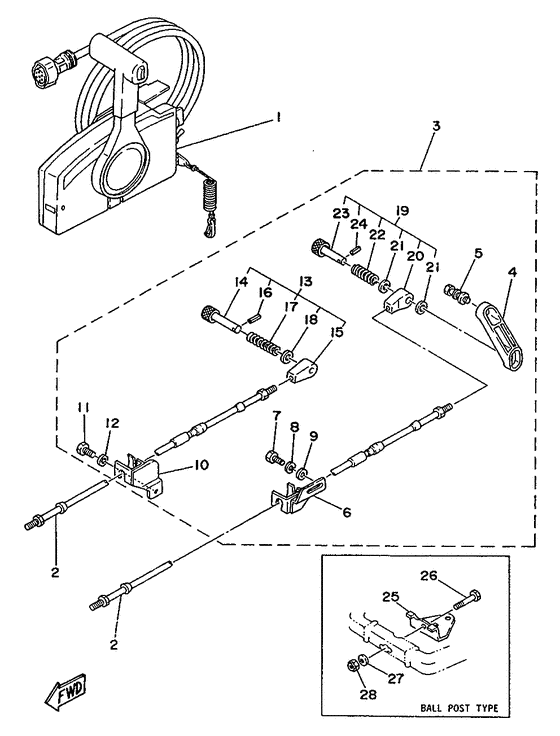

Remote control Diagram Yamaha 40 M(W/E)HS/L
- Year
- 1993
- Model
- 40Q
- Model code
- 6R6
- Year
- 1993
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 40
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Solid 1 (DBGS1; 001D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
703-48230-11-00 Remote Control Assy |
703-48230-11-00 |
US $842.16 |
||
| replacements | |||||
|
01
|
01
703-48230-21-00 Remote Control :ob |
703-48230-21-00 |
US $842.16 |
||
|
01
|
01
703-48230-24-00 Remote Control Assy (7P) |
703-48230-24-00 |
US $595.35 |
||
|
02
|
02
701-48310-40-00 Cable, Remote Control L=8FUr |
701-48310-40-00 |
US $171.32 |
||
| replacements | |||||
|
02
|
02
YMM-21008-10-30
Cable Y38, Remote Control 8'
Ur |
YMM-21008-10-30 |
— | ||
|
02
|
02
MAR-CABLE-08-SC Remote Control Cable 8' :obUr |
MAR-CABLE-08-SC |
US $69.35 |
||
|
02
|
02
YMM-21008-10-00
Cable Y38, Remote Control 8'
Ur |
YMM-21008-10-00 |
— | ||
|
02
|
02
701-48310-60-00 Cable, Remote Control L=9FUr |
701-48310-60-00 |
from US $77.76 |
||
| replacements | |||||
|
02
|
02
YMM-21009-10-30
Cable Y38, Remote Control 9'
Ur |
YMM-21009-10-30 |
— | ||
|
02
|
02
MAR-CABLE-09-SC Remote Control Cable 9' :obUr |
MAR-CABLE-09-SC |
US $72.40 |
||
|
02
|
02
YMM-21009-10-00
Cable Y38, Remote Control 9'
Ur |
YMM-21009-10-00 |
— | ||
|
02
|
02
701-48310-80-00 Cable, Remote Control L=10FUr |
701-48310-80-00 |
US $117.85 |
||
| replacements | |||||
|
02
|
02
YMM-21010-10-30
Cable Y38, Remote Control 10'
Ur |
YMM-21010-10-30 |
— | ||
|
02
|
02
MAR-CABLE-10-SC Remote Control Cable 10' :obUr |
MAR-CABLE-10-SC |
US $75.94 |
||
|
02
|
02
YMM-21010-10-00
Cable Y38, Remote Control 10'
Ur |
YMM-21010-10-00 |
— | ||
|
02
|
02
701-48310-90-00 Cable, Remote Control L=11FUr |
701-48310-90-00 |
US $158.88 |
||
| replacements | |||||
|
02
|
02
YMM-21011-10-30
Cable Y38, Remote Control 11'
Ur |
YMM-21011-10-30 |
— | ||
|
02
|
02
MAR-CABLE-11-SC Remote Control Cable 11' :obUr |
MAR-CABLE-11-SC |
US $76.95 |
||
|
02
|
02
YMM-21011-10-00
Cable Y38, Remote Control 11'
Ur |
YMM-21011-10-00 |
— | ||
|
02
|
02
701-48320-00-00 Cable, Remote Control L=12FUr |
701-48320-00-00 |
US $126.83 |
||
| replacements | |||||
|
02
|
02
YMM-21012-10-30
Cable Y38, Remote Control 12'
Ur |
YMM-21012-10-30 |
— | ||
|
02
|
02
MAR-CABLE-12-SC Remote Control Cable 12' :obUr |
MAR-CABLE-12-SC |
US $81 |
||
|
02
|
02
YMM-21012-10-00
Cable Y38, Remote Control 12'
Ur |
YMM-21012-10-00 |
— | ||
|
02
|
02
701-48320-20-00 Cable, Remote Control L=13FUr |
701-48320-20-00 |
from US $110.54 |
||
| replacements | |||||
|
02
|
02
YMM-21013-10-30
Cable Y38, Remote Control 13'
Ur |
YMM-21013-10-30 |
— | ||
|
02
|
02
MAR-CABLE-13-SC Remote Control Cable 13' :obUr |
MAR-CABLE-13-SC |
US $81 |
||
|
02
|
02
YMM-21013-10-00
Cable Y38, Remote Control 13'
Ur |
YMM-21013-10-00 |
— | ||
|
02
|
02
701-48320-30-00 Cable, Remote Control L=14FUr |
701-48320-30-00 |
from US $136.64 |
||
| replacements | |||||
|
02
|
02
YMM-21014-10-30
Cable Y38, Remote Control 14'
Ur |
YMM-21014-10-30 |
— | ||
|
02
|
02
MAR-CABLE-14-SC Remote Control Cable 14' :obUr |
MAR-CABLE-14-SC |
US $87.08 |
||
|
02
|
02
YMM-21014-10-00
Cable Y38, Remote Control 14'
Ur |
YMM-21014-10-00 |
— | ||
|
02
|
02
701-48320-40-00 Cable, Remote Control L=19FUr |
701-48320-40-00 |
from US $149.12 |
||
| replacements | |||||
|
02
|
02
YMM-21019-10-30
Cable Y38, Remote Control 19'
Ur |
YMM-21019-10-30 |
— | ||
|
02
|
02
MAR-CABLE-19-SC Remote Control Cable 19' :obUr |
MAR-CABLE-19-SC |
US $102.76 |
||
|
02
|
02
YMM-21019-10-00
Cable Y38, Remote Control 19'
Ur |
YMM-21019-10-00 |
— | ||
|
02
|
02
701-48320-50-00 Cable, Remote Control L=15FUr |
701-48320-50-00 |
US $140.92 |
||
| replacements | |||||
|
02
|
02
YMM-21015-10-30
Cable Y38, Remote Control 15'
Ur |
YMM-21015-10-30 |
— | ||
|
02
|
02
MAR-CABLE-15-SC Remote Control Cable 15' :obUr |
MAR-CABLE-15-SC |
US $90.11 |
||
|
02
|
02
YMM-21015-10-00
Cable Y38, Remote Control 15'
Ur |
YMM-21015-10-00 |
— | ||
|
02
|
02
701-48320-60-00 Cable, Remote Control L=16FUr |
701-48320-60-00 |
from US $91.37 |
||
| replacements | |||||
|
02
|
02
YMM-21016-10-30
Cable Y38, Remote Control 16'
Ur |
YMM-21016-10-30 |
— | ||
|
02
|
02
MAR-CABLE-16-SC Remote Control Cable 16' :obUr |
MAR-CABLE-16-SC |
US $93.65 |
||
|
02
|
02
YMM-21016-10-00
Cable Y38, Remote Control 16'
Ur |
YMM-21016-10-00 |
— | ||
|
02
|
02
701-48320-70-00 Cable, Remote Control L=20FUr |
701-48320-70-00 |
from US $168.56 |
||
| replacements | |||||
|
02
|
02
YMM-21020-10-30
Cable Y38, Remote Control 20'
Ur |
YMM-21020-10-30 |
— | ||
|
02
|
02
MAR-CABLE-20-SC Remote Control Cable 20' :obUr |
MAR-CABLE-20-SC |
US $105.80 |
||
|
02
|
02
YMM-21020-10-00
Cable Y38, Remote Control 20'
Ur |
YMM-21020-10-00 |
— | ||
|
02
|
02
701-48320-80-00 Cable, Remote Control L=17FUr |
701-48320-80-00 |
US $151.98 |
||
| replacements | |||||
|
02
|
02
YMM-21017-10-30
Cable Y38, Remote Control 17'
Ur |
YMM-21017-10-30 |
— | ||
|
02
|
02
MAR-CABLE-17-SC Remote Control Cable 17' :obUr |
MAR-CABLE-17-SC |
US $96.19 |
||
|
02
|
02
YMM-21017-10-00
Cable Y38, Remote Control 17'
Ur |
YMM-21017-10-00 |
— | ||
|
02
|
02
701-48320-90-00 Cable, Remote Control L=18FUr |
701-48320-90-00 |
US $203.10 |
||
| replacements | |||||
|
02
|
02
YMM-21018-10-30
Cable Y38, Remote Control 18'
Ur |
YMM-21018-10-30 |
— | ||
|
02
|
02
MAR-CABLE-18-SC Remote Control Cable 18' :obUr |
MAR-CABLE-18-SC |
US $99.74 |
||
|
02
|
02
YMM-21018-10-00
Cable Y38, Remote Control 18'
Ur |
YMM-21018-10-00 |
— | ||
|
02
|
02
701-48350-00-00 Cable, Remote Control L=21FUr |
701-48350-00-00 |
US $179.61 |
||
| replacements | |||||
|
02
|
02
YMM-21021-10-30
Cable Y38, Remote Control 21'
Ur |
YMM-21021-10-30 |
— | ||
|
02
|
02
MAR-CABLE-21-SC Remote Control Cable 21' :obUr |
MAR-CABLE-21-SC |
US $109.35 |
||
|
02
|
02
YMM-21021-10-00
Cable Y38, Remote Control 21'
Ur |
YMM-21021-10-00 |
— | ||
|
02
|
02
701-48350-10-00 Cable, Remote Control L=22FUr |
701-48350-10-00 |
US $189.28 |
||
| replacements | |||||
|
02
|
02
YMM-21022-10-30
Cable Y38, Remote Control 22'
Ur |
YMM-21022-10-30 |
— | ||
|
02
|
02
MAR-CABLE-22-SC Remote Control Cable 22' :obUr |
MAR-CABLE-22-SC |
US $113.40 |
||
|
02
|
02
YMM-21022-10-00
Cable Y38, Remote Control 22'
Ur |
YMM-21022-10-00 |
— | ||
|
02
|
02
701-48310-10-00 Cable, Remote Control L=6FUr |
701-48310-10-00 |
US $160.27 |
||
| replacements | |||||
|
02
|
02
YMM-21006-10-30
Cable Y38, Remote Control 6'
Ur |
YMM-21006-10-30 |
— | ||
|
02
|
02
MAR-CABLE-06-SC Remote Control Cable 6' :obUr |
MAR-CABLE-06-SC |
US $63.29 |
||
|
02
|
02
YMM-21006-10-00
Cable Y38, Remote Control 6'
Ur |
YMM-21006-10-00 |
— | ||
|
02
|
02
701-48350-20-00 Cable, Remote Control L=23FUr |
701-48350-20-00 |
US $197.57 |
||
| replacements | |||||
|
02
|
02
YMM-21023-10-20
Cable
Ur |
YMM-21023-10-20 |
— | ||
|
02
|
02
MAR-CABLE-23-SC Remote Control Cable 23' :obUr |
MAR-CABLE-23-SC |
US $119.48 |
||
|
02
|
02
YMM-21023-10-30
Cable Y38, Remote Control 23'
Ur |
YMM-21023-10-30 |
— | ||
|
02
|
02
YMM-21023-10-00
Cable Y38, Remote Control 23'
Ur |
YMM-21023-10-00 |
— | ||
|
02
|
02
701-48310-20-00 Cable, Remote Control L=7FUr |
701-48310-20-00 |
US $165.79 |
||
| replacements | |||||
|
02
|
02
YMM-21007-10-30
Cable Y38, Remote Control 7'
Ur |
YMM-21007-10-30 |
— | ||
|
02
|
02
MAR-CABLE-07-SC Remote Control Cable 7' :obUr |
MAR-CABLE-07-SC |
US $66.83 |
||
|
02
|
02
YMM-21007-10-00
Cable Y38, Remote Control 7'
Ur |
YMM-21007-10-00 |
— | ||
|
03
|
03
6R6-48501-00-00
Remote Control Attachment Assembly
|
6R6-48501-00-00 |
— | ||
|
04
|
04
676-48534-00-1D
Throttle Lever, Control
|
676-48534-00-1D |
— | ||
| replacement | |||||
|
04
|
04
676-48534-00-4D
Throttle Lever, Control
|
676-48534-00-4D |
— | ||
|
05
|
05
90119-06M58-00 Bolt, With Washer |
90119-06M58-00 |
from US $2.55 |
||
| replacement | |||||
|
05
|
05
90119-06M41-00 Bolt, With Washer |
90119-06M41-00 |
from US $2.74 |
||
|
06
|
06
679-48532-00-00 Bracket, Remote Control 2 |
679-48532-00-00 |
US $16.74 |
||
|
07
|
07
973-95060-16-00
Bolt, Hex
|
973-95060-16-00 |
— | ||
| replacements | |||||
|
07
|
07
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
07
|
07
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
08
|
08
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
08
|
08
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
09
|
09
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
|
10
|
10
676-48531-00-00
Bracket, Remote Control 1
|
676-48531-00-00 |
— | ||
|
11
|
11
973-95060-16-00
Bolt, Hex
|
973-95060-16-00 |
— | ||
| replacements | |||||
|
11
|
11
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
11
|
11
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
12
|
12
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
12
|
12
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
13
|
13
648-48330-50-00 Cable End Assy |
648-48330-50-00 |
from US $43.54 |
||
|
14
|
14
617-48331-91-00 Hook, Cable |
617-48331-91-00 |
from US $22.10 |
||
|
15
|
15
648-48346-50-00 Cable End, Remote Control |
648-48346-50-00 |
from US $15.02 |
||
|
16
|
16
91690-30012-00 Pin, Spring |
91690-30012-00 |
from US $2.69 |
||
|
17
|
17
90501-10071-00 Spring, Compression |
90501-10071-00 |
from US $2.55 |
||
|
18
|
18
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.36 |
||
|
19
|
19
648-48340-50-00 Cable End Assy |
648-48340-50-00 |
from US $41.81 |
||
|
20
|
20
617-48346-90-00 Cable End, Remote Control |
617-48346-90-00 |
from US $15.02 |
||
|
21
|
21
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.36 |
||
|
22
|
22
90501-10264-00 Spring, Compression |
90501-10264-00 |
from US $1.70 |
||
|
23
|
23
617-48361-91-00 Hook, Cable |
617-48361-91-00 |
from US $21.96 |
||
|
24
|
24
91690-30012-00 Pin, Spring |
91690-30012-00 |
from US $2.69 |
||
|
25
|
25
676-48511-10-00 Hook, Steering |
676-48511-10-00 |
from US $22.18 |
||
|
26
|
26
973-95100-40-00 Bolt |
973-95100-40-00 |
from US $3.40 |
||
| replacements | |||||
|
26
|
26
970-75100-40-00 Bolt |
970-75100-40-00 |
from US $3.14 |
||
|
26
|
26
97D-75100-40-00 BOLT HEXAGON DEEP RECESS |
97D-75100-40-00 |
from US $3.40 |
||
|
27
|
27
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $1.07 |
||
|
28
|
28
901-85100-51-00
Nut, Self-Locking
|
901-85100-51-00 |
— | ||
| replacement | |||||
|
28
|
28
90185-10027-00 Nut, Self-Locking |
90185-10027-00 |
from US $1.42 |
||
