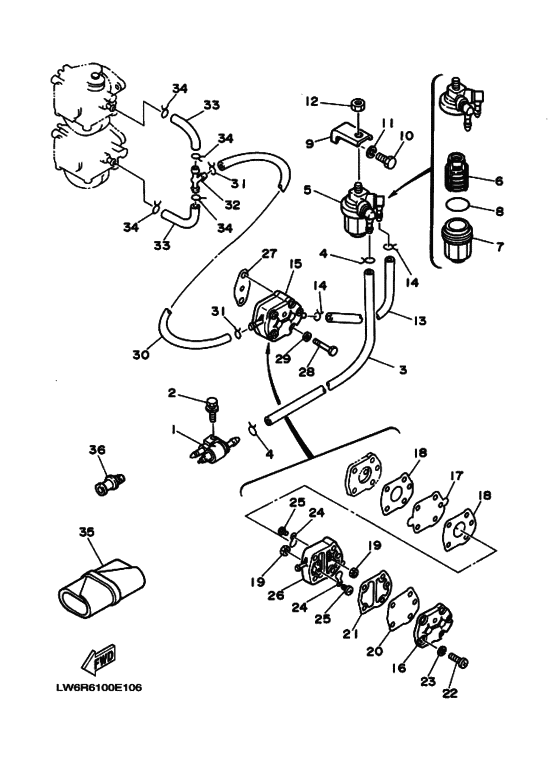

Fuel Diagram Yamaha 40 M(W/E)HS/L
- Year
- 1998
- Model
- 40Q
- Model code
- 6R6
- Year
- 1998
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 40
- Sales region
- Europe (020)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6G1-24304-02-00 Fuel Pipe Joint Comp. 1 |
6G1-24304-02-00 |
US $29.47 |
||
| replacements | |||||
|
1
|
1
6G1-24304-10-00 Fuel Pipe Joint Comp. 1 |
6G1-24304-10-00 |
US $29.47 |
||
|
1
|
1
6G1-24304-11-00 FUEL PIPE JOINT COMP 1 |
6G1-24304-11-00 |
from US $30.10 |
||
|
2
|
2
975-95065-20-00
Bolt, With Washer
|
975-95065-20-00 |
— | ||
| replacements | |||||
|
2
|
2
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.56 |
||
|
2
|
2
97E95-06520-00 Bolt, Hexagon W/w De |
97E95-06520-00 |
from US $1.07 |
||
|
3
|
3
90445-09252-00 Hose (L420)676 1011 |
90445-09252-00 |
from US $6.52 |
||
| replacements | |||||
|
3
|
3
904-45092-K1-00 Hose (L420)676 1011 |
904-45092-K1-00 |
from US $4.96 |
||
|
3
|
3
904-45090-F6-00 Hose (L1500)676 1011 |
904-45090-F6-00 |
from US $6.30 |
||
|
4
|
4
90467-08004-00 Clip |
90467-08004-00 |
from US $1.70 |
||
|
5
|
5
61N-24560-00-00 Filter AssyTSI 002/95 |
61N-24560-00-00 |
US $42.69 |
||
| replacement | |||||
|
5
|
5
61N-24560-10-00 Filter AssyTSI 002/95 |
61N-24560-10-00 |
from US $24.80 |
||
|
6
|
6
61N-24563-00-00 Element, Filter |
61N-24563-00-00 |
from US $7.65 |
||
| replacement | |||||
|
6
|
6
61N-24563-10-00 Element, Filter |
61N-24563-10-00 |
from US $7.65 |
||
|
7
|
7
61N-24521-00-00 Cup, Filter |
61N-24521-00-00 |
from US $13.46 |
||
|
8
|
8
93210-32738-00 O-Ring |
93210-32738-00 |
from US $1.34 |
||
|
9
|
9
648-24566-01-00
Bracket, Filter
|
648-24566-01-00 |
— | ||
|
10
|
10
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
| replacement | |||||
|
10
|
10
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
11
|
11
929-95061-00-00 Washer, Spring6A1 598 P66 |
929-95061-00-00 |
from US $0.99 |
||
|
12
|
12
953-80086-00-00
Nut, Hex
572 |
953-80086-00-00 |
— | ||
| replacements | |||||
|
12
|
12
997-80086-00-00 Nut, Hex572 |
997-80086-00-00 |
from US $1.59 |
||
|
12
|
12
988-80081-00-00 Ybs55-8 Nut (644)572 |
988-80081-00-00 |
from US $1.57 |
||
|
13
|
13
676-24311-00-00
Pipe, Fuel 1
|
676-24311-00-00 |
— | ||
|
14
|
14
90467-08004-00 Clip |
90467-08004-00 |
from US $1.70 |
||
|
15
|
15
692-24410-00-00 Fuel Pump AssyTSI 003/95 |
692-24410-00-00 |
US $131.67 |
||
| replacement | |||||
|
15
|
15
692-24410-01-00 FUEL PUMP ASSYTSI 003/95 |
692-24410-01-00 |
from US $67.03 |
||
|
16
|
16
648-24413-01-00 Cover, Pump |
648-24413-01-00 |
from US $17.65 |
||
|
17
|
17
692-24411-00-00 Diaphragm |
692-24411-00-00 |
from US $17.32 |
||
|
18
|
18
648-24434-01-00 Gasket, Body |
648-24434-01-00 |
from US $4.30 |
||
|
19
|
19
95380-03600-00 Nut6G8 TSI007/91 |
95380-03600-00 |
from US $1.56 |
||
|
20
|
20
663-24411-00-00 Diaphragm |
663-24411-00-00 |
from US $8.94 |
||
|
21
|
21
648-24435-02-00 Gasket, Body 2 |
648-24435-02-00 |
from US $13.32 |
||
|
22
|
22
98580-05530-00 Screw, Pan Head |
98580-05530-00 |
from US $2.27 |
||
|
23
|
23
92990-05100-00 Washer, SpringP82 |
92990-05100-00 |
from US $1.21 |
||
|
24
|
24
6A0-24421-01-00 Valve,check |
6A0-24421-01-00 |
US $20.69 |
||
| replacement | |||||
|
24
|
24
62Y-24421-01-00 Valve, Check |
62Y-24421-01-00 |
from US $18.94 |
||
|
25
|
25
6A0-14325-00-00 Screw, Pan Head |
6A0-14325-00-00 |
from US $4.11 |
||
|
26
|
26
6A0-24412-02-00 Body 1 |
6A0-24412-02-00 |
from US $44.07 |
||
|
27
|
27
650-24431-A0-00 Gasket, Fuel Pump 1 |
650-24431-A0-00 |
from US $1.34 |
||
|
28
|
28
97095-06040-00 Bolt682 |
97095-06040-00 |
from US $1.28 |
||
|
29
|
29
929-90066-00-00 Washer, Plain (646)P66 |
929-90066-00-00 |
from US $1.07 |
||
|
30
|
30
6E9-24313-00-00
Pipe 3
|
6E9-24313-00-00 |
— | ||
|
31
|
31
90467-08004-00 Clip |
90467-08004-00 |
from US $1.70 |
||
|
32
|
32
688-24378-00-00 Pipe, Joint 3 |
688-24378-00-00 |
from US $6.94 |
||
|
33
|
33
904-45090-78-00
Hose (L420)
132243110000 |
904-45090-78-00 |
— | ||
| replacements | |||||
|
33
|
33
904-45092-K1-00 Hose (L420)132243110000 |
904-45092-K1-00 |
from US $4.96 |
||
|
33
|
33
904-45090-F6-00 Hose (L1500)132243110000 |
904-45090-F6-00 |
from US $6.30 |
||
|
34
|
34
90467-08004-00 Clip |
90467-08004-00 |
from US $1.70 |
||
|
35
|
35
656-W2810-02-00 Tool Kit |
656-W2810-02-00 |
US $40.62 |
||
| replacements | |||||
|
35
|
35
656-W2810-03-00 Tool Kit |
656-W2810-03-00 |
from US $40.62 |
||
|
35
|
35
656-W2810-03-00 Tool Kit |
656-W2810-03-00 |
from US $40.62 |
||
|
36
|
36
6E0-28193-00-94 Plug, Water Check4-90HP,HOSE=125MM |
6E0-28193-00-94 |
US $9.35 |
||
| replacement | |||||
|
36
|
36
6E0-28193-00-00 Plug, Water Check4-90HP,HOSE=125MM |
6E0-28193-00-00 |
from US $9.35 |
||
