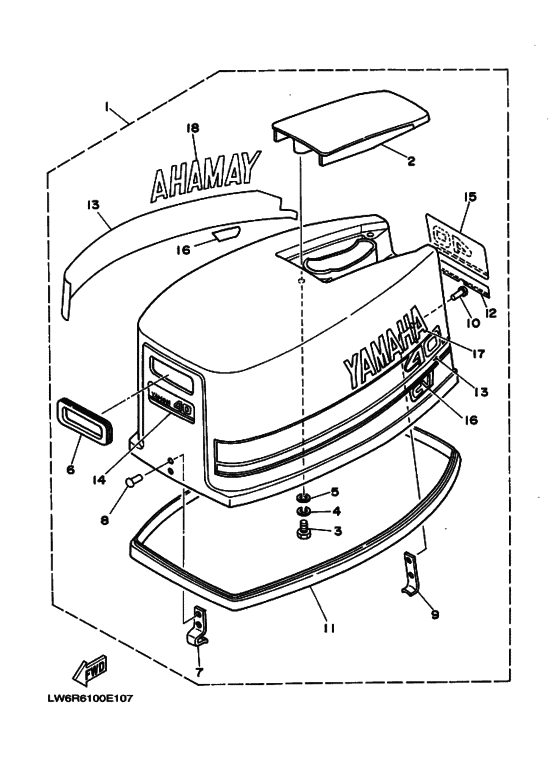

Top cowling Diagram Yamaha 40 M(W/E)HS/L
- Year
- 1998
- Model
- 40Q
- Model code
- 6R6
- Year
- 1998
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 40
- Sales region
- Europe (020)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6R6-42610-11-4D
Top Cowling Assembly
|
6R6-42610-11-4D |
— | ||
| replacement | |||||
|
1
|
1
6R6-42610-11-00
GASKET KIT
|
6R6-42610-11-00 |
— | ||
|
1
|
1
6R6-42610-F1-4D
Top Cowling Assy
|
6R6-42610-F1-4D |
— | ||
|
2
|
2
6A0-42613-01-4D
Molding, Air Duct
|
6A0-42613-01-4D |
— | ||
|
3
|
3
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
| replacement | |||||
|
3
|
3
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
4
|
4
929-95061-00-00 Washer, Spring6A1 598 P66 |
929-95061-00-00 |
from US $0.99 |
||
|
5
|
5
929-90066-00-00 Washer, Plain (646)P66 |
929-90066-00-00 |
from US $1.07 |
||
|
6
|
6
6A0-15761-00-00 Seal, Rubber 1 |
6A0-15761-00-00 |
from US $11.33 |
||
|
7
|
7
6E9-42651-01-00 Hook |
6E9-42651-01-00 |
from US $11.90 |
||
|
8
|
8
90266-04M04-00 Rivet6E7 |
90266-04M04-00 |
from US $1.34 |
||
|
9
|
9
6A0-42652-00-00 Hook |
6A0-42652-00-00 |
US $10.87 |
||
|
10
|
10
90266-04M01-00 Rivet |
90266-04M01-00 |
from US $2.83 |
||
|
11
|
11
6E9-42615-00-00
Seal
|
6E9-42615-00-00 |
— | ||
|
12
|
12
6R6-4267A-10-00 Graphic, Rear 2 |
6R6-4267A-10-00 |
US $36.05 |
||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
13
|
13
6R6-W0070-10-00
Graphic Set
|
6R6-W0070-10-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
14
|
14
6J4-42677-20-00
Adhesif, Avant
|
6J4-42677-20-00 |
— | ||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
15
|
15
6J4-42678-20-00
Adhesif, Arriere
|
6J4-42678-20-00 |
— | ||
| replacement | |||||
|
15
|
15
63D-42678-10-00
Graphic, Rear
|
63D-42678-10-00 |
— | ||
|
16
|
16
61R-42683-F0-00 Mark, Cowling |
61R-42683-F0-00 |
US $13.18 |
||
|
17
|
17
6R6-42681-10-00
Mark, Cowling
|
6R6-42681-10-00 |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
18
|
18
6R6-42682-10-00
Mark, Cowling
|
6R6-42682-10-00 |
— | ||
| replacement | |||||
|
18
|
18
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
