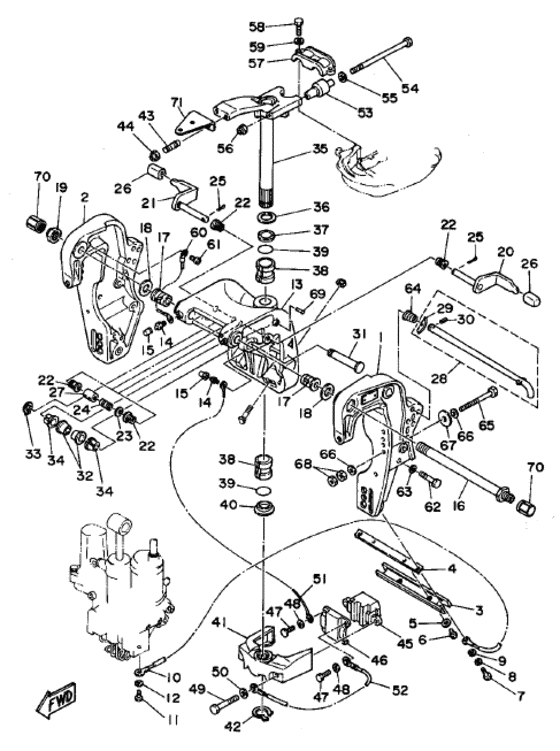

Bracket Diagram Yamaha 40 TL/UL(H)R
- Year
- 1994
- Model
- 40
- Year
- 1994
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 40
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
697-43111-04-4D Bracket, Clamp |
697-43111-04-4D |
from US $323.29 |
||
| replacement | |||||
|
1
|
1
697-43111-05-4D Bracket, Clamp |
697-43111-05-4D |
US $323.29 |
||
|
2
|
2
697-43112-03-4D Bracket, Clamp 2 |
697-43112-03-4D |
US $326.06 |
||
|
3
|
3
6H1-45251-02-00 Anode |
6H1-45251-02-00 |
US $22.24 |
||
| replacement | |||||
|
3
|
3
6H1-45251-03-00 Anode |
6H1-45251-03-00 |
from US $21.77 |
||
|
4
|
4
6H1-44526-00-00 Plate |
6H1-44526-00-00 |
from US $11.93 |
||
| replacement | |||||
|
4
|
4
6EK-44536-00-00 Plate 2 |
6EK-44536-00-00 |
from US $12.18 |
||
|
5
|
5
90201-06M31-00 Washer, Plate |
90201-06M31-00 |
from US $1.81 |
||
|
6
|
6
97095-06012-00 Bolt |
97095-06012-00 |
from US $2.22 |
||
| replacement | |||||
|
6
|
6
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
7
|
7
973-95060-16-00
Bolt, Hex
|
973-95060-16-00 |
— | ||
| replacements | |||||
|
7
|
7
97095-06016-00 Bolt |
97095-06016-00 |
US $1.39 |
||
|
7
|
7
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.39 |
||
|
8
|
8
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
9
|
9
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
10
|
10
6H1-82148-00-00 Wire, Lead 4 |
6H1-82148-00-00 |
US $10.63 |
||
| replacement | |||||
|
10
|
10
6T4-82117-00-00 Wire, Lead |
6T4-82117-00-00 |
from US $10.44 |
||
|
11
|
11
970-95060-10-00
Bolt
|
970-95060-10-00 |
— | ||
| replacement | |||||
|
11
|
11
97085-06010-00 Bolt |
97085-06010-00 |
from US $1.28 |
||
|
12
|
12
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
13
|
13
697-43311-03-4D Bracket, Swivel |
697-43311-03-4D |
US $632.28 |
||
|
14
|
14
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $3.04 |
||
|
15
|
15
663-45119-00-00 Cap, Grease Nipple |
663-45119-00-00 |
US $3.89 |
||
|
16
|
16
688-43131-03-00 Bolt, Clamp Bracket |
688-43131-03-00 |
from US $106.38 |
||
|
17
|
17
90386-22M15-00 Bush |
90386-22M15-00 |
from US $6.06 |
||
|
18
|
18
90201-22M67-00 Washer, Plate |
90201-22M67-00 |
from US $1.70 |
||
|
19
|
19
901-85220-43-00
Nut, Self-Locking
|
901-85220-43-00 |
— | ||
| replacement | |||||
|
19
|
19
90185-22007-00 Nut, Self-Locking |
90185-22007-00 |
from US $29.77 |
||
|
20
|
20
688-43181-04-00 Lever, Tilt Stop |
688-43181-04-00 |
from US $35.02 |
||
|
21
|
21
688-43185-04-00 Lever, Tilt Stop |
688-43185-04-00 |
from US $50.29 |
||
|
22
|
22
90386-10M16-00 Bush |
90386-10M16-00 |
from US $2.36 |
||
|
23
|
23
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $1.18 |
||
|
24
|
24
90501-10M21-00 Spring, Compression |
90501-10M21-00 |
US $2.41 |
||
|
25
|
25
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.25 |
||
|
26
|
26
663-43318-00-00 Cover |
663-43318-00-00 |
from US $5.28 |
||
|
27
|
27
90387-10M38-00 Collar |
90387-10M38-00 |
from US $9.15 |
||
|
28
|
28
697-43160-00-00 Tilt Rod Assembly |
697-43160-00-00 |
from US $37.99 |
||
|
29
|
29
688-43165-00-00 Plate, Tilt Lock |
688-43165-00-00 |
from US $7.23 |
||
|
30
|
30
91690-30012-00 Pin, Spring |
91690-30012-00 |
from US $2.69 |
||
|
31
|
31
6E5-43126-02-00 Pin, Upper Shock Mount |
6E5-43126-02-00 |
from US $23.94 |
||
|
32
|
32
90386-18M63-00 Bush |
90386-18M63-00 |
from US $4.03 |
||
|
33
|
33
93410-18M02-00 Circlip |
93410-18M02-00 |
US $3.12 |
||
| replacement | |||||
|
33
|
33
93410-18M05-00 Circlip (6F2) |
93410-18M05-00 |
from US $3.26 |
||
|
34
|
34
90386-18M35-00 Bush |
90386-18M35-00 |
from US $11.12 |
||
|
35
|
35
6H4-42510-02-4D
Steering Bracket Assembly
|
6H4-42510-02-4D |
— | ||
| replacement | |||||
|
35
|
35
6H4-42510-09-4D
element
|
6H4-42510-09-4D |
— | ||
|
36
|
36
90201-30M00-00 Washer, Plate |
90201-30M00-00 |
from US $5.06 |
||
|
37
|
37
90386-30M78-00 Bush |
90386-30M78-00 |
from US $3.04 |
||
|
38
|
38
90386-30M77-00 Bush |
90386-30M77-00 |
from US $10.44 |
||
|
39
|
39
93210-29M94-00 O-Ring |
93210-29M94-00 |
from US $2.36 |
||
|
40
|
40
90386-30M60-00 Bush |
90386-30M60-00 |
from US $3.04 |
||
|
41
|
41
6H4-44551-01-4D Housing, Lower Mount Rubber |
6H4-44551-01-4D |
US $105.42 |
||
| replacement | |||||
|
41
|
41
6H4-44551-02-8D HOUSING, LOWER MOUNT |
6H4-44551-02-8D |
from US $105.42 |
||
|
42
|
42
93410-28M06-00 Circlip |
93410-28M06-00 |
from US $7.23 |
||
|
43
|
43
90116-10175-00 Bolt, Stud |
90116-10175-00 |
from US $5.38 |
||
| replacements | |||||
|
43
|
43
901-16100-62-00 Bolt, Stud |
901-16100-62-00 |
from US $5.97 |
||
|
43
|
43
90116-10063-00 Bolt, Stud |
90116-10063-00 |
from US $5.81 |
||
|
44
|
44
901-85100-51-00
Nut, Self-Locking
|
901-85100-51-00 |
— | ||
| replacement | |||||
|
44
|
44
90185-10027-00 Nut, Self-Locking |
90185-10027-00 |
from US $1.52 |
||
|
45
|
45
6H4-44557-00-00 Mount Damper, Lower Front |
6H4-44557-00-00 |
from US $74.61 |
||
|
45
|
45
6H4-44557-10-00 Mount Damper, Lower Front |
6H4-44557-10-00 |
from US $74.61 |
||
|
46
|
46
6H4-44553-01-00 Cover, Lower Mount |
6H4-44553-01-00 |
from US $71.39 |
||
|
47
|
47
97395-08025-00 Bolt |
97395-08025-00 |
from US $4.53 |
||
| replacements | |||||
|
47
|
47
98980-08025-00 Screw, Bind (98902-08025-00) |
98980-08025-00 |
from US $5.68 |
||
|
47
|
47
97095-08025-00 Bolt |
97095-08025-00 |
from US $3.38 |
||
|
48
|
48
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
49
|
49
97395-10060-00 Bolt |
97395-10060-00 |
from US $9.21 |
||
| replacement | |||||
|
49
|
49
97095-10060-00 Bolt |
97095-10060-00 |
from US $9.21 |
||
|
50
|
50
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $1.18 |
||
|
51
|
51
6H5-82117-00-00
Wire, Lead
|
6H5-82117-00-00 |
— | ||
|
52
|
52
6H5-82149-00-00
Wire, Lead 3
|
6H5-82149-00-00 |
— | ||
|
53
|
53
6H4-44514-00-00 Mount Damper, Upper Side |
6H4-44514-00-00 |
from US $43.11 |
||
|
54
|
54
90101-08M86-00 Bolt |
90101-08M86-00 |
from US $13.82 |
||
|
55
|
55
90201-09425-00 Washer, Plate |
90201-09425-00 |
from US $5.13 |
||
|
56
|
56
90185-08045-00 Nut, Self-Locking |
90185-08045-00 |
US $1.52 |
||
| replacement | |||||
|
56
|
56
901-85080-18-00 Nut, Self-Locking |
901-85080-18-00 |
from US $1.52 |
||
|
57
|
57
6H4-44511-00-94
Cover, Upper Mount
|
6H4-44511-00-94 |
— | ||
| replacement | |||||
|
57
|
57
6H4-44511-00-00
Cover, Upper Mount
|
6H4-44511-00-00 |
— | ||
|
58
|
58
97090-08035-00 Bolt |
97090-08035-00 |
from US $5.53 |
||
| replacements | |||||
|
58
|
58
97070-08035-00 Bolt |
97070-08035-00 |
from US $2.59 |
||
|
58
|
58
97095-08035-00 Bolt |
97095-08035-00 |
from US $5.53 |
||
|
59
|
59
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
60
|
60
6E5-82148-00-00 Wire, Lead 4 |
6E5-82148-00-00 |
from US $6.06 |
||
|
61
|
61
985-80060-12-00
Screw, Pan Head
|
985-80060-12-00 |
— | ||
| replacement | |||||
|
61
|
61
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
62
|
62
97395-10045-00 Bolt |
97395-10045-00 |
US $7.51 |
||
| replacements | |||||
|
62
|
62
970-75100-45-00 Bolt(64D) |
970-75100-45-00 |
from US $8.64 |
||
|
62
|
62
97095-10045-00 Bolt |
97095-10045-00 |
from US $5.74 |
||
|
63
|
63
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.66 |
||
|
64
|
64
90502-20M03-00 Spring, Conical |
90502-20M03-00 |
from US $6.80 |
||
|
65
|
65
90101-12M65-00 Bolt |
90101-12M65-00 |
US $18.99 |
||
|
66
|
66
92995-12200-00 Washer |
92995-12200-00 |
from US $2.09 |
||
| replacement | |||||
|
66
|
66
929-90122-00-00 Washer, Plain |
929-90122-00-00 |
from US $1.70 |
||
|
67
|
67
90201-12426-00 Washe, Plate(663) |
90201-12426-00 |
from US $3.24 |
||
|
68
|
68
95380-12600-00 Nut |
95380-12600-00 |
from US $5.40 |
||
|
69
|
69
90269-03010-00 Rivet |
90269-03010-00 |
from US $3.40 |
||
|
70
|
70
6G5-43145-00-00 Cap, Clamp Bracket |
6G5-43145-00-00 |
US $7.07 |
||
| replacement | |||||
|
70
|
70
6G5-43145-01-00 Cap, Clamp Bracket |
6G5-43145-01-00 |
from US $7.07 |
||
|
71
|
71
6H4-48511-51-4D
Hook, Steering
|
6H4-48511-51-4D |
— | ||
