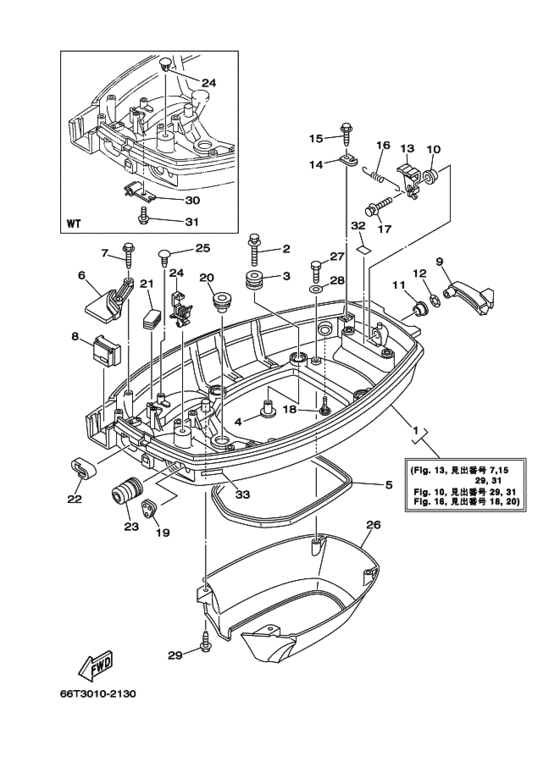

Bottom cowling assy Diagram Yamaha 40 M(W/T)HS/L
- Year
- 2003
- Model
- 40X
- Model code
- 66T
- Year
- 2003
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 40
- Sales region
- Japan (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
66T-42710-01-4D Bottom Cowling Assyボトムカウリングアセンブリ; |
66T-42710-01-4D |
US $394.20 |
||
|
2
|
2
901-1906M-61-00
Bolt, With Washer
ボルト，ウイズワツシヤ; |
901-1906M-61-00 |
— | ||
| replacements | |||||
|
2
|
2
90119-06M08-00 Bolt, With Washerボルト，ウイズワツシヤ; |
90119-06M08-00 |
from US $4.39 |
||
|
2
|
2
90119-06295-00 Bolt, With Washerボルト，ウイズワツシヤ; |
90119-06295-00 |
from US $4.39 |
||
|
3
|
3
90480-09M21-00 Grommet |
90480-09M21-00 |
from US $2.66 |
||
|
4
|
4
90387-06035-00 Collarカラー; |
90387-06035-00 |
US $5.38 |
||
| replacement | |||||
|
4
|
4
90387-06M41-00 Collarカラー; |
90387-06M41-00 |
from US $3.64 |
||
|
5
|
5
66T-42716-00-00 Rubber, Seal 1ラバー，シール １; |
66T-42716-00-00 |
US $11.76 |
||
|
6
|
6
66T-42738-00-5B Plate, Fittingプレート，フイツテイング; |
66T-42738-00-5B |
US $23.66 |
||
| replacement | |||||
|
6
|
6
66T-42738-00-CA Plate, Fittingプレート，フイツテイング; |
66T-42738-00-CA |
US $23.66 |
||
|
7
|
7
901-0906M-81-00 Bolt |
901-0906M-81-00 |
from US $2.52 |
||
|
8
|
8
66T-42725-10-00 GrommetＵＲ ＷＨ |
66T-42725-10-00 |
US $14.17 |
||
|
8
|
8
66T-42725-20-00 GrommetＵＲ ＷＴ |
66T-42725-20-00 |
US $14.17 |
||
|
9
|
9
66T-42815-01-4D Lever, Clampレバー，クランプ; |
66T-42815-01-4D |
US $32.02 |
||
|
10
|
10
90386-12M37-00 Bush |
90386-12M37-00 |
from US $7.79 |
||
|
11
|
11
90386-12MA2-00 Bush |
90386-12MA2-00 |
from US $1.66 |
||
|
12
|
12
902-06120-52-00 Washer, Waveワツシヤ，ウエイブ; |
902-06120-52-00 |
from US $2.32 |
||
|
13
|
13
66T-42816-00-00 Lever, Clampレバー，クランプ; |
66T-42816-00-00 |
from US $7.65 |
||
|
14
|
14
66T-43144-00-00 Hook, Spring |
66T-43144-00-00 |
from US $3.64 |
||
|
15
|
15
90109-06M86-00 Bolt |
90109-06M86-00 |
from US $2.52 |
||
|
16
|
16
90506-16M34-00 Spring, Tensionスプリング，テンシヨン; |
90506-16M34-00 |
from US $2.32 |
||
|
17
|
17
90119-06M73-00 Bolt, With Washerボルト，ウイズワツシヤ; |
90119-06M73-00 |
from US $4.12 |
||
| replacements | |||||
|
17
|
17
970-80060-12-00 Boltボルト，ウイズワツシヤ; |
970-80060-12-00 |
from US $1.98 |
||
|
17
|
17
90119-06273-00 ボルト，ウイズワツシヤ; |
90119-06273-00 |
from US $3.40 |
||
|
18
|
18
6E5-44391-00-00 Nipple, Hoseニツプル，ホース; |
6E5-44391-00-00 |
from US $5.10 |
||
|
19
|
19
65W-26326-00-00 GrommetＵＲ ＷＨ |
65W-26326-00-00 |
US $8.08 |
||
|
19
|
19
65W-26326-10-00 GrommetＵＲ ＷＴ |
65W-26326-10-00 |
US $7.93 |
||
|
20
|
20
676-42727-00-00 Grommetグロメツト; |
676-42727-00-00 |
US $6.94 |
||
|
21
|
21
6H1-42726-10-00 Grommetグロメツト; ＵＲ ＷＴ |
6H1-42726-10-00 |
from US $6.52 |
||
|
21
|
21
6H4-42726-00-00 Grommetグロメツト; ＵＲ ＷＨ |
6H4-42726-00-00 |
US $3.68 |
||
|
22
|
22
66T-24329-00-00 Sealシール; |
66T-24329-00-00 |
US $7.08 |
||
|
23
|
23
65W-42726-00-00 GrommetＵＲ ＷＨ |
65W-42726-00-00 |
US $3.54 |
||
|
23
|
23
65W-42726-10-00 GrommetＵＲ ＷＴ |
65W-42726-10-00 |
US $3.54 |
||
|
24
|
24
90338-07M00-00 PlugＵＲ ＷＴ |
90338-07M00-00 |
US $1.98 |
||
|
24
|
24
90465-25M57-00 Clampクランプ; ＵＲ ＷＨ |
90465-25M57-00 |
from US $9.92 |
||
|
25
|
25
90338-05M03-00 PlugＷＨ |
90338-05M03-00 |
from US $1.84 |
||
|
26
|
26
66T-42741-00-00 Apron |
66T-42741-00-00 |
US $101.96 |
||
|
27
|
27
97095-06016-00 Boltボルト; |
97095-06016-00 |
from US $1.28 |
||
| replacement | |||||
|
27
|
27
97D95-06016-00 Bolt, Hexagon Deep Recessボルト; |
97D95-06016-00 |
from US $1.28 |
||
|
28
|
28
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
28
|
28
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
29
|
29
90109-06M80-00 Bolt |
90109-06M80-00 |
from US $2.13 |
||
|
30
|
30
90464-09M49-00 ClampＷＴ |
90464-09M49-00 |
from US $3.83 |
||
|
31
|
31
90109-06M80-00 BoltＷＴ |
90109-06M80-00 |
from US $2.13 |
||
|
32
|
32
664-42791-00-00 Mark 1マーク １ ; ＮＧＫ Ｂ７ＨＳ |
664-42791-00-00 |
from US $0.95 |
||
|
33
|
33
697-42791-00-00 Mark 1マーク １; |
697-42791-00-00 |
US $15.12 |
||
