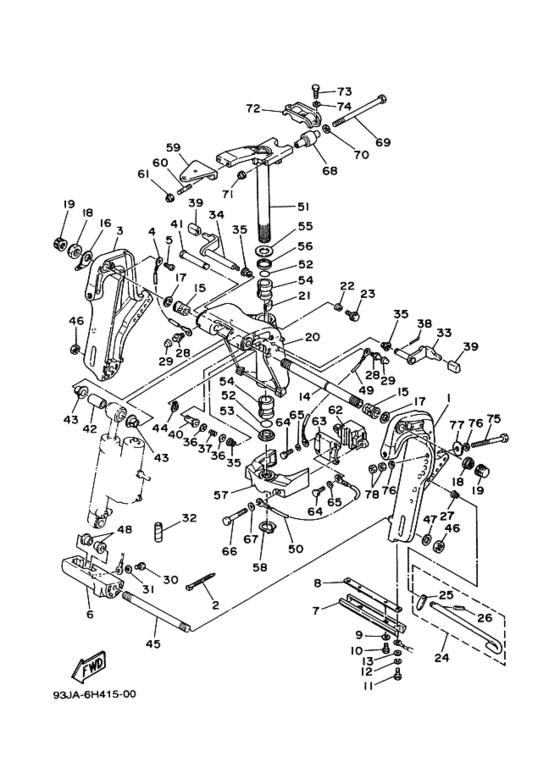

ﾌﾞﾗｹﾂﾄ (40HEPO/40HEMPO ﾓﾃﾞﾙ) Diagram Yamaha 40 M(E/O)S/L
- Year
- 1993
- Model
- K40J
- Model code
- 6H4
- Year
- 1993
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 40
- Sales region
- Japan (010)
- Colour
- Metallic Marine Silver (MMS; 00EK)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6H5-43111-02-EK
Bracket, Clamp 1
ブラケツト，クランプ; |
6H5-43111-02-EK |
— | ||
| replacement | |||||
|
1
|
1
6H5-43111-03-4D
element
ブラケツト，クランプ; |
6H5-43111-03-4D |
— | ||
|
2
|
2
90465-13M11-00 Clamp |
90465-13M11-00 |
from US $1.70 |
||
| replacement | |||||
|
2
|
2
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.21 |
||
|
3
|
3
6H5-43112-02-EK
Bracket, Clamp 2
ブラケツト，クランプ; |
6H5-43112-02-EK |
— | ||
| replacement | |||||
|
3
|
3
6H5-43112-03-EK
Bracket, Clamp 2
ブラケツト，クランプ; |
6H5-43112-03-EK |
— | ||
|
4
|
4
6E5-82148-00-00 Wire, Lead 4ワイヤ，リード ４; |
6E5-82148-00-00 |
from US $5.64 |
||
|
5
|
5
97895-06008-00 Screw, Pan Head |
97895-06008-00 |
US $1.56 |
||
| replacements | |||||
|
5
|
5
97885-06008-00 Screw, Pan Head |
97885-06008-00 |
from US $1.56 |
||
|
5
|
5
985-80060-08-00
Screw, Pan Head
|
985-80060-08-00 |
— | ||
|
6
|
6
6H5-43128-01-EK
Spacer, Clamp Bracket
スペーサ，クランプブラケツト; |
6H5-43128-01-EK |
— | ||
|
7
|
7
6H1-45251-02-00 Anodeアノード; |
6H1-45251-02-00 |
US $22.24 |
||
| replacement | |||||
|
7
|
7
6H1-45251-03-00 Anodeアノード; |
6H1-45251-03-00 |
from US $22.24 |
||
|
8
|
8
6H1-44526-00-00 Plateプレート; |
6H1-44526-00-00 |
from US $12.18 |
||
| replacement | |||||
|
8
|
8
6EK-44536-00-00 Plate 2プレート; |
6EK-44536-00-00 |
from US $12.18 |
||
|
9
|
9
90201-06M31-00 Washer, Plateワツシヤ，プレート; |
90201-06M31-00 |
from US $1.70 |
||
|
10
|
10
973-95060-12-00
Bolt
|
973-95060-12-00 |
— | ||
| replacement | |||||
|
10
|
10
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
11
|
11
973-95060-16-00
Bolt, Hex
|
973-95060-16-00 |
— | ||
| replacements | |||||
|
11
|
11
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
11
|
11
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
12
|
12
929-90061-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-90061-00-00 |
— | ||
| replacement | |||||
|
12
|
12
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.99 |
||
|
13
|
13
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.07 |
||
|
14
|
14
6J8-43131-01-00 Bolt, Clamp Bracketボルト，クランプブラケツト; |
6J8-43131-01-00 |
from US $34.72 |
||
|
15
|
15
90386-22M15-00 Bush |
90386-22M15-00 |
from US $4.96 |
||
|
16
|
16
6J8-43113-01-00 Plate, Clamp Bracketプレート，クランプブラケツト; |
6J8-43113-01-00 |
from US $6.52 |
||
|
17
|
17
90201-22428-00 Washer, Plateワツシヤ，プレート; |
90201-22428-00 |
US $4.11 |
||
| replacement | |||||
|
17
|
17
90201-22M03-00 Washer, Plateワツシヤ，プレート; |
90201-22M03-00 |
from US $2.66 |
||
|
18
|
18
901-85220-43-00
Nut, Self-Locking
|
901-85220-43-00 |
— | ||
| replacement | |||||
|
18
|
18
90185-22007-00 Nut, Self-Locking |
90185-22007-00 |
from US $23.16 |
||
|
19
|
19
6G5-43145-00-00 Cap, Clamp Bracketキヤツプ，クランプブラケツト; |
6G5-43145-00-00 |
US $7.23 |
||
| replacement | |||||
|
19
|
19
6G5-43145-01-00 Cap, Clamp Bracketキヤツプ，クランプブラケツト; |
6G5-43145-01-00 |
from US $6.62 |
||
|
20
|
20
6H5-43311-04-EK
Bracket, Swivel 1
ブラケツト，スウイベル; |
6H5-43311-04-EK |
— | ||
|
21
|
21
6J8-42528-00-00 Plate, Frictionプレート，フリクシヨン; |
6J8-42528-00-00 |
US $21.54 |
||
|
22
|
22
689-43373-01-00 Seal, Damperシール，ダンパ; |
689-43373-01-00 |
US $4.53 |
||
|
23
|
23
90105-06M18-00 Bolt, Flangeボルト，ワツシヤベースドヘツド; |
90105-06M18-00 |
from US $2.74 |
||
|
24
|
24
676-43160-02-00 Tilt Rod Assyチルトロツドアセンブリ; |
676-43160-02-00 |
from US $38.41 |
||
|
25
|
25
676-43165-00-00 Plate, Tilt Lock．プレート，チルトロツク; |
676-43165-00-00 |
from US $7.37 |
||
|
26
|
26
91690-30012-00 Pin, Spring．ピン，スプリング; |
91690-30012-00 |
from US $2.69 |
||
|
27
|
27
90502-10M04-00 Spring, Conical |
90502-10M04-00 |
from US $1.84 |
||
|
28
|
28
937-00060-04-00
Nipple, Grease
ニツプル，グリース; |
937-00060-04-00 |
— | ||
| replacement | |||||
|
28
|
28
93700-06M03-00 Nipple, Greaseニツプル，グリース; |
93700-06M03-00 |
from US $2.66 |
||
|
29
|
29
663-45119-00-00 Cap, Grease Nippleキヤツプ，グリースニツプル; |
663-45119-00-00 |
US $3.68 |
||
|
30
|
30
97395-06010-00 Bolt |
97395-06010-00 |
from US $1.15 |
||
| replacement | |||||
|
30
|
30
97085-06010-00 Bolt |
97085-06010-00 |
from US $1.28 |
||
|
31
|
31
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.07 |
||
|
32
|
32
90446-10M01-00 Hose (L60)ホース; |
90446-10M01-00 |
from US $4.68 |
||
|
33
|
33
6H5-43181-02-00
Lever, Tilt Stop
レバー，チルトストツプ; |
6H5-43181-02-00 |
— | ||
|
34
|
34
6H5-43185-02-00
Lever, Tilt Stop
レバー，チルトストツプ; |
6H5-43185-02-00 |
— | ||
|
35
|
35
90386-10M16-00 Bush |
90386-10M16-00 |
from US $2 |
||
|
36
|
36
929-90106-00-00 Washer, Plateワツシヤ，プレート; |
929-90106-00-00 |
from US $1.07 |
||
|
37
|
37
90501-10M21-00 Spring, Compression |
90501-10M21-00 |
US $2.41 |
||
|
38
|
38
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.13 |
||
|
39
|
39
663-43318-00-00 Coverカバー; |
663-43318-00-00 |
from US $4.96 |
||
|
40
|
40
90386-10M19-00
Bush
|
90386-10M19-00 |
— | ||
|
41
|
41
6H5-43126-02-00
Pin, Upper Shock Mount
ピン，アツパーシヨツクマウント; |
6H5-43126-02-00 |
— | ||
|
42
|
42
903-8612M-65-00
Bush
|
903-8612M-65-00 |
— | ||
|
43
|
43
90386-12M64-00 Bush |
90386-12M64-00 |
from US $15.02 |
||
|
44
|
44
93410-12M08-00
Circlip
サークリツプ; |
93410-12M08-00 |
— | ||
|
45
|
45
90116-18M21-00
Bolt, Stud
|
90116-18M21-00 |
— | ||
|
46
|
46
90170-18M10-00 Nut |
90170-18M10-00 |
from US $7.93 |
||
|
47
|
47
92990-18600-00 Washer |
92990-18600-00 |
US $6.38 |
||
| replacement | |||||
|
47
|
47
92995-18600-00 Washer |
92995-18600-00 |
from US $6.38 |
||
|
48
|
48
90386-18M44-00 Bush |
90386-18M44-00 |
from US $2.66 |
||
|
49
|
49
6H5-82127-00-00
Wire Lead
ワイヤ，リード ２; |
6H5-82127-00-00 |
— | ||
| replacement | |||||
|
49
|
49
6H5-82117-00-00
Wire, Lead
ワイヤ，リード ２; |
6H5-82117-00-00 |
— | ||
|
50
|
50
6H5-82149-00-00
Wire, Lead 3
ワイヤ，リード ３; |
6H5-82149-00-00 |
— | ||
|
51
|
51
6H4-42510-02-EK
Steering Bracket Assembly
ステアリングブラケツトアセンブリ; |
6H4-42510-02-EK |
— | ||
| replacement | |||||
|
51
|
51
6H4-42510-09-EK
Steering Bracket A
ステアリングブラケツトアセンブリ; |
6H4-42510-09-EK |
— | ||
|
52
|
52
93210-29M94-00 O-Ring |
93210-29M94-00 |
from US $2 |
||
|
53
|
53
90386-30M60-00 Bush |
90386-30M60-00 |
from US $2.66 |
||
|
54
|
54
90386-30M77-00 Bush |
90386-30M77-00 |
from US $9.92 |
||
|
55
|
55
90201-30M00-00 Washer, Plateワツシヤ，プレート; |
90201-30M00-00 |
from US $4.64 |
||
|
56
|
56
90386-30M78-00 Bush |
90386-30M78-00 |
from US $2.66 |
||
|
57
|
57
6H4-44551-01-EK
Housing, Lower Mount
ハウジング，ロワーマウントラバー; |
6H4-44551-01-EK |
— | ||
| replacement | |||||
|
57
|
57
6H4-44551-02-EK
Housing, Lower Mount
ハウジング，ロワーマウントラバー; |
6H4-44551-02-EK |
— | ||
|
58
|
58
93410-28M06-00 Circlipサークリツプ; |
93410-28M06-00 |
from US $7.23 |
||
|
59
|
59
6H4-48511-51-EK
Hook, Steering
フツク，ステアリング; |
6H4-48511-51-EK |
— | ||
| replacement | |||||
|
59
|
59
6H4-48511-51-4D
Hook, Steering
フツク，ステアリング; |
6H4-48511-51-4D |
— | ||
|
60
|
60
90116-10175-00 Bolt, Stud |
90116-10175-00 |
from US $5.38 |
||
| replacements | |||||
|
60
|
60
901-16100-62-00 Bolt, Stud |
901-16100-62-00 |
from US $5.38 |
||
|
60
|
60
90116-10063-00 Bolt, Stud |
90116-10063-00 |
from US $5.64 |
||
|
61
|
61
901-85100-51-00
Nut, Self-Locking
|
901-85100-51-00 |
— | ||
| replacement | |||||
|
61
|
61
90185-10027-00 Nut, Self-Locking |
90185-10027-00 |
from US $1.42 |
||
|
62
|
62
6H4-44557-00-00 Mount Damper, Lower Frontマウントダンパ，ロワーフロント; ＵＲ シヨート |
6H4-44557-00-00 |
from US $74.61 |
||
|
62
|
62
6H4-44557-10-00 Mount Damper, Lower Frontマウントダンパ，ロワーフロント; ＵＲ ロング／スーパーロング |
6H4-44557-10-00 |
from US $74.61 |
||
|
62
|
62
6H4-44557-30-00
Mount Damper, Lower Front
マウントダンパ，ロワーフロント; ＵＲ ウルトラロング |
6H4-44557-30-00 |
— | ||
|
63
|
63
6H4-44553-01-00 Cover, Lower Mountカバー，ロワーマウント; |
6H4-44553-01-00 |
from US $71.39 |
||
|
64
|
64
97395-08025-00 Bolt |
97395-08025-00 |
from US $4.53 |
||
| replacements | |||||
|
64
|
64
98980-08025-00 Screw, Bind (98902-08025-00) |
98980-08025-00 |
from US $5.24 |
||
|
64
|
64
97095-08025-00 Bolt |
97095-08025-00 |
from US $2.98 |
||
|
65
|
65
92990-08600-00 Washer, Plateワツシヤ，プレート; |
92990-08600-00 |
from US $1.34 |
||
|
66
|
66
97395-10060-00 Bolt |
97395-10060-00 |
from US $9.21 |
||
| replacement | |||||
|
66
|
66
97095-10060-00 Bolt |
97095-10060-00 |
from US $9.21 |
||
|
67
|
67
929-90106-00-00 Washer, Plateワツシヤ，プレート; |
929-90106-00-00 |
from US $1.07 |
||
|
68
|
68
6H4-44514-00-00 Mount Damper, Upper Sideマウントダンパ，アツパーサイド; ＵＲ シヨート／ロング／スーパーロング |
6H4-44514-00-00 |
from US $43.11 |
||
|
68
|
68
6H4-44514-30-00
Mount Damper, Upper Side
マウントダンパ，アツパーサイド; ＵＲ ウルトラロング |
6H4-44514-30-00 |
— | ||
|
69
|
69
90101-08M86-00 Bolt |
90101-08M86-00 |
from US $13.24 |
||
|
70
|
70
90201-09425-00 Washer, Plateワツシヤ，プレート; |
90201-09425-00 |
from US $4.68 |
||
|
71
|
71
90185-08045-00 Nut, Self-Locking |
90185-08045-00 |
US $1.42 |
||
| replacement | |||||
|
71
|
71
901-85080-18-00 Nut, Self-Locking |
901-85080-18-00 |
from US $1.42 |
||
|
72
|
72
6H4-44511-00-EK Cover, Upper Mountカバー，アツパーマウントラバー; |
6H4-44511-00-EK |
US $47.90 |
||
| replacement | |||||
|
72
|
72
6H4-44511-00-00
Cover, Upper Mount
カバー，アツパーマウントラバー; |
6H4-44511-00-00 |
— | ||
|
73
|
73
97090-08035-00 Boltボルト; |
97090-08035-00 |
from US $5.53 |
||
| replacements | |||||
|
73
|
73
97070-08035-00 Boltボルト; |
97070-08035-00 |
from US $2.59 |
||
|
73
|
73
97095-08035-00 Boltボルト; |
97095-08035-00 |
from US $5.30 |
||
|
74
|
74
92990-08100-00 Ybs67-8 Washer, Springワツシヤ，スプリング; |
92990-08100-00 |
from US $1.34 |
||
|
75
|
75
90101-12M65-00 Bolt |
90101-12M65-00 |
US $18.99 |
||
|
76
|
76
929-90122-00-00 Washer, Plainワツシヤ，プレーン; |
929-90122-00-00 |
from US $1.34 |
||
|
77
|
77
90201-12426-00 Washe, Plate(663)ワツシヤ，プレート; |
90201-12426-00 |
from US $3.24 |
||
|
78
|
78
95380-12600-00 Nut |
95380-12600-00 |
from US $4.96 |
||
