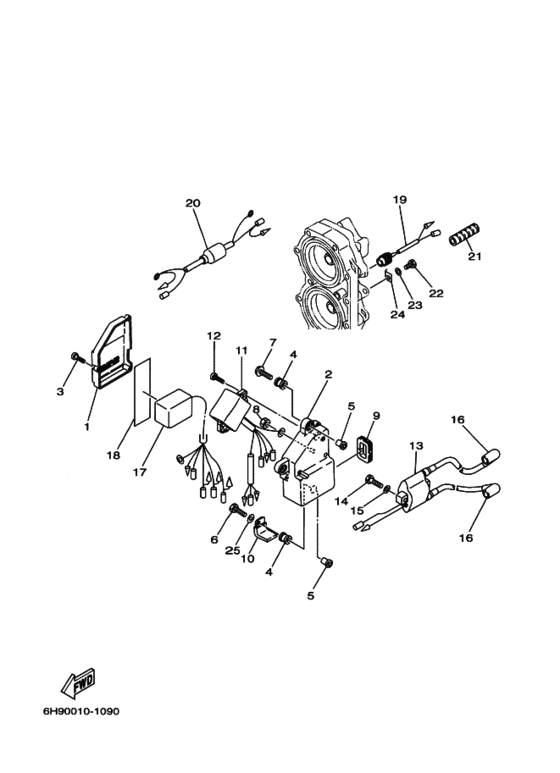

Electrical 1 Diagram Yamaha 40 M(W/)S/L
- Year
- 2001
- Model
- K40J
- Model code
- 6H9
- Year
- 2001
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 40
- Sales region
- Japan (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6F5-81916-40-00
Cover, Terminal
カバ−，タ−ミナル; |
6F5-81916-40-00 |
— | ||
|
2
|
2
6F5-85542-40-00
Bracket
|
6F5-85542-40-00 |
— | ||
|
3
|
3
90164-05M00-00 Screw, Tappingtapping |
90164-05M00-00 |
from US $3.26 |
||
|
4
|
4
6A0-82317-00-00 Damper, Ignition Coilダンパ，イグニツシヨンコイル; |
6A0-82317-00-00 |
from US $4.53 |
||
| replacement | |||||
|
4
|
4
6A0-82317-01-00 DAMPER IGNITION COILダンパ，イグニツシヨンコイル; |
6A0-82317-01-00 |
from US $2.02 |
||
|
5
|
5
624-42542-00-00 Collarパイプ; |
624-42542-00-00 |
US $6.23 |
||
| replacement | |||||
|
5
|
5
90387-06119-00 Collarパイプ; |
90387-06119-00 |
from US $2.36 |
||
|
6
|
6
970-95060-25-00
Bolt
ボルト; |
970-95060-25-00 |
— | ||
| replacement | |||||
|
6
|
6
90101-06M27-00 Boltボルト; |
90101-06M27-00 |
from US $1.35 |
||
|
7
|
7
90119-06M88-00 Bolt, With Washer |
90119-06M88-00 |
from US $2.98 |
||
| replacement | |||||
|
7
|
7
90119-06311-00 |
90119-06311-00 |
from US $1.21 |
||
|
8
|
8
95380-06600-00 Nut, Hexagonナツト，ヘキサゴン; |
95380-06600-00 |
from US $1.07 |
||
|
9
|
9
6F5-81922-40-00
Grommet
|
6F5-81922-40-00 |
— | ||
|
10
|
10
90465-06M16-00
Clamp
|
90465-06M16-00 |
— | ||
|
11
|
11
6F5-85540-22-00 C.d.i. Unit AssyＣ．Ｄ．Ｉ．ユニツトアセンブリ; |
6F5-85540-22-00 |
US $678.48 |
||
| replacement | |||||
|
11
|
11
6F5-85540-23-00 CDI UNIT ASSYＣ．Ｄ．Ｉ．ユニツトアセンブリ; |
6F5-85540-23-00 |
from US $502.70 |
||
|
12
|
12
90164-06M01-00 Screw, Tapping |
90164-06M01-00 |
from US $3.83 |
||
|
13
|
13
6F5-85570-11-00 Ignition Coil Assyイグニツシヨンコイルアセンブリ; |
6F5-85570-11-00 |
US $107.21 |
||
|
14
|
14
970-95060-25-00
Bolt
ボルト; |
970-95060-25-00 |
— | ||
| replacement | |||||
|
14
|
14
90101-06M27-00 Boltボルト; |
90101-06M27-00 |
from US $1.35 |
||
|
15
|
15
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
15
|
15
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
16
|
16
682-82370-00-00 Plug Cap Assyプラグキヤツプアセンブリ; |
682-82370-00-00 |
from US $21.68 |
||
| replacement | |||||
|
16
|
16
66T-82370-00-00 Plug Cap Assyプラグキヤツプアセンブリ; |
66T-82370-00-00 |
from US $16.50 |
||
|
17
|
17
6F5-85590-21-00 Control Unit Assy |
6F5-85590-21-00 |
US $414.66 |
||
|
18
|
18
6F5-82131-00-00
Band, Battery
バンド，バツテリ; |
6F5-82131-00-00 |
— | ||
|
19
|
19
688-82560-10-00 Thermo Switch Assyサ−モスイツチアセンブリ; |
688-82560-10-00 |
from US $49.16 |
||
|
20
|
20
6F5-82519-10-00
Wire, Earth Lead
ワイヤ，ア−スリ−ド; |
6F5-82519-10-00 |
— | ||
|
21
|
21
90446-10M01-00 Hose (L60) |
90446-10M01-00 |
from US $4.68 |
||
|
22
|
22
97095-06016-00 Boltボルト; |
97095-06016-00 |
from US $1.28 |
||
| replacement | |||||
|
22
|
22
97D95-06016-00 Bolt, Hexagon Deep Recessボルト; |
97D95-06016-00 |
from US $1.28 |
||
|
23
|
23
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
23
|
23
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
24
|
24
6F5-82588-00-00 Plate |
6F5-82588-00-00 |
US $5.24 |
||
|
25
|
25
90201-06050-00 Washer, Plateワツシヤ，プレート; |
90201-06050-00 |
US $1.56 |
||
| replacement | |||||
|
25
|
25
90201-06M08-00 Washer, Plateワツシヤ，プレート; |
90201-06M08-00 |
from US $1.56 |
||
