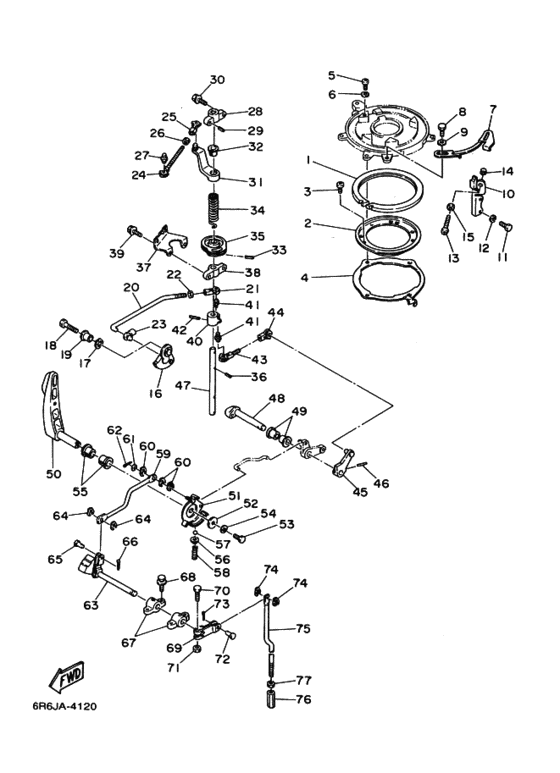

ｺﾝﾄﾛ-ﾙ Diagram Yamaha 40 M(W/E)HS/L
- Year
- 1998
- Model
- 40Q
- Model code
- 6R6
- Year
- 1998
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 40
- Sales region
- Japan (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
676-41611-00-00 Retainer, Magneto Baseリテ−ナ，マグネツトベ−ス; |
676-41611-00-00 |
from US $15.88 |
||
|
2
|
2
689-41612-01-00 Retainer, Magneto Baseリテ−ナ，マグネツトベ−ス; |
689-41612-01-00 |
US $18.42 |
||
|
3
|
3
97880-06012-00 Screw, Pan Head |
97880-06012-00 |
US $1.56 |
||
| replacement | |||||
|
3
|
3
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
4
|
4
676-41613-00-00 Plate, Base Frictionプレ−ト，ベ−スフリクシヨン; |
676-41613-00-00 |
from US $20.97 |
||
|
5
|
5
97880-05012-00 Screw, Pan Head |
97880-05012-00 |
from US $2.13 |
||
| replacement | |||||
|
5
|
5
98580-05012-00 Screw, Pan Head |
98580-05012-00 |
from US $1.34 |
||
|
6
|
6
92990-05100-00 Washer, Springワツシヤ，スプリング; |
92990-05100-00 |
from US $1.21 |
||
|
7
|
7
6E9-41615-00-00
Stopper, Magneto Base
ストツパ，マグネツトベ−ス; |
6E9-41615-00-00 |
— | ||
|
8
|
8
970-95060-10-00
Bolt
ボルト; |
970-95060-10-00 |
— | ||
| replacement | |||||
|
8
|
8
97085-06010-00 Boltボルト; |
97085-06010-00 |
from US $1.28 |
||
|
9
|
9
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
9
|
9
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
10
|
10
679-41606-00-00
Stopper Magneto Base Comp. 2
ストツパマグネツトベ−スコンプリ−ト ２; |
679-41606-00-00 |
— | ||
|
11
|
11
97013-06016-00 Boltボルト; |
97013-06016-00 |
from US $1.28 |
||
| replacements | |||||
|
11
|
11
97095-06016-00 Boltボルト; |
97095-06016-00 |
from US $1.28 |
||
|
11
|
11
97014-06016-00 Bolt, Hexagonボルト; |
97014-06016-00 |
from US $1.28 |
||
|
11
|
11
97D95-06016-00 Bolt, Hexagon Deep Recessボルト; |
97D95-06016-00 |
from US $1.28 |
||
|
12
|
12
92903-06100-00 Washer, Springワツシヤ，スプリング; |
92903-06100-00 |
US $0.99 |
||
| replacement | |||||
|
12
|
12
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.99 |
||
|
13
|
13
90157-06M00-00 Screw, Pan Head |
90157-06M00-00 |
US $2.69 |
||
| replacement | |||||
|
13
|
13
90157-06M13-00 Screw, Pan Head |
90157-06M13-00 |
from US $2.69 |
||
|
14
|
14
663-44194-00-00 Capキヤツプ; |
663-44194-00-00 |
from US $6.94 |
||
|
15
|
15
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.34 |
||
| replacement | |||||
|
15
|
15
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.42 |
||
|
16
|
16
6E9-41213-01-00
Cam, Accel
|
6E9-41213-01-00 |
— | ||
|
17
|
17
90206-10M04-00 Washer, Waveワツシヤ，ウエイブ; |
90206-10M04-00 |
from US $1.84 |
||
|
18
|
18
970-95060-30-00
Bolt
ボルト; |
970-95060-30-00 |
— | ||
| replacement | |||||
|
18
|
18
97080-06030-00 Boltボルト; |
97080-06030-00 |
from US $2.83 |
||
|
19
|
19
90387-06M29-00 Collar |
90387-06M29-00 |
from US $5.81 |
||
|
20
|
20
6E9-41211-00-00
Link, Accel
リンク，アクセル; |
6E9-41211-00-00 |
— | ||
|
21
|
21
662-41237-01-00 Joint, Linkジヨイント，リンク; |
662-41237-01-00 |
US $5.95 |
||
| replacement | |||||
|
21
|
21
6H1-41237-00-00 Joint, Linkジヨイント，リンク; |
6H1-41237-00-00 |
from US $5.95 |
||
|
22
|
22
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
23
|
23
6E9-41237-00-00 Joint, Linkジヨイント，リンク; |
6E9-41237-00-00 |
US $9.49 |
||
| replacement | |||||
|
23
|
23
6R5-41237-00-00 Joint, Linkジヨイント，リンク; |
6R5-41237-00-00 |
from US $6.30 |
||
|
24
|
24
682-41238-01-00 Joint, Link |
682-41238-01-00 |
from US $7.93 |
||
|
25
|
25
682-41237-00-00 Joint, Link 2ジヨイント，リンク; |
682-41237-00-00 |
from US $1.66 |
||
|
26
|
26
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
27
|
27
663-85518-00-00 Joint, Ball |
663-85518-00-00 |
from US $8.64 |
||
|
28
|
28
676-41661-00-00
Bracket 1
ブラケツト; |
676-41661-00-00 |
— | ||
|
29
|
29
91690-40010-00 Pin, Spring |
91690-40010-00 |
from US $3.12 |
||
|
30
|
30
975-95065-20-00
Bolt, With Washer
ボルト，ウイズワツシヤ; |
975-95065-20-00 |
— | ||
| replacements | |||||
|
30
|
30
970-80060-20-00 Boltボルト，ウイズワツシヤ; |
970-80060-20-00 |
from US $1.56 |
||
|
30
|
30
97E95-06520-00 Bolt, Hexagon W/w Deボルト，ウイズワツシヤ; |
97E95-06520-00 |
from US $1.07 |
||
|
31
|
31
676-41631-00-94
Lever, Magneto Control
レバ−，マグネツトコントロ−ル; |
676-41631-00-94 |
— | ||
| replacement | |||||
|
31
|
31
676-41631-00-00
Lever, Magneto Control
レバ−，マグネツトコントロ−ル; |
676-41631-00-00 |
— | ||
|
32
|
32
90386-10009-00 Bush |
90386-10009-00 |
from US $4.11 |
||
|
33
|
33
91690-30018-00 Pin, Spring |
91690-30018-00 |
from US $1.66 |
||
|
34
|
34
90508-20M01-00
Spring, Torsion
|
90508-20M01-00 |
— | ||
|
35
|
35
679-41638-00-00 Pulleyプーリ; |
679-41638-00-00 |
US $16.30 |
||
|
36
|
36
91690-30018-00 Pin, Spring |
91690-30018-00 |
from US $1.66 |
||
|
37
|
37
676-14497-00-00
Stay, Throttle Wire
ステ−，スロツトルワイヤ; |
676-14497-00-00 |
— | ||
|
38
|
38
676-41662-00-00 Bracket 2ブラケツト; |
676-41662-00-00 |
from US $14.38 |
||
|
39
|
39
97095-06020-00 Boltボルト; |
97095-06020-00 |
US $1.56 |
||
| replacement | |||||
|
39
|
39
970-80060-20-00 Boltボルト; |
970-80060-20-00 |
from US $1.56 |
||
|
40
|
40
6E9-41632-00-94
Lever, Magneto Control
レバ−，マグネツトコントロ−ル; |
6E9-41632-00-94 |
— | ||
|
41
|
41
663-85518-00-00 Joint, Ball |
663-85518-00-00 |
from US $8.64 |
||
|
42
|
42
91690-30018-00 Pin, Spring |
91690-30018-00 |
from US $1.66 |
||
|
43
|
43
679-41241-01-00 Rod, Linkロツド，リンク; |
679-41241-01-00 |
from US $11.05 |
||
|
44
|
44
662-41237-01-00 Joint, Linkジヨイント，リンク; |
662-41237-01-00 |
US $5.95 |
||
| replacement | |||||
|
44
|
44
6H1-41237-00-00 Joint, Linkジヨイント，リンク; |
6H1-41237-00-00 |
from US $5.95 |
||
|
45
|
45
676-42154-00-94
Lever, Throttle Control
レバ−スロツトルコントロ−ル; |
676-42154-00-94 |
— | ||
| replacement | |||||
|
45
|
45
676-42154-00-00
Lever, Throttle Control
レバ−スロツトルコントロ−ル; |
676-42154-00-00 |
— | ||
|
46
|
46
91690-40022-00 Pin, Spring |
91690-40022-00 |
from US $1.98 |
||
|
47
|
47
676-41635-00-00
Shaft, Link Connecting
シヤフト，リンクコネクテイング; |
676-41635-00-00 |
— | ||
|
48
|
48
676-42153-01-94 Shaft, Throttle Controlシヤフト，スロツトルコントロ−ル; |
676-42153-01-94 |
from US $19.90 |
||
|
49
|
49
90386-10009-00 Bush |
90386-10009-00 |
from US $4.11 |
||
|
50
|
50
6A0-44111-01-4D
Handle, Gear Shift
ハンドル，ギヤシフト; |
6A0-44111-01-4D |
— | ||
|
51
|
51
6A0-44113-00-00 Cam Plate, Handleカムプレ−ト，ハンドル; |
6A0-44113-00-00 |
US $20.71 |
||
|
52
|
52
90201-06068-00 Washer, Plate |
90201-06068-00 |
US $2.98 |
||
| replacement | |||||
|
52
|
52
90201-06M02-00 Washer,plate (6K8) |
90201-06M02-00 |
from US $2.27 |
||
|
53
|
53
97095-06012-00 Boltボルト; |
97095-06012-00 |
from US $1.98 |
||
| replacement | |||||
|
53
|
53
970-80060-12-00 Boltボルト; |
970-80060-12-00 |
from US $1.98 |
||
|
54
|
54
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.99 |
||
|
55
|
55
90386-13057-00 Bush |
90386-13057-00 |
US $2.55 |
||
|
56
|
56
676-42715-00-00
Bushing
ブツシング; |
676-42715-00-00 |
— | ||
|
57
|
57
93505-16024-00 Ball, Steel |
93505-16024-00 |
from US $2.45 |
||
|
58
|
58
90501-12274-00 1090 Spring, Compression |
90501-12274-00 |
from US $1.98 |
||
|
59
|
59
6E9-44142-00-00
Joint
ジヨイント １; |
6E9-44142-00-00 |
— | ||
|
60
|
60
676-44188-00-00
Washer
ワツシヤ; |
676-44188-00-00 |
— | ||
|
61
|
61
929-03056-00-00
Washer, Plate
ワツシヤ，プレ−ト; |
929-03056-00-00 |
— | ||
| replacement | |||||
|
61
|
61
92990-05600-00 Washer, Plateワツシヤ，プレ−ト; |
92990-05600-00 |
from US $1.07 |
||
|
62
|
62
91490-16010-00 Pin. Cotter |
91490-16010-00 |
from US $1.34 |
||
|
63
|
63
6E9-44119-00-00
Shaft, Change
|
6E9-44119-00-00 |
— | ||
|
64
|
64
676-44188-00-00
Washer
ワツシヤ; |
676-44188-00-00 |
— | ||
|
65
|
65
91790-05014-00 Pin, Clevis |
91790-05014-00 |
from US $5.53 |
||
|
66
|
66
91490-16010-00 Pin. Cotter |
91490-16010-00 |
from US $1.34 |
||
|
67
|
67
676-41662-00-00 Bracket 2ブラケツト; |
676-41662-00-00 |
from US $14.38 |
||
|
68
|
68
975-95065-20-00
Bolt, With Washer
ボルト，ウイズワツシヤ; |
975-95065-20-00 |
— | ||
| replacements | |||||
|
68
|
68
970-80060-20-00 Boltボルト，ウイズワツシヤ; |
970-80060-20-00 |
from US $1.56 |
||
|
68
|
68
97E95-06520-00 Bolt, Hexagon W/w Deボルト，ウイズワツシヤ; |
97E95-06520-00 |
from US $1.07 |
||
|
69
|
69
676-44121-01-00 Lever, Shift Rodレバ−，シフトロツド; |
676-44121-01-00 |
US $13.80 |
||
|
70
|
70
97013-06020-00 Boltボルト; |
97013-06020-00 |
from US $1.42 |
||
|
71
|
71
95313-06700-00 Nut |
95313-06700-00 |
US $4.21 |
||
|
72
|
72
91790-05014-00 Pin, Clevis |
91790-05014-00 |
from US $5.53 |
||
|
73
|
73
91490-16010-00 Pin. Cotter |
91490-16010-00 |
from US $1.34 |
||
|
74
|
74
676-44188-00-00
Washer
ワツシヤ; |
676-44188-00-00 |
— | ||
|
75
|
75
676-44143-00-00 Rod, Shiftロツド，シフト; |
676-44143-00-00 |
from US $29.16 |
||
|
76
|
76
648-44146-00-00 Connector, Shift Rod 2コネクタ，シフトロツド; |
648-44146-00-00 |
from US $6.30 |
||
|
77
|
77
90170-07021-00 Nut |
90170-07021-00 |
from US $3.97 |
||
