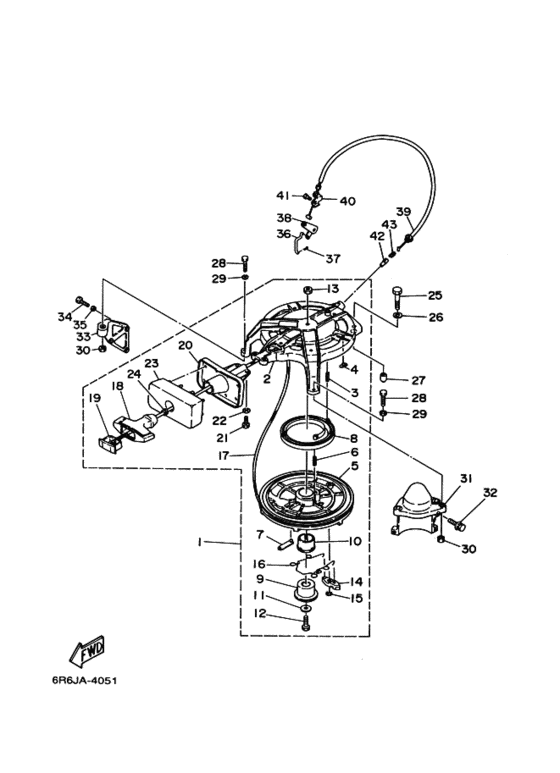

Starter Diagram Yamaha 40 M(W/E)HS/L
- Year
- 1997
- Model
- 40Q
- Model code
- 6R6
- Year
- 1997
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 40
- Sales region
- Japan (010)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6R6-15710-01-4D
Starter Assembly
スタータアセンブリ; |
6R6-15710-01-4D |
— | ||
| replacement | |||||
|
1
|
1
6R6-Y130P-10-00
GUIDE,ROPE
スタータアセンブリ; |
6R6-Y130P-10-00 |
— | ||
|
2
|
2
676-15711-01-94
Case, Starter
．ケース，スタータ; |
676-15711-01-94 |
— | ||
|
3
|
3
91690-40020-00 Pin, Spring．ピン，スプリング; |
91690-40020-00 |
from US $3.12 |
||
|
4
|
4
676-15773-00-00 Stay 3．ステー ３; |
676-15773-00-00 |
US $2.64 |
||
|
5
|
5
676-15714-00-94
Drum, Sheave
．ドラム，シーブ; |
676-15714-00-94 |
— | ||
|
6
|
6
91690-40020-00 Pin, Spring．ピン，スプリング; |
91690-40020-00 |
from US $3.12 |
||
|
7
|
7
676-15799-01-00 Clip．クリツプ; |
676-15799-01-00 |
US $6.91 |
||
|
8
|
8
90510-09M00-00 Spring, Spiral．スプリング，スパイラル; |
90510-09M00-00 |
from US $43.04 |
||
|
9
|
9
676-15717-00-00 Shaft, Starter．シヤフト，スタータ; |
676-15717-00-00 |
US $28.79 |
||
|
10
|
10
90386-35M01-00 Bush．ブツシユ; |
90386-35M01-00 |
from US $8.36 |
||
|
11
|
11
90201-08309-00 Washer, Plate．ワツシヤ，プレート; |
90201-08309-00 |
US $2.05 |
||
|
12
|
12
97013-08025-00 Bolt (682)．ボルト; |
97013-08025-00 |
from US $3.54 |
||
|
13
|
13
953-33086-00-00 Nut．ナツト; |
953-33086-00-00 |
from US $1.39 |
||
| replacement | |||||
|
13
|
13
997-80086-00-00 Nut, Hex．ナツト; |
997-80086-00-00 |
from US $1.81 |
||
|
14
|
14
676-15741-03-00 Pawl, Drive．ポール，ドライブ; |
676-15741-03-00 |
from US $8.08 |
||
|
15
|
15
93430-06M02-00 Circlip．サークリツプ; |
93430-06M02-00 |
from US $1.70 |
||
|
16
|
16
676-15705-00-00 Spring, Drive Pawl．スプリング，ドライブポール; |
676-15705-00-00 |
from US $5.74 |
||
|
18
|
18
689-15755-01-00 Handle, Starter．ハンドル，スタータ; |
689-15755-01-00 |
US $10.63 |
||
| replacement | |||||
|
18
|
18
689-15755-02-00 HANDLE STARTER．ハンドル，スタータ; |
689-15755-02-00 |
from US $6.06 |
||
|
19
|
19
6F5-15779-02-00 Cover．カバー; |
6F5-15779-02-00 |
from US $2.36 |
||
|
20
|
20
6R6-15758-01-EJ
Guide, Rope
．ガイド，ロープ; |
6R6-15758-01-EJ |
— | ||
|
21
|
21
973-95060-16-00
Bolt, Hex
．ボルト; |
973-95060-16-00 |
— | ||
| replacements | |||||
|
21
|
21
97095-06016-00 Bolt．ボルト; |
97095-06016-00 |
US $1.52 |
||
|
21
|
21
97D95-06016-00 Bolt, Hexagon Deep Recess．ボルト; |
97D95-06016-00 |
from US $1.52 |
||
|
22
|
22
929-90066-00-00 Washer, Plain (646)．ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.39 |
||
|
23
|
23
6A0-15762-00-00 Seal, Rubber 2．シール，ラバー ２; |
6A0-15762-00-00 |
US $58.58 |
||
| replacement | |||||
|
23
|
23
6A0-15762-01-00 Seal, Rubber 2．シール，ラバー ２; |
6A0-15762-01-00 |
from US $51.14 |
||
|
24
|
24
6A0-15789-00-00
Damper
．ダンパ; |
6A0-15789-00-00 |
— | ||
| replacement | |||||
|
24
|
24
697-15789-00-00 Damper．ダンパ; |
697-15789-00-00 |
US $4.39 |
||
|
25
|
25
97395-08040-00 Bolt |
97395-08040-00 |
from US $4.93 |
||
| replacement | |||||
|
25
|
25
97095-08040-00 Bolt |
97095-08040-00 |
from US $5.68 |
||
|
26
|
26
92990-08100-00 Ybs67-8 Washer, Springワツシヤ，スプリング; |
92990-08100-00 |
from US $1.66 |
||
|
27
|
27
995-10120-16-00
Pin, Dowel
|
995-10120-16-00 |
— | ||
| replacement | |||||
|
27
|
27
99530-12016-00 Pin, Dowel |
99530-12016-00 |
from US $1.52 |
||
|
28
|
28
970-95060-30-00
Bolt
ボルト; |
970-95060-30-00 |
— | ||
| replacement | |||||
|
28
|
28
97080-06030-00 Boltボルト; |
97080-06030-00 |
from US $2.83 |
||
|
29
|
29
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.97 |
||
|
30
|
30
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
31
|
31
6E9-15771-00-94
Stay 1
ステー １; ＵＲ ４０ＱＭ |
6E9-15771-00-94 |
— | ||
|
31
|
31
6E9-15771-40-94
Stay 1
ステー １; ＵＲ ４０ＱＥＭ／４０ＱＥＰ |
6E9-15771-40-94 |
— | ||
|
32
|
32
90119-08M25-00 Bolt, With Washerボルト，ウイズワツシヤ; ＵＲ ４０ＱＥＭ／４０ＱＥＰ |
90119-08M25-00 |
US $3.97 |
||
| replacement | |||||
|
32
|
32
97080-08030-00 Boltボルト，ウイズワツシヤ; ＵＲ ４０ＱＥＭ／４０ＱＥＰ |
97080-08030-00 |
from US $2.91 |
||
|
32
|
32
97513-08530-00 Bolt, With Washer C40Mhボルト; ＵＲ ４０ＱＭ |
97513-08530-00 |
from US $2.83 |
||
|
33
|
33
676-15772-00-94
Stay 2
ステー ２; |
676-15772-00-94 |
— | ||
|
34
|
34
970-95060-25-00
Bolt
ボルト; |
970-95060-25-00 |
— | ||
| replacement | |||||
|
34
|
34
90101-06M27-00 Boltボルト; |
90101-06M27-00 |
from US $1.52 |
||
|
35
|
35
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.39 |
||
|
36
|
36
676-15747-01-00 Link |
676-15747-01-00 |
US $3.09 |
||
|
37
|
37
91490-16010-00 Pin. Cotter |
91490-16010-00 |
from US $1.70 |
||
|
38
|
38
676-15746-00-00
Arm
アーム; |
676-15746-00-00 |
— | ||
|
39
|
39
676-15770-00-00
Cable Comp., Starter Stop
ケーブルコンプリート，スタータストツプ; |
676-15770-00-00 |
— | ||
|
40
|
40
6A0-15774-00-00 Stay 4ステー ４; |
6A0-15774-00-00 |
US $4.84 |
||
|
41
|
41
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
41
|
41
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
42
|
42
656-15748-00-00 Plunger, Starter Stopプランジヤ，スタータストツプ; |
656-15748-00-00 |
from US $11.33 |
||
|
43
|
43
90501-10227-00 Spring, Compression |
90501-10227-00 |
from US $2.55 |
||
