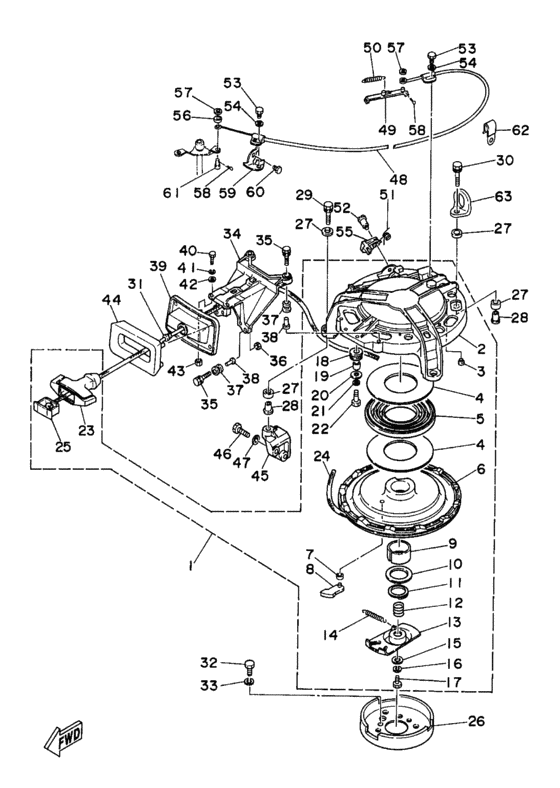

Starter Diagram Yamaha 48 MS/LH
- Year
- 1999
- Model
- E48C
- Model code
- 696
- Year
- 1999
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 48
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
696-W1571-02-00 Starter Assy |
696-W1571-02-00 |
US $565.88 |
||
|
2
|
2
663-15711-02-00 Case, Starter |
663-15711-02-00 |
from US $283.23 |
||
|
3
|
3
696-15773-00-00 Stay 3 |
696-15773-00-00 |
from US $4.14 |
||
|
4
|
4
663-15739-00-00 Washer, Thrust |
663-15739-00-00 |
from US $5.95 |
||
|
5
|
5
663-15713-00-00 Spring, Starter |
663-15713-00-00 |
from US $63.97 |
||
|
6
|
6
663-15714-01-00 Drum, Sheave |
663-15714-01-00 |
from US $140.33 |
||
|
7
|
7
663-15764-00-00 Collar 1 |
663-15764-00-00 |
from US $2.55 |
||
|
8
|
8
663-15741-02-00 Pawl, Drive |
663-15741-02-00 |
from US $11.05 |
||
|
9
|
9
663-15754-00-00 Bush 2 |
663-15754-00-00 |
from US $14.45 |
||
|
10
|
10
663-15726-01-00 Washer, Flat |
663-15726-01-00 |
from US $6.94 |
||
|
11
|
11
663-15744-00-00 Circlip |
663-15744-00-00 |
from US $11.76 |
||
|
12
|
12
663-15715-00-00 Spring, Friction |
663-15715-00-00 |
from US $9.07 |
||
|
13
|
13
696-15716-00-00 Plate, Drive |
696-15716-00-00 |
from US $17.52 |
||
|
14
|
14
696-15734-00-00 Spring, Return |
696-15734-00-00 |
from US $10.20 |
||
|
15
|
15
663-15719-00-00 Washer, Thrust |
663-15719-00-00 |
from US $9.07 |
||
|
16
|
16
92903-06100-00 Washer, Spring |
92903-06100-00 |
US $0.99 |
||
| replacement | |||||
|
16
|
16
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
17
|
17
97303-06016-00 Bolt |
97303-06016-00 |
from US $1.28 |
||
| replacements | |||||
|
17
|
17
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
|
17
|
17
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
18
|
18
663-15752-00-00 Roller, Wire |
663-15752-00-00 |
from US $8.08 |
||
|
19
|
19
663-15753-00-00 Bush |
663-15753-00-00 |
US $3.54 |
||
| replacement | |||||
|
19
|
19
6F5-15753-00-00 Bush |
6F5-15753-00-00 |
from US $2.02 |
||
|
20
|
20
663-15791-00-00 Washer, Lock |
663-15791-00-00 |
US $2.13 |
||
| replacement | |||||
|
20
|
20
6F5-15791-00-00 Washer, Lock |
6F5-15791-00-00 |
from US $2.35 |
||
|
21
|
21
92903-06100-00 Washer, Spring |
92903-06100-00 |
US $0.99 |
||
| replacement | |||||
|
21
|
21
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
22
|
22
97303-06025-00 Bolt |
97303-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
22
|
22
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
23
|
23
689-15755-01-00 Handle, Starter |
689-15755-01-00 |
US $10.63 |
||
| replacement | |||||
|
23
|
23
689-15755-02-00 HANDLE STARTER |
689-15755-02-00 |
from US $6.06 |
||
|
24
|
24
5V6-15751-00-XX Wire, Starter |
5V6-15751-00-XX |
US $24.73 |
||
| replacement | |||||
|
24
|
24
89A-15751-00-00 Wire, Starter |
89A-15751-00-00 |
from US $16.92 |
||
|
25
|
25
6F5-15779-02-00 Cover |
6F5-15779-02-00 |
from US $2.36 |
||
|
26
|
26
6K5-15723-00-00 Pulley, Starter |
6K5-15723-00-00 |
from US $34.14 |
||
|
27
|
27
90385-12M04-00 Bush |
90385-12M04-00 |
from US $2.36 |
||
|
28
|
28
90387-08M05-00 Collar |
90387-08M05-00 |
from US $3.04 |
||
|
29
|
29
90119-08M26-00 Bolt, With Washer |
90119-08M26-00 |
from US $5.53 |
||
| replacement | |||||
|
29
|
29
901-19081-88-00 BOLT WITH WASHER |
901-19081-88-00 |
from US $4.25 |
||
|
30
|
30
901-1908M-27-00
Bolt, With Washer
|
901-1908M-27-00 |
— | ||
|
31
|
31
697-15789-00-00 Damper |
697-15789-00-00 |
US $4.39 |
||
|
32
|
32
97013-08014-00 Bolt |
97013-08014-00 |
from US $9.68 |
||
|
33
|
33
92903-08100-00 Washer, Spring |
92903-08100-00 |
from US $1.63 |
||
| replacement | |||||
|
33
|
33
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
34
|
34
697-15787-00-94 Adaptor |
697-15787-00-94 |
US $22.53 |
||
| replacement | |||||
|
34
|
34
697-15787-00-00 TOP COWLING ASSY |
697-15787-00-00 |
from US $22.53 |
||
|
35
|
35
90119-06M30-00 Bolt, With Washer |
90119-06M30-00 |
from US $1.42 |
||
| replacement | |||||
|
35
|
35
90119-06292-00 |
90119-06292-00 |
US $3.47 |
||
|
36
|
36
953-03066-00-00
Nut, Hexagon
|
953-03066-00-00 |
— | ||
| replacement | |||||
|
36
|
36
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
37
|
37
6A0-82317-00-00 Damper, Ignition Coil |
6A0-82317-00-00 |
from US $4.53 |
||
| replacement | |||||
|
37
|
37
6A0-82317-01-00 DAMPER IGNITION COIL |
6A0-82317-01-00 |
from US $2.36 |
||
|
38
|
38
624-42542-00-00 Collar |
624-42542-00-00 |
US $6.23 |
||
| replacement | |||||
|
38
|
38
90387-06119-00 Collar |
90387-06119-00 |
from US $3.26 |
||
|
39
|
39
697-15758-01-4D Guide, Rope |
697-15758-01-4D |
US $45.73 |
||
|
40
|
40
97095-06020-00 Bolt |
97095-06020-00 |
US $1.66 |
||
| replacement | |||||
|
40
|
40
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
41
|
41
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
42
|
42
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
42
|
42
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
43
|
43
953-03066-00-00
Nut, Hexagon
|
953-03066-00-00 |
— | ||
| replacement | |||||
|
43
|
43
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
44
|
44
697-15762-00-00 Seal, Rubber 2 |
697-15762-00-00 |
from US $23.99 |
||
|
45
|
45
663-15771-00-94 Stay 1 |
663-15771-00-94 |
from US $23.80 |
||
|
46
|
46
970-13080-30-00 Bolt |
970-13080-30-00 |
from US $3.47 |
||
| replacement | |||||
|
46
|
46
970-24080-30-00 Bolt |
970-24080-30-00 |
from US $1.55 |
||
|
47
|
47
92903-08100-00 Washer, Spring |
92903-08100-00 |
from US $1.63 |
||
| replacement | |||||
|
47
|
47
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
48
|
48
697-15770-01-00 Cable Comp., Starter Stop |
697-15770-01-00 |
from US $18.83 |
||
|
49
|
49
663-15735-01-00 Guide, Cam |
663-15735-01-00 |
from US $26.35 |
||
|
50
|
50
90506-08M23-00 Spring, Tension |
90506-08M23-00 |
US $10.73 |
||
|
51
|
51
90508-12015-00 Spring, Torsion |
90508-12015-00 |
from US $2.41 |
||
|
52
|
52
90149-05095-00 Screw |
90149-05095-00 |
from US $8.64 |
||
|
53
|
53
97095-06012-00 Bolt |
97095-06012-00 |
from US $2.22 |
||
| replacement | |||||
|
53
|
53
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
54
|
54
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
54
|
54
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
55
|
55
663-15794-00-00 Stopper |
663-15794-00-00 |
from US $15.58 |
||
|
56
|
56
663-15736-00-00 Ring, Retaining 1 |
663-15736-00-00 |
US $5.24 |
||
|
57
|
57
92995-06200-00 Washer, Plain |
92995-06200-00 |
from US $1.07 |
||
| replacement | |||||
|
57
|
57
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
58
|
58
91490-16012-00 Pin. Cotter |
91490-16012-00 |
US $2.55 |
||
| replacement | |||||
|
58
|
58
914-90160-20-00 Pin, Cotter |
914-90160-20-00 |
from US $2.77 |
||
|
59
|
59
663-15772-01-00 Stay 2 |
663-15772-01-00 |
from US $9.21 |
||
|
60
|
60
97013-08012-00 Bolt |
97013-08012-00 |
from US $3.12 |
||
|
61
|
61
91702-06014-00 PinPin, clevis |
91702-06014-00 |
US $2.27 |
||
| replacement | |||||
|
61
|
61
917-01060-14-00 Pin |
917-01060-14-00 |
from US $2.27 |
||
|
62
|
62
90465-06M28-00 Clamp |
90465-06M28-00 |
from US $3.12 |
||
|
63
|
63
697-11119-00-00 Hanger, Engine |
697-11119-00-00 |
from US $20.83 |
||
