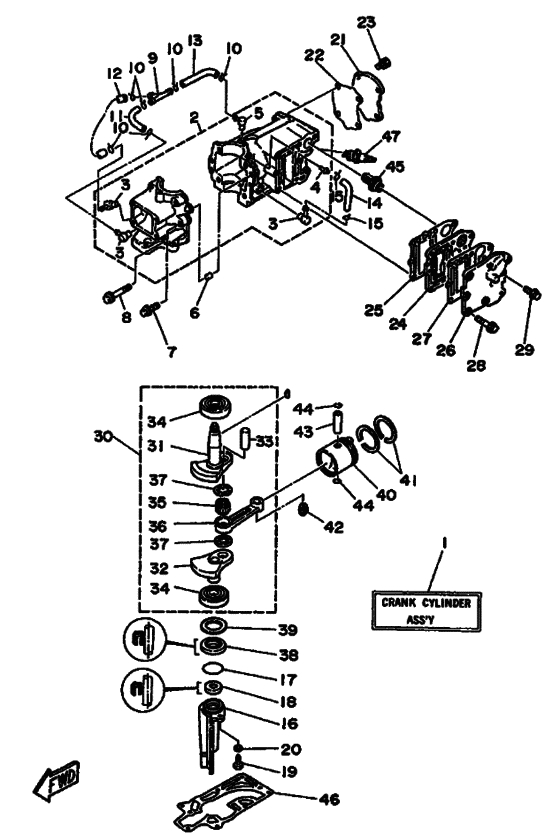

Cylinder & crankcase Diagram Yamaha 5 MHS/L
- Year
- 1990
- Model
- 5C(CS)
- Model code
- 6E3
- Year
- 1990
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 5
- Sales region
- Europe (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6E3-W0090-03-EJ Crank Cylinder Assy |
6E3-W0090-03-EJ |
US $1,729.20 |
||
| replacements | |||||
|
1
|
1
6E3-W0090-04-1S Crank Cylinder Assy |
6E3-W0090-04-1S |
US $1,729.20 |
||
|
1
|
1
6E3-W0090-05-1S Crank Cylinder Assy |
6E3-W0090-05-1S |
from US $1,275.73 |
||
|
2
|
2
6E3-15100-02-94 Crankshaft Assembly |
6E3-15100-02-94 |
US $912.12 |
||
| replacement | |||||
|
2
|
2
6E3-15100-02-00 Crankcase Assy |
6E3-15100-02-00 |
from US $912.12 |
||
|
3
|
3
650-11370-00-00
Check Valve Assy
|
650-11370-00-00 |
— | ||
| replacement | |||||
|
3
|
3
650-11370-01-00 Check Valve Assy |
650-11370-01-00 |
from US $14.22 |
||
|
4
|
4
624-14485-00-00 Pipe, Joint |
624-14485-00-00 |
from US $5.24 |
||
|
5
|
5
6E5-11372-00-00 Nipple, Hose |
6E5-11372-00-00 |
US $12.89 |
||
| replacement | |||||
|
5
|
5
6E5-11372-01-00 Nipple, Hose |
6E5-11372-01-00 |
from US $7.28 |
||
|
6
|
6
93604-08062-00 Pin, Dowel |
93604-08062-00 |
from US $1.66 |
||
|
7
|
7
90105-06M16-00 Bolt, Flange |
90105-06M16-00 |
from US $2.16 |
||
|
9
|
9
6E0-24378-00-00 Pipe, Joint 3 |
6E0-24378-00-00 |
from US $6.94 |
||
|
10
|
10
90467-06016-00 Clip |
90467-06016-00 |
from US $2.55 |
||
|
11
|
11
90445-07M00-00 Hose |
90445-07M00-00 |
US $3.59 |
||
| replacement | |||||
|
11
|
11
90445-07MA3-00 Hose (L200) |
90445-07MA3-00 |
from US $2.32 |
||
|
12
|
12
90445-07M28-00 Hose (L70) |
90445-07M28-00 |
US $3.83 |
||
| replacement | |||||
|
12
|
12
90445-07MA3-00 Hose (L200) |
90445-07MA3-00 |
from US $2.32 |
||
|
13
|
13
90445-07M51-00 Hose (L120) |
90445-07M51-00 |
US $3.83 |
||
| replacement | |||||
|
13
|
13
90445-07MA3-00 Hose (L200) |
90445-07MA3-00 |
from US $2.32 |
||
|
14
|
14
90445-07M28-00 Hose (L70) |
90445-07M28-00 |
US $3.83 |
||
| replacement | |||||
|
14
|
14
90445-07MA3-00 Hose (L200) |
90445-07MA3-00 |
from US $2.32 |
||
|
15
|
15
90467-06016-00 Clip |
90467-06016-00 |
from US $2.55 |
||
|
16
|
16
6E0-15396-02-9M Housing, Oil Seal |
6E0-15396-02-9M |
US $35.99 |
||
| replacement | |||||
|
16
|
16
6E0-15396-03-CA Housing, Oil Seal |
6E0-15396-03-CA |
from US $35.99 |
||
|
17
|
17
93210-31114-00 O-Ring |
93210-31114-00 |
US $1.84 |
||
| replacement | |||||
|
17
|
17
93210-31MJ5-00 O-Ring |
93210-31MJ5-00 |
from US $1.84 |
||
|
18
|
18
93101-10M25-00 Oil Seal(6E0) |
93101-10M25-00 |
from US $11.62 |
||
|
19
|
19
973-95060-16-00
Bolt, Hex
|
973-95060-16-00 |
— | ||
| replacements | |||||
|
19
|
19
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
19
|
19
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
20
|
20
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
23
|
23
90105-06M14-00 Bolt Flange |
90105-06M14-00 |
from US $2.05 |
||
|
24
|
24
6E3-41111-01-9M Exhaust Inner Cover |
6E3-41111-01-9M |
US $23.94 |
||
| replacement | |||||
|
24
|
24
6E3-41111-01-1S Inner Cover, Exhaust |
6E3-41111-01-1S |
from US $19.24 |
||
|
25
|
25
6E3-41112-01-00 Gasket, Exhaust Inner Cover |
6E3-41112-01-00 |
US $6.66 |
||
| replacement | |||||
|
25
|
25
6E3-41112-A1-00 Gasket, Exhaust Inner Cover |
6E3-41112-A1-00 |
from US $6.66 |
||
|
26
|
26
6E3-41113-01-9M Exhaust Outer Cover |
6E3-41113-01-9M |
US $20.97 |
||
| replacement | |||||
|
26
|
26
6E3-41113-01-1S Outer Cover, Exhaust |
6E3-41113-01-1S |
from US $18.74 |
||
|
27
|
27
6E3-41114-01-00 Gasket, Exhaust Outer Cover |
6E3-41114-01-00 |
US $6.66 |
||
| replacement | |||||
|
27
|
27
6E3-41114-A1-00 Gasket, Exhaust Outer Cover |
6E3-41114-A1-00 |
from US $6.66 |
||
|
28
|
28
90105-06M24-00 Bolt, Washer Based |
90105-06M24-00 |
from US $2.16 |
||
|
29
|
29
90105-06M14-00 Bolt Flange |
90105-06M14-00 |
from US $2.05 |
||
|
31
|
31
6E3-11412-00-00 Crank 1 |
6E3-11412-00-00 |
from US $114.81 |
||
|
32
|
32
6E3-11422-00-00 Crank 2 |
6E3-11422-00-00 |
from US $114.26 |
||
|
34
|
34
93306-204U0-00 Bearing |
93306-204U0-00 |
from US $19.84 |
||
|
35
|
35
93310-418V1-00 Bearing |
93310-418V1-00 |
from US $20.12 |
||
|
36
|
36
6E0-11651-01-00 Rod, Connecting |
6E0-11651-01-00 |
from US $72.43 |
||
|
37
|
37
90209-18112-00 Washer |
90209-18112-00 |
from US $3.32 |
||
|
38
|
38
931-0120M-29-00 Oil Seal |
931-0120M-29-00 |
from US $6.62 |
||
|
39
|
39
90201-32M48-00 Shim (T:0.90Mm) |
90201-32M48-00 |
US $5.95 |
||
| replacement | |||||
|
39
|
39
676-45567-20-00 Shim (T:0.9Mm) |
676-45567-20-00 |
from US $2.32 |
||
|
40
|
40
6E3-11631-00-98 Piston (Std) |
6E3-11631-00-98 |
from US $78.47 |
||
|
41
|
41
6J1-11610-00-00 Piston Ring Set (Std) |
6J1-11610-00-00 |
from US $12.90 |
||
|
42
|
42
93310-112V0-00 Bearing |
93310-112V0-00 |
from US $9.92 |
||
|
43
|
43
6G1-11633-00-00 Pin, Piston |
6G1-11633-00-00 |
from US $12.47 |
||
| replacement | |||||
|
43
|
43
527-11633-00-00 Pin, Piston |
527-11633-00-00 |
from US $5.96 |
||
|
44
|
44
93450-13022-00 Circlip |
93450-13022-00 |
from US $1.34 |
||
|
45
|
45
6E5-12411-01-00 Thermostat |
6E5-12411-01-00 |
US $50.01 |
||
| replacement | |||||
|
45
|
45
6E5-12411-02-00 Thermostat |
6E5-12411-02-00 |
from US $41.11 |
||
|
46
|
46
6E0-45113-00-00 Gasket, Upper Casing |
6E0-45113-00-00 |
US $9.07 |
||
| replacement | |||||
|
46
|
46
6E0-45113-A1-00 Gasket,upper Casing |
6E0-45113-A1-00 |
from US $9.07 |
||
|
47
|
47
94702-00272-00 Plug, Spark (Ngk Br7Hs) |
94702-00272-00 |
US $7.28 |
||
| replacement | |||||
|
47
|
47
94701-00110-00 Plug, Spark (Br7Hs) |
94701-00110-00 |
US $6.62 |
||
