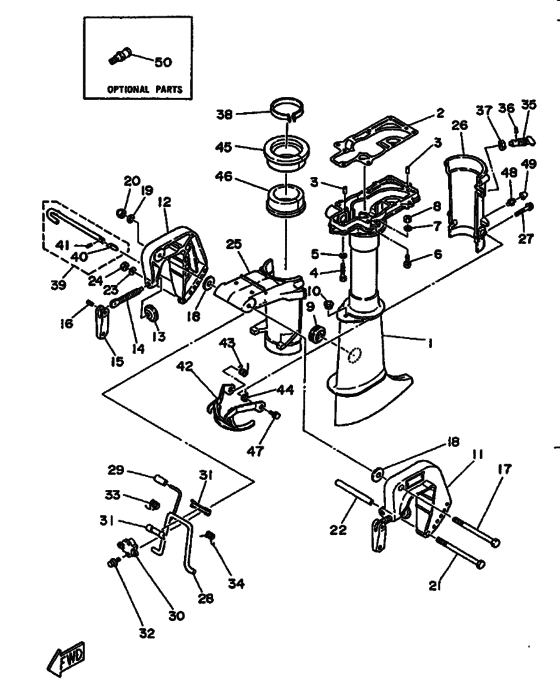

Upper casing & bracket Diagram Yamaha 5 MHS/L
- Year
- 1987
- Model
- 5C(CS)
- Model code
- 6E3
- Year
- 1987
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 5
- Sales region
- Europe (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6E0-45111-10-1E
Casing, Upper
UR |
6E0-45111-10-1E |
— | ||
|
1
|
1
6E0-45111-11-1E
Casing, Upper
UR |
6E0-45111-11-1E |
— | ||
|
2
|
2
6E0-45113-00-00 Gasket, Upper Casing |
6E0-45113-00-00 |
US $9.07 |
||
| replacement | |||||
|
2
|
2
6E0-45113-A1-00 Gasket,upper Casing |
6E0-45113-A1-00 |
from US $9.07 |
||
|
3
|
3
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.69 |
||
|
4
|
4
97395-06030-00 Bolt (6A1) |
97395-06030-00 |
from US $2.83 |
||
| replacement | |||||
|
4
|
4
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
5
|
5
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
6
|
6
973-95060-16-00
Bolt, Hex
|
973-95060-16-00 |
— | ||
| replacements | |||||
|
6
|
6
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
6
|
6
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
7
|
7
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
8
|
8
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.34 |
||
| replacement | |||||
|
8
|
8
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.42 |
||
|
9
|
9
647-45151-01-00 Cover, Upper Casing |
647-45151-01-00 |
US $4.96 |
||
|
10
|
10
90480-10M13-00 Grommet |
90480-10M13-00 |
from US $3.40 |
||
|
11
|
11
6E0-43111-00-EJ
Bracket, Clamp
|
6E0-43111-00-EJ |
— | ||
| replacement | |||||
|
11
|
11
999-99017-63-00
Clamp Bracket Assy(6E0 Ej)
|
999-99017-63-00 |
— | ||
|
12
|
12
6E0-43112-00-EJ
Bracket, Clamp
|
6E0-43112-00-EJ |
— | ||
| replacement | |||||
|
12
|
12
6E0-43112-09-EJ
Bracket, Clamp 2
|
6E0-43112-09-EJ |
— | ||
|
13
|
13
648-43114-01-00 Pad, Transom Clamp |
648-43114-01-00 |
from US $5.30 |
||
|
14
|
14
6E0-43116-00-00 Screw, Transom Clamp |
6E0-43116-00-00 |
US $15.16 |
||
| replacement | |||||
|
14
|
14
6E0-43116-01-00 Screw, Transom Clamp |
6E0-43116-01-00 |
from US $15.16 |
||
|
15
|
15
6E0-43118-00-00 Handle, Transom Clp |
6E0-43118-00-00 |
US $12.18 |
||
| replacements | |||||
|
15
|
15
6L8-G3118-01-00 Handle Transom Clamp |
6L8-G3118-01-00 |
US $11.19 |
||
|
15
|
15
6E0-43118-01-00
Handle, Transom Clamp
|
6E0-43118-01-00 |
— | ||
|
15
|
15
6EE-G3118-00-00 Handle, Transom Clamp |
6EE-G3118-00-00 |
from US $6.89 |
||
|
16
|
16
90254-04M00-00 Pin, Spring Type |
90254-04M00-00 |
US $2.41 |
||
| replacement | |||||
|
16
|
16
90243-04M01-00 Pin |
90243-04M01-00 |
from US $2.41 |
||
|
17
|
17
90101-08M66-00
Bolt
|
90101-08M66-00 |
— | ||
|
19
|
19
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
20
|
20
90185-08M00-00 Nut, Self-Locking |
90185-08M00-00 |
US $6.52 |
||
| replacement | |||||
|
20
|
20
95780-08300-00 Nut, Nylon (6J8) |
95780-08300-00 |
from US $6.30 |
||
|
21
|
21
90101-06335-00 Bolt |
90101-06335-00 |
from US $8.22 |
||
|
22
|
22
90560-06088-00 Spacer |
90560-06088-00 |
US $10.63 |
||
| replacements | |||||
|
22
|
22
6EE-G3122-00-00 Collar Clamp Brack |
6EE-G3122-00-00 |
US $23.80 |
||
|
22
|
22
903-8706M-11-00
Collar
|
903-8706M-11-00 |
— | ||
|
23
|
23
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
24
|
24
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
25
|
25
6E0-43311-02-EJ
Bracket, Swivel
|
6E0-43311-02-EJ |
— | ||
| replacement | |||||
|
25
|
25
999-99020-06-00
Swivel Bracket (6E0)
|
999-99020-06-00 |
— | ||
|
26
|
26
6E0-43312-02-EJ
Bracket, Swivel
|
6E0-43312-02-EJ |
— | ||
|
27
|
27
958-95060-35-00
Bolt, Flange
|
958-95060-35-00 |
— | ||
| replacement | |||||
|
27
|
27
95880-06035-00 Bolt, Flange |
95880-06035-00 |
from US $1.34 |
||
|
28
|
28
6E0-43181-00-00 Lever, Tilt Stop 1 |
6E0-43181-00-00 |
from US $30.89 |
||
|
29
|
29
6E0-43632-00-00 Knob, Tilt |
6E0-43632-00-00 |
from US $4.68 |
||
|
30
|
30
6E0-43313-00-EJ Bracket, SwivelBracket, swivel 3 |
6E0-43313-00-EJ |
US $11.33 |
||
| replacement | |||||
|
30
|
30
6E0-43313-00-94 Bracket, Swivel 3 |
6E0-43313-00-94 |
from US $11.33 |
||
|
31
|
31
620-43189-00-00 Bushing |
620-43189-00-00 |
from US $6.52 |
||
|
33
|
33
90508-16020-00 Spring, Torsion |
90508-16020-00 |
from US $6.80 |
||
|
34
|
34
90508-16021-00 Spring, Torsion |
90508-16021-00 |
from US $4.11 |
||
|
35
|
35
6E0-42529-01-00
Screw, Friction Pi
|
6E0-42529-01-00 |
— | ||
|
36
|
36
91690-20010-00 Pin, Spring |
91690-20010-00 |
from US $1.66 |
||
|
37
|
37
953-80086-00-00
Nut, Hex
|
953-80086-00-00 |
— | ||
| replacements | |||||
|
37
|
37
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.59 |
||
|
37
|
37
988-80081-00-00 Ybs55-8 Nut (644) |
988-80081-00-00 |
from US $1.57 |
||
|
39
|
39
6E0-43160-00-00 Tilt Rod Assy |
6E0-43160-00-00 |
US $30.89 |
||
| replacement | |||||
|
39
|
39
6E0-43160-01-00 Tilt Rod Assy |
6E0-43160-01-00 |
from US $14.88 |
||
|
40
|
40
656-43165-01-00 Plate, Tilt Lock |
656-43165-01-00 |
US $5.95 |
||
| replacements | |||||
|
40
|
40
6EE-G3165-00-00 Plate, Tilt Lock |
6EE-G3165-00-00 |
from US $5.38 |
||
|
40
|
40
689-43165-00-00 Plate, Tilt Lock |
689-43165-00-00 |
from US $5.95 |
||
|
41
|
41
91690-30008-00 Pin, Spring |
91690-30008-00 |
from US $1.56 |
||
|
42
|
42
6E0-43614-00-9M Plate, Tilt Lock |
6E0-43614-00-9M |
US $37.17 |
||
| replacement | |||||
|
42
|
42
6E0-43614-00-CA Plate, Tilt Lock |
6E0-43614-00-CA |
from US $37.17 |
||
|
43
|
43
90508-14M10-00 Spring, Torsion |
90508-14M10-00 |
from US $4.11 |
||
|
44
|
44
905-0814M-11-00 Spring, Torsion |
905-0814M-11-00 |
from US $3.12 |
||
|
45
|
45
6E0-42537-01-00
Bushing, Pivot Shaft
|
6E0-42537-01-00 |
— | ||
|
46
|
46
6E0-42538-01-00 Bushing, Piv.shft 2Bushing, pivot shaft 2 |
6E0-42538-01-00 |
US $21.88 |
||
| replacement | |||||
|
46
|
46
999-99033-31-00 Bushing, Pivot Shaft |
999-99033-31-00 |
from US $17.55 |
||
|
47
|
47
95895-06010-00 Bolt, Flange |
95895-06010-00 |
US $2.13 |
||
| replacement | |||||
|
47
|
47
95880-06010-00 Bolt, Flange |
95880-06010-00 |
from US $1.56 |
||
|
48
|
48
937-00060-04-00
Nipple, Grease
|
937-00060-04-00 |
— | ||
| replacement | |||||
|
48
|
48
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $2.66 |
||
|
49
|
49
663-45119-00-00 Cap, Grease Nipple |
663-45119-00-00 |
US $3.68 |
||
|
50
|
50
6E0-28193-00-94 Plug, Water CheckAP |
6E0-28193-00-94 |
US $9.35 |
||
| replacement | |||||
|
50
|
50
6E0-28193-00-00 Plug, Water CheckAP |
6E0-28193-00-00 |
from US $9.35 |
||
