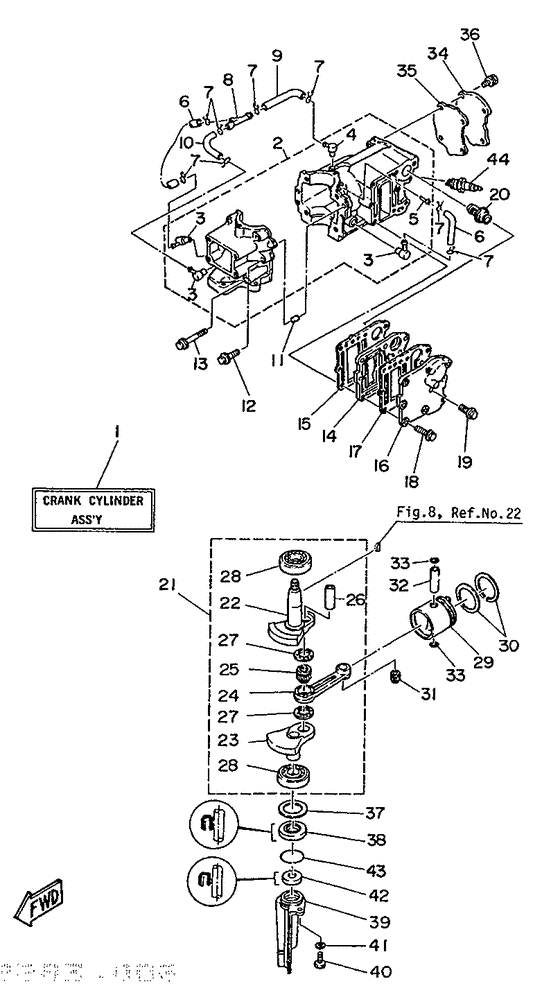

Crankcase, cylinder & piston Diagram Yamaha 5 MHS/L
- Year
- 1986
- Model
- 5C(CS)
- Model code
- 6E3
- Year
- 1986
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 5
- Sales region
- Europe (General) (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6E3-W0090-21-EJ Crank Cylinder Assy |
6E3-W0090-21-EJ |
US $1,729.20 |
||
| replacements | |||||
|
01
|
01
6E3-W0090-04-1S Crank Cylinder Assy |
6E3-W0090-04-1S |
US $1,729.20 |
||
|
01
|
01
6E3-W0090-05-1S Crank Cylinder Assy |
6E3-W0090-05-1S |
from US $1,275.73 |
||
|
02
|
02
6E3-15100-02-94 Crankshaft Assembly |
6E3-15100-02-94 |
US $912.12 |
||
| replacement | |||||
|
02
|
02
6E3-15100-02-00 Crankcase Assy |
6E3-15100-02-00 |
from US $912.12 |
||
|
03
|
03
650-11370-00-00
Check Valve Assy
|
650-11370-00-00 |
— | ||
| replacement | |||||
|
03
|
03
650-11370-01-00 Check Valve Assy |
650-11370-01-00 |
from US $15.16 |
||
|
04
|
04
6E5-11372-00-00 Nipple, Hose |
6E5-11372-00-00 |
US $12.89 |
||
| replacement | |||||
|
04
|
04
6E5-11372-01-00 Nipple, Hose |
6E5-11372-01-00 |
from US $8.08 |
||
|
05
|
05
624-14485-00-00 Pipe, Joint |
624-14485-00-00 |
from US $5.24 |
||
|
06
|
06
90445-07M28-00 Hose (L70) |
90445-07M28-00 |
US $3.83 |
||
| replacement | |||||
|
06
|
06
90445-07MA3-00 Hose (L200) |
90445-07MA3-00 |
from US $3.83 |
||
|
07
|
07
90467-06016-00 Clip |
90467-06016-00 |
from US $2.55 |
||
|
08
|
08
6E0-24378-00-00 Pipe, Joint 3 |
6E0-24378-00-00 |
from US $6.94 |
||
|
09
|
09
90445-07M51-00 Hose (L120) |
90445-07M51-00 |
US $3.83 |
||
| replacement | |||||
|
09
|
09
90445-07MA3-00 Hose (L200) |
90445-07MA3-00 |
from US $3.83 |
||
|
10
|
10
90445-07M00-00 Hose |
90445-07M00-00 |
US $3.59 |
||
| replacement | |||||
|
10
|
10
90445-07MA3-00 Hose (L200) |
90445-07MA3-00 |
from US $3.83 |
||
|
11
|
11
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.86 |
||
|
12
|
12
90105-06M16-00 Bolt, Flange |
90105-06M16-00 |
from US $2.16 |
||
|
13
|
13
90105-06M17-00 Bolt, Washer Based |
90105-06M17-00 |
from US $2.55 |
||
|
14
|
14
6E3-41111-01-9M Exhaust Inner Cover |
6E3-41111-01-9M |
US $23.94 |
||
| replacement | |||||
|
14
|
14
6E3-41111-01-1S Inner Cover, Exhaust |
6E3-41111-01-1S |
from US $19.24 |
||
|
15
|
15
6E3-41112-01-00 Gasket, Exhaust Inner Cover |
6E3-41112-01-00 |
US $6.66 |
||
| replacement | |||||
|
15
|
15
6E3-41112-A1-00 Gasket, Exhaust Inner Cover |
6E3-41112-A1-00 |
from US $6.66 |
||
|
16
|
16
6E3-41113-01-9M Exhaust Outer Cover |
6E3-41113-01-9M |
US $20.97 |
||
| replacement | |||||
|
16
|
16
6E3-41113-01-1S Outer Cover, Exhaust |
6E3-41113-01-1S |
from US $18.74 |
||
|
17
|
17
6E3-41114-01-00 Gasket, Exhaust Outer Cover |
6E3-41114-01-00 |
US $6.66 |
||
| replacement | |||||
|
17
|
17
6E3-41114-A1-00 Gasket, Exhaust Outer Cover |
6E3-41114-A1-00 |
from US $6.66 |
||
|
18
|
18
95895-06025-00 Bolt, Flange |
95895-06025-00 |
US $1.42 |
||
| replacement | |||||
|
18
|
18
95D95-06025-00 Bolt, Flange Deep Re |
95D95-06025-00 |
from US $1.07 |
||
|
19
|
19
90105-06M14-00 Bolt Flange |
90105-06M14-00 |
from US $2.05 |
||
|
20
|
20
6E5-12411-00-00
Thermostat
|
6E5-12411-00-00 |
— | ||
| replacement | |||||
|
20
|
20
6E5-12411-02-00 Thermostat |
6E5-12411-02-00 |
from US $41.11 |
||
|
21
|
21
6E3-11400-00-00 Crankshaft Assy |
6E3-11400-00-00 |
from US $257.18 |
||
|
22
|
22
6E3-11412-00-00 Crank 1 |
6E3-11412-00-00 |
from US $114.81 |
||
|
23
|
23
6E3-11422-00-00 Crank 2 |
6E3-11422-00-00 |
from US $114.26 |
||
|
24
|
24
6EO-11651-01-00
Rod, Connecting
|
6EO-11651-01-00 |
— | ||
|
25
|
25
93310-418V1-00 Bearing |
93310-418V1-00 |
from US $20.12 |
||
|
26
|
26
6G1-11681-00-00 Pin, Crank 1 |
6G1-11681-00-00 |
from US $13.46 |
||
|
27
|
27
90209-18112-00 Washer |
90209-18112-00 |
from US $3.72 |
||
|
28
|
28
93306-20411-00 BearingBearing (b6204) |
93306-20411-00 |
from US $19.84 |
||
| replacement | |||||
|
28
|
28
93306-204U0-00 Bearing |
93306-204U0-00 |
from US $19.84 |
||
|
29
|
29
6E3-11631-00-98 Piston (Std) |
6E3-11631-00-98 |
from US $78.47 |
||
|
30
|
30
6J1-11610-00-00 Piston Ring Set (Std) |
6J1-11610-00-00 |
from US $13.14 |
||
|
31
|
31
93310-112V0-00 Bearing |
93310-112V0-00 |
from US $10.44 |
||
|
32
|
32
6G1-11633-00-00 Pin, Piston |
6G1-11633-00-00 |
from US $12.47 |
||
| replacement | |||||
|
32
|
32
527-11633-00-00 Pin, Piston |
527-11633-00-00 |
from US $14.29 |
||
|
33
|
33
93450-13022-00 Circlip |
93450-13022-00 |
from US $1.70 |
||
|
34
|
34
6E3-11191-01-9M Cover, Cylinder Head |
6E3-11191-01-9M |
US $23.94 |
||
| replacement | |||||
|
34
|
34
6E3-11191-01-1S Cover, Cylinder Head 1 |
6E3-11191-01-1S |
from US $23.94 |
||
|
35
|
35
6E3-11193-01-00 Gasket, Head Cover 1 |
6E3-11193-01-00 |
US $7.23 |
||
| replacement | |||||
|
35
|
35
6E3-11193-A1-00 Gasket,head Cover |
6E3-11193-A1-00 |
from US $7.23 |
||
|
36
|
36
90105-06M14-00 Bolt Flange |
90105-06M14-00 |
from US $2.05 |
||
|
37
|
37
90201-32M48-00 Shim (T:0.90Mm) |
90201-32M48-00 |
US $5.95 |
||
| replacement | |||||
|
37
|
37
676-45567-20-00 Shim (T:0.9Mm) |
676-45567-20-00 |
from US $5.95 |
||
|
38
|
38
931-0220M-06-00 Oil Seal |
931-0220M-06-00 |
from US $4.03 |
||
| replacement | |||||
|
38
|
38
931-0120M-29-00 Oil Seal |
931-0120M-29-00 |
from US $7.08 |
||
|
39
|
39
6EO-15396-01-9M
Housing, Oil Seal
|
6EO-15396-01-9M |
— | ||
|
40
|
40
973-95060-16-00
Bolt, Hex
|
973-95060-16-00 |
— | ||
| replacements | |||||
|
40
|
40
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
|
40
|
40
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
41
|
41
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
42
|
42
93101-11M25-00 Oil Seal |
93101-11M25-00 |
US $11.62 |
||
| replacement | |||||
|
42
|
42
93101-10M25-00 Oil Seal(6E0) |
93101-10M25-00 |
from US $11.62 |
||
|
43
|
43
93102-31114-00
Oil Seal
|
93102-31114-00 |
— | ||
|
44
|
44
94702-00272-00 Plug, Spark (Ngk Br7Hs) |
94702-00272-00 |
US $7.76 |
||
| replacement | |||||
|
44
|
44
947-01001-10-00 Plug, Spark (Br7Hs) |
947-01001-10-00 |
US $7.08 |
||
