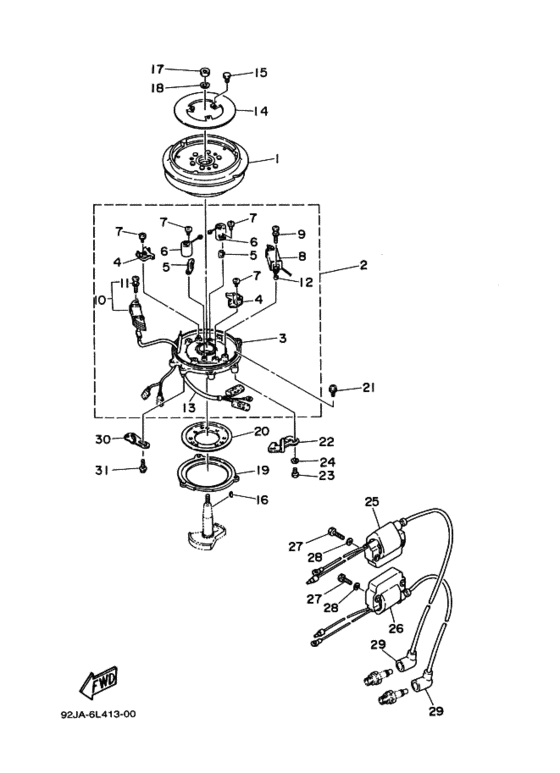

Generator Diagram Yamaha 5 MHS/L
- Year
- 1993
- Model
- 5D
- Model code
- 6L4
- Year
- 1993
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 5
- Sales region
- Japan (999)
- Colour
- Metallic Marine Silver (MMS; 00EK)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
677-81350-11-00
Rotor Assy
ロ−タアセンブリ; |
677-81350-11-00 |
— | ||
|
2
|
2
677-81310-61-00
Base Assy
ベ−スアセンブリ; |
677-81310-61-00 |
— | ||
|
3
|
3
677-81309-11-00
Base, Magneto
．ベ−ス，マグネト; |
677-81309-11-00 |
— | ||
|
4
|
4
650-81321-10-00 Contact Brkr Assembly．コンタクトブレ−カアセンブリ; |
650-81321-10-00 |
from US $68.38 |
||
|
5
|
5
207-81331-10-00 Lubricator．ルブリケ−タ; |
207-81331-10-00 |
US $6.52 |
||
|
6
|
6
647-81325-91-00 Condenser 1．コンデンサ １; |
647-81325-91-00 |
from US $39.10 |
||
|
7
|
7
98580-04008-00 Screw, Pan Head (713)．スクリユ，パンヘツド; |
98580-04008-00 |
from US $1.21 |
||
|
8
|
8
677-81311-10-00 Coil, Ignition 1．コイル，イグニツシヨン １; |
677-81311-10-00 |
US $86.35 |
||
|
9
|
9
985-01050-30-00
Screw, Pan Head
．スクリユ，パンヘツド; |
985-01050-30-00 |
— | ||
| replacements | |||||
|
9
|
9
98517-05030-00 Screw, Pan Head．スクリユ，パンヘツド; |
98517-05030-00 |
from US $1.22 |
||
|
9
|
9
98580-05530-00 Screw, Pan Head．スクリユ，パンヘツド; |
98580-05530-00 |
from US $2.27 |
||
|
10
|
10
677-81303-60-00
Lighting Coil Assy
．ライテイングコイルアセンブリ; |
677-81303-60-00 |
— | ||
|
11
|
11
985-01050-30-00
Screw, Pan Head
．．スクリユ，パンヘツド; |
985-01050-30-00 |
— | ||
| replacements | |||||
|
11
|
11
98517-05030-00 Screw, Pan Head．．スクリユ，パンヘツド; |
98517-05030-00 |
from US $1.22 |
||
|
11
|
11
98580-05530-00 Screw, Pan Head．．スクリユ，パンヘツド; |
98580-05530-00 |
from US $2.27 |
||
|
12
|
12
647-81318-10-00
Spacer
．スペ−サ; |
647-81318-10-00 |
— | ||
|
13
|
13
677-81315-11-00
Lead Wire Assy
．リ−ドワイヤアセンブリ; |
677-81315-11-00 |
— | ||
|
14
|
14
677-81362-00-00
Cover, Hole
|
677-81362-00-00 |
— | ||
|
15
|
15
97395-06010-00 Bolt |
97395-06010-00 |
from US $1.15 |
||
| replacement | |||||
|
15
|
15
97085-06010-00 Bolt |
97085-06010-00 |
from US $1.28 |
||
|
16
|
16
90280-04M06-00 Key, Woodruff |
90280-04M06-00 |
from US $4.82 |
||
|
17
|
17
90170-10113-00 Nut |
90170-10113-00 |
from US $3.97 |
||
|
18
|
18
90201-102G9-00 Washer, Plate (26H) |
90201-102G9-00 |
from US $2.69 |
||
|
19
|
19
677-41611-00-94 Retainer, Magneto Baseリテ−ナ，マグネツトベ−ス; |
677-41611-00-94 |
US $15.44 |
||
|
20
|
20
677-41612-00-00 Retainer, Magneto Baseリテ−ナ，マグネツトベ−ス; |
677-41612-00-00 |
US $15.44 |
||
|
21
|
21
97985-05210-00 Screw, With Washerスクリユ，ウイズワツシヤ; |
97985-05210-00 |
from US $1.98 |
||
|
22
|
22
678-41615-00-00
Stopper, Magneto Base
ストツパ，マグネツトベ−ス; |
678-41615-00-00 |
— | ||
|
23
|
23
973-95060-16-00
Bolt, Hex
|
973-95060-16-00 |
— | ||
| replacements | |||||
|
23
|
23
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
23
|
23
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
24
|
24
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレ−ト; |
929-90066-00-00 |
from US $1.07 |
||
|
25
|
25
677-82310-13-00 Ignition Coil Assyイグニツシヨンコイルアセンブリ; |
677-82310-13-00 |
US $222.44 |
||
|
26
|
26
677-82320-13-00 Ignition Coil Assyイグニツシヨンコイルアセンブリ; |
677-82320-13-00 |
US $169.45 |
||
|
27
|
27
97395-06030-00 Bolt (6A1) |
97395-06030-00 |
from US $2.83 |
||
| replacement | |||||
|
27
|
27
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
28
|
28
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレ−ト; |
929-90066-00-00 |
from US $1.07 |
||
|
29
|
29
663-82370-01-00 Plug Cap Assyプラグキヤツプアセンブリ; |
663-82370-01-00 |
from US $7.62 |
||
|
30
|
30
678-41213-81-94
Cam, Accel
|
678-41213-81-94 |
— | ||
|
31
|
31
97595-05214-00 Bolt, With Washerボルト，ウイズワツシヤ; |
97595-05214-00 |
US $2.98 |
||
