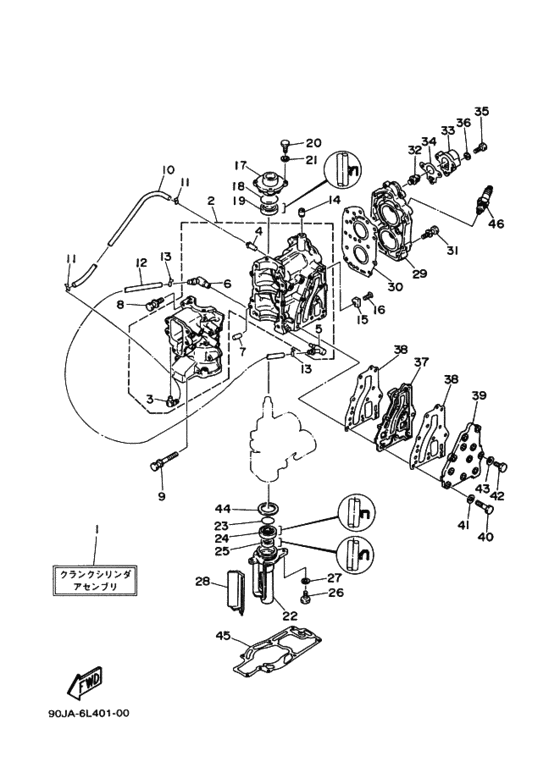

ｼﾘﾝﾀﾞ. ｸﾗﾝｸｹ-ｽ Diagram Yamaha 5 MHS/L
- Year
- 1994
- Model
- 5D
- Model code
- 6L4
- Year
- 1994
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 5
- Sales region
- Japan (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
678-W0090-04-4D
Crank Cylinder Assy
クランクシリンダアセンブリ; ＊１ |
678-W0090-04-4D |
— | ||
|
2
|
2
678-15100-01-94
Crankcase Assy
クランクケ−スアセンブリ; |
678-15100-01-94 |
— | ||
|
3
|
3
650-11370-00-00
Check Valve Assy
．チエツクバルブアセンブリ; |
650-11370-00-00 |
— | ||
| replacement | |||||
|
3
|
3
650-11370-01-00 Check Valve Assy．チエツクバルブアセンブリ; |
650-11370-01-00 |
from US $14.22 |
||
|
4
|
4
624-14485-00-00 Pipe, Joint．パイプ，ジヨイント; |
624-14485-00-00 |
from US $5.24 |
||
|
5
|
5
676-11372-00-00 Nipple, Hose．ニツプル，ホ−ス; |
676-11372-00-00 |
from US $8.28 |
||
|
6
|
6
677-11372-00-00 Nipple, Hose．ニツプル，ホ−ス; |
677-11372-00-00 |
US $13.32 |
||
|
7
|
7
93605-08041-00 Pin, Dowel |
93605-08041-00 |
US $2.41 |
||
|
8
|
8
90119-06M15-00 Bolt, With Washer |
90119-06M15-00 |
US $2.83 |
||
|
9
|
9
90119-06M16-00 Bolt, With Washer |
90119-06M16-00 |
US $7.23 |
||
|
10
|
10
90445-07M51-00 Hose (L120)ホ−ス; |
90445-07M51-00 |
US $3.83 |
||
| replacement | |||||
|
10
|
10
90445-07MA3-00 Hose (L200)ホ−ス; |
90445-07MA3-00 |
from US $2.32 |
||
|
11
|
11
90467-06016-00 Clip |
90467-06016-00 |
from US $2.55 |
||
|
12
|
12
90445-10M03-00 Hose (L240)ホ−ス; |
90445-10M03-00 |
US $6.38 |
||
| replacement | |||||
|
12
|
12
90445-10M43-00 Hose (L400)ホ−ス; |
90445-10M43-00 |
from US $6.38 |
||
|
13
|
13
90467-09M09-00 Clip(6K8) |
90467-09M09-00 |
from US $1.71 |
||
|
14
|
14
995-30100-14-00
Pin, Dowel
ピン，ダウエル; |
995-30100-14-00 |
— | ||
| replacements | |||||
|
14
|
14
99530-10114-00 Pin, Dowelピン，ダウエル; |
99530-10114-00 |
from US $1.66 |
||
|
14
|
14
995-10101-14-00
Pin, Dowel
ピン，ダウエル; |
995-10101-14-00 |
— | ||
|
15
|
15
664-11325-00-00 Anode |
664-11325-00-00 |
US $8.93 |
||
|
16
|
16
98280-06018-00 Screw, Flat Head |
98280-06018-00 |
US $2.55 |
||
| replacement | |||||
|
16
|
16
90151-06M01-00 Screw, Countersunk |
90151-06M01-00 |
US $2.13 |
||
|
17
|
17
677-15359-00-94 Housing, Oil Sealハウジング，オイルシ−ル; |
677-15359-00-94 |
US $35.42 |
||
|
18
|
18
93210-42159-00 O-Ring |
93210-42159-00 |
from US $2.32 |
||
|
19
|
19
931-0220M-25-00 Oil Seal (6E0)オイルシ−ル; |
931-0220M-25-00 |
from US $5.30 |
||
|
20
|
20
97080-06018-00 Bolt (Fj0)ボルト; |
97080-06018-00 |
from US $4.11 |
||
|
21
|
21
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレ−ト; |
929-90066-00-00 |
from US $1.07 |
||
|
22
|
22
677-15396-01-5B Housing, Oil Sealハウジング，オイルシ−ル; |
677-15396-01-5B |
US $35.65 |
||
| replacement | |||||
|
22
|
22
677-15396-01-CA Housing, Oil Sealハウジング，オイルシ−ル; |
677-15396-01-CA |
US $35.65 |
||
|
23
|
23
93210-42M70-00 O-RingＯ−リング; |
93210-42M70-00 |
US $7.65 |
||
|
24
|
24
931-0120M-29-00 Oil Sealオイルシ−ル; |
931-0120M-29-00 |
from US $6.62 |
||
|
25
|
25
93101-14M01-00 Oil Sealオイルシ−ル; |
93101-14M01-00 |
US $15.44 |
||
|
26
|
26
97095-06016-00 Boltボルト; |
97095-06016-00 |
from US $1.28 |
||
|
27
|
27
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレ−ト; |
929-90066-00-00 |
from US $1.07 |
||
|
28
|
28
677-15379-02-00 Seal, Crankcaseシ−ル，クランクケ−ス; |
677-15379-02-00 |
US $25.36 |
||
|
29
|
29
678-11111-01-94
Head, Cylinder 1
ヘツド，シリンダ １; |
678-11111-01-94 |
— | ||
|
30
|
30
677-11181-A0-00 Gasket, Cylinder Head 1ガスケツト，シリンダヘツド １; |
677-11181-A0-00 |
US $37.44 |
||
| replacement | |||||
|
30
|
30
677-11181-A1-00 Gasket, Cylinder Head 1ガスケツト，シリンダヘツド １; |
677-11181-A1-00 |
from US $36.14 |
||
|
31
|
31
90119-06M14-00 Bolt, With Washer |
90119-06M14-00 |
from US $9.35 |
||
|
32
|
32
6H7-12411-01-00 Thermostat |
6H7-12411-01-00 |
from US $60.24 |
||
|
33
|
33
677-12413-00-9M Cover, Thermostatカバ−，サ−モスタツト; |
677-12413-00-9M |
US $26.92 |
||
| replacement | |||||
|
33
|
33
677-12413-00-1S Cover, Thermostatカバ−，サ−モスタツト; |
677-12413-00-1S |
US $26.92 |
||
|
34
|
34
677-12414-00-00 Gasket, Coverガスケツト，カバ−; |
677-12414-00-00 |
US $3.83 |
||
| replacement | |||||
|
34
|
34
677-12414-A1-00 Gasket, Coverガスケツト，カバ−; |
677-12414-A1-00 |
US $3.83 |
||
|
35
|
35
973-95060-25-00
Bolt (682)
|
973-95060-25-00 |
— | ||
| replacement | |||||
|
35
|
35
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.35 |
||
|
36
|
36
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレ−ト; |
929-90066-00-00 |
from US $1.07 |
||
|
37
|
37
677-41111-01-9M Inner Cover, Exhaustインナカバ−，エキゾ−スト; |
677-41111-01-9M |
US $23.66 |
||
| replacement | |||||
|
37
|
37
677-41111-01-1S Inner Cover, Exhaustインナカバ−，エキゾ−スト; |
677-41111-01-1S |
US $23.66 |
||
|
38
|
38
677-41112-01-00 Gasket, Exhaust Inner Coverガスケツト，エキゾ−ストインナカバ−; |
677-41112-01-00 |
US $10.34 |
||
| replacement | |||||
|
38
|
38
677-41112-A2-00 Gasket, Exhaust Inner Coverガスケツト，エキゾ−ストインナカバ−; |
677-41112-A2-00 |
US $10.34 |
||
|
39
|
39
677-41113-01-9M Outer Cover, Exhaustアウタカバ−，エキゾ−スト; |
677-41113-01-9M |
US $42 |
||
| replacement | |||||
|
39
|
39
677-41113-01-1S Outer Cover, Exhaustアウタカバ−，エキゾ−スト; |
677-41113-01-1S |
US $42 |
||
|
40
|
40
970-95060-30-00
Bolt
ボルト; |
970-95060-30-00 |
— | ||
| replacement | |||||
|
40
|
40
97080-06030-00 Boltボルト; |
97080-06030-00 |
from US $2.83 |
||
|
41
|
41
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレ−ト; |
929-90066-00-00 |
from US $1.07 |
||
|
42
|
42
973-95060-16-00
Bolt, Hex
|
973-95060-16-00 |
— | ||
| replacements | |||||
|
42
|
42
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
42
|
42
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
43
|
43
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレ−ト; |
929-90066-00-00 |
from US $1.07 |
||
|
44
|
44
90201-41528-00 Washer, Plate (90201-41303-00) |
90201-41528-00 |
US $8.22 |
||
|
45
|
45
677-45113-01-00 Gasket, Upper Casingガスケツト，アツパ−ケ−シング; |
677-45113-01-00 |
US $19.13 |
||
| replacement | |||||
|
45
|
45
677-45113-A1-00 Gasket, Upper Casingガスケツト，アツパ−ケ−シング; |
677-45113-A1-00 |
US $19.13 |
||
|
46
|
46
94703-00069-00 Plug, Spark (Ngk B5Hs)プラグ，スパ−ク ; ＮＧＫ Ｂ５ＨＳ |
94703-00069-00 |
US $5.81 |
||
