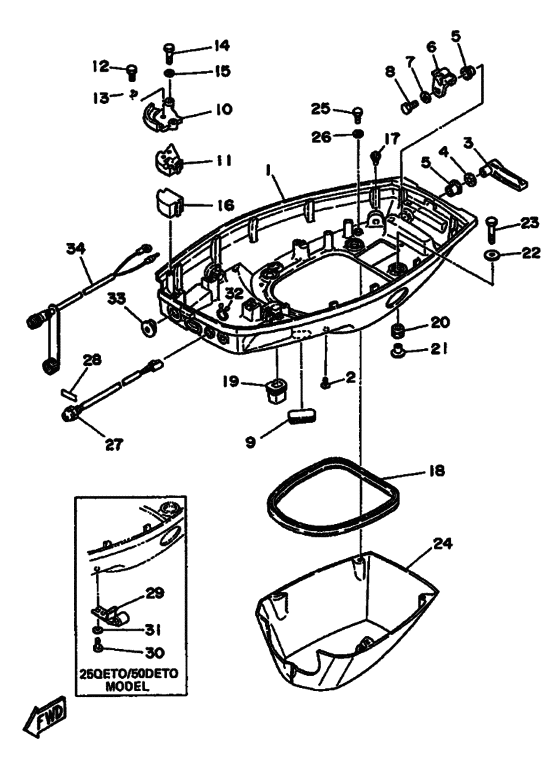

Bottom cowling Diagram Yamaha 50 EMTOS/L
- Year
- 1993
- Model
- 50D
- Model code
- 6H5
- Year
- 1993
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 50
- Sales region
- Europe (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6H4-42711-05-EJ
Cowling, Bottom
UR |
6H4-42711-05-EJ |
— | ||
|
1
|
1
6H4-42711-23-EJ
Cowling, Bottom
UR |
6H4-42711-23-EJ |
— | ||
|
2
|
2
90338-05M03-00 Plug |
90338-05M03-00 |
from US $1.84 |
||
|
3
|
3
6H4-42815-00-00 Lever, Clamp |
6H4-42815-00-00 |
from US $17.01 |
||
|
4
|
4
902-06120-52-00 Washer, Wave |
902-06120-52-00 |
from US $2.70 |
||
|
5
|
5
90386-12069-00 Bush |
90386-12069-00 |
from US $1.94 |
||
|
6
|
6
6H4-42816-00-00 Lever, Clamp |
6H4-42816-00-00 |
from US $8.08 |
||
|
7
|
7
90201-06M02-00 Washer,plate (6K8) |
90201-06M02-00 |
from US $2.27 |
||
|
8
|
8
97313-06010-00 Bolt, Hexagon |
97313-06010-00 |
from US $1.15 |
||
| replacement | |||||
|
8
|
8
97085-06010-00 Bolt |
97085-06010-00 |
from US $1.28 |
||
|
9
|
9
6H4-42726-00-00 GrommetUR |
6H4-42726-00-00 |
US $4.38 |
||
|
9
|
9
6H1-42726-10-00 GrommetUR |
6H1-42726-10-00 |
from US $6.52 |
||
|
10
|
10
6H4-48531-10-94 Bracket, Remote Control 1 |
6H4-48531-10-94 |
from US $17 |
||
| replacement | |||||
|
10
|
10
6H4-48531-11-94 Bracket, Remote Control 1 |
6H4-48531-11-94 |
from US $17 |
||
|
11
|
11
6H4-48532-10-94
Bracket, Remote Control 2
|
6H4-48532-10-94 |
— | ||
| replacement | |||||
|
11
|
11
6H4-48532-11-94 Bracket, Remote Control 2 |
6H4-48532-11-94 |
from US $31.17 |
||
|
12
|
12
97395-05016-00 Bolt |
97395-05016-00 |
from US $0.97 |
||
| replacement | |||||
|
12
|
12
970-95050-16-00 Bolt |
970-95050-16-00 |
from US $1.55 |
||
|
13
|
13
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
14
|
14
97395-06020-00 Bolt, Hexagon |
97395-06020-00 |
US $1.56 |
||
| replacement | |||||
|
14
|
14
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
15
|
15
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
16
|
16
6H4-42724-00-00 Grommet |
6H4-42724-00-00 |
from US $10.83 |
||
| replacement | |||||
|
16
|
16
6H4-42724-01-00 Grommet |
6H4-42724-01-00 |
from US $9.78 |
||
|
17
|
17
6E5-44391-00-00 Nipple, Hose |
6E5-44391-00-00 |
from US $5.10 |
||
|
18
|
18
6H4-42716-00-00 Rubber, Seal 1 |
6H4-42716-00-00 |
US $12.33 |
||
|
19
|
19
682-42727-00-00 Grommet |
682-42727-00-00 |
US $6.80 |
||
|
20
|
20
90480-09M21-00 Grommet |
90480-09M21-00 |
from US $3.04 |
||
|
21
|
21
90387-06M41-00 Collar |
90387-06M41-00 |
from US $4.04 |
||
|
22
|
22
90201-06416-00 Washer, Plate |
90201-06416-00 |
from US $2.69 |
||
|
23
|
23
97313-06030-00 Bolt |
97313-06030-00 |
from US $2.83 |
||
| replacement | |||||
|
23
|
23
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
24
|
24
6H4-42741-20-00
Apron
|
6H4-42741-20-00 |
— | ||
|
25
|
25
973-95060-16-00
Bolt, Hex
|
973-95060-16-00 |
— | ||
| replacements | |||||
|
25
|
25
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
|
25
|
25
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
26
|
26
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
27
|
27
6J8-85410-00-00 Emergency Signal Light Assy |
6J8-85410-00-00 |
from US $37.86 |
||
|
28
|
28
6H4-85415-10-00 Mark, Signal Lamp |
6H4-85415-10-00 |
from US $1.98 |
||
|
29
|
29
6E5-24367-01-00 Clamp, Fuel Pipe 2 |
6E5-24367-01-00 |
from US $15.12 |
||
|
30
|
30
90157-06M01-00 Screw, Pan Head |
90157-06M01-00 |
from US $2.91 |
||
|
31
|
31
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
32
|
32
904-65181-47-00 Clamp |
904-65181-47-00 |
from US $1.70 |
||
|
33
|
33
6H4-42726-40-00 Grommet |
6H4-42726-40-00 |
from US $4.11 |
||
|
34
|
34
6F5-84340-00-00
Socket Cord Assy 1
|
6F5-84340-00-00 |
— | ||
