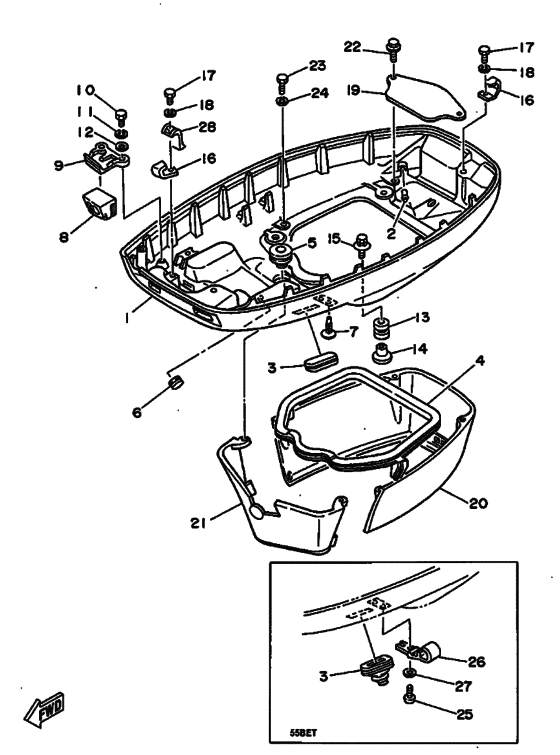

Bottom cowling Diagram Yamaha 55 M(E/T/D/H)S/L
- Year
- 1997
- Model
- 55B
- Model code
- 697
- Year
- 1997
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 55
- Sales region
- Europe (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
697-42711-02-4S
Cowling, Bottom 1
|
697-42711-02-4S |
— | ||
|
2
|
2
663-24376-00-00 Pipe, Joint 1 |
663-24376-00-00 |
from US $8.06 |
||
|
3
|
3
6H4-42726-00-00 GrommetUR 55BE(M) |
6H4-42726-00-00 |
US $3.68 |
||
|
3
|
3
688-42726-10-00 GrommetUR 66BET |
688-42726-10-00 |
US $4.11 |
||
|
4
|
4
663-42716-01-00 Rubber, Seal 1 |
663-42716-01-00 |
from US $45.56 |
||
|
5
|
5
663-42724-00-00 Grommet |
663-42724-00-00 |
US $8.22 |
||
| replacement | |||||
|
5
|
5
663-42724-01-00 Grommet |
663-42724-01-00 |
from US $8.22 |
||
|
6
|
6
90480-12004-00 Grommet |
90480-12004-00 |
from US $1.98 |
||
|
7
|
7
90338-05M03-00 Plug55BE(M) |
90338-05M03-00 |
from US $1.84 |
||
|
8
|
8
663-42725-01-00 Grommet |
663-42725-01-00 |
US $11.33 |
||
|
9
|
9
663-42738-03-94 Plate, Fitting |
663-42738-03-94 |
from US $12.80 |
||
|
10
|
10
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
| replacement | |||||
|
10
|
10
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
11
|
11
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
12
|
12
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
13
|
13
90480-09M12-00 Grommet |
90480-09M12-00 |
from US $2.02 |
||
|
14
|
14
90387-06M03-00 Collar |
90387-06M03-00 |
from US $5.81 |
||
|
15
|
15
90119-06M08-00 Bolt, With Washer |
90119-06M08-00 |
from US $4.39 |
||
| replacement | |||||
|
15
|
15
90119-06295-00 Bolt, With Washer |
90119-06295-00 |
from US $4.39 |
||
|
16
|
16
663-42744-02-00 Stay |
663-42744-02-00 |
US $23.52 |
||
| replacement | |||||
|
16
|
16
663-42744-03-00 Stay |
663-42744-03-00 |
from US $23.52 |
||
|
17
|
17
97095-06014-00 Bolt |
97095-06014-00 |
US $1.56 |
||
| replacement | |||||
|
17
|
17
97D95-06014-00 Bolt, Hexagon Deep R |
97D95-06014-00 |
from US $1.07 |
||
|
18
|
18
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
19
|
19
663-42723-01-94 Cover, Bottom |
663-42723-01-94 |
from US $16.20 |
||
|
20
|
20
663-42741-00-4D Apron |
663-42741-00-4D |
from US $117.02 |
||
| replacement | |||||
|
20
|
20
663-42741-01-4D Apron |
663-42741-01-4D |
US $117.02 |
||
|
21
|
21
663-42771-02-4D Apron |
663-42771-02-4D |
US $117.02 |
||
| replacement | |||||
|
21
|
21
663-42771-02-8D Apron |
663-42771-02-8D |
from US $99.13 |
||
|
22
|
22
97595-06420-00 Bolt, With Washer |
97595-06420-00 |
from US $1.07 |
||
| replacements | |||||
|
22
|
22
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.56 |
||
|
22
|
22
97E95-06420-00 |
97E95-06420-00 |
US $1.49 |
||
|
23
|
23
970-95060-25-00
Bolt
|
970-95060-25-00 |
— | ||
| replacement | |||||
|
23
|
23
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.35 |
||
|
24
|
24
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
25
|
25
90157-06M01-00 Screw, Pan Head55BET |
90157-06M01-00 |
from US $2.69 |
||
|
26
|
26
6E5-24367-10-00 Clamp, Fuel Pipe 255BET |
6E5-24367-10-00 |
from US $10.10 |
||
|
27
|
27
929-90066-00-00 Washer, Plain (646)55BET |
929-90066-00-00 |
from US $1.07 |
||
|
28
|
28
663-82594-03-00 Clamp(55BE/55BEM) |
663-82594-03-00 |
from US $8.22 |
||
