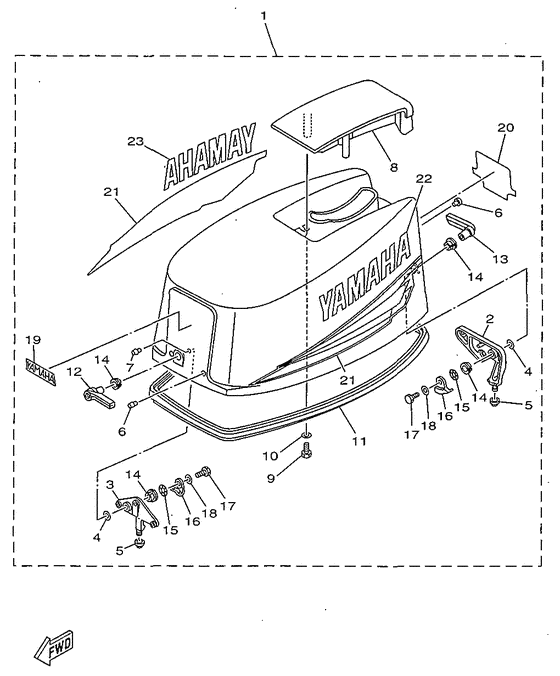

Capot supprieur Diagram Yamaha 55 M(E/T/D/H)S/L
- Year
- 1998
- Model
- 55B
- Model code
- 697
- Year
- 1998
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 55
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
697-42610-C0-4D Top Cowling Assy |
697-42610-C0-4D |
US $754.91 |
||
| replacements | |||||
|
01
|
01
697-42610-40-4D
Top Cowling Assy
|
697-42610-40-4D |
— | ||
|
01
|
01
697-42610-40-00 TOP COWLING ASSY |
697-42610-40-00 |
from US $746.72 |
||
|
02
|
02
697-42647-00-94 Holder, Clamp Band |
697-42647-00-94 |
US $25.22 |
||
| replacement | |||||
|
02
|
02
697-42647-00-00 Holder, Clamp Band |
697-42647-00-00 |
from US $21.88 |
||
|
03
|
03
697-42649-00-94 Holder, Clamp Band |
697-42649-00-94 |
US $28.62 |
||
| replacement | |||||
|
03
|
03
697-42649-00-00 Holder, Clamp Band |
697-42649-00-00 |
from US $19.20 |
||
|
04
|
04
90202-19M10-00 Washer, Plate |
90202-19M10-00 |
from US $2.83 |
||
|
05
|
05
663-42662-00-00 Damper |
663-42662-00-00 |
US $8.93 |
||
|
06
|
06
90266-06M02-00 Rivet (697) |
90266-06M02-00 |
from US $2.24 |
||
|
07
|
07
90266-06M02-00 Rivet (697) |
90266-06M02-00 |
from US $2.24 |
||
|
08
|
08
697-42613-01-4D Molding, Air Duct |
697-42613-01-4D |
US $101.69 |
||
|
09
|
09
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
| replacement | |||||
|
09
|
09
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
10
|
10
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
11
|
11
663-42615-02-00 Seal |
663-42615-02-00 |
from US $59.55 |
||
|
12
|
12
697-42815-11-98 Lever, Clamp |
697-42815-11-98 |
from US $37.17 |
||
|
13
|
13
697-42817-11-98 Lever, Clamp |
697-42817-11-98 |
US $59.55 |
||
|
14
|
14
90386-13M38-00 Bush |
90386-13M38-00 |
from US $2.55 |
||
|
15
|
15
90206-13019-00 Washer, Wave |
90206-13019-00 |
from US $2.83 |
||
|
16
|
16
663-42816-02-00 Lever, Clamp |
663-42816-02-00 |
from US $8.93 |
||
|
17
|
17
97095-06012-00 Bolt |
97095-06012-00 |
from US $1.98 |
||
| replacement | |||||
|
17
|
17
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
18
|
18
90201-06M02-00 Washer,plate (6K8) |
90201-06M02-00 |
from US $2.27 |
||
|
19
|
19
695-42677-B1-00 Graphic, Front |
695-42677-B1-00 |
US $19.27 |
||
| replacement | |||||
|
19
|
19
695-42677-C0-00 Graphic, Front |
695-42677-C0-00 |
US $19.27 |
||
|
20
|
20
697-42678-30-00 Graphic, Rear |
697-42678-30-00 |
US $7.19 |
||
|
21
|
21
697-W0070-31-00 Graphic Set |
697-W0070-31-00 |
US $49.91 |
||
|
22
|
22
697-42681-31-00 Mark, Cowling |
697-42681-31-00 |
US $17.48 |
||
|
23
|
23
697-42682-31-00 Mark, Cowling |
697-42682-31-00 |
US $17.48 |
||
