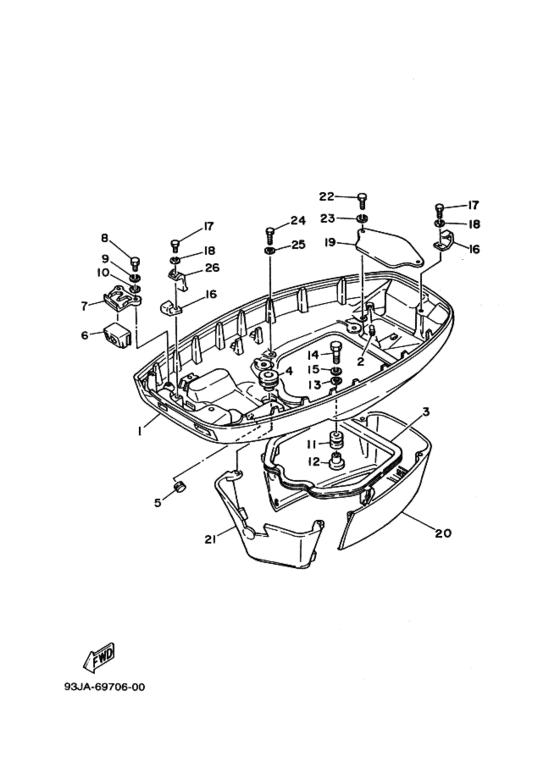

Bottom cowling assy Diagram Yamaha 55 M(E/T/D/H)S/L
- Year
- 1993
- Model
- 55B
- Model code
- 697
- Year
- 1993
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 55
- Sales region
- Japan (010)
- Colour
- Metallic Marine Silver (MMS; 00EK)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
697-42711-00-1D
Cowling, Bottom 1
カウリング，ボトム; ＵＲ |
697-42711-00-1D |
— | ||
| replacement | |||||
|
1
|
1
999-99023-85-00
Cowling Bottom (69742711001D)
カウリング，ボトム; ＵＲ |
999-99023-85-00 |
— | ||
|
1
|
1
697-42711-00-EK
Cowling, Bottom 1
カウリング，ボトム; ＵＲ シルバーシヨウ |
697-42711-00-EK |
— | ||
|
2
|
2
663-24376-00-00 Pipe, Joint 1パイプ，ジヨイント １; |
663-24376-00-00 |
from US $8.06 |
||
|
3
|
3
663-42716-01-00 Rubber, Seal 1ラバー，シール １; |
663-42716-01-00 |
from US $45.56 |
||
|
4
|
4
663-42724-00-00 Grommet |
663-42724-00-00 |
US $8.22 |
||
| replacement | |||||
|
4
|
4
663-42724-01-00 Grommet |
663-42724-01-00 |
from US $8.22 |
||
|
5
|
5
90480-12004-00 Grommet |
90480-12004-00 |
from US $1.98 |
||
|
6
|
6
663-42725-00-00
Grommet 2
グロメツト; |
663-42725-00-00 |
— | ||
|
7
|
7
663-42738-02-94 Plate, Fittingプレート，フイツテイング; |
663-42738-02-94 |
US $24.23 |
||
| replacement | |||||
|
7
|
7
663-42738-03-94 Plate, Fittingプレート，フイツテイング; |
663-42738-03-94 |
from US $12.58 |
||
|
8
|
8
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
8
|
8
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
8
|
8
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
9
|
9
929-90061-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-90061-00-00 |
— | ||
| replacement | |||||
|
9
|
9
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.99 |
||
|
10
|
10
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.07 |
||
|
11
|
11
90480-09M12-00 Grommet |
90480-09M12-00 |
from US $2 |
||
|
12
|
12
90387-06M03-00 Collarカラー; |
90387-06M03-00 |
from US $5.81 |
||
|
13
|
13
90201-06416-00 Washer, Plateワツシヤ，プレート; |
90201-06416-00 |
from US $2.69 |
||
|
14
|
14
97313-06030-00 Bolt |
97313-06030-00 |
from US $2.83 |
||
| replacement | |||||
|
14
|
14
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
15
|
15
929-90061-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-90061-00-00 |
— | ||
| replacement | |||||
|
15
|
15
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.99 |
||
|
16
|
16
663-42744-02-00 Stayステー; |
663-42744-02-00 |
US $23.52 |
||
| replacement | |||||
|
16
|
16
663-42744-03-00 Stayステー; |
663-42744-03-00 |
from US $23.52 |
||
|
17
|
17
97313-06014-00 Bolt, Hexagon |
97313-06014-00 |
US $2.41 |
||
| replacements | |||||
|
17
|
17
97080-06014-00 Bolt |
97080-06014-00 |
from US $7.08 |
||
|
17
|
17
97095-06014-00 Bolt |
97095-06014-00 |
US $1.56 |
||
|
17
|
17
97D95-06014-00 Bolt, Hexagon Deep R |
97D95-06014-00 |
from US $1.07 |
||
|
17
|
17
97D95-06014-00 Bolt, Hexagon Deep R |
97D95-06014-00 |
from US $1.07 |
||
|
17
|
17
97D95-06014-00 Bolt, Hexagon Deep R |
97D95-06014-00 |
from US $1.07 |
||
|
18
|
18
929-90061-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-90061-00-00 |
— | ||
| replacement | |||||
|
18
|
18
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.99 |
||
|
19
|
19
663-42723-01-94 Cover, Bottomカバー，ボトム; |
663-42723-01-94 |
from US $16.20 |
||
|
20
|
20
663-42741-00-1D
Apron
エプロン; ＵＲ |
663-42741-00-1D |
— | ||
|
20
|
20
663-42741-00-EK
Apron 1
エプロン; ＵＲ シルバーシヨウ |
663-42741-00-EK |
— | ||
|
21
|
21
663-42771-01-1D
Apron
エプロン; ＵＲ |
663-42771-01-1D |
— | ||
|
21
|
21
663-42771-01-EK
Apron 2
エプロン; ＵＲ シルバーシヨウ |
663-42771-01-EK |
— | ||
|
22
|
22
97395-06020-00 Bolt, Hexagon |
97395-06020-00 |
US $1.56 |
||
| replacement | |||||
|
22
|
22
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.56 |
||
|
23
|
23
929-90061-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-90061-00-00 |
— | ||
| replacement | |||||
|
23
|
23
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.99 |
||
|
24
|
24
973-95060-25-00
Bolt (682)
|
973-95060-25-00 |
— | ||
| replacement | |||||
|
24
|
24
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.35 |
||
|
25
|
25
929-90061-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-90061-00-00 |
— | ||
| replacement | |||||
|
25
|
25
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.99 |
||
|
26
|
26
663-82594-02-00
Clamp
|
663-82594-02-00 |
— | ||
