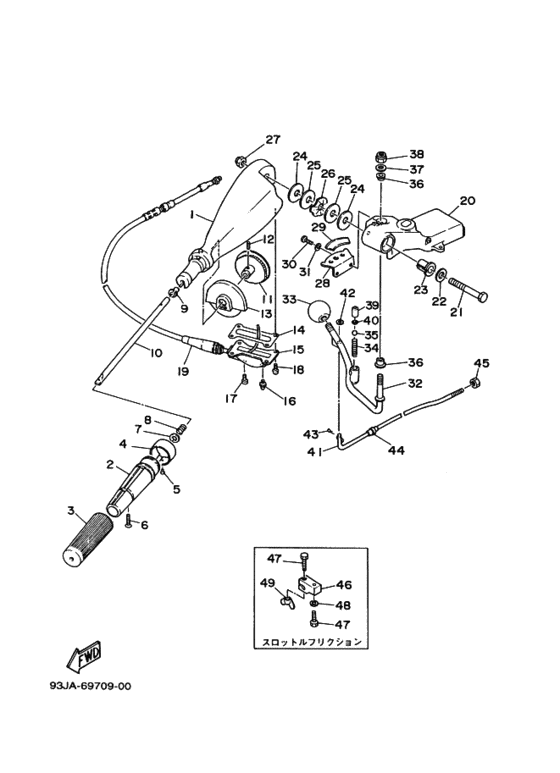

Steering (55BEM ﾓﾃﾞﾙ) Diagram Yamaha 55 M(E/T/D/H)S/L
- Year
- 1993
- Model
- 55B
- Model code
- 697
- Year
- 1993
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 55
- Sales region
- Japan (010)
- Colour
- Metallic Marine Silver (MMS; 00EK)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
663-42111-01-1D
Handle, Steering
ハンドル，ステアリング; ＵＲ |
663-42111-01-1D |
— | ||
|
1
|
1
663-42111-01-EK
Handle, Steering
ハンドル，ステアリング; ＵＲ シルバーシヨウ |
663-42111-01-EK |
— | ||
| replacement | |||||
|
1
|
1
663-42111-02-EK
element
ハンドル，ステアリング; ＵＲ シルバーシヨウ |
663-42111-02-EK |
— | ||
|
2
|
2
664-42119-00-00 Grip, Steering Handleグリツプ，ステアリングハンドル; |
664-42119-00-00 |
from US $20.54 |
||
|
3
|
3
6G1-42177-00-00
Rubber, Handle
ラバー，ハンドル; |
6G1-42177-00-00 |
— | ||
| replacement | |||||
|
3
|
3
6G1-42177-01-00 RUBBER, HANDLEラバー，ハンドル; |
6G1-42177-01-00 |
from US $11.76 |
||
|
4
|
4
697-42137-01-00
Indicator, Throttle
インジケータ，スロツトル; |
697-42137-01-00 |
— | ||
| replacement | |||||
|
4
|
4
999-99999-99-00
Not Available
インジケータ，スロツトル; |
999-99999-99-00 |
— | ||
|
5
|
5
90269-02M09-00 Rivet |
90269-02M09-00 |
from US $1.98 |
||
|
6
|
6
901-4905M-13-00
Screw
|
901-4905M-13-00 |
— | ||
| replacement | |||||
|
6
|
6
901-52050-11-00 Screw, Countersunk |
901-52050-11-00 |
from US $1.36 |
||
|
7
|
7
929-90106-00-00 Washer, Plateワツシヤ，プレート; |
929-90106-00-00 |
from US $1.07 |
||
|
8
|
8
90501-23215-00 Spring, Compression |
90501-23215-00 |
from US $3.40 |
||
|
9
|
9
90386-08032-00 Bush |
90386-08032-00 |
from US $2.13 |
||
|
10
|
10
663-42115-00-00 Shaft, Steering Handleシヤフト，ステアリングハンドル; |
663-42115-00-00 |
from US $16.50 |
||
|
11
|
11
663-42138-00-00 Lever, Throttleレバー，スロツトル; |
663-42138-00-00 |
from US $32.32 |
||
|
12
|
12
91690-30216-00 Pin, Spring |
91690-30216-00 |
from US $5.10 |
||
|
13
|
13
663-42135-01-00 Housing, Throttle Leverハウジング，スロツトルレバー; |
663-42135-01-00 |
from US $18.86 |
||
|
14
|
14
663-42133-00-00 Gasket |
663-42133-00-00 |
US $4.96 |
||
| replacement | |||||
|
14
|
14
663-42133-01-00 Gasket |
663-42133-01-00 |
from US $1.70 |
||
|
15
|
15
663-42134-02-94 Coverカバー，スロツトルレバー; |
663-42134-02-94 |
US $30.89 |
||
| replacement | |||||
|
15
|
15
663-42134-03-94 Cover, Throttle Leverカバー，スロツトルレバー; |
663-42134-03-94 |
from US $17.18 |
||
|
16
|
16
93700-06M03-00 Nipple, Greaseニツプル，グリース; |
93700-06M03-00 |
from US $2.70 |
||
|
17
|
17
97895-06008-00 Screw, Pan Head |
97895-06008-00 |
US $1.56 |
||
| replacements | |||||
|
17
|
17
97885-06008-00 Screw, Pan Head |
97885-06008-00 |
from US $1.56 |
||
|
17
|
17
985-80060-08-00
Screw, Pan Head
|
985-80060-08-00 |
— | ||
|
18
|
18
97895-05012-00 Screw, Pan Head |
97895-05012-00 |
US $1.70 |
||
| replacements | |||||
|
18
|
18
98580-05012-00 Screw, Pan Head |
98580-05012-00 |
from US $2.13 |
||
|
18
|
18
978-85050-12-00 Screw, Pan Head |
978-85050-12-00 |
from US $1.70 |
||
|
19
|
19
692-26301-03-00 Throttle Cable Assyスロツトルケーブルアセンブリ; |
692-26301-03-00 |
from US $73.06 |
||
|
20
|
20
697-42121-00-1D
Bracket
ブラケツト，キヤリング; ＵＲ |
697-42121-00-1D |
— | ||
|
20
|
20
697-42121-00-EK
Bracket
ＵＲ シルバーシヨウ |
697-42121-00-EK |
— | ||
|
21
|
21
90101-12M06-00 Bolt |
90101-12M06-00 |
from US $13.46 |
||
| replacement | |||||
|
21
|
21
901-01120-75-00 BOLT |
901-01120-75-00 |
from US $13.46 |
||
|
22
|
22
929-90122-00-00 Washer, Plainワツシヤ，プレーン; |
929-90122-00-00 |
from US $1.36 |
||
|
23
|
23
90386-12089-00 Bush |
90386-12089-00 |
from US $5.24 |
||
|
24
|
24
90202-12092-00 Washer, Plateワツシヤ，プレート; |
90202-12092-00 |
from US $2.55 |
||
|
25
|
25
90201-12537-00 Washer, Plateワツシヤ，プレート; |
90201-12537-00 |
from US $4.72 |
||
|
26
|
26
90206-12054-00 Washer, Waveワツシヤ，ウエイブ; |
90206-12054-00 |
from US $3.26 |
||
|
27
|
27
90185-12058-00 Nut, Self-Locking |
90185-12058-00 |
from US $7.65 |
||
|
28
|
28
697-44113-00-00 Cam Plate, Handleカムプレート，ハンドル; |
697-44113-00-00 |
from US $16.16 |
||
|
29
|
29
6K5-44191-00-00 Indicator, Shiftインジケータ，シフト; |
6K5-44191-00-00 |
from US $7.65 |
||
|
30
|
30
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
30
|
30
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
30
|
30
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
31
|
31
929-90061-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-90061-00-00 |
— | ||
| replacement | |||||
|
31
|
31
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.99 |
||
|
32
|
32
697-44159-00-00 Handle, Gear Shiftハンドル，ギアシフト; |
697-44159-00-00 |
from US $66.87 |
||
|
33
|
33
663-44173-00-00 Lever, Shift Controlレバー，シフトコントロール; |
663-44173-00-00 |
from US $12.75 |
||
|
34
|
34
90501-16M17-00 Spring, Compression |
90501-16M17-00 |
from US $1.36 |
||
|
35
|
35
93515-32M01-00 Ballボール; |
93515-32M01-00 |
from US $6.09 |
||
|
36
|
36
90386-10009-00 Bush |
90386-10009-00 |
from US $4.11 |
||
|
37
|
37
90201-10120-00 Washer, Plateワツシヤ，プレート; |
90201-10120-00 |
US $3.12 |
||
| replacement | |||||
|
37
|
37
90201-10049-00 Washer, Plateワツシヤ，プレート; |
90201-10049-00 |
from US $2.75 |
||
|
38
|
38
901-85100-51-00
Nut, Self-Locking
|
901-85100-51-00 |
— | ||
| replacement | |||||
|
38
|
38
90185-10027-00 Nut, Self-Locking |
90185-10027-00 |
from US $1.42 |
||
|
39
|
39
90387-12M30-00 Collarカラー; |
90387-12M30-00 |
from US $7.08 |
||
|
40
|
40
902-0112M-34-00 Washer, Plateワツシヤ，プレート; |
902-0112M-34-00 |
from US $2.69 |
||
|
41
|
41
663-42164-00-00 Rod, Manual Shiftロツド，マニアルシフト; |
663-42164-00-00 |
from US $37.96 |
||
|
42
|
42
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.07 |
||
|
43
|
43
91490-25015-00 Pin. Cotter |
91490-25015-00 |
from US $1.42 |
||
| replacement | |||||
|
43
|
43
91490-25020-00 Pin. Cotter |
91490-25020-00 |
from US $1.36 |
||
|
44
|
44
90386-06088-00 Bush |
90386-06088-00 |
from US $2.55 |
||
|
45
|
45
700-48339-00-00 Nut, Cable Endナツト，ケーブルエンド; |
700-48339-00-00 |
from US $1.70 |
||
|
46
|
46
663-42126-01-00 Throttle Frictionフリクシヨン，ステアリングハンドルグリツプ; |
663-42126-01-00 |
from US $11.33 |
||
|
47
|
47
973-95060-25-00
Bolt (682)
|
973-95060-25-00 |
— | ||
| replacement | |||||
|
47
|
47
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.35 |
||
|
48
|
48
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.07 |
||
|
49
|
49
90175-06003-00 Nut, Wing |
90175-06003-00 |
from US $7.79 |
||
| replacements | |||||
|
49
|
49
901-75069-00-00 Nut, Wing (F87) |
901-75069-00-00 |
from US $9.07 |
||
|
49
|
49
90175-06015-00 Nut, Wing |
90175-06015-00 |
