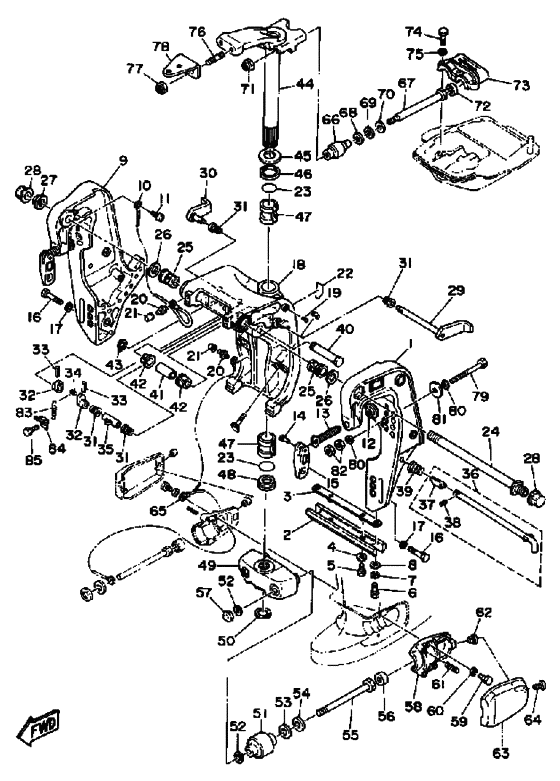

Bracket Diagram Yamaha 55 E(T)S/LR
- Year
- 1992
- Model
- C55
- Year
- 1992
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 55
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
688-43111-12-EK
Bracket, Clamp 1
|
688-43111-12-EK |
— | ||
|
2
|
2
6H1-45251-02-00 Anode |
6H1-45251-02-00 |
US $22.24 |
||
| replacement | |||||
|
2
|
2
6H1-45251-03-00 Anode |
6H1-45251-03-00 |
from US $22.24 |
||
|
3
|
3
6H1-44526-00-00 Plate |
6H1-44526-00-00 |
from US $12.18 |
||
| replacement | |||||
|
3
|
3
6EK-44536-00-00 Plate 2 |
6EK-44536-00-00 |
from US $12.18 |
||
|
4
|
4
90201-06M31-00 Washer, Plate |
90201-06M31-00 |
from US $1.70 |
||
|
5
|
5
973-95060-12-00
Bolt
|
973-95060-12-00 |
— | ||
| replacement | |||||
|
5
|
5
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
6
|
6
973-95060-16-00
Bolt, Hex
|
973-95060-16-00 |
— | ||
| replacements | |||||
|
6
|
6
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
6
|
6
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
7
|
7
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
8
|
8
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
9
|
9
688-43112-12-EK
Bracket, Clamp 2
|
688-43112-12-EK |
— | ||
|
10
|
10
6E5-82148-00-00 Wire, Lead 4 |
6E5-82148-00-00 |
from US $5.74 |
||
|
11
|
11
985-80060-12-00
Screw, Pan Head
|
985-80060-12-00 |
— | ||
| replacement | |||||
|
11
|
11
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
12
|
12
648-43114-01-00 Pad, Transom Clamp |
648-43114-01-00 |
from US $5.40 |
||
|
13
|
13
663-43116-00-00 Screw, Transom Clam |
663-43116-00-00 |
US $26.49 |
||
| replacement | |||||
|
13
|
13
663-43116-01-00 Screw, Transom Clamp |
663-43116-01-00 |
from US $26.49 |
||
|
14
|
14
90243-04007-00 Pin |
90243-04007-00 |
from US $1.98 |
||
|
15
|
15
663-43118-00-EK Handle, Transom Clptransom Clamp |
663-43118-00-EK |
US $13.60 |
||
| replacement | |||||
|
15
|
15
663-43118-01-8D Handle, Transom Clamp |
663-43118-01-8D |
from US $13.60 |
||
|
16
|
16
97395-10045-00 Bolt |
97395-10045-00 |
US $7.51 |
||
| replacements | |||||
|
16
|
16
970-75100-45-00 Bolt(64D) |
970-75100-45-00 |
from US $8.64 |
||
|
16
|
16
97095-10045-00 Bolt |
97095-10045-00 |
from US $5.40 |
||
|
17
|
17
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.36 |
||
|
18
|
18
6H1-43311-01-EK
Bracket, Swivel 1
|
6H1-43311-01-EK |
— | ||
|
19
|
19
90269-03010-00 Rivet |
90269-03010-00 |
from US $3.40 |
||
|
20
|
20
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $2.70 |
||
|
21
|
21
663-45119-00-00 Cap, Grease Nipple |
663-45119-00-00 |
US $3.68 |
||
|
22
|
22
688-43691-01-00
Indicator, Tilt
|
688-43691-01-00 |
— | ||
| replacement | |||||
|
22
|
22
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
23
|
23
93210-29M94-00 O-Ring |
93210-29M94-00 |
from US $2.02 |
||
|
24
|
24
688-43131-03-00 Bolt, Clamp Bracket |
688-43131-03-00 |
from US $106.38 |
||
|
25
|
25
90386-22M15-00 Bush |
90386-22M15-00 |
from US $5.06 |
||
|
26
|
26
90201-22M67-00 Washer, Plate |
90201-22M67-00 |
from US $1.36 |
||
|
27
|
27
901-85220-43-00
Nut, Self-Locking
|
901-85220-43-00 |
— | ||
| replacement | |||||
|
27
|
27
90185-22007-00 Nut, Self-Locking |
90185-22007-00 |
from US $23.58 |
||
|
28
|
28
6G5-43145-00-00 Cap, Clamp Bracket |
6G5-43145-00-00 |
US $7.23 |
||
| replacement | |||||
|
28
|
28
6G5-43145-01-00 Cap, Clamp Bracket |
6G5-43145-01-00 |
from US $6.74 |
||
|
29
|
29
6H1-43181-01-00 Lever, Tilt Stop 1 |
6H1-43181-01-00 |
from US $57.47 |
||
|
30
|
30
6H1-43185-01-00 Lever, Tilt Stop 2 |
6H1-43185-01-00 |
from US $48.77 |
||
|
31
|
31
90386-10M16-00 Bush |
90386-10M16-00 |
from US $2.02 |
||
|
32
|
32
6G5-43148-00-00 Collar, Distance |
6G5-43148-00-00 |
from US $2.98 |
||
|
33
|
33
91690-30020-00 Pin, Spring |
91690-30020-00 |
from US $1.36 |
||
|
34
|
34
90249-06M19-00 Pin |
90249-06M19-00 |
from US $3.40 |
||
|
35
|
35
90387-10M02-00 Collar |
90387-10M02-00 |
from US $4.11 |
||
|
36
|
36
688-43160-01-00 Tilt Rod Assy |
688-43160-01-00 |
from US $26.26 |
||
|
37
|
37
688-43165-00-00 Plate, Tilt Lock |
688-43165-00-00 |
from US $7.23 |
||
|
38
|
38
91690-30012-00 Pin, Spring |
91690-30012-00 |
from US $2.69 |
||
|
39
|
39
90502-16M02-00 Spring, Conical |
90502-16M02-00 |
from US $2.02 |
||
|
40
|
40
6E5-43126-02-00 Pin, Upper Shock Mount |
6E5-43126-02-00 |
from US $23.94 |
||
|
41
|
41
90386-18M21-00 Bush |
90386-18M21-00 |
from US $6.80 |
||
|
42
|
42
90386-18M35-00 Bush |
90386-18M35-00 |
from US $10.78 |
||
|
43
|
43
93410-18M02-00 Circlip |
93410-18M02-00 |
US $3.12 |
||
| replacement | |||||
|
43
|
43
93410-18M05-00 Circlip (6F2) |
93410-18M05-00 |
from US $3.04 |
||
|
44
|
44
663-42510-12-EK
Steering Bracketass''y
|
663-42510-12-EK |
— | ||
| replacement | |||||
|
44
|
44
663-42510-14-EK
STAY
|
663-42510-14-EK |
— | ||
|
45
|
45
90201-30M00-00 Washer, Plate |
90201-30M00-00 |
from US $4.72 |
||
|
46
|
46
90386-30M78-00 Bush |
90386-30M78-00 |
from US $2.70 |
||
|
47
|
47
90386-30M77-00 Bush |
90386-30M77-00 |
from US $10.10 |
||
|
48
|
48
90386-30M60-00 Bush |
90386-30M60-00 |
from US $2.70 |
||
|
49
|
49
663-44551-01-EK
Housing, Lwr, Mountmount Rubber
|
663-44551-01-EK |
— | ||
| replacement | |||||
|
49
|
49
663-44551-02-EK
Housing, Lower Mount
|
663-44551-02-EK |
— | ||
|
50
|
50
93410-28M06-00 Circlip |
93410-28M06-00 |
from US $7.23 |
||
|
51
|
51
687-44555-00-94 Mount Damper, Lower Side |
687-44555-00-94 |
US $73.22 |
||
| replacement | |||||
|
51
|
51
687-44555-00-00 Mount Damper, Lower Side |
687-44555-00-00 |
from US $73.22 |
||
|
52
|
52
90201-12M16-00 Washer, Plate |
90201-12M16-00 |
from US $2.36 |
||
|
53
|
53
90202-25M04-00 Washer, Plate |
90202-25M04-00 |
from US $2.70 |
||
|
54
|
54
90201-13M19-00 Washer, Plate |
90201-13M19-00 |
from US $6.06 |
||
|
55
|
55
901-09122-61-00 Bolt |
901-09122-61-00 |
from US $20.40 |
||
|
56
|
56
663-44575-00-00 Damper, Lower Mount Rubber |
663-44575-00-00 |
US $10.48 |
||
| replacement | |||||
|
56
|
56
663-44575-01-00 Damper, lower mount rubber |
663-44575-01-00 |
from US $10.48 |
||
|
57
|
57
95380-12800-00 Nut, Crown |
95380-12800-00 |
from US $3.72 |
||
|
58
|
58
687-44552-01-94 Housing, Lower Mount Rubber 2 |
687-44552-01-94 |
US $70.88 |
||
| replacement | |||||
|
58
|
58
687-44552-02-00 Housing, Lower Mount Rubber |
687-44552-02-00 |
from US $21.88 |
||
|
59
|
59
97395-08025-00 Bolt |
97395-08025-00 |
from US $4.53 |
||
| replacements | |||||
|
59
|
59
98980-08025-00 Screw, Bind (98902-08025-00) |
98980-08025-00 |
from US $5.24 |
||
|
59
|
59
97095-08025-00 Bolt |
97095-08025-00 |
from US $3.04 |
||
|
60
|
60
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.36 |
||
|
61
|
61
90501-14236-00 Spring, Compression |
90501-14236-00 |
US $4.53 |
||
| replacement | |||||
|
61
|
61
90501-14M08-00 Spring, Compression(64J) |
90501-14M08-00 |
from US $4.53 |
||
|
62
|
62
90179-06066-00 Nut |
90179-06066-00 |
from US $4.96 |
||
|
63
|
63
663-44553-00-EK
Cover, Lwr.mount
|
663-44553-00-EK |
— | ||
| replacement | |||||
|
63
|
63
663-44553-01-EK
Cover, Lower Unit
|
663-44553-01-EK |
— | ||
|
64
|
64
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.55 |
||
|
65
|
65
688-82127-02-00 Wire, Lead 2 |
688-82127-02-00 |
from US $25.64 |
||
|
66
|
66
670-44514-00-94 Mount Damper, Upper Side |
670-44514-00-94 |
US $72.53 |
||
| replacement | |||||
|
66
|
66
670-44514-00-00 Mount Damper, Upper Side |
670-44514-00-00 |
from US $25.92 |
||
|
67
|
67
90109-08262-00 Bolt |
90109-08262-00 |
from US $24.92 |
||
|
68
|
68
90201-15423-00 Washer, Plate |
90201-15423-00 |
from US $2.98 |
||
|
69
|
69
90202-15065-00 Washer, Plate |
90202-15065-00 |
from US $3.68 |
||
|
70
|
70
90201-09425-00 Washer, Plate |
90201-09425-00 |
from US $4.68 |
||
|
71
|
71
90185-08045-00 Nut, Self-Locking |
90185-08045-00 |
US $1.42 |
||
| replacement | |||||
|
71
|
71
901-85080-18-00 Nut, Self-Locking |
901-85080-18-00 |
from US $1.42 |
||
|
72
|
72
663-44533-00-00 Damper, Upper Mount Rubber |
663-44533-00-00 |
from US $5.38 |
||
|
73
|
73
663-44511-00-94 Cover, Upper Mount |
663-44511-00-94 |
US $41.59 |
||
| replacement | |||||
|
73
|
73
663-44511-00-00 Cover, Upper Mount |
663-44511-00-00 |
from US $17.99 |
||
|
74
|
74
97090-08035-00 Bolt |
97090-08035-00 |
from US $5.53 |
||
| replacements | |||||
|
74
|
74
97070-08035-00 Bolt |
97070-08035-00 |
from US $2.59 |
||
|
74
|
74
97095-08035-00 Bolt |
97095-08035-00 |
from US $5.40 |
||
|
75
|
75
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.36 |
||
|
76
|
76
90116-10175-00 Bolt, Stud |
90116-10175-00 |
from US $5.38 |
||
| replacements | |||||
|
76
|
76
901-16100-62-00 Bolt, Stud |
901-16100-62-00 |
from US $5.38 |
||
|
76
|
76
90116-10063-00 Bolt, Stud |
90116-10063-00 |
from US $5.74 |
||
|
77
|
77
901-85100-51-00
Nut, Self-Locking
|
901-85100-51-00 |
— | ||
| replacement | |||||
|
77
|
77
90185-10027-00 Nut, Self-Locking |
90185-10027-00 |
from US $1.42 |
||
|
78
|
78
688-48511-00-EK Hook Steering |
688-48511-00-EK |
US $41.45 |
||
| replacements | |||||
|
78
|
78
688-48511-12-00 Hook, Steering |
688-48511-12-00 |
from US $75.85 |
||
|
78
|
78
688-48511-02-00 Hook, Steering |
688-48511-02-00 |
from US $30.30 |
||
|
78
|
78
688-48511-51-EK Hook, Steering |
688-48511-51-EK |
US $52.92 |
||
| replacement | |||||
|
78
|
78
688-48511-52-00 Hook, Steering |
688-48511-52-00 |
from US $33.93 |
||
|
79
|
79
90101-12M51-00 Bolt |
90101-12M51-00 |
US $22.67 |
||
|
80
|
80
92995-12200-00 Washer |
92995-12200-00 |
from US $2.09 |
||
| replacement | |||||
|
80
|
80
929-90122-00-00 Washer, Plain |
929-90122-00-00 |
from US $1.36 |
||
|
81
|
81
90201-12426-00 Washe, Plate(663) |
90201-12426-00 |
from US $3.24 |
||
|
82
|
82
95380-12600-00 Nut |
95380-12600-00 |
from US $5.06 |
||
|
83
|
83
90506-14M24-00 Spring, Tension |
90506-14M24-00 |
from US $3.68 |
||
|
84
|
84
6G5-43144-00-00 Hook, Spring |
6G5-43144-00-00 |
from US $3.26 |
||
|
85
|
85
97395-06010-00 Bolt |
97395-06010-00 |
from US $1.15 |
||
| replacement | |||||
|
85
|
85
97085-06010-00 Bolt |
97085-06010-00 |
from US $1.28 |
||
