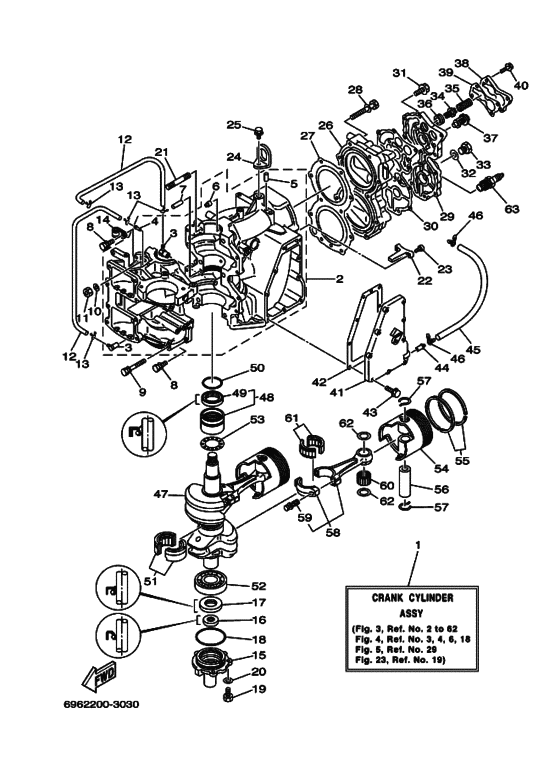

Cylinder & crankcase Diagram Yamaha 55 MHS/L
- Year
- 2003
- Model
- E55C
- Model code
- 6A3
- Year
- 2003
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 55
- Sales region
- Europe (030)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6A3-W0090-65-1S Crank Cylinder Assy |
6A3-W0090-65-1S |
US $4,593.60 |
||
|
2
|
2
6A3-15100-01-1S Crankcase Assy |
6A3-15100-01-1S |
US $1,504.80 |
||
|
3
|
3
650-11370-01-00 Check Valve Assy |
650-11370-01-00 |
from US $14.48 |
||
|
4
|
4
624-14485-00-00 Pipe, Joint |
624-14485-00-00 |
from US $5.24 |
||
|
5
|
5
93604-08062-00 Pin, Dowel |
93604-08062-00 |
from US $1.70 |
||
|
6
|
6
663-11518-01-00 Lock, Bearing |
663-11518-01-00 |
from US $2.70 |
||
|
7
|
7
93608-12063-00 Pin, Dowel |
93608-12063-00 |
from US $1.70 |
||
|
8
|
8
90119-06M12-00 Bolt, With Washer |
90119-06M12-00 |
from US $3.97 |
||
|
9
|
9
901-19100-05-00
Bolt, With Washer
|
901-19100-05-00 |
— | ||
| replacement | |||||
|
9
|
9
90119-10M07-00 Bolt, With Washer |
90119-10M07-00 |
from US $3.38 |
||
|
10
|
10
90201-10008-00 Washer, Plate |
90201-10008-00 |
from US $4.39 |
||
|
11
|
11
953-13106-00-00
Nut
|
953-13106-00-00 |
— | ||
| replacement | |||||
|
11
|
11
95314-10600-00 Nut |
95314-10600-00 |
from US $1.45 |
||
|
12
|
12
904-45072-40-00
Hose (L330)
|
904-45072-40-00 |
— | ||
| replacement | |||||
|
12
|
12
904-4507M-90-00 Hose (L390) |
904-4507M-90-00 |
from US $4.04 |
||
|
13
|
13
90467-06016-00 Clip |
90467-06016-00 |
from US $2.55 |
||
|
14
|
14
90461-04011-00 Clamp |
90461-04011-00 |
from US $2.98 |
||
|
15
|
15
663-15359-01-94 Housing, Oil Seal |
663-15359-01-94 |
from US $61.67 |
||
|
16
|
16
93104-18049-00 Oil Seal |
93104-18049-00 |
from US $10.78 |
||
|
17
|
17
93102-28135-00 Oil Seal |
93102-28135-00 |
from US $10.78 |
||
|
18
|
18
93210-62269-00 O-Ring |
93210-62269-00 |
from US $6.06 |
||
|
19
|
19
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
| replacement | |||||
|
19
|
19
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
20
|
20
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
20
|
20
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
21
|
21
90116-10177-00 Bolt, Stud |
90116-10177-00 |
from US $14.20 |
||
|
22
|
22
663-11325-00-00 Anode |
663-11325-00-00 |
from US $8.78 |
||
|
23
|
23
98780-04015-00 Screw,flat Head |
98780-04015-00 |
from US $2.13 |
||
| replacement | |||||
|
23
|
23
98780-04014-00 Screw, Flat Head(Ga5) |
98780-04014-00 |
from US $1.36 |
||
|
26
|
26
663-11111-02-1S Head, Cylinder 1 |
663-11111-02-1S |
from US $260.32 |
||
|
27
|
27
697-11181-A1-00 Gasket, Cylinder Head 1 |
697-11181-A1-00 |
US $85.66 |
||
| replacement | |||||
|
27
|
27
697-11181-A2-00 Gasket, Cylinder Head 1 |
697-11181-A2-00 |
from US $38.38 |
||
|
28
|
28
90119-08MA8-00 Bolt, With Washer |
90119-08MA8-00 |
from US $3.38 |
||
|
29
|
29
663-11191-00-1S Cover, Cylinder Head 1 |
663-11191-00-1S |
from US $98.23 |
||
|
30
|
30
663-11193-A0-00 Gasket, Head Cover 1 |
663-11193-A0-00 |
from US $5.40 |
||
|
31
|
31
90119-06MA2-00 Bolt, With Washer |
90119-06MA2-00 |
from US $1.36 |
||
|
32
|
32
904-30141-15-00 Gasket |
904-30141-15-00 |
from US $1.90 |
||
|
33
|
33
90340-14036-00 Plug, Straight Screw |
90340-14036-00 |
from US $4.68 |
||
|
38
|
38
663-12413-00-1S Cover, Thermostat |
663-12413-00-1S |
from US $29.47 |
||
|
39
|
39
663-12414-A0-00 Gasket, Cover |
663-12414-A0-00 |
from US $1.70 |
||
|
40
|
40
90119-06MA4-00 Bolt, With Washer |
90119-06MA4-00 |
from US $1.36 |
||
|
41
|
41
663-41113-00-1S Outer Cover, Exhaust |
663-41113-00-1S |
from US $53.77 |
||
|
42
|
42
663-41114-A0-00 Gasket, Exhaust Outer Cover |
663-41114-A0-00 |
from US $10.69 |
||
|
43
|
43
90119-06MA2-00 Bolt, With Washer |
90119-06MA2-00 |
from US $1.36 |
||
|
44
|
44
650-24378-00-00
Pipe, Joint 4
|
650-24378-00-00 |
— | ||
| replacements | |||||
|
44
|
44
652-24461-00-00 Pipe, Joint 4 |
652-24461-00-00 |
from US $3.97 |
||
|
44
|
44
6EE-F4377-00-00 Pipe, Joint 2 |
6EE-F4377-00-00 |
from US $3.33 |
||
|
45
|
45
663-24312-01-00 Pipe 2 |
663-24312-01-00 |
US $5.38 |
||
| replacement | |||||
|
45
|
45
6H4-24311-00-00 Pipe, Fuel 1 |
6H4-24311-00-00 |
from US $5.38 |
||
|
46
|
46
90467-08004-00 ClipAP |
90467-08004-00 |
from US $1.70 |
||
|
47
|
47
663-11411-01-00 Crankshaft |
663-11411-01-00 |
from US $751 |
||
|
48
|
48
93311-632U1-00 Bearing |
93311-632U1-00 |
from US $79.46 |
||
|
49
|
49
93102-32M07-00 Oil Seal |
93102-32M07-00 |
from US $9.44 |
||
|
50
|
50
93210-42159-00 O-Ring |
93210-42159-00 |
from US $4.53 |
||
|
51
|
51
93311-832U4-00 Bearing |
93311-832U4-00 |
from US $84.55 |
||
|
52
|
52
93306-206U4-00 Bearing |
93306-206U4-00 |
from US $56.51 |
||
|
53
|
53
663-11561-00-00 Shim, Crank 1 |
663-11561-00-00 |
from US $14.14 |
||
|
54
|
54
688-11631-03-94 Piston (Std) |
688-11631-03-94 |
from US $69.02 |
||
|
54
|
54
688-11635-03-00 Piston (0.25Mm O/s)0.25MM O/S; AP |
688-11635-03-00 |
from US $117.57 |
||
| replacement | |||||
|
54
|
54
6H1-11635-03-00 Piston (0.25Mm O/s)0.25MM O/S; AP |
6H1-11635-03-00 |
from US $169.94 |
||
|
54
|
54
688-11636-03-00 Piston (0.50Mm O/s)0.50MM O/S; AP |
688-11636-03-00 |
from US $69.36 |
||
|
55
|
55
688-11603-A0-00 Piston Ring Set (Std) |
688-11603-A0-00 |
from US $29.64 |
||
|
55
|
55
688-11604-A0-00 Piston Ring Set (0.25Mm O/s)0.25MM O/S; AP |
688-11604-A0-00 |
from US $29.96 |
||
|
55
|
55
688-11605-A0-00 Piston Ring Set (0.50Mm O/s)0.50MM O/S; AP |
688-11605-A0-00 |
from US $29.96 |
||
|
56
|
56
663-11633-00-00 Pin, Piston |
663-11633-00-00 |
from US $9.10 |
||
|
57
|
57
688-11634-00-00 Clip, Piston Pin |
688-11634-00-00 |
from US $2.02 |
||
|
58
|
58
688-11650-03-00 Connecting Rod Assy |
688-11650-03-00 |
from US $222.84 |
||
|
59
|
59
90109-08022-00 Bolt |
90109-08022-00 |
from US $9.78 |
||
|
60
|
60
936-03211-11-00 Pin, Dowel |
936-03211-11-00 |
from US $1.36 |
||
|
61
|
61
933-10730-V8-00 Bearing |
933-10730-V8-00 |
from US $84.16 |
||
|
62
|
62
90201-20417-00 Washer, Plate |
90201-20417-00 |
from US $4.72 |
||
|
63
|
63
94702-00041-00 Bougie D,allumageB8HS |
94702-00041-00 |
US $4.99 |
||
| replacements | |||||
|
63
|
63
B8H-S0000-00-00 elementB8HS |
B8H-S0000-00-00 |
US $4.99 |
||
|
63
|
63
BR8-HS000-00-00 BR8HS NGK SCREW TOP PLUG 4PK (4-PACK)B8HS |
BR8-HS000-00-00 |
US $26.36 |
||
