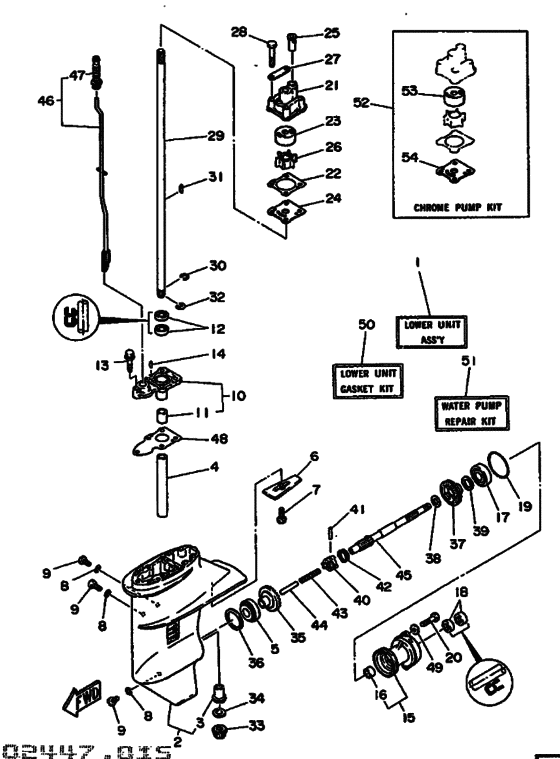

Lower casing & drive 1 Diagram Yamaha 6 EMS/L
- Year
- 1984
- Model
- 6C
- Model code
- 6H6
- Year
- 1984
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 6
- Sales region
- Europe (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6G1-45300-00-EJ Lower Unit AssyLower unit assy (short)(ref.2 to 49) UR |
6G1-45300-00-EJ |
US $1,346.40 |
||
| replacements | |||||
|
1
|
1
6M8-G5300-00-4D Lower Unit AssyUR |
6M8-G5300-00-4D |
from US $1,663.20 |
||
|
1
|
1
6M8-G5300-00-EJ Lower Unit AssyUR |
6M8-G5300-00-EJ |
US $1,346.40 |
||
|
1
|
1
6G1-45300-10-EJ Lower Unit AssyUR NOT SHOWN |
6G1-45300-10-EJ |
US $1,293.60 |
||
| replacements | |||||
|
1
|
1
6M8-G5300-11-4D Lower Unit AssyUR NOT SHOWN |
6M8-G5300-11-4D |
US $1,689.60 |
||
|
1
|
1
6M8-G5300-10-EJ Lower Unit AssyUR NOT SHOWN |
6M8-G5300-10-EJ |
US $1,293.60 |
||
|
1
|
1
6GH-45300-11-8D Lower Unit AssyUR NOT SHOWN |
6GH-45300-11-8D |
US $1,641.88 |
||
|
2
|
2
6G1-45311-00-EJ
Casing, Lower
|
6G1-45311-00-EJ |
— | ||
| replacement | |||||
|
2
|
2
999-99018-34-00
Casing Lower (6G1)
|
999-99018-34-00 |
— | ||
|
3
|
3
6G1-45317-09-00 Bushing, Drive Shaft |
6G1-45317-09-00 |
from US $14.56 |
||
|
4
|
4
90387-14M49-00 Collar |
90387-14M49-00 |
from US $9.49 |
||
|
5
|
5
93332-000U4-00 Bearing |
93332-000U4-00 |
from US $40.48 |
||
|
6
|
6
6G1-45251-00-00 Anode |
6G1-45251-00-00 |
US $15.73 |
||
| replacement | |||||
|
6
|
6
6N0-WG525-00-00 Anode,set |
6N0-WG525-00-00 |
from US $14.54 |
||
|
7
|
7
973-95060-12-00
Bolt
|
973-95060-12-00 |
— | ||
| replacement | |||||
|
7
|
7
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
8
|
8
904-30080-20-00 Gasket |
904-30080-20-00 |
from US $1.28 |
||
| replacement | |||||
|
8
|
8
90430-08003-00 Gasket |
90430-08003-00 |
from US $1.28 |
||
|
9
|
9
903-40080-14-00
Plug, Straight Screw
|
903-40080-14-00 |
— | ||
| replacement | |||||
|
9
|
9
903-40080-02-00 Plug, Straight Screw |
903-40080-02-00 |
from US $3.12 |
||
|
10
|
10
6G1-45331-00-9M Housing, Bearing |
6G1-45331-00-9M |
US $80.82 |
||
| replacement | |||||
|
10
|
10
6G1-45331-01-CA Housing, Bearing |
6G1-45331-01-CA |
from US $80.82 |
||
|
11
|
11
6G1-45316-09-00 Bushing, Drive Shaft |
6G1-45316-09-00 |
from US $14.22 |
||
|
12
|
12
93101-11M23-00 Oil Seal |
93101-11M23-00 |
from US $4.96 |
||
|
13
|
13
97375-06030-00 Bolt |
97375-06030-00 |
from US $2.83 |
||
| replacement | |||||
|
13
|
13
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
14
|
14
93604-08062-00 Pin, Dowel |
93604-08062-00 |
from US $1.66 |
||
|
15
|
15
6G1-45361-00-EJ Cap, Lower Casing |
6G1-45361-00-EJ |
US $91.05 |
||
| replacement | |||||
|
15
|
15
999-99022-27-00 Cap, Lower Casing Set(6G1) |
999-99022-27-00 |
US $91.05 |
||
|
16
|
16
6G1-45362-09-00 Bushing |
6G1-45362-09-00 |
from US $14.56 |
||
|
17
|
17
933-06004-U0-00
Bearing
|
933-06004-U0-00 |
— | ||
| replacement | |||||
|
17
|
17
93306-00423-00 Bearing (7K2) |
93306-00423-00 |
from US $12.75 |
||
|
18
|
18
93101-15074-00 Oil Seal |
93101-15074-00 |
from US $7.28 |
||
|
19
|
19
932-10490-46-00 O-Ring |
932-10490-46-00 |
from US $1.70 |
||
|
20
|
20
973-95060-16-00
Bolt, Hex
|
973-95060-16-00 |
— | ||
| replacements | |||||
|
20
|
20
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
20
|
20
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
21
|
21
6G1-44311-00-00 Housing, Water Pump |
6G1-44311-00-00 |
US $24.23 |
||
| replacement | |||||
|
21
|
21
6GH-44311-00-00 HOUSING,WATER PUMP |
6GH-44311-00-00 |
from US $20.84 |
||
|
22
|
22
6G1-44315-00-00 Gasket, Water Pump |
6G1-44315-00-00 |
US $4.53 |
||
| replacement | |||||
|
22
|
22
6G1-44315-A0-00 Gasket, Water Pump |
6G1-44315-A0-00 |
from US $4.53 |
||
|
23
|
23
6G1-44322-00-00 Insert, Cartridge |
6G1-44322-00-00 |
from US $16.20 |
||
|
24
|
24
6G1-44323-00-00 Outer Plate, Cartridge |
6G1-44323-00-00 |
from US $7.94 |
||
|
25
|
25
647-44366-00-00
Damper, Water Seal 2
|
647-44366-00-00 |
— | ||
| replacement | |||||
|
25
|
25
647-44366-01-00 DAMPER WATER SEAL 2 |
647-44366-01-00 |
from US $1.66 |
||
|
26
|
26
6G1-44352-00-00 Impeller |
6G1-44352-00-00 |
from US $22.82 |
||
|
27
|
27
6G1-44328-00-00 Plate |
6G1-44328-00-00 |
from US $4.82 |
||
|
28
|
28
973-95060-45-00
Bolt, Hexagon
|
973-95060-45-00 |
— | ||
| replacement | |||||
|
28
|
28
970-80060-45-00 Bolt |
970-80060-45-00 |
from US $4.56 |
||
|
29
|
29
6G1-45511-00-00
Shaft, Drive
UR |
6G1-45511-00-00 |
— | ||
| replacements | |||||
|
29
|
29
6N0-G5511-00-00 Shaft, DriveUR |
6N0-G5511-00-00 |
US $243.16 |
||
|
29
|
29
6GH-45511-00-00 SHAFT DRIVEUR |
6GH-45511-00-00 |
from US $118.96 |
||
|
29
|
29
6G1-45511-10-00 Shaft, DriveUR NOT SHOWN |
6G1-45511-10-00 |
US $255.60 |
||
| replacement | |||||
|
29
|
29
6N0-G5511-10-00 Shaft, DriveUR NOT SHOWN |
6N0-G5511-10-00 |
from US $128.68 |
||
|
29
|
29
6G1-45511-20-00
Shaft, Drive (Ul.lng)
UR NOT SHOWN |
6G1-45511-20-00 |
— | ||
| replacement | |||||
|
29
|
29
6N0-G5511-20-00
Shaft, Drive
UR NOT SHOWN |
6N0-G5511-20-00 |
— | ||
|
30
|
30
90467-09M05-00 Clip |
90467-09M05-00 |
from US $1.34 |
||
|
31
|
31
90280-03024-00 Key, Woodruff |
90280-03024-00 |
from US $5.30 |
||
|
32
|
32
934-30060-05-00
Circlip
|
934-30060-05-00 |
— | ||
| replacement | |||||
|
32
|
32
99001-06600-00 Circlip |
99001-06600-00 |
from US $1.56 |
||
|
33
|
33
6G1-45551-00-00 Pinion |
6G1-45551-00-00 |
US $63.69 |
||
| replacements | |||||
|
33
|
33
6N0-G5551-00-00 Pinion (13T) |
6N0-G5551-00-00 |
US $63.69 |
||
|
33
|
33
68T-45551-00-00 Pinion (13T) |
68T-45551-00-00 |
from US $63.69 |
||
|
34
|
34
6G1-45533-00-19 Shim (T:1.9Mm)UR |
6G1-45533-00-19 |
US $5.81 |
||
| replacement | |||||
|
34
|
34
6G1-45533-00-00 Shim (T:1.90Mm)UR |
6G1-45533-00-00 |
from US $5.81 |
||
|
34
|
34
6G1-45533-00-20 Shim (T:2.0Mm)UR |
6G1-45533-00-20 |
US $5.81 |
||
| replacement | |||||
|
34
|
34
6G1-45533-10-00 Shim (T:2.00Mm)UR |
6G1-45533-10-00 |
from US $2.66 |
||
|
34
|
34
6G1-45533-00-21 Shim (T:2.1Mm)UR |
6G1-45533-00-21 |
US $5.81 |
||
| replacement | |||||
|
34
|
34
6G1-45533-20-00 Shim (T:2.10Mm)UR |
6G1-45533-20-00 |
from US $5.81 |
||
|
34
|
34
6G1-45533-00-22 Shim (T:2.2Mm)UR |
6G1-45533-00-22 |
US $5.81 |
||
| replacement | |||||
|
34
|
34
6G1-45533-30-00 Shim (T:2.20Mm)UR |
6G1-45533-30-00 |
from US $5.81 |
||
|
35
|
35
6G1-45560-00-00 Gear |
6G1-45560-00-00 |
US $147.83 |
||
| replacement | |||||
|
35
|
35
6GH-45560-09-00 GEAR 1 |
6GH-45560-09-00 |
from US $88.21 |
||
|
36
|
36
664-45587-00-05
Shim 3
UR |
664-45587-00-05 |
— | ||
|
36
|
36
664-45587-00-08 Shim 3Shim 3 (0.08mm) UR |
664-45587-00-08 |
from US $4.41 |
||
|
36
|
36
664-45587-00-12 Shim (T:0.12Mm)UR |
664-45587-00-12 |
US $5.81 |
||
| replacement | |||||
|
36
|
36
664-45587-10-00 Shim (T:0.12Mm)UR |
664-45587-10-00 |
from US $5.09 |
||
|
36
|
36
664-45587-00-30 Shim (T:0.3Mm)Shim 3 (0.30mm) UR |
664-45587-00-30 |
US $5.81 |
||
| replacement | |||||
|
36
|
36
664-45587-40-00 Shim (T:0.30Mm)UR |
664-45587-40-00 |
from US $5.09 |
||
|
36
|
36
664-45587-00-50 Shim (T:0.5Mm)UR |
664-45587-00-50 |
US $5.81 |
||
| replacement | |||||
|
36
|
36
664-45587-60-00 Shim (T:0.50Mm)UR |
664-45587-60-00 |
from US $5.09 |
||
|
37
|
37
6G1-45571-00-00 Gear |
6G1-45571-00-00 |
US $147.83 |
||
| replacement | |||||
|
37
|
37
6N0-G5571-00-00 Gear 2 (27T) |
6N0-G5571-00-00 |
from US $137 |
||
|
38
|
38
90201-15M89-00 Washer, Plate |
90201-15M89-00 |
from US $3.26 |
||
|
39
|
39
647-45567-00-00 Shim (T:0.10Mm)UN |
647-45567-00-00 |
from US $5.81 |
||
|
40
|
40
6G1-45631-00-00 Clutch, Dog |
6G1-45631-00-00 |
from US $64.60 |
||
|
41
|
41
6G1-45632-00-00 Pin, Cross |
6G1-45632-00-00 |
from US $6.38 |
||
|
42
|
42
654-45633-00-00 Ring, Cross Pin |
654-45633-00-00 |
from US $3.12 |
||
|
43
|
43
90501-10064-00 Spring, Compression |
90501-10064-00 |
from US $5.81 |
||
|
44
|
44
6G1-45635-00-00 Plunger, Shift |
6G1-45635-00-00 |
from US $2 |
||
|
45
|
45
6G1-45611-00-00 Shaft, Propeller |
6G1-45611-00-00 |
US $265.27 |
||
| replacement | |||||
|
45
|
45
6G1-45611-01-00 Shaft, Propeller |
6G1-45611-01-00 |
from US $226.10 |
||
|
46
|
46
6G1-44150-00-00 Shift Cam AssyUR |
6G1-44150-00-00 |
US $63.28 |
||
| replacement | |||||
|
46
|
46
6GH-44150-00-00 Shift Cam AssyUR |
6GH-44150-00-00 |
from US $39.73 |
||
|
46
|
46
6G1-44150-10-00 Shift Cam AssyUR NOT SHOWN |
6G1-44150-10-00 |
US $63.28 |
||
| replacement | |||||
|
46
|
46
6GH-44150-10-00 Shift Cam AssyUR NOT SHOWN |
6GH-44150-10-00 |
from US $63.28 |
||
|
46
|
46
6G1-44150-20-00 Shift Cam AssyUR NOT SHOWN |
6G1-44150-20-00 |
US $39.73 |
||
| replacement | |||||
|
46
|
46
6N0-G4150-20-00
Shift Cam Assy
UR NOT SHOWN |
6N0-G4150-20-00 |
— | ||
|
47
|
47
655-44147-00-00
Bolt, Shift Rod
|
655-44147-00-00 |
— | ||
| replacement | |||||
|
47
|
47
6G1-44147-00-00 Boot, Shift Rod |
6G1-44147-00-00 |
from US $12.33 |
||
|
48
|
48
6G1-45315-00-00 Packing, Lower Casing |
6G1-45315-00-00 |
US $4.82 |
||
| replacement | |||||
|
48
|
48
6G1-45315-A0-00 Packing, Lower Casing |
6G1-45315-A0-00 |
from US $4.82 |
||
|
49
|
49
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
50
|
50
6G1-W0001-20-00 Lower Unit Gasket KitSEE FIG. 25 FOR DETAIL SER |
6G1-W0001-20-00 |
US $50.43 |
||
| replacement | |||||
|
50
|
50
6G1-W0001-C1-00 Lower Unit Gasket KitSEE FIG. 25 FOR DETAIL SER |
6G1-W0001-C1-00 |
from US $30.89 |
||
|
51
|
51
6G1-W0078-00-00 Water Pump Repair KitSEE FIG. 25 FOR DETAIL SER |
6G1-W0078-00-00 |
US $105.55 |
||
| replacement | |||||
|
51
|
51
6N0-W0078-A0-00 Water Pump Repair KitSEE FIG. 25 FOR DETAIL SER |
6N0-W0078-A0-00 |
from US $52.54 |
||
|
52
|
52
6G1-W0078-0A-00 Chrome Pump Kit |
6G1-W0078-0A-00 |
from US $105.28 |
||
|
53
|
53
6G1-44322-40-00 Insert, Cartridge |
6G1-44322-40-00 |
from US $61.76 |
||
|
54
|
54
6G1-44323-40-00 Outer Plate, Cartridge |
6G1-44323-40-00 |
from US $43.52 |
||
