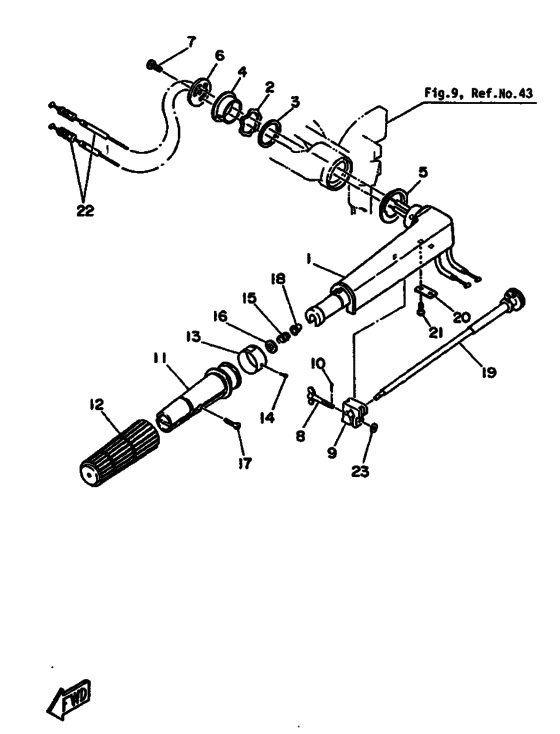

Steering Diagram Yamaha 6 EMS/L
- Year
- 1984
- Model
- 6C
- Model code
- 6H6
- Year
- 1984
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 6
- Sales region
- Europe (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6G1-42111-00-EJ
Handle, Steering
|
6G1-42111-00-EJ |
— | ||
| replacement | |||||
|
1
|
1
6G1-42111-04-EJ
Handle Steering
|
6G1-42111-04-EJ |
— | ||
|
2
|
2
90206-35M11-00 Washer, Wave |
90206-35M11-00 |
US $12.04 |
||
| replacement | |||||
|
2
|
2
90206-35M20-00 Washer, Wave(6J8) |
90206-35M20-00 |
from US $12.04 |
||
|
3
|
3
90202-35M24-00 Washer, Plate |
90202-35M24-00 |
from US $11.76 |
||
|
4
|
4
90386-34M40-00 Bush |
90386-34M40-00 |
from US $13.32 |
||
|
5
|
5
90386-43M41-00
Bush
|
90386-43M41-00 |
— | ||
|
6
|
6
6G1-42131-00-00 Cover, Handle Steering |
6G1-42131-00-00 |
US $15.30 |
||
| replacement | |||||
|
6
|
6
6G1-42131-01-00
Cover, Handle Steering
|
6G1-42131-01-00 |
— | ||
|
7
|
7
973-95060-16-00
Bolt, Hex
|
973-95060-16-00 |
— | ||
| replacements | |||||
|
7
|
7
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
7
|
7
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
8
|
8
6G1-42125-00-00 Bolt, Friction Adjusting |
6G1-42125-00-00 |
US $30.47 |
||
|
9
|
9
6G1-42126-00-00 Friction, Steering Handle Grip |
6G1-42126-00-00 |
from US $8.64 |
||
| replacement | |||||
|
9
|
9
6EE-G2126-00-00 Friction, Steering |
6EE-G2126-00-00 |
from US $2.98 |
||
|
10
|
10
91490-12008-00 Pin, Cotter |
91490-12008-00 |
US $1.98 |
||
| replacement | |||||
|
10
|
10
91490-12012-00 Pin. Cotter |
91490-12012-00 |
from US $1.98 |
||
|
11
|
11
664-42119-00-00 Grip, Steering Handle |
664-42119-00-00 |
from US $20.18 |
||
|
12
|
12
6G1-42177-00-00
Rubber, Handle
|
6G1-42177-00-00 |
— | ||
| replacement | |||||
|
12
|
12
6G1-42177-01-00 RUBBER, HANDLE |
6G1-42177-01-00 |
from US $11.76 |
||
|
13
|
13
6G1-42137-00-00 Indicator, Throttle |
6G1-42137-00-00 |
US $4.82 |
||
| replacement | |||||
|
13
|
13
6G1-42137-20-00 Indicator, Throttle |
6G1-42137-20-00 |
from US $4.82 |
||
|
14
|
14
902-69020-01-00
Rivet
|
902-69020-01-00 |
— | ||
| replacement | |||||
|
14
|
14
90269-02M09-00 Rivet |
90269-02M09-00 |
from US $1.98 |
||
|
15
|
15
90501-23215-00 Spring, Compression |
90501-23215-00 |
from US $3.40 |
||
|
16
|
16
92903-10600-00 Washer, Plate |
92903-10600-00 |
US $1.07 |
||
| replacement | |||||
|
16
|
16
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $1.07 |
||
|
17
|
17
98190-05025-00 Screw, Oval Head |
98190-05025-00 |
from US $2.55 |
||
| replacements | |||||
|
17
|
17
987-80055-25-00 Screw, Flat Head |
987-80055-25-00 |
from US $2.69 |
||
|
17
|
17
98680-05525-00 Screw.oval Head |
98680-05525-00 |
from US $2.55 |
||
|
18
|
18
90386-08032-00 Bush |
90386-08032-00 |
from US $2.13 |
||
|
19
|
19
6G1-42138-00-00 Lever, Throttle |
6G1-42138-00-00 |
US $46.42 |
||
| replacements | |||||
|
19
|
19
6EG-G2138-00-00 Lever, Throttle |
6EG-G2138-00-00 |
from US $23.66 |
||
|
19
|
19
6G1-42138-01-00 Lever, Throttle |
6G1-42138-01-00 |
from US $46.42 |
||
|
20
|
20
6E0-42159-00-00 Stay |
6E0-42159-00-00 |
US $6.38 |
||
| replacement | |||||
|
20
|
20
6E0-42159-02-00 Stay |
6E0-42159-02-00 |
from US $6.38 |
||
|
21
|
21
97890-05012-00 Screw, Pan Head |
97890-05012-00 |
from US $1.90 |
||
| replacement | |||||
|
21
|
21
98580-05012-00 Screw, Pan Head |
98580-05012-00 |
from US $1.34 |
||
|
22
|
22
6G1-26301-00-00 Throttle Cable Assy |
6G1-26301-00-00 |
US $12.89 |
||
| replacements | |||||
|
22
|
22
6N0-F6301-10-00
Throttle Cable Assy
|
6N0-F6301-10-00 |
— | ||
|
22
|
22
6GH-26301-00-00 Throttle Cable Assy |
6GH-26301-00-00 |
from US $12.89 |
||
|
23
|
23
90202-05088-00 Washer, Plate |
90202-05088-00 |
from US $1.70 |
||
