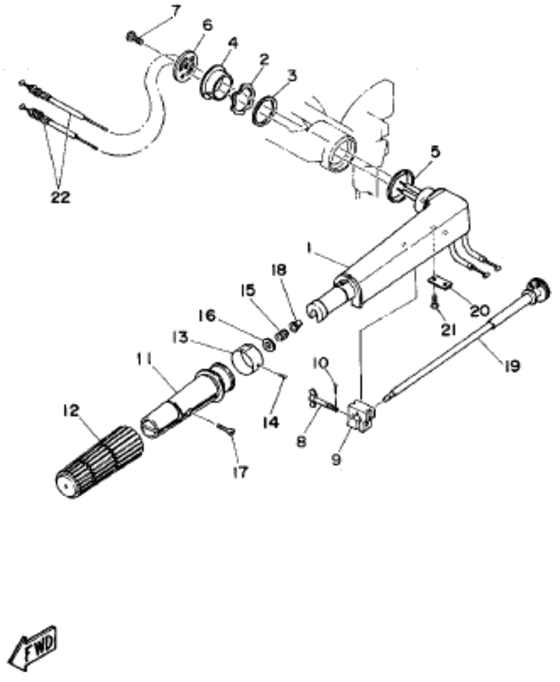

Steering Diagram Yamaha 6 MS/LH
- Year
- 1994
- Model
- 6
- Year
- 1994
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 6
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6G1-42111-03-4D
Handle, Steering
|
6G1-42111-03-4D |
— | ||
| replacement | |||||
|
1
|
1
6G1-42111-04-4D
Handle, Steering
|
6G1-42111-04-4D |
— | ||
|
2
|
2
90206-35M20-00 Washer, Wave(6J8) |
90206-35M20-00 |
US $10.17 |
||
|
3
|
3
90202-35M24-00 Washer, Plate |
90202-35M24-00 |
US $10.02 |
||
|
4
|
4
90386-34M40-00 Bush |
90386-34M40-00 |
from US $10.93 |
||
|
5
|
5
90386-43M79-00 Bush |
90386-43M79-00 |
US $4.34 |
||
|
6
|
6
6G1-42131-01-00 Cover, Handle Steering |
6G1-42131-01-00 |
US $11.67 |
||
|
7
|
7
973-95060-16-00
Bolt, Hex
|
973-95060-16-00 |
— | ||
| replacements | |||||
|
7
|
7
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.13 |
||
|
7
|
7
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
8
|
8
6G1-42125-01-00 Bolt, Friction Adjusting |
6G1-42125-01-00 |
US $9.72 |
||
|
9
|
9
6G1-42126-00-00 Friction, Steering Handle Grip |
6G1-42126-00-00 |
US $7.78 |
||
| replacement | |||||
|
9
|
9
6EE-G2126-00-00 Friction, Steering |
6EE-G2126-00-00 |
US $2.69 |
||
|
10
|
10
91490-16010-00 Pin. Cotter |
91490-16010-00 |
from US $2.69 |
||
|
11
|
11
664-42119-00-00 Grip, Steering Handle |
664-42119-00-00 |
from US $20.90 |
||
|
12
|
12
6G1-42177-00-00
Rubber, Handle
|
6G1-42177-00-00 |
— | ||
| replacement | |||||
|
12
|
12
6G1-42177-01-00 RUBBER HANDLE |
6G1-42177-01-00 |
from US $19.78 |
||
|
13
|
13
6G1-42137-10-00 Indicator, Throttle |
6G1-42137-10-00 |
US $4.34 |
||
| replacement | |||||
|
13
|
13
6G1-42137-20-00 Indicator, Throttle |
6G1-42137-20-00 |
US $3.52 |
||
|
14
|
14
90269-02M09-00 Rivet |
90269-02M09-00 |
US $1.94 |
||
|
15
|
15
90501-23215-00 Spring, Compression |
90501-23215-00 |
US $3.14 |
||
|
16
|
16
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $0.90 |
||
|
17
|
17
901-4905M-13-00
Screw
|
901-4905M-13-00 |
— | ||
| replacement | |||||
|
17
|
17
901-52050-11-00 Screw, Countersunk |
901-52050-11-00 |
from US $1.35 |
||
|
18
|
18
90386-08032-00 Bush |
90386-08032-00 |
from US $2.09 |
||
|
19
|
19
6G1-42138-01-00 Lever, Throttle |
6G1-42138-01-00 |
US $42.80 |
||
| replacement | |||||
|
19
|
19
6EG-G2138-00-00 Lever, Throttle |
6EG-G2138-00-00 |
US $21.69 |
||
|
20
|
20
6E0-42159-02-00 Stay |
6E0-42159-02-00 |
US $5.83 |
||
|
21
|
21
97895-05012-00 Screw, Pan Head |
97895-05012-00 |
US $1.50 |
||
| replacements | |||||
|
21
|
21
98580-05012-00 Screw, Pan Head |
98580-05012-00 |
from US $2.09 |
||
|
21
|
21
978-85050-12-00 Screw, Pan Head |
978-85050-12-00 |
US $1.50 |
||
|
22
|
22
6G1-26301-02-00 Throttle Cable Assembly |
6G1-26301-02-00 |
US $13.61 |
||
| replacements | |||||
|
22
|
22
6N0-F6301-10-00 Throttle Cable Assy |
6N0-F6301-10-00 |
US $12.63 |
||
|
22
|
22
6GH-26301-00-00 THROTTLE CABLE ASSY |
6GH-26301-00-00 |
from US $12.63 |
||
