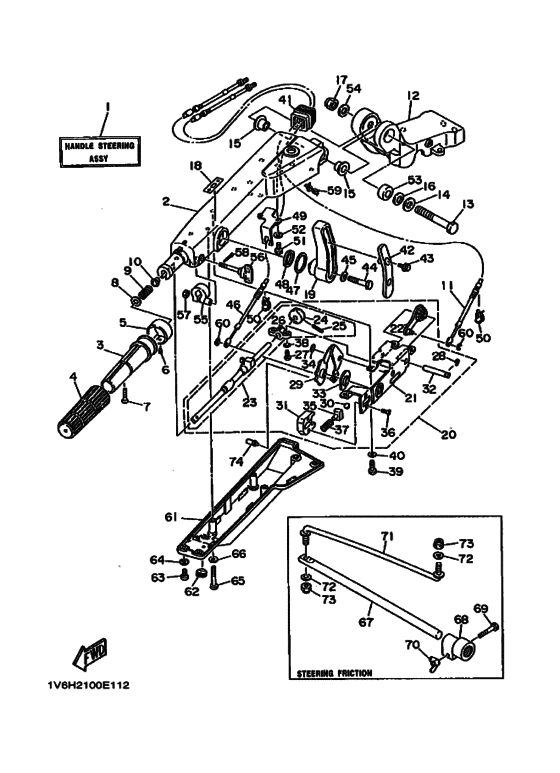

Steering Diagram Yamaha 60 ET(D)OL
- Year
- 1997
- Model
- 60F
- Model code
- 6H2
- Year
- 1997
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 60
- Sales region
- Europe (040)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
63D-W0084-11-4D Handle Steering Assembly(REF. NO. 2 TO 60) |
63D-W0084-11-4D |
US $1,359.60 |
||
| replacements | |||||
|
1
|
1
63D-W0084-22-4D Handle Steering Assy(REF. NO. 2 TO 60) |
63D-W0084-22-4D |
US $1,359.60 |
||
|
1
|
1
6B0-Y301P-14-00 Steering Handle(REF. NO. 2 TO 60) |
6B0-Y301P-14-00 |
US $748.09 |
||
|
1
|
1
6B0-Y301P-15-00 Handle Steering Assy(REF. NO. 2 TO 60) |
6B0-Y301P-15-00 |
US $1,299.26 |
||
|
2
|
2
63D-42111-01-4D
Handle, Steering
|
63D-42111-01-4D |
— | ||
| replacement | |||||
|
2
|
2
63D-WS421-02-4D
Handle, Steering
|
63D-WS421-02-4D |
— | ||
|
3
|
3
664-42119-00-00 Grip, Steering Handle |
664-42119-00-00 |
from US $21.22 |
||
|
4
|
4
6G1-42177-00-00
Rubber, Handle
|
6G1-42177-00-00 |
— | ||
| replacement | |||||
|
4
|
4
6G1-42177-01-00 RUBBER, HANDLE |
6G1-42177-01-00 |
from US $11.76 |
||
|
5
|
5
6H2-42137-00-00 Indicator, Throttle |
6H2-42137-00-00 |
from US $10.06 |
||
| replacement | |||||
|
5
|
5
6H2-42137-10-00 Indicator, Throttle |
6H2-42137-10-00 |
US $4.82 |
||
|
6
|
6
90269-02M09-00 Rivet |
90269-02M09-00 |
from US $2.22 |
||
|
7
|
7
901-4905M-13-00
Screw
|
901-4905M-13-00 |
— | ||
| replacement | |||||
|
7
|
7
901-52050-11-00 Screw, Countersunk |
901-52050-11-00 |
from US $1.52 |
||
|
8
|
8
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $1.18 |
||
|
9
|
9
90501-23215-00 Spring, Compression |
90501-23215-00 |
from US $3.40 |
||
|
10
|
10
90386-08032-00 Bush |
90386-08032-00 |
from US $2.13 |
||
|
11
|
11
6H3-26301-00-00 Throttle Cable Assembly |
6H3-26301-00-00 |
US $90.49 |
||
| replacement | |||||
|
11
|
11
6H3-26301-01-00 Throttle Cable Assy |
6H3-26301-01-00 |
from US $90.49 |
||
|
12
|
12
63D-42121-10-4D
Bracket
|
63D-42121-10-4D |
— | ||
| replacement | |||||
|
12
|
12
999-99033-92-00
Bracket
|
999-99033-92-00 |
— | ||
|
13
|
13
90101-12M09-00 Bolt |
90101-12M09-00 |
US $19.98 |
||
| replacement | |||||
|
13
|
13
90101-12014-00 Bolt |
90101-12014-00 |
from US $19.98 |
||
|
14
|
14
929-90122-00-00 Washer, Plain |
929-90122-00-00 |
from US $1.70 |
||
|
15
|
15
90386-12M93-00 Bush |
90386-12M93-00 |
from US $3.04 |
||
|
16
|
16
90206-12M22-00 Washer, Wave |
90206-12M22-00 |
from US $7.51 |
||
|
17
|
17
90185-12058-00 Nut, Self-Locking |
90185-12058-00 |
from US $7.65 |
||
|
18
|
18
6G8-44191-00-00 Indicator, Shift |
6G8-44191-00-00 |
from US $7.93 |
||
|
19
|
19
63D-44159-01-00 Handle, Gear Shift |
63D-44159-01-00 |
US $47.18 |
||
|
20
|
20
63D-44100-11-00 Shift Link Assy |
63D-44100-11-00 |
US $238.08 |
||
|
21
|
21
63D-44104-00-00 Plate Comp |
63D-44104-00-00 |
US $99.11 |
||
|
22
|
22
63D-48261-00-00
Arm, Throttle
|
63D-48261-00-00 |
— | ||
|
23
|
23
63D-42115-00-00
Shaft, Steering Handle
|
63D-42115-00-00 |
— | ||
|
24
|
24
650-42152-00-94 Gear |
650-42152-00-94 |
from US $9.78 |
||
|
25
|
25
91690-30025-00 Pin, Spring |
91690-30025-00 |
from US $2.70 |
||
|
26
|
26
63D-42159-00-00 Stay |
63D-42159-00-00 |
from US $14.25 |
||
|
27
|
27
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.70 |
||
|
28
|
28
99001-08600-00 Circlip |
99001-08600-00 |
from US $1.66 |
||
|
29
|
29
63D-44113-00-00 Came, Verrouillage |
63D-44113-00-00 |
US $80.03 |
||
| replacement | |||||
|
29
|
29
63D-44113-01-00 Cam Plate, Handle |
63D-44113-01-00 |
from US $80.03 |
||
|
30
|
30
63D-48236-00-00 Roller, Detent |
63D-48236-00-00 |
from US $5.67 |
||
|
31
|
31
63D-48119-00-00 Cover |
63D-48119-00-00 |
from US $30.74 |
||
|
32
|
32
630-42153-00-00
Shaft, Throttle Control
|
630-42153-00-00 |
— | ||
|
33
|
33
63D-44132-00-00 Bushing |
63D-44132-00-00 |
US $13.07 |
||
|
34
|
34
63D-48118-00-00
Clip, Shift Lever
|
63D-48118-00-00 |
— | ||
|
35
|
35
63D-48237-00-00 Adapter |
63D-48237-00-00 |
from US $8.08 |
||
|
36
|
36
98780-05014-00 Screw 3 |
98780-05014-00 |
US $2.13 |
||
| replacement | |||||
|
36
|
36
6X6-81147-00-00 Screw 3 |
6X6-81147-00-00 |
from US $1.70 |
||
|
37
|
37
63D-48238-00-00 Spring, Detent |
63D-48238-00-00 |
from US $3.26 |
||
|
38
|
38
63D-42181-00-00
Washer
|
63D-42181-00-00 |
— | ||
|
39
|
39
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
| replacement | |||||
|
39
|
39
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
40
|
40
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
41
|
41
63D-42725-00-00 Grommet |
63D-42725-00-00 |
US $13.02 |
||
|
42
|
42
63D-44173-00-00 Lever, Shift Control |
63D-44173-00-00 |
from US $9.70 |
||
|
43
|
43
90159-06M18-00 Screw, With Washer |
90159-06M18-00 |
from US $2.55 |
||
|
44
|
44
97095-08040-00 Bolt |
97095-08040-00 |
from US $5.68 |
||
|
45
|
45
929-95086-00-00
Washer, Plate
|
929-95086-00-00 |
— | ||
| replacement | |||||
|
45
|
45
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
46
|
46
6H3-48321-00-00 Cable |
6H3-48321-00-00 |
US $89.67 |
||
| replacement | |||||
|
46
|
46
6H3-48321-02-00 Cable |
6H3-48321-02-00 |
from US $74.74 |
||
|
47
|
47
90386-29M95-00 Bush |
90386-29M95-00 |
from US $2.02 |
||
|
48
|
48
90202-24M53-00 Washer, Plate |
90202-24M53-00 |
from US $23.66 |
||
|
49
|
49
63D-48531-00-00 Bracket, Remote Control |
63D-48531-00-00 |
US $13.22 |
||
|
50
|
50
63D-48538-00-00 Clamp, Cable 1 |
63D-48538-00-00 |
from US $4.08 |
||
|
51
|
51
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
| replacement | |||||
|
51
|
51
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
52
|
52
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
53
|
53
90387-12M02-00 Collar |
90387-12M02-00 |
from US $16.09 |
||
|
54
|
54
92990-12600-00 Washer, Plate |
92990-12600-00 |
from US $1.42 |
||
|
55
|
55
63D-42126-00-00 Friction, Steering Handle Grip |
63D-42126-00-00 |
from US $10.77 |
||
|
56
|
56
63D-48154-00-00
Knob, Throttle
|
63D-48154-00-00 |
— | ||
|
57
|
57
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
58
|
58
91490-20010-00 Pin. Cotter |
91490-20010-00 |
from US $1.98 |
||
|
59
|
59
90464-09M42-00 Clamp |
90464-09M42-00 |
from US $3.68 |
||
|
60
|
60
93430-04M03-00 Circlip |
93430-04M03-00 |
from US $1.66 |
||
| replacement | |||||
|
60
|
60
99080-04600-00 Circlip |
99080-04600-00 |
from US $1.66 |
||
|
61
|
61
63D-42131-00-00 Cover, Handle Steering |
63D-42131-00-00 |
from US $71.15 |
||
|
62
|
62
90480-14M14-00 Grommet |
90480-14M14-00 |
from US $2.55 |
||
|
63
|
63
97885-06016-00 Screw, Pan Head |
97885-06016-00 |
from US $1.70 |
||
| replacements | |||||
|
63
|
63
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.70 |
||
|
63
|
63
901-57060-09-00 Screw, Pan Head |
901-57060-09-00 |
US $2.55 |
||
|
64
|
64
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
65
|
65
97885-06040-00 Screw, Pan Head(6H4) |
97885-06040-00 |
from US $2.50 |
||
| replacement | |||||
|
65
|
65
98580-06040-00 Screw, Pan Head (90501-06040-00 |
98580-06040-00 |
from US $1.39 |
||
|
66
|
66
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
67
|
67
663-42518-00-00 Shaft, Friction |
663-42518-00-00 |
from US $82.32 |
||
|
68
|
68
663-42528-00-00 Plate, Friction |
663-42528-00-00 |
from US $20.54 |
||
|
69
|
69
97095-06035-00 Bolt(6R8) |
97095-06035-00 |
from US $2.69 |
||
| replacement | |||||
|
69
|
69
97080-06035-00 Bolt(J52) |
97080-06035-00 |
from US $2.02 |
||
|
70
|
70
90175-06003-00 Nut, Wing |
90175-06003-00 |
from US $7.79 |
||
| replacements | |||||
|
70
|
70
901-75069-00-00 Nut, Wing (F87) |
901-75069-00-00 |
from US $9.07 |
||
|
70
|
70
90175-06015-00 Nut, Wing |
90175-06015-00 |
US $7.79 |
||
|
71
|
71
692-42515-01-00 Rod, Steering Link |
692-42515-01-00 |
from US $48.36 |
||
|
72
|
72
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
73
|
73
95780-08300-00 Nut, Nylon (6J8) |
95780-08300-00 |
from US $6.74 |
||
|
74
|
74
63D-44114-00-00
Plaquette
|
63D-44114-00-00 |
— | ||
| replacement | |||||
|
74
|
74
63D-44114-01-00 Stopper |
63D-44114-01-00 |
US $23.60 |
||
