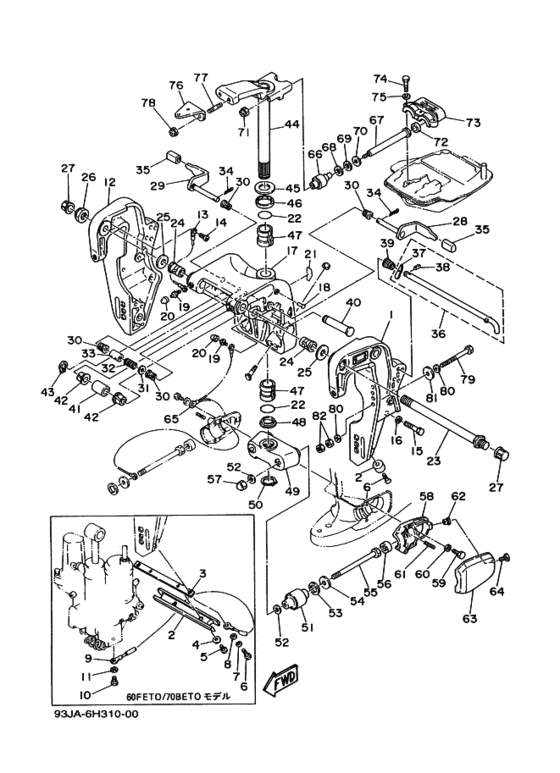

ﾌﾞﾗｹﾂﾄ 1 (ｼﾖｰﾄﾄﾗﾝｻﾑﾓﾃﾞﾙ) Diagram Yamaha 60 ET(D)OL
- Year
- 1993
- Model
- 60F
- Model code
- 6H2
- Year
- 1993
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 60
- Sales region
- Japan (010)
- Colour
- Metallic Marine Silver (MMS; 00EK)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
697-43111-04-EK
Bracket, Clamp 1
ブラケツト，クランプ; |
697-43111-04-EK |
— | ||
|
2
|
2
663-45251-00-00 Anodeアノード; ＵＲ ６０ＦＥＯ／７０ＢＥＯモデル |
663-45251-00-00 |
from US $8.82 |
||
|
2
|
2
6H1-45251-02-00 Anodeアノード; ＵＲ ６０ＦＥＴＯ／７０ＢＥＴＯモデル |
6H1-45251-02-00 |
US $22.24 |
||
| replacement | |||||
|
2
|
2
6H1-45251-03-00 Anodeアノード; ＵＲ ６０ＦＥＴＯ／７０ＢＥＴＯモデル |
6H1-45251-03-00 |
from US $21.77 |
||
|
3
|
3
6H1-44526-00-00 Plateプレート; ６０ＦＥＴＯ／７０ＢＥＴＯモデル |
6H1-44526-00-00 |
from US $11.93 |
||
| replacement | |||||
|
3
|
3
6EK-44536-00-00 Plate 2プレート; ６０ＦＥＴＯ／７０ＢＥＴＯモデル |
6EK-44536-00-00 |
from US $12.18 |
||
|
4
|
4
90201-06M31-00 Washer, Plateワツシヤ，プレート; ６０ＦＥＴＯ／７０ＢＥＴＯモデル |
90201-06M31-00 |
from US $1.81 |
||
|
5
|
5
973-95060-12-00
Bolt
６０ＦＥＴＯ／７０ＢＥＴＯモデル |
973-95060-12-00 |
— | ||
| replacement | |||||
|
5
|
5
970-80060-12-00 Bolt６０ＦＥＴＯ／７０ＢＥＴＯモデル |
970-80060-12-00 |
from US $2.22 |
||
|
6
|
6
92180-06025-00 Screw, Oval Headスクリユ，オーバルヘツド; ＵＲ ６０ＦＥＯ／７０ＢＥＯモデル |
92180-06025-00 |
US $2.69 |
||
| replacement | |||||
|
6
|
6
90152-06M01-00 Screw, Countersunkスクリユ，オーバルヘツド; ＵＲ ６０ＦＥＯ／７０ＢＥＯモデル |
90152-06M01-00 |
from US $2.69 |
||
|
6
|
6
973-95060-16-00
Bolt, Hex
ＵＲ ６０ＦＥＴＯ／７０ＢＥＴＯモデル |
973-95060-16-00 |
— | ||
| replacements | |||||
|
6
|
6
97095-06016-00 BoltＵＲ ６０ＦＥＴＯ／７０ＢＥＴＯモデル |
97095-06016-00 |
US $1.52 |
||
|
6
|
6
97D95-06016-00 Bolt, Hexagon Deep RecessＵＲ ６０ＦＥＴＯ／７０ＢＥＴＯモデル |
97D95-06016-00 |
from US $1.52 |
||
|
7
|
7
929-90061-00-00
Washer, Spring
ワツシヤ，スプリング; ６０ＦＥＴＯ／７０ＢＥＴＯモデル |
929-90061-00-00 |
— | ||
| replacement | |||||
|
7
|
7
929-95061-00-00 Washer, Springワツシヤ，スプリング; ６０ＦＥＴＯ／７０ＢＥＴＯモデル |
929-95061-00-00 |
from US $0.97 |
||
|
8
|
8
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; ６０ＦＥＴＯ／７０ＢＥＴＯモデル |
929-90066-00-00 |
from US $1.39 |
||
|
9
|
9
6H1-82148-00-00 Wire, Lead 4ワイヤ，リード ４; ６０ＦＥＴＯ／７０ＢＥＴＯモデル |
6H1-82148-00-00 |
US $10.63 |
||
| replacement | |||||
|
9
|
9
6T4-82117-00-00 Wire, Leadワイヤ，リード ４; ６０ＦＥＴＯ／７０ＢＥＴＯモデル |
6T4-82117-00-00 |
from US $10.44 |
||
|
10
|
10
97395-06010-00 Bolt６０ＦＥＴＯ／７０ＢＥＴＯモデル |
97395-06010-00 |
from US $1.15 |
||
| replacement | |||||
|
10
|
10
97085-06010-00 Bolt６０ＦＥＴＯ／７０ＢＥＴＯモデル |
97085-06010-00 |
from US $1.28 |
||
|
11
|
11
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; ６０ＦＥＴＯ／７０ＢＥＴＯモデル |
929-90066-00-00 |
from US $1.39 |
||
|
12
|
12
697-43112-03-EK
Bracket, Clamp 2
ブラケツト，クランプ; |
697-43112-03-EK |
— | ||
|
13
|
13
6E5-82148-00-00 Wire, Lead 4ワイヤ，リード ４; |
6E5-82148-00-00 |
from US $6.06 |
||
|
14
|
14
92580-06012-00 Screw |
92580-06012-00 |
US $1.56 |
||
| replacement | |||||
|
14
|
14
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
15
|
15
97395-10045-00 Bolt |
97395-10045-00 |
US $7.51 |
||
| replacements | |||||
|
15
|
15
970-75100-45-00 Bolt(64D) |
970-75100-45-00 |
from US $8.64 |
||
|
15
|
15
97095-10045-00 Bolt |
97095-10045-00 |
from US $5.74 |
||
|
16
|
16
92990-10100-00 Ybs67-10 Washer, Springワツシヤ，スプリング; |
92990-10100-00 |
from US $1.66 |
||
|
17
|
17
697-43311-03-EK
Bracket, Swivel 1
ブラケツト，スウイベル; |
697-43311-03-EK |
— | ||
|
18
|
18
90269-03010-00 Rivet |
90269-03010-00 |
from US $3.40 |
||
|
19
|
19
93700-06M03-00 Nipple, Greaseニツプル，グリース; |
93700-06M03-00 |
from US $3.04 |
||
|
20
|
20
663-45119-00-00 Cap, Grease Nippleキヤツプ，グリースニツプル; |
663-45119-00-00 |
US $3.89 |
||
|
21
|
21
688-43691-01-00
Indicator, Tilt
インジケータ，チルト; |
688-43691-01-00 |
— | ||
| replacement | |||||
|
21
|
21
999-99999-99-00
Not Available
インジケータ，チルト; |
999-99999-99-00 |
— | ||
|
22
|
22
93210-29M94-00 O-Ring |
93210-29M94-00 |
from US $2.36 |
||
|
23
|
23
688-43131-03-00 Bolt, Clamp Bracketボルト，クランプブラケツト; |
688-43131-03-00 |
from US $106.38 |
||
|
24
|
24
90386-22M15-00 Bush |
90386-22M15-00 |
from US $6.06 |
||
|
25
|
25
90201-22M67-00 Washer, Plateワツシヤ，プレート; |
90201-22M67-00 |
from US $1.70 |
||
|
26
|
26
901-85220-43-00
Nut, Self-Locking
|
901-85220-43-00 |
— | ||
| replacement | |||||
|
26
|
26
90185-22007-00 Nut, Self-Locking |
90185-22007-00 |
from US $29.77 |
||
|
27
|
27
6G5-43145-00-00 Cap, Clamp Bracketキヤツプ，クランプブラケツト; |
6G5-43145-00-00 |
US $7.07 |
||
| replacement | |||||
|
27
|
27
6G5-43145-01-00 Cap, Clamp Bracketキヤツプ，クランプブラケツト; |
6G5-43145-01-00 |
from US $7.07 |
||
|
28
|
28
688-43181-04-00 Lever, Tilt Stopレバー，チルトストツプ; |
688-43181-04-00 |
from US $35.02 |
||
|
29
|
29
688-43185-04-00 Lever, Tilt Stopレバー，チルトストツプ; |
688-43185-04-00 |
from US $50.29 |
||
|
30
|
30
90386-10M16-00 Bush |
90386-10M16-00 |
from US $2.36 |
||
|
31
|
31
929-90106-00-00 Washer, Plateワツシヤ，プレート; |
929-90106-00-00 |
from US $1.18 |
||
|
32
|
32
90501-10M21-00 Spring, Compression |
90501-10M21-00 |
US $2.41 |
||
|
33
|
33
90387-10M38-00 Collarカラー; |
90387-10M38-00 |
from US $9.15 |
||
|
34
|
34
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.39 |
||
|
35
|
35
663-43318-00-00 Coverカバー; |
663-43318-00-00 |
from US $5.28 |
||
|
36
|
36
697-43160-00-00 Tilt Rod Assemblyチルトロツドアセンブリ; |
697-43160-00-00 |
from US $37.99 |
||
|
37
|
37
688-43165-00-00 Plate, Tilt Lock．プレート，チルトロツク; |
688-43165-00-00 |
from US $7.23 |
||
|
38
|
38
91690-30012-00 Pin, Spring．ピン，スプリング; |
91690-30012-00 |
from US $2.69 |
||
|
39
|
39
90502-20M03-00 Spring, Conical |
90502-20M03-00 |
from US $6.80 |
||
|
40
|
40
6E5-43126-02-00 Pin, Upper Shock Mountピン，アツパーシヨツクマウント; |
6E5-43126-02-00 |
from US $23.94 |
||
|
41
|
41
90386-18M21-00 BushＵＲ ６０ＦＥＯ／７０ＢＥＯモデル |
90386-18M21-00 |
from US $7.36 |
||
|
41
|
41
90386-18M63-00 BushＵＲ ６０ＦＥＴＯ／７０ＢＥＴＯモデル |
90386-18M63-00 |
from US $4.03 |
||
|
42
|
42
90386-18M35-00 Bush |
90386-18M35-00 |
from US $11.12 |
||
|
43
|
43
93410-18M02-00 Circlipサークリツプ; |
93410-18M02-00 |
US $3.12 |
||
| replacement | |||||
|
43
|
43
93410-18M05-00 Circlip (6F2)サークリツプ; |
93410-18M05-00 |
from US $3.26 |
||
|
44
|
44
6H3-42510-02-EK
Steering Bracket Assy
ステアリングブラケツトアセンブリ; |
6H3-42510-02-EK |
— | ||
|
45
|
45
90201-30M00-00 Washer, Plateワツシヤ，プレート; |
90201-30M00-00 |
from US $5.06 |
||
|
46
|
46
90386-30M78-00 Bush |
90386-30M78-00 |
from US $3.04 |
||
|
47
|
47
90386-30M77-00 Bush |
90386-30M77-00 |
from US $10.44 |
||
|
48
|
48
90386-30M60-00 Bush |
90386-30M60-00 |
from US $3.04 |
||
|
49
|
49
6H3-44551-00-EK
Housing, Lwr, Mountlower Mount Rubber
ハウジング，ロワーマウントラバー; |
6H3-44551-00-EK |
— | ||
| replacement | |||||
|
49
|
49
6H3-44551-01-EK
Housing, Lower Mount
ハウジング，ロワーマウントラバー; |
6H3-44551-01-EK |
— | ||
|
50
|
50
93410-28M06-00 Circlipサークリツプ; |
93410-28M06-00 |
from US $7.23 |
||
|
51
|
51
687-44555-00-94 Mount Damper, Lower Sideマウントダンパ，ロワーサイド; |
687-44555-00-94 |
US $73.22 |
||
| replacement | |||||
|
51
|
51
687-44555-00-00 Mount Damper, Lower Sideマウントダンパ，ロワーサイド; |
687-44555-00-00 |
from US $73.22 |
||
|
52
|
52
90201-12M16-00 Washer, Plateワツシヤ，プレート; |
90201-12M16-00 |
from US $2.70 |
||
|
53
|
53
90202-25M04-00 Washer, Plateワツシヤ，プレート; |
90202-25M04-00 |
from US $3.04 |
||
|
54
|
54
90201-13M19-00 Washer, Plateワツシヤ，プレート; |
90201-13M19-00 |
from US $6.74 |
||
|
55
|
55
90109-12M21-00 Bolt |
90109-12M21-00 |
from US $12.89 |
||
|
56
|
56
663-44575-00-00 Damper, Lower Mount Rubberダンパ，ロワーマウントラバー; |
663-44575-00-00 |
US $10.48 |
||
| replacement | |||||
|
56
|
56
663-44575-01-00 Damper, lower mount rubberダンパ，ロワーマウントラバー; |
663-44575-01-00 |
from US $10.48 |
||
|
57
|
57
95380-12800-00 Nut, Crownナツト，クラウン; |
95380-12800-00 |
from US $4.04 |
||
|
58
|
58
6H3-44552-01-94 Housing, Lower Mount Rubber 2ハウジング，ロワーマウントラバー; |
6H3-44552-01-94 |
US $70.19 |
||
| replacement | |||||
|
58
|
58
6H3-44552-03-00 Housing, Lower Mount Rubberハウジング，ロワーマウントラバー; |
6H3-44552-03-00 |
from US $49.82 |
||
|
59
|
59
97395-08025-00 Bolt |
97395-08025-00 |
from US $4.53 |
||
| replacements | |||||
|
59
|
59
98980-08025-00 Screw, Bind (98902-08025-00) |
98980-08025-00 |
from US $5.68 |
||
|
59
|
59
97095-08025-00 Bolt |
97095-08025-00 |
from US $3.38 |
||
|
60
|
60
92990-08100-00 Ybs67-8 Washer, Springワツシヤ，スプリング; |
92990-08100-00 |
from US $1.66 |
||
|
61
|
61
90501-14236-00 Spring, Compression |
90501-14236-00 |
US $4.53 |
||
| replacement | |||||
|
61
|
61
90501-14M08-00 Spring, Compression(64J) |
90501-14M08-00 |
from US $4.53 |
||
|
62
|
62
90179-06066-00 Nut |
90179-06066-00 |
from US $4.96 |
||
|
63
|
63
6H3-44553-00-EK
Cover, Lwr.mount
カバー，ロワーマウント; |
6H3-44553-00-EK |
— | ||
| replacement | |||||
|
63
|
63
6H3-44553-01-EK
Cover, Lower Mount
カバー，ロワーマウント; |
6H3-44553-01-EK |
— | ||
|
64
|
64
92390-06015-00 Screw, Cylinder Head (664) |
92390-06015-00 |
US $2.55 |
||
| replacement | |||||
|
64
|
64
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.70 |
||
|
65
|
65
697-82127-01-00 Wire, Lead 2ワイヤ，リード ２; |
697-82127-01-00 |
from US $23.52 |
||
|
66
|
66
688-44514-00-94 Mount Damper, Upper Sideマウントダンパ，アツパーサイド; |
688-44514-00-94 |
US $60.93 |
||
| replacement | |||||
|
66
|
66
688-44514-00-00 Mount Damper, Upper Sideマウントダンパ，アツパーサイド; |
688-44514-00-00 |
from US $60.93 |
||
|
67
|
67
90101-10M49-00 Bolt |
90101-10M49-00 |
from US $19.26 |
||
| replacement | |||||
|
67
|
67
90101-10041-00 Bolt |
90101-10041-00 |
from US $19.27 |
||
|
68
|
68
90201-20M21-00 Washer, Plateワツシヤ，プレート; |
90201-20M21-00 |
from US $4.04 |
||
|
69
|
69
90202-20M06-00 Washer, Plateワツシヤ，プレート; |
90202-20M06-00 |
from US $3.04 |
||
|
70
|
70
90201-11M22-00 Washer, Plateワツシヤ，プレート; |
90201-11M22-00 |
from US $4.38 |
||
|
71
|
71
901-85100-51-00
Nut, Self-Locking
|
901-85100-51-00 |
— | ||
| replacement | |||||
|
71
|
71
90185-10027-00 Nut, Self-Locking |
90185-10027-00 |
from US $1.52 |
||
|
72
|
72
663-44575-00-00 Damper, Lower Mount Rubberダンパ，ロワーマウントラバー; |
663-44575-00-00 |
US $10.48 |
||
| replacement | |||||
|
72
|
72
663-44575-01-00 Damper, lower mount rubberダンパ，ロワーマウントラバー; |
663-44575-01-00 |
from US $10.48 |
||
|
73
|
73
688-44511-00-94 Cover, Upper Mountカバー，アツパーマウントラバー; |
688-44511-00-94 |
US $40.62 |
||
| replacement | |||||
|
73
|
73
688-44511-00-00 Cover, Upper Mountカバー，アツパーマウントラバー; |
688-44511-00-00 |
from US $40.62 |
||
|
74
|
74
97090-08035-00 Boltボルト; |
97090-08035-00 |
from US $5.53 |
||
| replacements | |||||
|
74
|
74
97070-08035-00 Boltボルト; |
97070-08035-00 |
from US $2.59 |
||
|
74
|
74
97095-08035-00 Boltボルト; |
97095-08035-00 |
from US $5.53 |
||
|
75
|
75
92990-08100-00 Ybs67-8 Washer, Springワツシヤ，スプリング; |
92990-08100-00 |
from US $1.66 |
||
|
76
|
76
688-48511-01-EK Hook Steeringフツク，ステアリング; ＵＲ ボールポストタイプ |
688-48511-01-EK |
US $41.45 |
||
| replacement | |||||
|
76
|
76
688-48511-02-00 Hook, Steeringフツク，ステアリング; ＵＲ ボールポストタイプ |
688-48511-02-00 |
from US $31.32 |
||
|
76
|
76
6H3-48511-51-EK Hook Steeringフツク，ステアリング; ＵＲ ステアリングガイドタイプ |
6H3-48511-51-EK |
US $46.70 |
||
| replacement | |||||
|
76
|
76
6H3-48511-52-00 Hook, Steeringフツク，ステアリング; ＵＲ ステアリングガイドタイプ |
6H3-48511-52-00 |
from US $40.39 |
||
|
77
|
77
90116-10175-00 Bolt, Stud |
90116-10175-00 |
from US $5.38 |
||
| replacements | |||||
|
77
|
77
901-16100-62-00 Bolt, Stud |
901-16100-62-00 |
from US $5.97 |
||
|
77
|
77
90116-10063-00 Bolt, Stud |
90116-10063-00 |
from US $5.81 |
||
|
78
|
78
901-85100-51-00
Nut, Self-Locking
|
901-85100-51-00 |
— | ||
| replacement | |||||
|
78
|
78
90185-10027-00 Nut, Self-Locking |
90185-10027-00 |
from US $1.52 |
||
|
79
|
79
90101-12M65-00 Bolt |
90101-12M65-00 |
US $18.99 |
||
|
80
|
80
92995-12200-00 Washer |
92995-12200-00 |
from US $2.09 |
||
| replacement | |||||
|
80
|
80
929-90122-00-00 Washer, Plain |
929-90122-00-00 |
from US $1.70 |
||
|
81
|
81
90201-12426-00 Washe, Plate(663)ワツシヤ，プレート; |
90201-12426-00 |
from US $3.24 |
||
|
82
|
82
95380-12600-00 Nut |
95380-12600-00 |
from US $5.40 |
||
