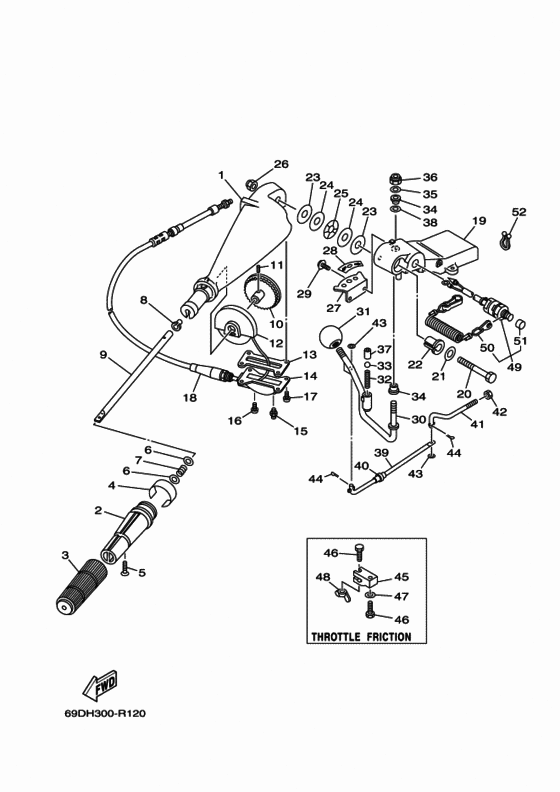

Steering Diagram Yamaha 60 MHDL
- Year
- 2017
- Model
- E60H
- Model code
- 69DH
- Year
- 2017
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 60
- Sales region
- Finland (040)
- Colour
- Dark Bluish Gray 1 (DBN1; 008D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
663-42111-02-8D HANDLE, STEERING |
663-42111-02-8D |
from US $169.09 |
||
|
2
|
2
664-42119-00-00 Grip, Steering Handle |
664-42119-00-00 |
from US $21.22 |
||
|
3
|
3
6G1-42177-00-00
Rubber, Handle
|
6G1-42177-00-00 |
— | ||
| replacement | |||||
|
3
|
3
6G1-42177-01-00 RUBBER, HANDLE |
6G1-42177-01-00 |
from US $11.76 |
||
|
4
|
4
61U-42137-00-00
Indicator, Throttle
|
61U-42137-00-00 |
— | ||
|
5
|
5
901-52050-11-00 Screw, Countersunk |
901-52050-11-00 |
from US $1.52 |
||
|
6
|
6
90201-10M02-00 Washer, Plate |
90201-10M02-00 |
from US $1.98 |
||
|
7
|
7
90501-23215-00 Spring, Compression |
90501-23215-00 |
from US $3.40 |
||
|
8
|
8
90386-08032-00 Bush |
90386-08032-00 |
from US $2.13 |
||
|
9
|
9
663-42115-00-00 Shaft, Steering Handle |
663-42115-00-00 |
from US $17.18 |
||
|
10
|
10
663-42138-00-00 Lever, Throttle |
663-42138-00-00 |
from US $33.68 |
||
|
11
|
11
90254-03003-00 Pin, Spring |
90254-03003-00 |
from US $1.70 |
||
|
12
|
12
663-42135-01-00 Housing, Throttle Lever |
663-42135-01-00 |
from US $19.54 |
||
|
13
|
13
663-42133-01-00 Gasket |
663-42133-01-00 |
from US $4.96 |
||
|
14
|
14
663-42134-03-94 Cover, Throttle Lever |
663-42134-03-94 |
from US $17.86 |
||
|
15
|
15
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $3.04 |
||
|
16
|
16
97885-06008-00 Screw, Pan Head |
97885-06008-00 |
from US $1.56 |
||
|
17
|
17
978-85050-12-00 Screw, Pan Head |
978-85050-12-00 |
from US $1.70 |
||
| replacement | |||||
|
17
|
17
98580-05012-00 Screw, Pan Head |
98580-05012-00 |
from US $2.13 |
||
|
18
|
18
692-26301-03-00 Throttle Cable Assy |
692-26301-03-00 |
from US $75.08 |
||
|
19
|
19
692-42121-02-8D Bracket |
692-42121-02-8D |
from US $191.88 |
||
|
20
|
20
90101-12M06-00 Bolt |
90101-12M06-00 |
from US $13.46 |
||
| replacement | |||||
|
20
|
20
901-01120-75-00 Bolt |
901-01120-75-00 |
from US $13.46 |
||
|
21
|
21
929-90122-00-00 Washer, Plain |
929-90122-00-00 |
from US $1.70 |
||
|
22
|
22
90386-12089-00 Bush |
90386-12089-00 |
from US $5.24 |
||
|
23
|
23
90202-12092-00 Washer, Plate |
90202-12092-00 |
from US $2.55 |
||
|
24
|
24
90201-12537-00 Washer, Plate |
90201-12537-00 |
from US $5.06 |
||
|
25
|
25
90206-12054-00 Washer, Wave |
90206-12054-00 |
from US $3.26 |
||
|
26
|
26
90185-12058-00 Nut, Self-Locking |
90185-12058-00 |
from US $7.65 |
||
|
27
|
27
697-44113-00-00 Cam Plate, Handle |
697-44113-00-00 |
from US $26.49 |
||
|
28
|
28
6K5-44191-00-00 Indicator, Shift |
6K5-44191-00-00 |
from US $7.65 |
||
|
29
|
29
97513-06516-00 Bolt, With Washer |
97513-06516-00 |
from US $1.78 |
||
| replacements | |||||
|
29
|
29
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
|
29
|
29
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
30
|
30
692-44159-01-00 Handle, Gear Shift |
692-44159-01-00 |
from US $56.37 |
||
|
31
|
31
663-44173-00-00 Lever, Shift Control |
663-44173-00-00 |
from US $12.75 |
||
|
32
|
32
90501-16M17-00 Spring, Compression |
90501-16M17-00 |
from US $2.83 |
||
|
33
|
33
93515-32M01-00 Ball |
93515-32M01-00 |
from US $6.09 |
||
|
34
|
34
90386-10009-00 Bush |
90386-10009-00 |
from US $4.11 |
||
|
35
|
35
90201-10120-00 Washer, Plate |
90201-10120-00 |
US $3.12 |
||
| replacement | |||||
|
35
|
35
90201-10049-00 Washer, Plate |
90201-10049-00 |
from US $2.75 |
||
|
36
|
36
90185-10027-00 Nut, Self-Locking |
90185-10027-00 |
from US $1.52 |
||
|
37
|
37
90387-12M30-00 Collar |
90387-12M30-00 |
from US $9.07 |
||
|
38
|
38
902-0112M-34-00 Washer, Plate |
902-0112M-34-00 |
from US $2.69 |
||
|
39
|
39
6H3-42191-01-00 Rod 1 |
6H3-42191-01-00 |
from US $23.72 |
||
|
40
|
40
90386-06088-00 Bush |
90386-06088-00 |
from US $2.55 |
||
|
41
|
41
6H3-42192-00-00 Rod 2 |
6H3-42192-00-00 |
from US $18.99 |
||
|
42
|
42
700-48339-00-00 Nut, Cable End |
700-48339-00-00 |
from US $1.70 |
||
|
43
|
43
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
44
|
44
91490-25012-00 Pin. Cotter |
91490-25012-00 |
from US $1.42 |
||
| replacement | |||||
|
44
|
44
91490-25020-00 Pin. Cotter |
91490-25020-00 |
from US $1.52 |
||
|
45
|
45
663-42126-01-00 Throttle Friction |
663-42126-01-00 |
from US $11.33 |
||
|
46
|
46
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.52 |
||
|
47
|
47
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
48
|
48
90175-06003-00 Nut, Wing |
90175-06003-00 |
from US $7.79 |
||
| replacements | |||||
|
48
|
48
901-75069-00-00 Nut, Wing (F87) |
901-75069-00-00 |
from US $9.07 |
||
|
48
|
48
90175-06015-00 Nut, Wing |
90175-06015-00 |
US $7.79 |
||
|
49
|
49
6K5-82575-03-00 Engine Stop Switch Assy |
6K5-82575-03-00 |
from US $58.58 |
||
|
50
|
50
682-82556-00-00 Lanyard, Stop Switch |
682-82556-00-00 |
from US $10.13 |
||
|
51
|
51
689-8257Y-00-00 Cap |
689-8257Y-00-00 |
from US $4.82 |
||
|
52
|
52
904-6408M-07-00
Clamp
|
904-6408M-07-00 |
— | ||
| replacement | |||||
|
52
|
52
904-65181-47-00 Clamp |
904-65181-47-00 |
from US $1.70 |
||
