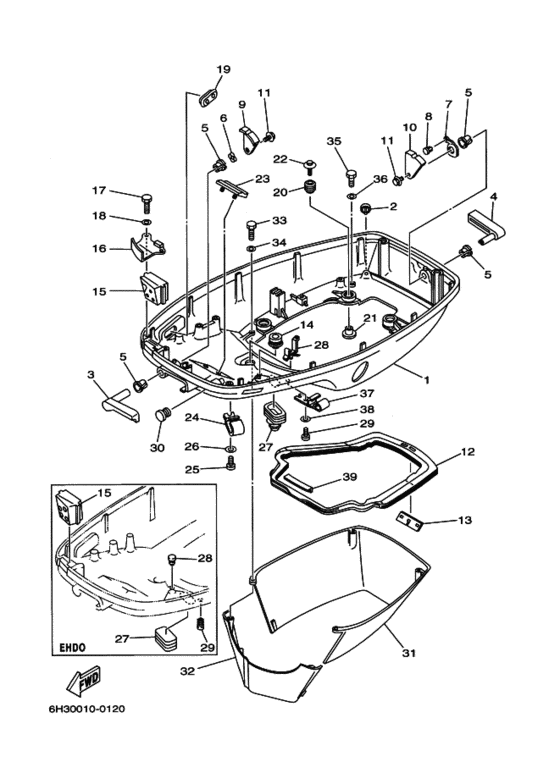

Bottom cowling assy Diagram Yamaha 70 ET(D/M)OL
- Year
- 2000
- Model
- 70B
- Model code
- 6H3
- Year
- 2000
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 70
- Sales region
- Japan (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6H3-42711-14-4D Cowling BottomＵＲ ＥＨＤＯ，ＥＨＴＯ |
6H3-42711-14-4D |
US $667.92 |
||
| replacements | |||||
|
1
|
1
6H3-42711-15-4D Cowling, Bottom 1ＵＲ ＥＨＤＯ，ＥＨＴＯ |
6H3-42711-15-4D |
US $667.92 |
||
|
1
|
1
6H3-42711-15-8D COWLING, BOTTOM 1ＵＲ ＥＨＤＯ，ＥＨＴＯ |
6H3-42711-15-8D |
from US $667.92 |
||
|
1
|
1
6H3-42711-24-4D Cowling, Bottom 1ＵＲ ＥＴＯ |
6H3-42711-24-4D |
US $549.12 |
||
| replacements | |||||
|
1
|
1
6H3-42711-25-4D Cowling, Bottom 1ＵＲ ＥＴＯ |
6H3-42711-25-4D |
US $549.12 |
||
|
1
|
1
6H3-42711-25-8D Cowling, Bottom 1ＵＲ ＥＴＯ |
6H3-42711-25-8D |
from US $549.12 |
||
|
2
|
2
6H3-44391-01-00
Nipple, Hose
|
6H3-44391-01-00 |
— | ||
| replacement | |||||
|
2
|
2
6BL-44391-00-00 Nipple, Hose |
6BL-44391-00-00 |
from US $0.93 |
||
|
3
|
3
6H3-42815-01-4D Lever, Clampレバ−，クランプ; |
6H3-42815-01-4D |
US $48.91 |
||
| replacement | |||||
|
3
|
3
6H3-42815-01-8D LEVER, CLAMPレバ−，クランプ; |
6H3-42815-01-8D |
from US $48.91 |
||
|
4
|
4
6H3-42817-01-4D Lever, Clampレバ−，クランプ; |
6H3-42817-01-4D |
US $48.91 |
||
| replacement | |||||
|
4
|
4
6H3-42817-01-8D LEVER, CLAMPレバ−，クランプ; |
6H3-42817-01-8D |
from US $48.91 |
||
|
5
|
5
90386-13M38-00 Bush |
90386-13M38-00 |
from US $2.55 |
||
|
6
|
6
90206-13M10-00 Washer, Waveワツシヤ，ウエイブ; |
90206-13M10-00 |
from US $2.69 |
||
|
7
|
7
6H3-42813-00-00 Spring, Clamp Leverスプリング; |
6H3-42813-00-00 |
from US $2.98 |
||
|
8
|
8
90269-04M03-00 Rivet |
90269-04M03-00 |
from US $1.84 |
||
|
9
|
9
6H3-42816-00-00 Lever, Clampレバ−，クランプ; |
6H3-42816-00-00 |
from US $16.72 |
||
|
10
|
10
6H3-42818-00-00 Lever, Clamp |
6H3-42818-00-00 |
from US $7.65 |
||
|
11
|
11
90119-06M09-00 Bolt, With Washerボルト，ウイズワツシヤ; |
90119-06M09-00 |
US $3.68 |
||
|
12
|
12
6H3-42716-02-00 Rubber, Seal 1ラバ−，シ−ル １; |
6H3-42716-02-00 |
from US $53.47 |
||
|
13
|
13
6K5-42717-00-00 Rubber, Seal 2ラバ−，シ−ル ２; |
6K5-42717-00-00 |
US $3.12 |
||
| replacement | |||||
|
13
|
13
6K5-42717-01-00 Rubber, Seal 2ラバ−，シ−ル ２; |
6K5-42717-01-00 |
from US $3.12 |
||
|
14
|
14
6E5-42724-00-00 Grommet |
6E5-42724-00-00 |
US $6.80 |
||
|
15
|
15
6H3-42725-10-00 Grommetグロメツト; |
6H3-42725-10-00 |
US $13.32 |
||
|
16
|
16
6H3-42738-01-5B Plate, Fitting |
6H3-42738-01-5B |
US $19.55 |
||
| replacements | |||||
|
16
|
16
6H3-42738-01-CA Plate, Fitting |
6H3-42738-01-CA |
US $19.55 |
||
|
16
|
16
6H3-42738-01-8D Plate, Fitting |
6H3-42738-01-8D |
US $60.86 |
||
|
17
|
17
97095-06016-00 Boltボルト; |
97095-06016-00 |
from US $1.28 |
||
| replacement | |||||
|
17
|
17
97D95-06016-00 Bolt, Hexagon Deep Recessボルト; |
97D95-06016-00 |
from US $1.28 |
||
|
18
|
18
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
18
|
18
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
19
|
19
6H3-42727-00-00 Grommetグロメツト; |
6H3-42727-00-00 |
US $6.38 |
||
|
20
|
20
90480-09M12-00 Grommet |
90480-09M12-00 |
from US $2 |
||
|
21
|
21
90387-06M69-00 Collar |
90387-06M69-00 |
from US $3.98 |
||
|
22
|
22
901-1906M-61-00
Bolt, With Washer
ボルト，ウイズワツシヤ; |
901-1906M-61-00 |
— | ||
| replacements | |||||
|
22
|
22
90119-06M08-00 Bolt, With Washerボルト，ウイズワツシヤ; |
90119-06M08-00 |
from US $4.39 |
||
|
22
|
22
90119-06295-00 Bolt, With Washerボルト，ウイズワツシヤ; |
90119-06295-00 |
from US $4.39 |
||
|
23
|
23
6H3-42768-00-00 Damperダンパ; |
6H3-42768-00-00 |
from US $5.38 |
||
|
24
|
24
6E5-24367-01-00 Clamp, Fuel Pipe 2クランプ，フユエルパイプ ２; |
6E5-24367-01-00 |
from US $10.26 |
||
|
25
|
25
90157-06M01-00 Screw, Pan Head |
90157-06M01-00 |
from US $2.69 |
||
|
26
|
26
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレ−ト; |
929-90066-00-00 |
from US $1.07 |
||
|
27
|
27
688-42726-10-00 Grommetグロメツト; ＵＲ ＥＴＯ，ＥＨＴＯ |
688-42726-10-00 |
US $4.11 |
||
|
27
|
27
6H4-42726-00-00 Grommetグロメツト; ＵＲ ＥＨＤＯ |
6H4-42726-00-00 |
US $3.68 |
||
|
28
|
28
703-82119-00-00 Cover, Lead Wireカバ−，リ−ドワイヤ; ＵＲ ＥＨＤＯ |
703-82119-00-00 |
from US $2.13 |
||
|
28
|
28
904-6409M-13-00
Clamp
ＵＲ ＥＴＯ，ＥＨＴＯ |
904-6409M-13-00 |
— | ||
| replacement | |||||
|
28
|
28
90464-15M08-00 ClampＵＲ ＥＴＯ，ＥＨＴＯ |
90464-15M08-00 |
from US $1.84 |
||
|
29
|
29
90157-06M01-00 Screw, Pan HeadＵＲ ＥＴＯ，ＥＨＴＯ |
90157-06M01-00 |
from US $2.69 |
||
|
29
|
29
90338-05M03-00 PlugＵＲ ＥＨＤＯ |
90338-05M03-00 |
from US $1.84 |
||
|
30
|
30
6G1-42748-00-00 Grommet |
6G1-42748-00-00 |
US $5.24 |
||
|
31
|
31
6H3-42741-01-4D Apronエプロン; |
6H3-42741-01-4D |
US $115.23 |
||
| replacement | |||||
|
31
|
31
6H3-42741-01-8D Apronエプロン; |
6H3-42741-01-8D |
from US $115.23 |
||
|
32
|
32
6H3-42771-01-4D Apronエプロン; |
6H3-42771-01-4D |
US $70.46 |
||
| replacement | |||||
|
32
|
32
6H3-42771-01-8D Apronエプロン; |
6H3-42771-01-8D |
from US $70.46 |
||
|
33
|
33
970-95060-25-00
Bolt
ボルト; |
970-95060-25-00 |
— | ||
| replacement | |||||
|
33
|
33
90101-06M27-00 Boltボルト; |
90101-06M27-00 |
from US $1.35 |
||
|
34
|
34
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
34
|
34
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
35
|
35
97095-06020-00 Boltボルト; |
97095-06020-00 |
US $1.56 |
||
| replacement | |||||
|
35
|
35
970-80060-20-00 Boltボルト; |
970-80060-20-00 |
from US $1.56 |
||
|
36
|
36
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
36
|
36
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
37
|
37
6E5-24367-01-00 Clamp, Fuel Pipe 2クランプ，フユエルパイプ ２; ＥＴＯ，ＥＨＴＯ |
6E5-24367-01-00 |
from US $10.26 |
||
|
38
|
38
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレ−ト; ＥＴＯ，ＥＨＴＯ |
929-90066-00-00 |
from US $1.07 |
||
|
39
|
39
6H3-42718-00-00 Rubber, Seal 3ラバ−，シ−ル ３; |
6H3-42718-00-00 |
from US $5.90 |
||
