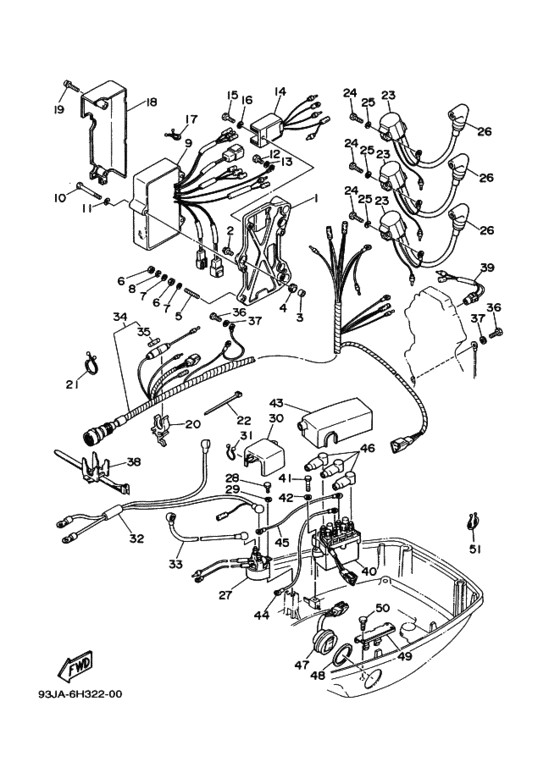

Electrical 1 Diagram Yamaha 70 ET(D/M)OL
- Year
- 1993
- Model
- 70B
- Model code
- 6H3
- Year
- 1993
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 70
- Sales region
- Japan (010)
- Colour
- Metallic Marine Silver (MMS; 00EK)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6H3-85542-11-94
Bracket
ブラケツト; |
6H3-85542-11-94 |
— | ||
| replacements | |||||
|
1
|
1
999-99999-99-00
Not Available
ブラケツト; |
999-99999-99-00 |
— | ||
|
1
|
1
6H3-85542-11-00 Bracketブラケツト; |
6H3-85542-11-00 |
from US $48.36 |
||
|
2
|
2
90105-06M14-00 Bolt Flangeボルト，ワツシヤベースドヘツド; |
90105-06M14-00 |
from US $2.05 |
||
|
3
|
3
90387-06M43-00 Collarカラー; |
90387-06M43-00 |
from US $4.96 |
||
|
4
|
4
90480-13M54-00 Grommet |
90480-13M54-00 |
from US $4.82 |
||
|
5
|
5
90116-06M07-00 Goujon |
90116-06M07-00 |
from US $5.67 |
||
|
6
|
6
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.34 |
||
| replacement | |||||
|
6
|
6
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.42 |
||
|
7
|
7
92990-06200-00 Washer, Plainワツシヤ，プレーン; |
92990-06200-00 |
from US $1.07 |
||
|
8
|
8
929-90061-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-90061-00-00 |
— | ||
| replacement | |||||
|
8
|
8
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.99 |
||
|
9
|
9
6H2-85540-02-00 Cdi Unit Assembly．．．ＣＤＩユニツトアセンブリ; |
6H2-85540-02-00 |
US $1,079.76 |
||
| replacement | |||||
|
9
|
9
6H2-85540-B8-00 C.d.i. Unit Assy．．．ＣＤＩユニツトアセンブリ; |
6H2-85540-B8-00 |
from US $1,019.85 |
||
|
10
|
10
973-95060-50-00
Bolt
|
973-95060-50-00 |
— | ||
| replacement | |||||
|
10
|
10
970-80060-50-00 Bolt |
970-80060-50-00 |
from US $2.98 |
||
|
11
|
11
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.07 |
||
|
12
|
12
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
12
|
12
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
13
|
13
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.07 |
||
|
14
|
14
6H2-81960-00-00 Rectifier & Regulator Assyレクチフアイヤアンドレギユレータアセンブリ; |
6H2-81960-00-00 |
from US $162.61 |
||
|
15
|
15
973-95060-16-00
Bolt, Hex
|
973-95060-16-00 |
— | ||
| replacements | |||||
|
15
|
15
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
15
|
15
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
16
|
16
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.07 |
||
|
17
|
17
90464-05M16-00 Clamp |
90464-05M16-00 |
from US $1.84 |
||
|
18
|
18
6H3-81916-10-00 Cover, Terminalカバー，ターミナル; |
6H3-81916-10-00 |
from US $13.08 |
||
|
19
|
19
90159-06M01-00 Screw, With Washer |
90159-06M01-00 |
from US $3.54 |
||
|
20
|
20
6G5-82152-00-00 Holder, Fuseホルダ，フユーズ; |
6G5-82152-00-00 |
from US $2 |
||
|
21
|
21
90464-23M22-00 Clamp |
90464-23M22-00 |
from US $1.70 |
||
| replacement | |||||
|
21
|
21
90464-25267-00 Clamp |
90464-25267-00 |
from US $1.70 |
||
|
22
|
22
90464-13M11-00
Clamp
クランプ; |
90464-13M11-00 |
— | ||
|
23
|
23
6H2-85570-00-00 Ignition Coil Assemblyイグニツシヨンコイルアセンブリ; |
6H2-85570-00-00 |
US $102.24 |
||
| replacement | |||||
|
23
|
23
697-85570-00-00 Ignition Coil Assyイグニツシヨンコイルアセンブリ; |
697-85570-00-00 |
from US $91.58 |
||
|
24
|
24
97313-06020-00 Bolt, Hexagon |
97313-06020-00 |
US $1.56 |
||
| replacement | |||||
|
24
|
24
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.56 |
||
|
25
|
25
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.07 |
||
|
26
|
26
6G1-82370-20-00 Plug Cap Asyプラグキヤツプアセンブリ; |
6G1-82370-20-00 |
US $20.12 |
||
| replacement | |||||
|
26
|
26
6G1-82370-21-00 Plug Cap Assyプラグキヤツプアセンブリ; |
6G1-82370-21-00 |
from US $20.12 |
||
|
27
|
27
688-81950-10-00 Relay Assyリレーアセンブリ; |
688-81950-10-00 |
from US $165.79 |
||
|
28
|
28
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
28
|
28
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
28
|
28
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
29
|
29
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.07 |
||
|
30
|
30
6H3-82164-00-00 Case 2ケース ２; |
6H3-82164-00-00 |
from US $4.85 |
||
|
31
|
31
90464-16039-00 Clamp (3Y2) |
90464-16039-00 |
from US $1.70 |
||
|
32
|
32
6H3-82105-00-00 Battery Cableワイヤハーネス; |
6H3-82105-00-00 |
US $161.65 |
||
| replacements | |||||
|
32
|
32
66T-82105-J1-00 Battery Cableワイヤハーネス; |
66T-82105-J1-00 |
US $161.65 |
||
|
32
|
32
66T-82105-J2-00 Battery Cableワイヤハーネス; |
66T-82105-J2-00 |
US $183.56 |
||
|
33
|
33
6H3-82117-00-00 Wire, Leadワイヤ，リード; |
6H3-82117-00-00 |
US $16.86 |
||
|
34
|
34
6H2-82590-12-00
Wire Harness Assembly
ワイヤハーネスアセンブリ; ＵＲ |
6H2-82590-12-00 |
— | ||
|
34
|
34
6H2-82590-30-00
Wire Harness Assy
ワイヤハーネスアセンブリ; ＵＲ ６０ＦＥＯ／７０ＢＥＯ |
6H2-82590-30-00 |
— | ||
|
35
|
35
682-82151-00-00 Fuse．フユーズ; |
682-82151-00-00 |
US $1.84 |
||
| replacements | |||||
|
35
|
35
682-82151-01-00 Fuse (20A)．フユーズ; |
682-82151-01-00 |
US $1.84 |
||
|
35
|
35
682-82151-02-00 FUSE．フユーズ; |
682-82151-02-00 |
from US $1.84 |
||
|
36
|
36
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
36
|
36
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
37
|
37
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.07 |
||
|
38
|
38
688-82594-00-00 Clamp |
688-82594-00-00 |
from US $3.64 |
||
|
39
|
39
688-82560-10-00 Thermo Switch Assyサーモスイツチアセンブリ; |
688-82560-10-00 |
from US $48.28 |
||
|
40
|
40
61A-81950-00-00 Relay Assyリレーアセンブリ; ６０ＦＥＴＯ／７０ＢＥ（Ｍ）ＴＯ |
61A-81950-00-00 |
US $243.16 |
||
| replacement | |||||
|
40
|
40
61A-81950-01-00 Relay Assyリレーアセンブリ; ６０ＦＥＴＯ／７０ＢＥ（Ｍ）ＴＯ |
61A-81950-01-00 |
from US $243.16 |
||
|
41
|
41
973-95060-25-00
Bolt (682)
６０ＦＥＴＯ／７０ＢＥ（Ｍ）ＴＯ |
973-95060-25-00 |
— | ||
| replacement | |||||
|
41
|
41
90101-06M27-00 Bolt６０ＦＥＴＯ／７０ＢＥ（Ｍ）ＴＯ |
90101-06M27-00 |
from US $1.35 |
||
|
42
|
42
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; ６０ＦＥＴＯ／７０ＢＥ（Ｍ）ＴＯ |
929-90066-00-00 |
from US $1.07 |
||
|
43
|
43
6H3-82154-11-00 Caseケース; ６０ＦＥＴＯ／７０ＢＥ（Ｍ）ＴＯ |
6H3-82154-11-00 |
from US $8.94 |
||
|
44
|
44
6H2-81949-11-00 Wire, Leadワイヤ，リード; ６０ＦＥＴＯ／７０ＢＥ（Ｍ）ＴＯ |
6H2-81949-11-00 |
US $18.42 |
||
| replacement | |||||
|
44
|
44
6H2-81949-12-00 Wire, Leadワイヤ，リード; ６０ＦＥＴＯ／７０ＢＥ（Ｍ）ＴＯ |
6H2-81949-12-00 |
US $22.37 |
||
|
45
|
45
6H2-81949-01-00 Wire, Leadワイヤ，リード; ６０ＦＥＴＯ／７０ＢＥ（Ｍ）ＴＯ |
6H2-81949-01-00 |
US $18.42 |
||
| replacement | |||||
|
45
|
45
6H2-81949-02-00 Wire,Leadワイヤ，リード; ６０ＦＥＴＯ／７０ＢＥ（Ｍ）ＴＯ |
6H2-81949-02-00 |
from US $14.58 |
||
|
46
|
46
682-82119-01-00 Cover, Lead Wireカバー，リードワイヤ; ６０ＦＥＴＯ／７０ＢＥ（Ｍ）ＴＯ |
682-82119-01-00 |
US $5.53 |
||
| replacement | |||||
|
46
|
46
6G5-82119-10-00 Cover, Lead Wireカバー，リードワイヤ; ６０ＦＥＴＯ／７０ＢＥ（Ｍ）ＴＯ |
6G5-82119-10-00 |
from US $5.53 |
||
|
47
|
47
6H1-82563-10-00 Trim & Tilt Switch Assyトリム・チルトスイツチアセンブリ; ６０ＦＥＴＯ／７０ＢＥＴＯモデル |
6H1-82563-10-00 |
US $95.47 |
||
| replacements | |||||
|
47
|
47
6H1-82563-11-00 Trim & Tilt Switch Assyトリム・チルトスイツチアセンブリ; ６０ＦＥＴＯ／７０ＢＥＴＯモデル |
6H1-82563-11-00 |
from US $95.47 |
||
|
47
|
47
6R3-82563-01-00 Trim & Tilt Switch Assyトリム・チルトスイツチアセンブリ; ６０ＦＥＴＯ／７０ＢＥＴＯモデル |
6R3-82563-01-00 |
from US $70.76 |
||
|
48
|
48
6E5-82587-00-00 Gasket６０ＦＥＴＯ／７０ＢＥＴＯモデル |
6E5-82587-00-00 |
US $5.81 |
||
|
49
|
49
6E5-83614-01-00 Bracket６０ＦＥＴＯ／７０ＢＥＴＯモデル |
6E5-83614-01-00 |
from US $9.78 |
||
|
50
|
50
973-95060-16-00
Bolt, Hex
６０ＦＥＴＯ／７０ＢＥＴＯモデル |
973-95060-16-00 |
— | ||
| replacements | |||||
|
50
|
50
97095-06016-00 Bolt６０ＦＥＴＯ／７０ＢＥＴＯモデル |
97095-06016-00 |
from US $1.28 |
||
|
50
|
50
97D95-06016-00 Bolt, Hexagon Deep Recess６０ＦＥＴＯ／７０ＢＥＴＯモデル |
97D95-06016-00 |
from US $1.28 |
||
|
51
|
51
90464-18M14-00 Clamp６０ＦＥＴＯ／７０ＢＥＴＯモデル |
90464-18M14-00 |
from US $1.84 |
||
