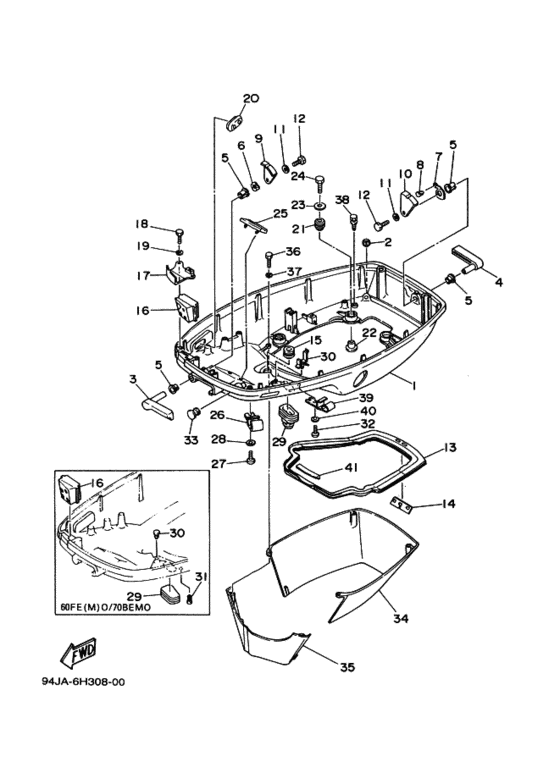

Bottom cowling assy Diagram Yamaha 70 ET(D/M)OL
- Year
- 1995
- Model
- 70B
- Model code
- 6H3
- Year
- 1995
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 70
- Sales region
- Japan (010)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6H3-42711-04-4D Cowling, Bottom 1ＵＲ ６０ＦＥＯ |
6H3-42711-04-4D |
US $549.12 |
||
| replacements | |||||
|
1
|
1
6H3-42711-06-4D Cowling, Bottom 1ＵＲ ６０ＦＥＯ |
6H3-42711-06-4D |
US $549.12 |
||
|
1
|
1
6H3-42711-06-8D Cowling, Bottom 1ＵＲ ６０ＦＥＯ |
6H3-42711-06-8D |
from US $549.12 |
||
|
1
|
1
6H3-42711-13-4D Cowling, Bottom 1ＵＲ ６０ＦＥＭＯ／７０ＢＥＭ（Ｔ）Ｏ |
6H3-42711-13-4D |
from US $667.92 |
||
| replacements | |||||
|
1
|
1
6H3-42711-15-4D Cowling, Bottom 1ＵＲ ６０ＦＥＭＯ／７０ＢＥＭ（Ｔ）Ｏ |
6H3-42711-15-4D |
US $667.92 |
||
|
1
|
1
6H3-42711-15-8D COWLING, BOTTOM 1ＵＲ ６０ＦＥＭＯ／７０ＢＥＭ（Ｔ）Ｏ |
6H3-42711-15-8D |
from US $667.92 |
||
|
1
|
1
6H3-42711-23-4D Cowling, BottomＵＲ ６０ＦＥＴＯ／７０ＢＥＴＯ |
6H3-42711-23-4D |
US $549.12 |
||
| replacements | |||||
|
1
|
1
6H3-42711-25-4D Cowling, Bottom 1ＵＲ ６０ＦＥＴＯ／７０ＢＥＴＯ |
6H3-42711-25-4D |
US $549.12 |
||
|
1
|
1
6H3-42711-25-8D Cowling, Bottom 1ＵＲ ６０ＦＥＴＯ／７０ＢＥＴＯ |
6H3-42711-25-8D |
from US $549.12 |
||
|
2
|
2
6H3-44391-01-00
Nipple, Hose
ニツプル，ホース; |
6H3-44391-01-00 |
— | ||
| replacement | |||||
|
2
|
2
6BL-44391-00-00 Nipple, Hoseニツプル，ホース; |
6BL-44391-00-00 |
from US $0.93 |
||
|
3
|
3
6H3-42815-00-4D Lever, Clampレバー，クランプ; |
6H3-42815-00-4D |
US $48.91 |
||
| replacement | |||||
|
3
|
3
6H3-42815-01-8D LEVER, CLAMPレバー，クランプ; |
6H3-42815-01-8D |
from US $48.91 |
||
|
4
|
4
6H3-42817-00-4D Lever, Clampレバー，クランプ; |
6H3-42817-00-4D |
US $48.91 |
||
| replacement | |||||
|
4
|
4
6H3-42817-01-8D LEVER, CLAMPレバー，クランプ; |
6H3-42817-01-8D |
from US $48.91 |
||
|
5
|
5
90386-13M38-00 Bush |
90386-13M38-00 |
from US $2.55 |
||
|
6
|
6
90206-13M10-00 Washer, Waveワツシヤ，ウエイブ; |
90206-13M10-00 |
from US $2.69 |
||
|
7
|
7
6H3-42813-00-00 Spring, Clamp Leverスプリング; |
6H3-42813-00-00 |
from US $2.98 |
||
|
8
|
8
90269-04M03-00 Rivet |
90269-04M03-00 |
from US $1.84 |
||
|
9
|
9
6H3-42816-00-00 Lever, Clampレバー，クランプ; |
6H3-42816-00-00 |
from US $16.72 |
||
|
10
|
10
6H3-42818-00-00 Lever, Clampレバー，クランプ; |
6H3-42818-00-00 |
from US $7.65 |
||
|
11
|
11
90201-06M02-00 Washer,plate (6K8)ワツシヤ，プレート; |
90201-06M02-00 |
from US $2.27 |
||
|
12
|
12
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
12
|
12
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
13
|
13
6H3-42716-02-00 Rubber, Seal 1ラバー，シール １; |
6H3-42716-02-00 |
from US $53.47 |
||
|
14
|
14
6K5-42717-00-00 Rubber, Seal 2ラバー，シール ２; |
6K5-42717-00-00 |
US $3.12 |
||
| replacement | |||||
|
14
|
14
6K5-42717-01-00 Rubber, Seal 2ラバー，シール ２; |
6K5-42717-01-00 |
from US $3.12 |
||
|
15
|
15
6E5-42724-00-00 Grommet |
6E5-42724-00-00 |
US $6.80 |
||
|
16
|
16
6H3-42725-00-00 Grommetグロメツト; ＵＲ ６０ＦＥＯ |
6H3-42725-00-00 |
US $13.32 |
||
|
16
|
16
6H3-42725-10-00 Grommetグロメツト; ＵＲ |
6H3-42725-10-00 |
US $13.32 |
||
|
17
|
17
6H3-42738-00-5B Plate, Fittingプレート，フイツテイング; |
6H3-42738-00-5B |
US $19.55 |
||
| replacements | |||||
|
17
|
17
6H3-42738-01-CA Plate, Fittingプレート，フイツテイング; |
6H3-42738-01-CA |
US $19.55 |
||
|
17
|
17
6H3-42738-01-8D Plate, Fittingプレート，フイツテイング; |
6H3-42738-01-8D |
US $60.86 |
||
|
18
|
18
97095-06016-00 Boltボルト; |
97095-06016-00 |
from US $1.28 |
||
| replacement | |||||
|
18
|
18
97D95-06016-00 Bolt, Hexagon Deep Recessボルト; |
97D95-06016-00 |
from US $1.28 |
||
|
19
|
19
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.07 |
||
|
20
|
20
6H3-42727-00-00 Grommetグロメツト; ６０ＦＥ（Ｔ）Ｏ／７０ＢＥＴＯ |
6H3-42727-00-00 |
US $6.38 |
||
|
21
|
21
90480-09M12-00 Grommet |
90480-09M12-00 |
from US $2.02 |
||
|
22
|
22
90387-06M69-00 Collarカラー; |
90387-06M69-00 |
from US $4.04 |
||
|
23
|
23
90201-06416-00 Washer, Plateワツシヤ，プレート; |
90201-06416-00 |
from US $2.69 |
||
|
24
|
24
970-95060-30-00
Bolt
ボルト; |
970-95060-30-00 |
— | ||
| replacement | |||||
|
24
|
24
97080-06030-00 Boltボルト; |
97080-06030-00 |
from US $2.83 |
||
|
25
|
25
6H3-42768-00-00 Damperダンパ; |
6H3-42768-00-00 |
from US $5.38 |
||
|
26
|
26
6E5-24367-01-00 Clamp, Fuel Pipe 2クランプ，フユエルパイプ ２; |
6E5-24367-01-00 |
from US $10.44 |
||
|
27
|
27
90157-06M01-00 Screw, Pan Head |
90157-06M01-00 |
from US $2.69 |
||
|
28
|
28
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.07 |
||
|
29
|
29
688-42726-10-00 Grommetグロメツト; ＵＲ ６０ＦＥＴＯ／７０ＢＥ（Ｍ）ＴＯ |
688-42726-10-00 |
US $4.11 |
||
|
29
|
29
6H4-42726-00-00 Grommetグロメツト; ＵＲ ６０ＦＥ（Ｍ）Ｏ／７０ＢＥＭＯ |
6H4-42726-00-00 |
US $3.68 |
||
|
30
|
30
703-82119-00-00 Cover, Lead Wireカバー，リードワイヤ; ＵＲ ６０ＦＥ（Ｍ）Ｏ／７０ＢＥＭＯ |
703-82119-00-00 |
from US $2.13 |
||
|
30
|
30
90464-15M08-00 ClampＵＲ ６０ＦＥＴＯ／７０ＢＥ（Ｍ）ＴＯ |
90464-15M08-00 |
from US $1.84 |
||
|
31
|
31
90338-05M03-00 PlugＵＲ ６０ＦＥ（Ｍ）Ｏ／７０ＢＥＭＯ |
90338-05M03-00 |
from US $1.84 |
||
|
32
|
32
90157-06M01-00 Screw, Pan Head６０ＦＥＴＯ／７０ＢＥ（Ｍ）ＴＯ |
90157-06M01-00 |
from US $2.69 |
||
|
33
|
33
6G1-42748-00-00 Grommet |
6G1-42748-00-00 |
US $5.24 |
||
|
34
|
34
6H3-42741-00-4D Apronエプロン; |
6H3-42741-00-4D |
US $115.23 |
||
| replacements | |||||
|
34
|
34
6H3-42741-01-4D Apronエプロン; |
6H3-42741-01-4D |
US $115.23 |
||
|
34
|
34
6H3-42741-01-8D Apronエプロン; |
6H3-42741-01-8D |
from US $115.23 |
||
|
35
|
35
6H3-42771-00-4D Apronエプロン; |
6H3-42771-00-4D |
US $70.46 |
||
| replacements | |||||
|
35
|
35
6H3-42771-01-4D Apronエプロン; |
6H3-42771-01-4D |
US $70.46 |
||
|
35
|
35
6H3-42771-01-8D Apronエプロン; |
6H3-42771-01-8D |
from US $70.46 |
||
|
36
|
36
973-95060-25-00
Bolt (682)
|
973-95060-25-00 |
— | ||
| replacement | |||||
|
36
|
36
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.35 |
||
|
37
|
37
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.07 |
||
|
38
|
38
975-95065-20-00
Bolt, With Washer
ボルト，ウイズワツシヤ; |
975-95065-20-00 |
— | ||
| replacements | |||||
|
38
|
38
970-80060-20-00 Boltボルト，ウイズワツシヤ; |
970-80060-20-00 |
from US $1.56 |
||
|
38
|
38
97E95-06520-00 Bolt, Hexagon W/w Deボルト，ウイズワツシヤ; |
97E95-06520-00 |
from US $1.07 |
||
|
39
|
39
6E5-24367-01-00 Clamp, Fuel Pipe 2クランプ，フユエルパイプ ２; ６０ＦＥＴＯ／７０ＢＥ（Ｍ）ＴＯ |
6E5-24367-01-00 |
from US $10.44 |
||
|
40
|
40
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; ６０ＦＥＴＯ／７０ＢＥ（Ｍ）ＴＯ |
929-90066-00-00 |
from US $1.07 |
||
|
41
|
41
6H3-42718-00-00 Rubber, Seal 3ラバー，シール ３; |
6H3-42718-00-00 |
from US $5.90 |
||
