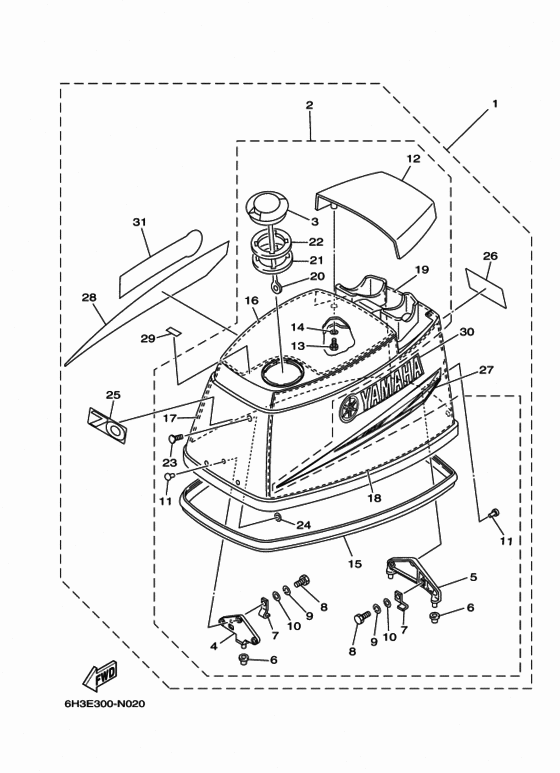

Top cowling Diagram Yamaha 70 ETOL
- Year
- 2014
- Model
- 70B
- Model code
- 6H3E
- Year
- 2014
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 70
- Sales region
- Finland (090)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6H3-42610-00-00
Top Cowling Assy
|
6H3-42610-00-00 |
— | ||
|
2
|
2
6H3-4261A-10-00
Top Cowling W/o Graphics
|
6H3-4261A-10-00 |
— | ||
|
3
|
3
63D-2177H-00-00 Disk Cap 2 |
63D-2177H-00-00 |
from US $17.28 |
||
|
4
|
4
6H3-42647-00-00 Holder, Clamp Band |
6H3-42647-00-00 |
from US $20.54 |
||
|
5
|
5
6H3-42649-00-00 Holder, Clamp Band |
6H3-42649-00-00 |
from US $23.52 |
||
|
6
|
6
663-42662-00-00 Damper |
663-42662-00-00 |
US $8.93 |
||
|
7
|
7
6H3-42652-00-00 Hook |
6H3-42652-00-00 |
from US $11.90 |
||
|
8
|
8
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
| replacement | |||||
|
8
|
8
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
9
|
9
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
10
|
10
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
10
|
10
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
11
|
11
90266-06009-00 Rivet |
90266-06009-00 |
US $2.24 |
||
| replacement | |||||
|
11
|
11
90266-06M02-00 Rivet (697) |
90266-06M02-00 |
from US $2.24 |
||
|
12
|
12
6H3-42613-01-4D M0Lding Air Duct |
6H3-42613-01-4D |
US $151.98 |
||
| replacement | |||||
|
12
|
12
6H3-42613-01-8D Molding, Air Duct |
6H3-42613-01-8D |
from US $151.98 |
||
|
13
|
13
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
| replacement | |||||
|
13
|
13
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
14
|
14
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
14
|
14
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
15
|
15
6H3-42615-00-00 Seal |
6H3-42615-00-00 |
US $51.12 |
||
|
16
|
16
6H3-42617-10-00
Damper, Form
|
6H3-42617-10-00 |
— | ||
| replacement | |||||
|
16
|
16
689-W4266-20-00
Damper, Form
|
689-W4266-20-00 |
— | ||
|
17
|
17
6H3-42619-00-00 Damper, Form |
6H3-42619-00-00 |
US $50.01 |
||
| replacement | |||||
|
17
|
17
689-W4266-40-00 Damper, Form |
689-W4266-40-00 |
from US $50.01 |
||
|
18
|
18
6H3-42627-00-00 Damper, Form |
6H3-42627-00-00 |
US $50.01 |
||
| replacement | |||||
|
18
|
18
689-W4266-40-00 Damper, Form |
689-W4266-40-00 |
from US $50.01 |
||
|
19
|
19
6H3-42637-00-00
Damper, Form
|
6H3-42637-00-00 |
— | ||
| replacement | |||||
|
19
|
19
689-W4266-10-00
Damper, Form
|
689-W4266-10-00 |
— | ||
|
20
|
20
6H1-42694-00-00 Band |
6H1-42694-00-00 |
from US $18.42 |
||
|
21
|
21
6H3-21732-00-00 Seal 1 |
6H3-21732-00-00 |
from US $12.47 |
||
|
22
|
22
6H3-21735-00-00 Seal 2 |
6H3-21735-00-00 |
US $12.47 |
||
|
23
|
23
90338-05M03-00 Plug |
90338-05M03-00 |
from US $1.84 |
||
|
24
|
24
90183-05M06-00 Nut, Spring |
90183-05M06-00 |
from US $1.98 |
||
|
25
|
25
6H3-42678-10-00 Graphic, Rear |
6H3-42678-10-00 |
US $5.24 |
||
| replacement | |||||
|
25
|
25
6H3-42678-11-00 Graphic, Rear |
6H3-42678-11-00 |
US $10.33 |
||
|
26
|
26
6H3-42678-10-00 Graphic, Rear |
6H3-42678-10-00 |
US $5.24 |
||
| replacement | |||||
|
26
|
26
6H3-42678-11-00 Graphic, Rear |
6H3-42678-11-00 |
US $10.33 |
||
|
27
|
27
688-42675-40-00 Graphic, Side 1 |
688-42675-40-00 |
US $9.92 |
||
|
28
|
28
688-42676-40-00 Graphic, Side 2 |
688-42676-40-00 |
US $9.92 |
||
|
29
|
29
6H3-13436-00-00 Mark |
6H3-13436-00-00 |
US $2.83 |
||
| replacement | |||||
|
29
|
29
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
30
|
30
688-42681-40-00 Mark, Cowling |
688-42681-40-00 |
US $5.67 |
||
|
31
|
31
688-42681-40-00 Mark, Cowling |
688-42681-40-00 |
US $5.67 |
||
