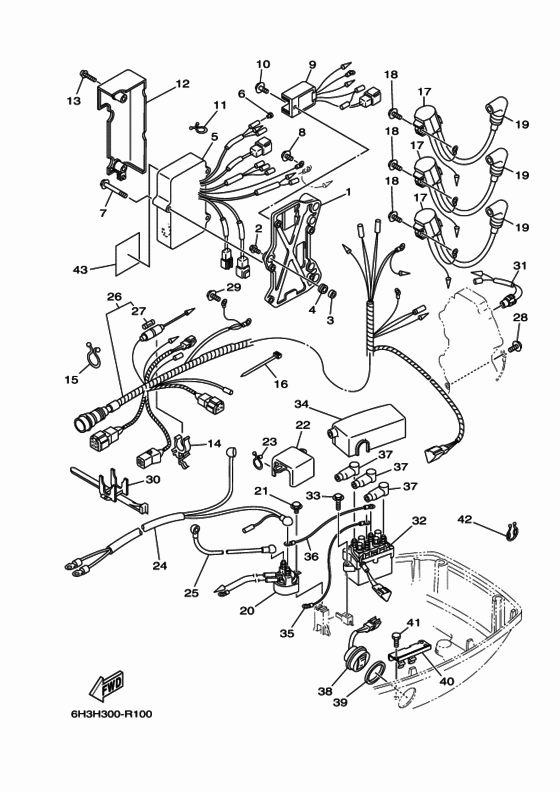

Electrical Diagram Yamaha 70 ETOL
- Year
- 2017
- Model
- 70B
- Model code
- 6H3H
- Year
- 2017
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 70
- Sales region
- Finland (090)
- Colour
- Dark Bluish Gray 1 (DBN1; 008D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6H3-85542-11-00 Bracket |
6H3-85542-11-00 |
from US $48.36 |
||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
90105-06M14-00 Bolt Flange |
90105-06M14-00 |
from US $2.05 |
||
|
3
|
3
90387-06M43-00 Collar |
90387-06M43-00 |
from US $4.96 |
||
|
4
|
4
90480-13M54-00 Grommet |
90480-13M54-00 |
from US $4.82 |
||
|
5
|
5
6H2-85540-13-00 C.d.i. Push To Open Throttle |
6H2-85540-13-00 |
from US $830.28 |
||
|
6
|
6
703-82119-00-00 Cover, Lead Wire |
703-82119-00-00 |
from US $2.13 |
||
|
7
|
7
97595-06545-00 Bolt, With Washer |
97595-06545-00 |
US $1.07 |
||
|
8
|
8
97513-06512-00 Bolt, With Washer |
97513-06512-00 |
from US $1.80 |
||
|
9
|
9
6H2-81960-10-00 Rectifier & Regulator Assy |
6H2-81960-10-00 |
from US $118.26 |
||
|
10
|
10
97595-06516-00 Bolt, With Washer |
97595-06516-00 |
US $3.05 |
||
| replacement | |||||
|
10
|
10
90119-06M41-00 Bolt, With Washer |
90119-06M41-00 |
from US $2.74 |
||
|
11
|
11
90464-05M16-00 Clamp |
90464-05M16-00 |
from US $1.84 |
||
|
12
|
12
6H3-81916-10-00 Cover, Terminal |
6H3-81916-10-00 |
from US $13.08 |
||
|
13
|
13
90159-06M01-00 Screw, With Washer |
90159-06M01-00 |
from US $3.54 |
||
|
14
|
14
6G5-82152-00-00 Holder, Fuse |
6G5-82152-00-00 |
from US $2.36 |
||
|
15
|
15
90464-23M22-00 Clamp |
90464-23M22-00 |
from US $1.70 |
||
| replacement | |||||
|
15
|
15
90464-25267-00 Clamp |
90464-25267-00 |
from US $1.70 |
||
|
16
|
16
90465-13M11-00 Clamp |
90465-13M11-00 |
from US $1.70 |
||
| replacement | |||||
|
16
|
16
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.17 |
||
|
17
|
17
697-85570-00-00 Ignition Coil Assy |
697-85570-00-00 |
from US $95.60 |
||
|
18
|
18
97513-06520-00 Bolt, With Washer |
97513-06520-00 |
from US $1.78 |
||
| replacement | |||||
|
18
|
18
970-24060-20-00 Bolt(3Dm) |
970-24060-20-00 |
from US $0.91 |
||
|
19
|
19
6G1-82370-21-00 Plug Cap Assy |
6G1-82370-21-00 |
from US $20.12 |
||
|
20
|
20
688-81950-10-00 Relay Assy |
688-81950-10-00 |
from US $165.79 |
||
|
21
|
21
97513-06516-00 Bolt, With Washer |
97513-06516-00 |
from US $1.78 |
||
| replacements | |||||
|
21
|
21
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
| replacement | |||||
|
21
|
21
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
21
|
21
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
22
|
22
6H3-82164-00-00 Case 2 |
6H3-82164-00-00 |
from US $4.85 |
||
|
23
|
23
90464-15M11-00 Clamp |
90464-15M11-00 |
US $1.70 |
||
| replacement | |||||
|
23
|
23
90464-16039-00 Clamp (3Y2) |
90464-16039-00 |
from US $1.81 |
||
|
24
|
24
6H3-82105-02-00 Battery Cable |
6H3-82105-02-00 |
US $107.63 |
||
|
25
|
25
6H3-82117-00-00 Wire, Lead |
6H3-82117-00-00 |
US $16.86 |
||
|
26
|
26
6H2-82590-80-00 Wire Harness Assy (10P) |
6H2-82590-80-00 |
US $182.37 |
||
|
27
|
27
663-82151-00-00 Fuse (12V-20A) |
663-82151-00-00 |
US $1.81 |
||
| replacements | |||||
|
27
|
27
682-82151-01-00 Fuse (20A) |
682-82151-01-00 |
US $1.81 |
||
|
27
|
27
682-82151-02-00 FUSE |
682-82151-02-00 |
from US $1.81 |
||
|
28
|
28
97513-06512-00 Bolt, With Washer |
97513-06512-00 |
from US $1.80 |
||
|
29
|
29
97513-06512-00 Bolt, With Washer |
97513-06512-00 |
from US $1.80 |
||
|
30
|
30
688-82594-00-00 Clamp |
688-82594-00-00 |
from US $6.52 |
||
|
31
|
31
688-82560-10-00 Thermo Switch Assy |
688-82560-10-00 |
from US $50.50 |
||
|
32
|
32
61A-81950-00-00 Relay Assy |
61A-81950-00-00 |
US $243.16 |
||
| replacement | |||||
|
32
|
32
61A-81950-01-00 Relay Assy |
61A-81950-01-00 |
from US $243.16 |
||
|
33
|
33
97595-06525-00 Bolt |
97595-06525-00 |
US $1.21 |
||
| replacements | |||||
|
33
|
33
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.52 |
||
|
33
|
33
97E95-06525-00 Bolt, Hexagon W/w Deep Recess |
97E95-06525-00 |
from US $1.18 |
||
|
34
|
34
6H3-82154-11-00 Case |
6H3-82154-11-00 |
from US $8.94 |
||
|
35
|
35
6H2-81949-11-00 Wire, Lead |
6H2-81949-11-00 |
US $18.42 |
||
| replacement | |||||
|
35
|
35
6H2-81949-12-00 Wire, Lead |
6H2-81949-12-00 |
US $22.37 |
||
|
36
|
36
6H2-81949-01-00 Wire, Lead |
6H2-81949-01-00 |
US $18.42 |
||
| replacement | |||||
|
36
|
36
6H2-81949-02-00 Wire,Lead |
6H2-81949-02-00 |
from US $14.58 |
||
|
37
|
37
682-82119-01-00 Cover, Lead Wire |
682-82119-01-00 |
US $5.53 |
||
| replacement | |||||
|
37
|
37
6G5-82119-10-00 Cover, Lead Wire |
6G5-82119-10-00 |
from US $5.53 |
||
|
38
|
38
6H1-82563-11-00 Trim & Tilt Switch Assy |
6H1-82563-11-00 |
from US $95.47 |
||
|
39
|
39
6E5-82587-00-00 Gasket |
6E5-82587-00-00 |
US $5.58 |
||
|
40
|
40
6E5-83614-01-00 Bracket |
6E5-83614-01-00 |
from US $9.78 |
||
|
41
|
41
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
| replacement | |||||
|
41
|
41
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
42
|
42
90464-18M14-00 Clamp |
90464-18M14-00 |
from US $1.84 |
||
|
43
|
43
6R5-85711-60-00 Mark, Caution |
6R5-85711-60-00 |
from US $6.38 |
||
