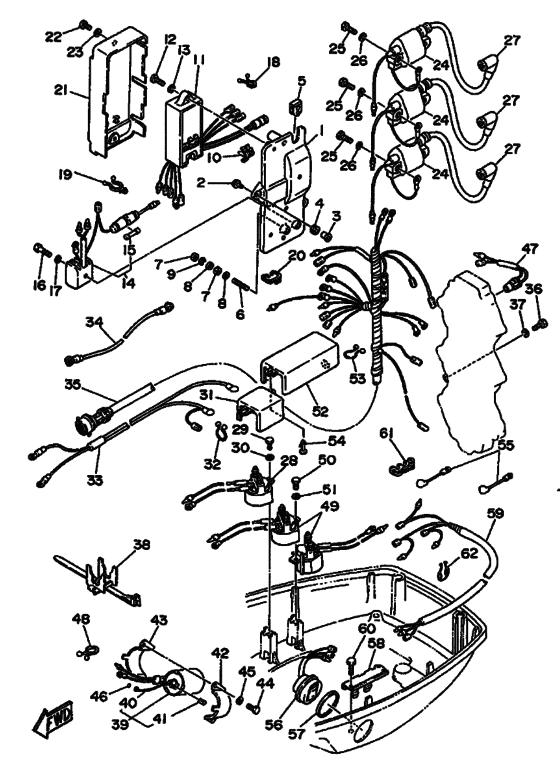

Electrical Diagram Yamaha 70 ET(D/M)OL
- Year
- 1989
- Model
- 70B
- Model code
- 6H3
- Year
- 1989
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 70
- Sales region
- Europe (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6H3-85542-00-94 Bracket |
6H3-85542-00-94 |
US $46.70 |
||
|
2
|
2
90105-06M14-00 Bolt Flange |
90105-06M14-00 |
from US $2.05 |
||
|
3
|
3
90387-06M43-00 Collar |
90387-06M43-00 |
from US $4.96 |
||
|
4
|
4
90480-13M24-00 Grommet |
90480-13M24-00 |
from US $4.82 |
||
|
5
|
5
6H3-81922-00-00 Grommet |
6H3-81922-00-00 |
from US $8.64 |
||
|
6
|
6
90116-06M07-00 Goujon |
90116-06M07-00 |
from US $5.67 |
||
|
7
|
7
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.34 |
||
| replacement | |||||
|
7
|
7
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.42 |
||
|
8
|
8
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
|
9
|
9
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
9
|
9
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
10
|
10
90464-04M12-00 Clamp |
90464-04M12-00 |
US $1.84 |
||
|
11
|
11
6H3-85540-11-00 C.d.i. Unit Assy |
6H3-85540-11-00 |
US $792 |
||
| replacements | |||||
|
11
|
11
6H3-85540-12-00 C.D.I. UNIT ASSY |
6H3-85540-12-00 |
US $792 |
||
|
11
|
11
6H3-85540-13-00 CDI UNIT ASSY |
6H3-85540-13-00 |
from US $502.70 |
||
|
12
|
12
92580-06025-00 Screw |
92580-06025-00 |
US $1.07 |
||
| replacement | |||||
|
12
|
12
97885-06025-00 Screw, Pan Head |
97885-06025-00 |
from US $1.07 |
||
|
13
|
13
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
14
|
14
6G1-81970-61-00
Rectifier Assy
|
6G1-81970-61-00 |
— | ||
| replacements | |||||
|
14
|
14
6G1-81970-62-00 Rectifier Assy |
6G1-81970-62-00 |
US $88.98 |
||
|
14
|
14
6G1-81970-63-00 Rectifier Assy |
6G1-81970-63-00 |
from US $94.08 |
||
|
15
|
15
6G1-82151-00-00 Fuse (10A) |
6G1-82151-00-00 |
from US $2.83 |
||
| replacement | |||||
|
15
|
15
1E6-82151-00-00 Fuse (10A) |
1E6-82151-00-00 |
from US $1.66 |
||
|
16
|
16
98503-05025-00 Screw, Pan Head |
98503-05025-00 |
from US $1.35 |
||
| replacement | |||||
|
16
|
16
985-80055-25-00 Screw, Pan Head |
985-80055-25-00 |
from US $1.33 |
||
|
17
|
17
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
18
|
18
904-65181-47-00 Clamp |
904-65181-47-00 |
from US $1.70 |
||
|
19
|
19
90464-12M17-00 Clamp |
90464-12M17-00 |
US $1.84 |
||
| replacement | |||||
|
19
|
19
90464-15M27-00 Clamp(6H4) |
90464-15M27-00 |
from US $1.84 |
||
|
20
|
20
90464-07M10-00 Clamp |
90464-07M10-00 |
from US $1.98 |
||
|
21
|
21
6H3-81916-00-00 Cover, Terminal |
6H3-81916-00-00 |
from US $15.73 |
||
|
22
|
22
92580-06012-00 Screw |
92580-06012-00 |
US $1.56 |
||
| replacement | |||||
|
22
|
22
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
23
|
23
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
24
|
24
6H3-85570-10-00 Ignition Coil Assy |
6H3-85570-10-00 |
from US $108.78 |
||
|
25
|
25
97313-06025-00 Bolt |
97313-06025-00 |
US $1.35 |
||
| replacement | |||||
|
25
|
25
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.35 |
||
|
26
|
26
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
27
|
27
6G1-82370-20-00 Plug Cap Asy |
6G1-82370-20-00 |
US $20.12 |
||
| replacement | |||||
|
27
|
27
6G1-82370-21-00 Plug Cap Assy |
6G1-82370-21-00 |
from US $20.12 |
||
|
28
|
28
688-81950-10-00 Relay Assy |
688-81950-10-00 |
from US $165.79 |
||
|
29
|
29
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
29
|
29
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
29
|
29
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
30
|
30
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
31
|
31
6H3-82164-00-00 Case 2 |
6H3-82164-00-00 |
from US $4.85 |
||
|
32
|
32
90464-16039-00 Clamp (3Y2) |
90464-16039-00 |
from US $1.70 |
||
|
33
|
33
6H3-82105-00-00 Battery Cable |
6H3-82105-00-00 |
US $161.65 |
||
| replacements | |||||
|
33
|
33
66T-82105-J1-00 Battery Cable |
66T-82105-J1-00 |
US $161.65 |
||
|
33
|
33
66T-82105-J2-00 Battery Cable |
66T-82105-J2-00 |
US $183.56 |
||
|
34
|
34
6H3-82117-00-00 Wire, Lead |
6H3-82117-00-00 |
US $16.86 |
||
|
35
|
35
6H3-82590-11-00
Wire Harness Assembly
|
6H3-82590-11-00 |
— | ||
|
36
|
36
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
36
|
36
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
37
|
37
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
38
|
38
688-82594-00-00 Clamp |
688-82594-00-00 |
from US $3.64 |
||
|
39
|
39
6H3-86110-02-00 Solenoid |
6H3-86110-02-00 |
from US $120.20 |
||
|
40
|
40
6H3-86116-00-00 Wire, Pull |
6H3-86116-00-00 |
from US $5.95 |
||
|
41
|
41
91690-30010-00 Pin, Spring |
91690-30010-00 |
from US $1.56 |
||
|
42
|
42
6H3-86112-00-00 Stay, Solenoid |
6H3-86112-00-00 |
from US $15.58 |
||
|
43
|
43
6H3-86115-00-00 Holder Solenoid |
6H3-86115-00-00 |
from US $17.71 |
||
|
44
|
44
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
44
|
44
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
44
|
44
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
45
|
45
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
46
|
46
93210-03261-00 O-Ring |
93210-03261-00 |
from US $1.66 |
||
|
47
|
47
688-82560-10-00 Thermo Switch Assy |
688-82560-10-00 |
from US $48.28 |
||
|
48
|
48
904-65181-47-00 Clamp |
904-65181-47-00 |
from US $1.70 |
||
|
49
|
49
688-81950-10-00 Relay Assy |
688-81950-10-00 |
from US $165.79 |
||
|
50
|
50
97313-06020-00 Bolt, Hexagon |
97313-06020-00 |
US $1.56 |
||
| replacement | |||||
|
50
|
50
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.56 |
||
|
51
|
51
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
52
|
52
6H3-82154-00-00
Case
|
6H3-82154-00-00 |
— | ||
|
53
|
53
90464-16039-00 Clamp (3Y2) |
90464-16039-00 |
from US $1.70 |
||
|
54
|
54
90338-06M10-00
Plug (6H2)
|
90338-06M10-00 |
— | ||
| replacement | |||||
|
54
|
54
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
55
|
55
688-81949-00-00
Wire, Lead
|
688-81949-00-00 |
— | ||
|
56
|
56
6H1-82563-00-00 Trim & Tilt Switch Assembly |
6H1-82563-00-00 |
US $143.69 |
||
| replacement | |||||
|
56
|
56
6H1-82563-01-00 Trim & Tilt Switch Assy |
6H1-82563-01-00 |
from US $79.31 |
||
|
57
|
57
6E5-82587-00-00 Gasket |
6E5-82587-00-00 |
US $5.81 |
||
|
58
|
58
6E5-83614-01-00 Bracket |
6E5-83614-01-00 |
from US $9.78 |
||
|
59
|
59
6H3-82553-00-00
Extension, Wire
|
6H3-82553-00-00 |
— | ||
|
60
|
60
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
60
|
60
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
60
|
60
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
61
|
61
90464-07M05-00 Clamp |
90464-07M05-00 |
from US $5.09 |
||
|
62
|
62
90464-18M14-00 Clamp |
90464-18M14-00 |
from US $1.84 |
||
