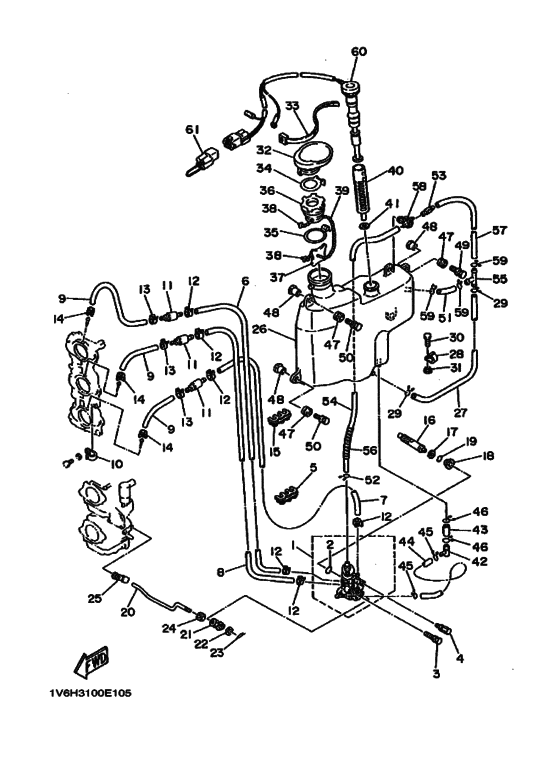

Oil pump Diagram Yamaha 70 ET(D/M)OL
- Year
- 1997
- Model
- 70B
- Model code
- 6H3
- Year
- 1997
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 70
- Sales region
- Europe (030)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6H3-13200-02-00 Oil Injection Pump Assy |
6H3-13200-02-00 |
from US $261.12 |
||
|
2
|
2
93210-19MA7-00 O-Ring |
93210-19MA7-00 |
from US $4.11 |
||
|
3
|
3
90109-06M39-00 Bolt |
90109-06M39-00 |
from US $2.09 |
||
|
4
|
4
90109-06M40-00 Bolt |
90109-06M40-00 |
from US $2.16 |
||
|
5
|
5
90464-07M05-00 Clamp |
90464-07M05-00 |
from US $5.09 |
||
|
6
|
6
904-4507M-44-00
Hose (L250)
|
904-4507M-44-00 |
— | ||
| replacement | |||||
|
6
|
6
904-4507M-90-00 Hose (L390) |
904-4507M-90-00 |
from US $3.98 |
||
|
7
|
7
904-4507M-23-00
Hose (L408)
|
904-4507M-23-00 |
— | ||
| replacement | |||||
|
7
|
7
90445-07MF1-00 Hose (L570) |
90445-07MF1-00 |
from US $4.39 |
||
|
8
|
8
90445-07MA5-00 Hose (L150) |
90445-07MA5-00 |
US $3.83 |
||
| replacement | |||||
|
8
|
8
90445-07MA3-00 Hose (L200) |
90445-07MA3-00 |
from US $2.32 |
||
|
9
|
9
904-4507M-87-00
Hose (L450)
|
904-4507M-87-00 |
— | ||
| replacement | |||||
|
9
|
9
90446-07M48-00 Hose (L450) |
90446-07M48-00 |
from US $2.66 |
||
|
10
|
10
90465-08028-00 Clamp |
90465-08028-00 |
from US $3.40 |
||
|
11
|
11
6E9-13183-70-00 Valve, Check |
6E9-13183-70-00 |
from US $26.12 |
||
|
12
|
12
90468-07M02-00 Clip |
90468-07M02-00 |
from US $2.41 |
||
|
13
|
13
90468-07M02-00 Clip |
90468-07M02-00 |
from US $2.41 |
||
|
14
|
14
90468-07M02-00 Clip |
90468-07M02-00 |
from US $2.41 |
||
|
15
|
15
90464-07M05-00 Clamp |
90464-07M05-00 |
from US $5.09 |
||
|
16
|
16
6H3-11537-01-00 Gear, Driven |
6H3-11537-01-00 |
from US $55.68 |
||
|
17
|
17
90201-08M93-00 Washer, Plate |
90201-08M93-00 |
from US $2.55 |
||
|
18
|
18
6H1-13117-01-00 Collar, Distance |
6H1-13117-01-00 |
from US $18.32 |
||
|
19
|
19
93210-13595-00 O-Ring (25H) |
93210-13595-00 |
from US $3.12 |
||
| replacement | |||||
|
19
|
19
93210-13M04-00 O-Ring |
93210-13M04-00 |
from US $3.02 |
||
|
20
|
20
6H3-41241-01-00 Rod, Link |
6H3-41241-01-00 |
from US $10.77 |
||
|
21
|
21
6H1-41237-00-00 Joint, Link |
6H1-41237-00-00 |
from US $5.95 |
||
|
22
|
22
90202-05088-00 Washer, Plate |
90202-05088-00 |
from US $1.70 |
||
|
23
|
23
90468-05M03-00 Clip |
90468-05M03-00 |
from US $1.84 |
||
|
24
|
24
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
25
|
25
6R5-41237-00-00 Joint, Link |
6R5-41237-00-00 |
from US $6.30 |
||
|
26
|
26
6H3-21707-06-00 Oil Tank Comp |
6H3-21707-06-00 |
from US $130.84 |
||
|
27
|
27
90445-11M15-00 Hose (L360) |
90445-11M15-00 |
from US $4.11 |
||
|
28
|
28
90465-11M27-00 Clamp |
90465-11M27-00 |
from US $3.40 |
||
|
29
|
29
90467-11M08-00 Clip |
90467-11M08-00 |
from US $1.70 |
||
|
30
|
30
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
| replacement | |||||
|
30
|
30
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
31
|
31
90387-06M31-00 Collar |
90387-06M31-00 |
from US $3.54 |
||
|
32
|
32
6H3-21752-00-00 Tube, Filler 1 |
6H3-21752-00-00 |
US $14.03 |
||
|
33
|
33
90465-13M36-00 Clamp |
90465-13M36-00 |
US $1.98 |
||
| replacement | |||||
|
33
|
33
90465-13M39-00 Clamp(6E8) |
90465-13M39-00 |
from US $1.34 |
||
|
34
|
34
63D-2176M-00-00 Hook |
63D-2176M-00-00 |
from US $6.80 |
||
|
35
|
35
63D-2175R-00-00 Hook, Band |
63D-2175R-00-00 |
from US $3.68 |
||
|
36
|
36
6H4-21770-00-00 Oil Tank Cap Assy |
6H4-21770-00-00 |
from US $32.16 |
||
|
37
|
37
6J8-21758-00-00 Washer, Special 2 |
6J8-21758-00-00 |
from US $2 |
||
|
38
|
38
6H1-21757-00-00 Washer, Special 1 |
6H1-21757-00-00 |
from US $2.13 |
||
|
39
|
39
6H1-24633-00-00
Chain, Ball
|
6H1-24633-00-00 |
— | ||
|
40
|
40
6J8-13411-00-00 Strainer, Oil |
6J8-13411-00-00 |
from US $14.45 |
||
|
41
|
41
6J8-13414-00-00 Gasket, Strainer Cover |
6J8-13414-00-00 |
from US $1.70 |
||
|
42
|
42
6H1-13435-00-00 Nipple |
6H1-13435-00-00 |
from US $7.08 |
||
|
43
|
43
90445-08M01-00 Hose (L30) |
90445-08M01-00 |
from US $6.09 |
||
| replacement | |||||
|
43
|
43
90445-13M18-00 Hose (L200) |
90445-13M18-00 |
from US $7.93 |
||
|
44
|
44
6H1-21766-01-00 Pipe, Oil |
6H1-21766-01-00 |
from US $6.23 |
||
|
45
|
45
90467-08004-00 Clip |
90467-08004-00 |
from US $1.70 |
||
|
46
|
46
90467-12M11-00 Clip |
90467-12M11-00 |
from US $1.84 |
||
|
47
|
47
6A0-82317-00-00 Damper, Ignition Coil |
6A0-82317-00-00 |
from US $4.53 |
||
| replacement | |||||
|
47
|
47
6A0-82317-01-00 DAMPER IGNITION COIL |
6A0-82317-01-00 |
from US $1.34 |
||
|
48
|
48
624-42542-00-00 Collar |
624-42542-00-00 |
US $6.23 |
||
| replacement | |||||
|
48
|
48
90387-06119-00 Collar |
90387-06119-00 |
from US $2.32 |
||
|
49
|
49
90119-06M65-00 Bolt,with Washer |
90119-06M65-00 |
US $3.83 |
||
| replacement | |||||
|
49
|
49
90119-06M95-00 Bolt, With Washer |
90119-06M95-00 |
US $3.83 |
||
|
50
|
50
90119-06M88-00 Bolt, With Washer |
90119-06M88-00 |
from US $2.98 |
||
| replacement | |||||
|
50
|
50
90119-06311-00 |
90119-06311-00 |
from US $1.21 |
||
|
51
|
51
90445-11M21-00 Hose (L40) |
90445-11M21-00 |
from US $1.84 |
||
| replacement | |||||
|
51
|
51
90445-112E0-00 Hose (L70) |
90445-112E0-00 |
from US $1.34 |
||
|
52
|
52
90467-10M04-00 Clip |
90467-10M04-00 |
from US $2.69 |
||
|
53
|
53
6J8-21744-00-00 Breather |
6J8-21744-00-00 |
US $35.92 |
||
| replacement | |||||
|
53
|
53
63D-21744-00-00 Breather |
63D-21744-00-00 |
from US $35.92 |
||
|
54
|
54
90445-11M15-00 Hose (L360) |
90445-11M15-00 |
from US $4.11 |
||
|
55
|
55
6E5-24378-00-00 Pipe, Joint 3 |
6E5-24378-00-00 |
from US $6.94 |
||
|
56
|
56
90446-10M01-00 Hose (L60) |
90446-10M01-00 |
from US $4.68 |
||
|
57
|
57
90445-11M02-00 Hose (L100) |
90445-11M02-00 |
from US $1.70 |
||
|
58
|
58
90464-11M23-00 Clamp |
90464-11M23-00 |
from US $2.55 |
||
|
59
|
59
90467-11M08-00 Clip |
90467-11M08-00 |
from US $1.70 |
||
|
60
|
60
6H3-85720-16-00 Oil Level Gauge Assy |
6H3-85720-16-00 |
US $128.77 |
||
| replacements | |||||
|
60
|
60
6H3-85720-17-00 Oil Level Gauge Assy |
6H3-85720-17-00 |
US $128.77 |
||
|
60
|
60
6H3-85720-18-00 Oil Level Gauge Assy |
6H3-85720-18-00 |
US $447.93 |
||
|
61
|
61
6R5-82582-B0-00 Cover, Wire HarnessAP |
6R5-82582-B0-00 |
from US $26.33 |
||
