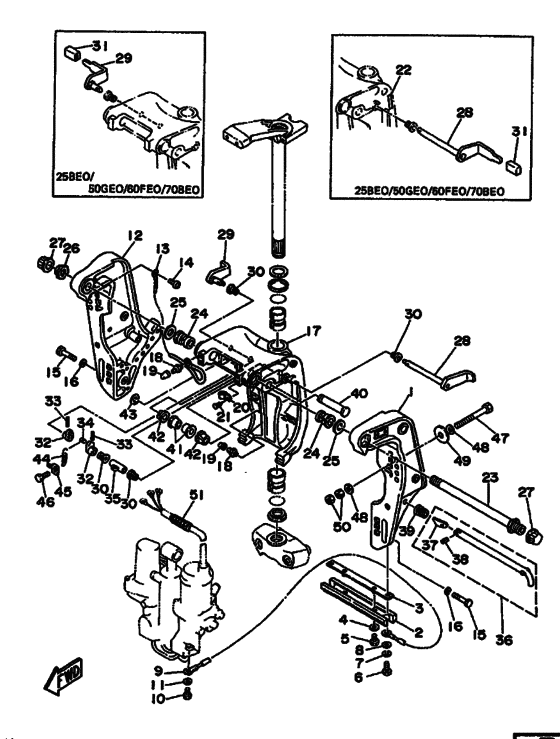

Bracket 1 Diagram Yamaha 70 ET(D/M)OL
- Year
- 1994
- Model
- 70B
- Model code
- 6H3
- Year
- 1994
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 70
- Sales region
- Europe (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6H1-43111-00-4D Bracket, Clamp |
6H1-43111-00-4D |
US $167.17 |
||
| replacement | |||||
|
1
|
1
6H1-43111-01-8D Bracket, Clamp 1 |
6H1-43111-01-8D |
from US $167.17 |
||
|
1
|
1
688-43111-12-4D Bracket, Clamp 1 |
688-43111-12-4D |
US $328.82 |
||
| replacement | |||||
|
1
|
1
688-43111-13-8D BRACKET, CLAMP 1 |
688-43111-13-8D |
from US $328.82 |
||
|
2
|
2
6H1-45251-02-00 Anode |
6H1-45251-02-00 |
US $22.24 |
||
| replacement | |||||
|
2
|
2
6H1-45251-03-00 Anode |
6H1-45251-03-00 |
from US $22.24 |
||
|
3
|
3
6H1-44526-00-00 Plate |
6H1-44526-00-00 |
from US $12.18 |
||
| replacement | |||||
|
3
|
3
6EK-44536-00-00 Plate 2 |
6EK-44536-00-00 |
from US $12.18 |
||
|
4
|
4
90201-06M31-00 Washer, Plate |
90201-06M31-00 |
from US $1.70 |
||
|
5
|
5
97095-06012-00 Bolt |
97095-06012-00 |
from US $1.98 |
||
| replacement | |||||
|
5
|
5
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
6
|
6
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
| replacement | |||||
|
6
|
6
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
7
|
7
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
8
|
8
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
9
|
9
6H1-82148-00-00 Wire, Lead 4 |
6H1-82148-00-00 |
US $10.63 |
||
| replacement | |||||
|
9
|
9
6T4-82117-00-00 Wire, Lead |
6T4-82117-00-00 |
from US $9.92 |
||
|
10
|
10
970-95060-10-00
Bolt
|
970-95060-10-00 |
— | ||
| replacement | |||||
|
10
|
10
97085-06010-00 Bolt |
97085-06010-00 |
from US $1.28 |
||
|
11
|
11
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
12
|
12
6H1-43112-00-4D Bracket, Clamp 2 |
6H1-43112-00-4D |
US $167.17 |
||
| replacement | |||||
|
12
|
12
6H1-43112-00-8D Bracket, Clamp 2 |
6H1-43112-00-8D |
from US $167.17 |
||
|
12
|
12
688-43112-12-4D Bracket, Clamp 2 |
688-43112-12-4D |
US $328.82 |
||
| replacement | |||||
|
12
|
12
688-43112-12-8D BRACKET, CLAMP 2 |
688-43112-12-8D |
from US $328.82 |
||
|
13
|
13
6R5-82148-00-00
Wire, Lead 4
|
6R5-82148-00-00 |
— | ||
|
14
|
14
985-80060-12-00
Screw, Pan Head
|
985-80060-12-00 |
— | ||
| replacement | |||||
|
14
|
14
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
15
|
15
97395-10045-00 Bolt |
97395-10045-00 |
US $7.51 |
||
| replacements | |||||
|
15
|
15
970-75100-45-00 Bolt(64D) |
970-75100-45-00 |
from US $8.64 |
||
|
15
|
15
97095-10045-00 Bolt |
97095-10045-00 |
from US $5.30 |
||
|
16
|
16
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.34 |
||
|
17
|
17
6H1-43311-01-4D Bracket, Swivel 1 |
6H1-43311-01-4D |
US $287.37 |
||
| replacement | |||||
|
17
|
17
6H1-43311-02-8D Bracket, Swivel 1 |
6H1-43311-02-8D |
from US $287.37 |
||
|
18
|
18
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $2.66 |
||
|
19
|
19
663-45119-00-00 Cap, Grease Nipple |
663-45119-00-00 |
US $3.68 |
||
|
20
|
20
90464-11M18-00 Clamp |
90464-11M18-00 |
from US $1.84 |
||
|
21
|
21
90338-05M03-00 Plug |
90338-05M03-00 |
from US $1.84 |
||
|
22
|
22
688-43691-01-00
Indicator, Tilt
|
688-43691-01-00 |
— | ||
| replacement | |||||
|
22
|
22
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
23
|
23
688-43131-03-00 Bolt, Clamp Bracket |
688-43131-03-00 |
from US $106.38 |
||
|
24
|
24
90386-22M15-00 Bush |
90386-22M15-00 |
from US $4.96 |
||
|
25
|
25
90201-22M67-00 Washer, Plate |
90201-22M67-00 |
from US $1.34 |
||
|
26
|
26
90185-22M11-00 Nut, Self-Locking |
90185-22M11-00 |
US $33.44 |
||
| replacement | |||||
|
26
|
26
90185-22007-00 Nut, Self-Locking |
90185-22007-00 |
from US $23.16 |
||
|
27
|
27
6G5-43145-00-00 Cap, Clamp Bracket |
6G5-43145-00-00 |
US $7.23 |
||
| replacement | |||||
|
27
|
27
6G5-43145-01-00 Cap, Clamp Bracket |
6G5-43145-01-00 |
from US $6.62 |
||
|
28
|
28
688-43181-10-00 Lever, Tilt Stop 1 |
688-43181-10-00 |
from US $59.41 |
||
|
28
|
28
6H1-43181-01-00 Lever, Tilt Stop 1 |
6H1-43181-01-00 |
from US $57.47 |
||
|
29
|
29
688-43185-10-00 Lever, Tilt Stop 2 |
688-43185-10-00 |
from US $50.29 |
||
|
29
|
29
6H1-43185-01-00 Lever, Tilt Stop 2 |
6H1-43185-01-00 |
from US $48.77 |
||
|
30
|
30
90386-10M16-00 Bush |
90386-10M16-00 |
from US $2 |
||
|
31
|
31
663-44318-00-00
Capuchon
|
663-44318-00-00 |
— | ||
|
32
|
32
6G5-43148-00-00 Collar, Distance |
6G5-43148-00-00 |
from US $2.98 |
||
|
33
|
33
91690-30020-00 Pin, Spring |
91690-30020-00 |
from US $1.34 |
||
|
34
|
34
90249-06M19-00 Pin |
90249-06M19-00 |
from US $3.40 |
||
|
35
|
35
90387-10M02-00 Collar |
90387-10M02-00 |
from US $4.11 |
||
|
36
|
36
688-43160-01-00 Tilt Rod Assy |
688-43160-01-00 |
from US $25.80 |
||
|
37
|
37
688-43165-00-00 Plate, Tilt Lock |
688-43165-00-00 |
from US $7.23 |
||
|
38
|
38
91690-30012-00 Pin, Spring |
91690-30012-00 |
from US $2.69 |
||
|
39
|
39
90502-16M02-00 Spring, Conical |
90502-16M02-00 |
from US $2 |
||
|
40
|
40
6E5-43126-02-00 Pin, Upper Shock Mount |
6E5-43126-02-00 |
from US $23.94 |
||
|
41
|
41
90386-18M63-00 Bush |
90386-18M63-00 |
from US $3.64 |
||
|
41
|
41
90386-18M21-00 Bush |
90386-18M21-00 |
from US $6.80 |
||
|
42
|
42
90386-18M35-00 Bush |
90386-18M35-00 |
from US $10.58 |
||
|
43
|
43
93410-18M02-00 Circlip |
93410-18M02-00 |
US $3.12 |
||
| replacement | |||||
|
43
|
43
93410-18M05-00 Circlip (6F2) |
93410-18M05-00 |
from US $2.98 |
||
|
44
|
44
90506-14M24-00 Spring, Tension |
90506-14M24-00 |
from US $3.68 |
||
|
45
|
45
6G5-43144-00-00 Hook, Spring |
6G5-43144-00-00 |
from US $3.26 |
||
|
46
|
46
970-95060-10-00
Bolt
|
970-95060-10-00 |
— | ||
| replacement | |||||
|
46
|
46
97085-06010-00 Bolt |
97085-06010-00 |
from US $1.28 |
||
|
47
|
47
90101-12M65-00 Bolt |
90101-12M65-00 |
US $18.99 |
||
|
48
|
48
92995-12200-00 Washer |
92995-12200-00 |
from US $2.09 |
||
| replacement | |||||
|
48
|
48
929-90122-00-00 Washer, Plain |
929-90122-00-00 |
from US $1.34 |
||
|
49
|
49
90201-12426-00 Washe, Plate(663) |
90201-12426-00 |
from US $3.24 |
||
|
50
|
50
95380-12600-00 Nut |
95380-12600-00 |
from US $4.96 |
||
|
51
|
51
90440-14M00-00 Pipe |
90440-14M00-00 |
from US $2.55 |
||
