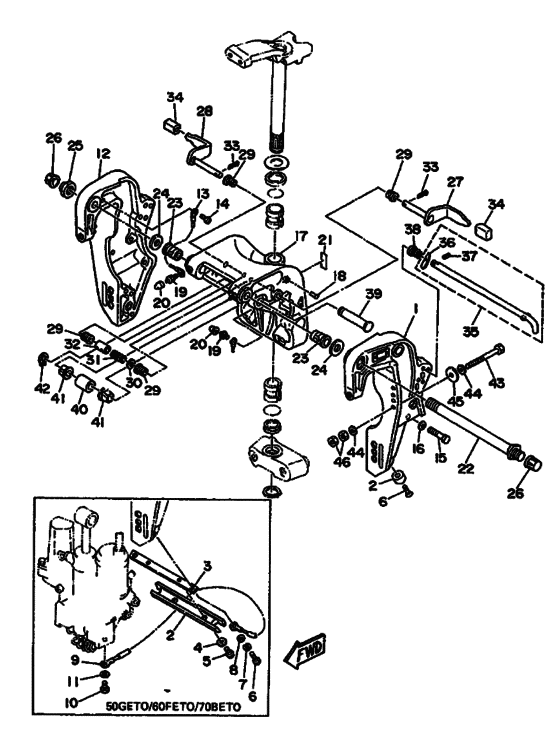

Bracket 1 Diagram Yamaha 70 ET(D/M)OL
- Year
- 1994
- Model
- 70B
- Model code
- 6H3
- Year
- 1994
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 70
- Sales region
- Europe (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
697-43111-04-4D Bracket, Clamp |
697-43111-04-4D |
from US $323.29 |
||
| replacement | |||||
|
1
|
1
697-43111-05-4D Bracket, Clamp |
697-43111-05-4D |
US $323.29 |
||
|
2
|
2
663-45251-00-00 Anode |
663-45251-00-00 |
from US $8.82 |
||
|
2
|
2
6H1-45251-02-00 AnodeUR 50G, 60F, 70B, "ETO" |
6H1-45251-02-00 |
US $22.24 |
||
| replacement | |||||
|
2
|
2
6H1-45251-03-00 AnodeUR 50G, 60F, 70B, "ETO" |
6H1-45251-03-00 |
from US $22.24 |
||
|
3
|
3
6H1-44526-00-00 Plate |
6H1-44526-00-00 |
from US $12.18 |
||
| replacement | |||||
|
3
|
3
6EK-44536-00-00 Plate 2 |
6EK-44536-00-00 |
from US $12.18 |
||
|
4
|
4
90201-06M31-00 Washer, Plate |
90201-06M31-00 |
from US $1.70 |
||
|
5
|
5
97095-06012-00 Bolt |
97095-06012-00 |
from US $1.98 |
||
| replacement | |||||
|
5
|
5
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
6
|
6
92180-06025-00 Screw, Oval Head |
92180-06025-00 |
US $2.69 |
||
| replacement | |||||
|
6
|
6
90152-06M01-00 Screw, Countersunk |
90152-06M01-00 |
from US $2.69 |
||
|
6
|
6
97095-06016-00 BoltUR 50G, 60F, 70B "ETO" |
97095-06016-00 |
from US $1.28 |
||
| replacement | |||||
|
6
|
6
97D95-06016-00 Bolt, Hexagon Deep RecessUR 50G, 60F, 70B "ETO" |
97D95-06016-00 |
from US $1.28 |
||
|
7
|
7
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
8
|
8
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
9
|
9
9H182-14800-00
Fil 4
|
9H182-14800-00 |
— | ||
|
10
|
10
970-95060-10-00
Bolt
|
970-95060-10-00 |
— | ||
| replacement | |||||
|
10
|
10
97085-06010-00 Bolt |
97085-06010-00 |
from US $1.28 |
||
|
11
|
11
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
12
|
12
697-43112-03-4D Bracket, Clamp 2 |
697-43112-03-4D |
US $326.06 |
||
|
13
|
13
6E5-82148-00-00 Wire, Lead 4 |
6E5-82148-00-00 |
from US $5.64 |
||
|
14
|
14
985-80060-12-00
Screw, Pan Head
|
985-80060-12-00 |
— | ||
| replacement | |||||
|
14
|
14
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
15
|
15
97395-10045-00 Bolt |
97395-10045-00 |
US $7.51 |
||
| replacements | |||||
|
15
|
15
970-75100-45-00 Bolt(64D) |
970-75100-45-00 |
from US $8.64 |
||
|
15
|
15
97095-10045-00 Bolt |
97095-10045-00 |
from US $5.30 |
||
|
16
|
16
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.34 |
||
|
17
|
17
697-43311-03-4D Bracket, Swivel |
697-43311-03-4D |
US $632.28 |
||
|
18
|
18
90269-03010-00 Rivet |
90269-03010-00 |
from US $3.40 |
||
|
19
|
19
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $2.66 |
||
|
20
|
20
663-45119-00-00 Cap, Grease Nipple |
663-45119-00-00 |
US $3.68 |
||
|
21
|
21
688-43691-01-00
Indicator, Tilt
|
688-43691-01-00 |
— | ||
| replacement | |||||
|
21
|
21
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
22
|
22
688-43131-03-00 Bolt, Clamp Bracket |
688-43131-03-00 |
from US $106.38 |
||
|
23
|
23
90386-22M15-00 Bush |
90386-22M15-00 |
from US $4.96 |
||
|
24
|
24
90201-22M67-00 Washer, Plate |
90201-22M67-00 |
from US $1.34 |
||
|
25
|
25
90185-22M11-00 Nut, Self-Locking |
90185-22M11-00 |
US $33.44 |
||
| replacement | |||||
|
25
|
25
90185-22007-00 Nut, Self-Locking |
90185-22007-00 |
from US $23.16 |
||
|
26
|
26
6G5-43145-00-00 Cap, Clamp Bracket |
6G5-43145-00-00 |
US $7.23 |
||
| replacement | |||||
|
26
|
26
6G5-43145-01-00 Cap, Clamp Bracket |
6G5-43145-01-00 |
from US $6.62 |
||
|
27
|
27
688-43181-04-00 Lever, Tilt Stop |
688-43181-04-00 |
from US $33.40 |
||
|
28
|
28
688-43185-04-00 Lever, Tilt Stop |
688-43185-04-00 |
from US $34.72 |
||
|
29
|
29
90386-10M16-00 Bush |
90386-10M16-00 |
from US $2 |
||
|
30
|
30
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $1.07 |
||
|
31
|
31
90501-10M21-00 Spring, Compression |
90501-10M21-00 |
US $2.41 |
||
|
32
|
32
90387-10M38-00 Collar |
90387-10M38-00 |
from US $9.07 |
||
|
33
|
33
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.13 |
||
|
34
|
34
663-43318-00-00 Cover |
663-43318-00-00 |
from US $4.96 |
||
|
35
|
35
697-43160-00-00 Tilt Rod Assembly |
697-43160-00-00 |
from US $37.99 |
||
|
36
|
36
688-43165-00-00 Plate, Tilt Lock |
688-43165-00-00 |
from US $7.23 |
||
|
37
|
37
91690-30012-00 Pin, Spring |
91690-30012-00 |
from US $2.69 |
||
|
38
|
38
90502-20M03-00 Spring, Conical |
90502-20M03-00 |
from US $6.80 |
||
|
39
|
39
6E5-43126-02-00 Pin, Upper Shock Mount |
6E5-43126-02-00 |
from US $23.94 |
||
|
40
|
40
90386-18M21-00 Bush |
90386-18M21-00 |
from US $6.80 |
||
|
40
|
40
90386-18M63-00 BushUR 50G, 60F, 70B "ETO" |
90386-18M63-00 |
from US $3.64 |
||
|
41
|
41
90386-18M35-00 Bush |
90386-18M35-00 |
from US $10.58 |
||
|
42
|
42
93410-18M02-00 Circlip |
93410-18M02-00 |
US $3.12 |
||
| replacement | |||||
|
42
|
42
93410-18M05-00 Circlip (6F2) |
93410-18M05-00 |
from US $2.98 |
||
|
43
|
43
90101-12M65-00 Bolt |
90101-12M65-00 |
US $18.99 |
||
|
44
|
44
92995-12200-00 Washer |
92995-12200-00 |
from US $2.09 |
||
| replacement | |||||
|
44
|
44
929-90122-00-00 Washer, Plain |
929-90122-00-00 |
from US $1.34 |
||
|
45
|
45
90201-12426-00 Washe, Plate(663) |
90201-12426-00 |
from US $3.24 |
||
|
46
|
46
95380-12600-00 Nut |
95380-12600-00 |
from US $4.96 |
||
