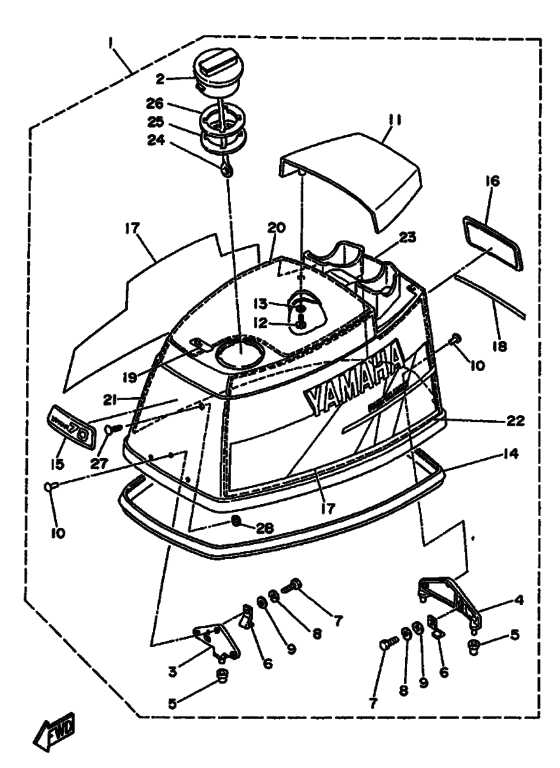

Top cowling Diagram Yamaha 70 ET(D/M)OL
- Year
- 1994
- Model
- 70B
- Model code
- 6H3
- Year
- 1994
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 70
- Sales region
- Europe (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6H3-42610-A3-4D Top Cowling Assy |
6H3-42610-A3-4D |
US $984.25 |
||
| replacement | |||||
|
1
|
1
6H3-42610-50-00 Top Cowling Assy |
6H3-42610-50-00 |
US $973.33 |
||
|
1
|
1
6H2-42610-A3-4D
Top Cowling Assy
UR 60F |
6H2-42610-A3-4D |
— | ||
| replacement | |||||
|
1
|
1
6H2-42610-80-00
TOP COWLING ASSY
UR 60F |
6H2-42610-80-00 |
— | ||
|
1
|
1
62F-42610-A1-4D
Top Cowling Assy
UR 50G |
62F-42610-A1-4D |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
UR 50G |
999-99999-99-00 |
— | ||
|
1
|
1
62U-42610-A0-4D
Top Cowling Assy
UR 25B |
62U-42610-A0-4D |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
UR 25B |
999-99999-99-00 |
— | ||
|
2
|
2
6H1-2177H-02-00 Disk Cap 2 (6H1-2177H-01-00) |
6H1-2177H-02-00 |
from US $85.11 |
||
|
3
|
3
6H3-42647-00-94 Holder, Clamp Band |
6H3-42647-00-94 |
US $20.54 |
||
| replacement | |||||
|
3
|
3
6H3-42647-00-00 Holder, Clamp Band |
6H3-42647-00-00 |
from US $20.54 |
||
|
4
|
4
6H3-42649-00-94 Holder, Clamp Band |
6H3-42649-00-94 |
US $23.52 |
||
| replacement | |||||
|
4
|
4
6H3-42649-00-00 Holder, Clamp Band |
6H3-42649-00-00 |
from US $23.52 |
||
|
5
|
5
663-42662-00-00 Damper |
663-42662-00-00 |
US $8.93 |
||
|
6
|
6
6H3-42652-00-00 Hook |
6H3-42652-00-00 |
from US $11.90 |
||
|
7
|
7
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
| replacement | |||||
|
7
|
7
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
8
|
8
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
9
|
9
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
10
|
10
90266-06M02-00 Rivet (697) |
90266-06M02-00 |
from US $2.24 |
||
|
11
|
11
6H3-42613-00-4D Molding, Air Duct |
6H3-42613-00-4D |
US $151.98 |
||
| replacements | |||||
|
11
|
11
6H3-42613-01-4D M0Lding Air Duct |
6H3-42613-01-4D |
US $151.98 |
||
|
11
|
11
6H3-42613-01-8D Molding, Air Duct |
6H3-42613-01-8D |
from US $151.98 |
||
|
12
|
12
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
| replacement | |||||
|
12
|
12
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
13
|
13
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
14
|
14
6H3-42615-00-00 Seal |
6H3-42615-00-00 |
US $51.12 |
||
|
15
|
15
6H3-42686-01-00
Emblem, Front
|
6H3-42686-01-00 |
— | ||
|
15
|
15
6H2-42686-01-00
Emblem, Front
UR 60F |
6H2-42686-01-00 |
— | ||
|
15
|
15
61D-42686-00-00
Emblem, Front
UR 50G |
61D-42686-00-00 |
— | ||
|
15
|
15
62U-42686-00-00
Emblem, Front
UR 25B |
62U-42686-00-00 |
— | ||
| replacement | |||||
|
15
|
15
999-99999-99-00
Not Available
UR 25B |
999-99999-99-00 |
— | ||
|
16
|
16
6H3-42687-01-00
Emblem, Rear
|
6H3-42687-01-00 |
— | ||
|
16
|
16
6H2-42687-01-00
Emblem, Rear
UR 60F |
6H2-42687-01-00 |
— | ||
|
16
|
16
61D-42687-00-00
Emblem, Rear
UR 50G |
61D-42687-00-00 |
— | ||
|
17
|
17
6H3-W0070-A2-00
Graphic Set
|
6H3-W0070-A2-00 |
— | ||
|
18
|
18
6H3-4267A-A0-00
Graphic, Rear 2
|
6H3-4267A-A0-00 |
— | ||
| replacement | |||||
|
18
|
18
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
19
|
19
6H3-13436-00-00 Mark |
6H3-13436-00-00 |
US $2.83 |
||
| replacement | |||||
|
19
|
19
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
20
|
20
689-W4266-20-00
Damper, Form
|
689-W4266-20-00 |
— | ||
|
21
|
21
689-W4266-40-00 Damper, Form |
689-W4266-40-00 |
from US $50.01 |
||
|
22
|
22
689-W4266-40-00 Damper, Form |
689-W4266-40-00 |
from US $50.01 |
||
|
23
|
23
689-W4266-10-00
Damper, Form
|
689-W4266-10-00 |
— | ||
|
24
|
24
6H1-42694-00-00 Band |
6H1-42694-00-00 |
from US $18.42 |
||
|
25
|
25
6H3-21732-00-00 Seal 1 |
6H3-21732-00-00 |
from US $12.47 |
||
|
26
|
26
6H3-21735-00-00 Seal 2 |
6H3-21735-00-00 |
US $12.47 |
||
|
27
|
27
90338-05M12-00 Plug |
90338-05M12-00 |
from US $1.84 |
||
|
28
|
28
90183-05M06-00 Nut, Spring |
90183-05M06-00 |
from US $1.98 |
||
