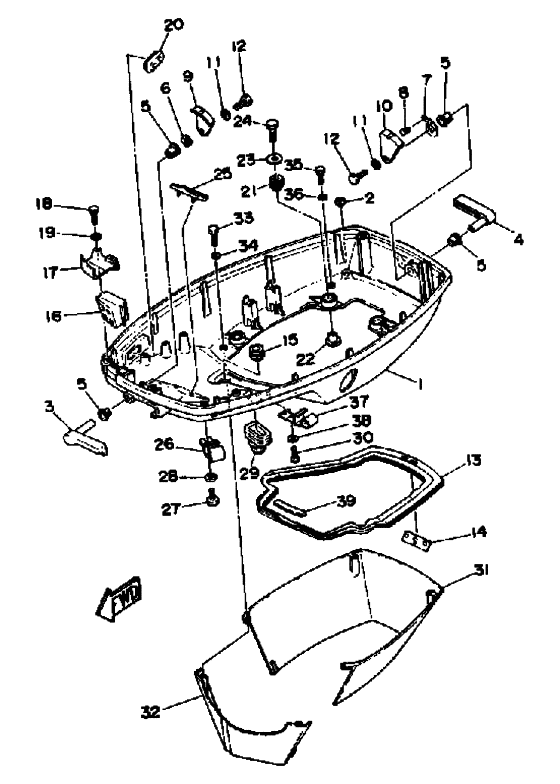

Bottom cowling Diagram Yamaha 70 (E)TLR
- Year
- 1991
- Model
- 70
- Year
- 1991
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 70
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6H3-42711-29-EK
Bottom Cowling (6H3-42711-22-Ek)
6H3-42711-22-EK |
6H3-42711-29-EK |
— | ||
|
2
|
2
6H3-44391-01-00
Nipple, Hose
|
6H3-44391-01-00 |
— | ||
| replacement | |||||
|
2
|
2
6BL-44391-00-00 Nipple, Hose |
6BL-44391-00-00 |
from US $0.93 |
||
|
3
|
3
6H3-42815-00-EK
Lever, Clamp 1
|
6H3-42815-00-EK |
— | ||
| replacement | |||||
|
3
|
3
6H3-42815-01-EK
Clamp Lever 1
|
6H3-42815-01-EK |
— | ||
|
4
|
4
6H3-42817-00-EK
Lever, Clamp 3
|
6H3-42817-00-EK |
— | ||
| replacement | |||||
|
4
|
4
6H3-42817-01-EK
Clamp Lever 3
|
6H3-42817-01-EK |
— | ||
|
5
|
5
90386-13M38-00 Bush |
90386-13M38-00 |
from US $2.55 |
||
|
6
|
6
90206-13M10-00 Washer, Wave |
90206-13M10-00 |
from US $2.69 |
||
|
7
|
7
6H3-42813-00-00 Spring, Clamp Lever |
6H3-42813-00-00 |
from US $2.98 |
||
|
8
|
8
90269-04M03-00 Rivet |
90269-04M03-00 |
from US $1.84 |
||
|
9
|
9
6H3-42816-00-00 Lever, Clamp |
6H3-42816-00-00 |
from US $16.72 |
||
|
10
|
10
6H3-42818-00-00 Lever, Clamp |
6H3-42818-00-00 |
from US $7.65 |
||
|
11
|
11
90201-06M02-00 Washer,plate (6K8) |
90201-06M02-00 |
from US $2.27 |
||
|
12
|
12
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
12
|
12
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
13
|
13
6H3-42716-02-00 Rubber, Seal 1 |
6H3-42716-02-00 |
from US $53.47 |
||
|
14
|
14
6K5-42717-00-00 Rubber, Seal 2 |
6K5-42717-00-00 |
US $3.12 |
||
| replacement | |||||
|
14
|
14
6K5-42717-01-00 Rubber, Seal 2 |
6K5-42717-01-00 |
from US $3.12 |
||
|
15
|
15
6E5-42724-00-00 Grommet |
6E5-42724-00-00 |
US $6.80 |
||
|
16
|
16
6H3-42725-10-00 Grommet |
6H3-42725-10-00 |
US $13.32 |
||
|
17
|
17
6H3-42738-00-5B Plate, Fitting |
6H3-42738-00-5B |
US $19.55 |
||
| replacements | |||||
|
17
|
17
6H3-42738-01-CA Plate, Fitting |
6H3-42738-01-CA |
US $19.55 |
||
|
17
|
17
6H3-42738-01-8D Plate, Fitting |
6H3-42738-01-8D |
US $60.86 |
||
|
18
|
18
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
18
|
18
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
18
|
18
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
19
|
19
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
20
|
20
6H3-42727-00-00 Grommet |
6H3-42727-00-00 |
US $6.38 |
||
|
21
|
21
90480-09M12-00 Grommet |
90480-09M12-00 |
from US $2 |
||
|
22
|
22
90387-06M69-00 Collar |
90387-06M69-00 |
from US $3.98 |
||
|
23
|
23
90201-06416-00 Washer, Plate |
90201-06416-00 |
from US $2.69 |
||
|
24
|
24
97313-06030-00 Bolt |
97313-06030-00 |
from US $2.83 |
||
| replacement | |||||
|
24
|
24
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
25
|
25
6H3-42768-00-00 Damper |
6H3-42768-00-00 |
from US $5.38 |
||
|
26
|
26
6E5-24367-01-00 Clamp, Fuel Pipe 2 |
6E5-24367-01-00 |
from US $10.26 |
||
|
27
|
27
90157-06M01-00 Screw, Pan Head |
90157-06M01-00 |
from US $2.69 |
||
|
28
|
28
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
29
|
29
688-42726-10-00 Grommet |
688-42726-10-00 |
US $4.11 |
||
|
30
|
30
90157-06M01-00 Screw, Pan Head |
90157-06M01-00 |
from US $2.69 |
||
|
31
|
31
6H3-42741-00-EK
Apron 1
|
6H3-42741-00-EK |
— | ||
| replacement | |||||
|
31
|
31
6H3-42741-01-EK APRON 2 |
6H3-42741-01-EK |
US $160.70 |
||
|
32
|
32
6H3-42771-00-EK
Apron 2
|
6H3-42771-00-EK |
— | ||
| replacement | |||||
|
32
|
32
6H3-42771-01-EK
LEVER,CLAMP 1
|
6H3-42771-01-EK |
— | ||
|
33
|
33
973-95060-25-00
Bolt (682)
|
973-95060-25-00 |
— | ||
| replacement | |||||
|
33
|
33
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.35 |
||
|
34
|
34
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
35
|
35
97395-06020-00 Bolt, Hexagon |
97395-06020-00 |
US $1.56 |
||
| replacement | |||||
|
35
|
35
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.56 |
||
|
36
|
36
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
37
|
37
6E5-24367-01-00 Clamp, Fuel Pipe 2 |
6E5-24367-01-00 |
from US $10.26 |
||
|
38
|
38
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
39
|
39
6H3-42718-00-00 Rubber, Seal 3 |
6H3-42718-00-00 |
from US $5.90 |
||
