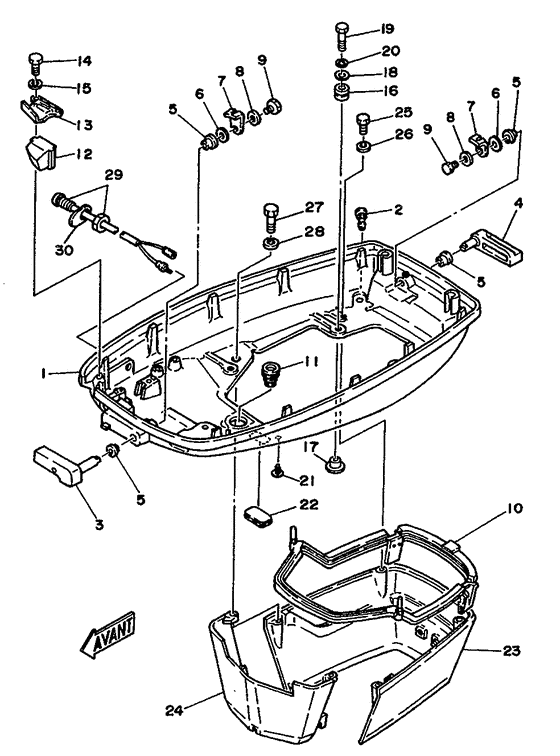

Bottom cowling Diagram Yamaha 75 E(M/H/D/T)L
- Year
- 1992
- Model
- 75A
- Model code
- 692
- Year
- 1992
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 75
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Solid 1 (DBGS1; 001D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
692-42711-01-1D
Cowling, bottom
|
692-42711-01-1D |
— | ||
|
02
|
02
6H3-44391-01-00
Nipple, Hose
|
6H3-44391-01-00 |
— | ||
| replacement | |||||
|
02
|
02
6BL-44391-00-00 Nipple, Hose |
6BL-44391-00-00 |
from US $0.91 |
||
|
03
|
03
688-42815-00-1D
Lever, Clamp
|
688-42815-00-1D |
— | ||
| replacement | |||||
|
03
|
03
688-42815-01-1D
Lever Clamp
|
688-42815-01-1D |
— | ||
|
04
|
04
688-42817-00-1D
Lever, Clamp
|
688-42817-00-1D |
— | ||
|
05
|
05
90386-13M38-00 Bush |
90386-13M38-00 |
from US $2.55 |
||
|
06
|
06
90206-13019-00 Washer, Wave |
90206-13019-00 |
from US $2.83 |
||
|
07
|
07
688-42816-00-00 Lever, Clamp |
688-42816-00-00 |
from US $11.76 |
||
|
08
|
08
90201-06M02-00 Washer,plate (6K8) |
90201-06M02-00 |
from US $2.27 |
||
|
09
|
09
97013-06M02-00
Bolt
|
97013-06M02-00 |
— | ||
|
10
|
10
688-42716-02-00 Rubber, Seal 1 |
688-42716-02-00 |
US $58.58 |
||
| replacement | |||||
|
10
|
10
688-42716-03-00 RUBBER SEAL 1 |
688-42716-03-00 |
from US $58.58 |
||
|
11
|
11
663-42724-00-00 Grommet |
663-42724-00-00 |
US $8.22 |
||
| replacement | |||||
|
11
|
11
663-42724-01-00 Grommet |
663-42724-01-00 |
from US $8.22 |
||
|
12
|
12
692-42725-00-00 Grommet |
692-42725-00-00 |
US $32.30 |
||
|
12
|
12
692-42725-10-00 Grommet |
692-42725-10-00 |
from US $32.30 |
||
|
13
|
13
688-42738-00-94 Plate, Fitting |
688-42738-00-94 |
US $9.35 |
||
| replacement | |||||
|
13
|
13
688-42738-01-8D Plate, Fitting |
688-42738-01-8D |
from US $9.35 |
||
|
14
|
14
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
14
|
14
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
|
14
|
14
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
15
|
15
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
16
|
16
90480-09M12-00 Grommet |
90480-09M12-00 |
from US $2.36 |
||
|
17
|
17
90387-06M69-00 Collar |
90387-06M69-00 |
from US $4.11 |
||
|
18
|
18
90201-06416-00 Washer, Plate |
90201-06416-00 |
from US $2.69 |
||
|
19
|
19
97395-06030-00 Bolt (6A1) |
97395-06030-00 |
from US $2.83 |
||
| replacement | |||||
|
19
|
19
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
20
|
20
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
20
|
20
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
21
|
21
90338-05M03-00 Plug |
90338-05M03-00 |
from US $1.84 |
||
|
22
|
22
6H4-42726-00-00 Grommet |
6H4-42726-00-00 |
US $4.38 |
||
|
23
|
23
688-42741-00-1D
Apron
|
688-42741-00-1D |
— | ||
| replacement | |||||
|
23
|
23
688-42741-01-1D
Apron
|
688-42741-01-1D |
— | ||
|
24
|
24
688-42771-00-1D
Apron
|
688-42771-00-1D |
— | ||
| replacement | |||||
|
24
|
24
688-42771-01-1D
Apron
|
688-42771-01-1D |
— | ||
|
25
|
25
97395-06020-00 Bolt, Hexagon |
97395-06020-00 |
US $1.56 |
||
| replacement | |||||
|
25
|
25
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
26
|
26
92990-06030-00
Washer
|
92990-06030-00 |
— | ||
|
27
|
27
97395-06030-00 Bolt (6A1) |
97395-06030-00 |
from US $2.83 |
||
| replacement | |||||
|
27
|
27
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
28
|
28
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
28
|
28
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
29
|
29
692-85411-00-00
Overheat Warning Lamp
|
692-85411-00-00 |
— | ||
|
30
|
30
692-85415-00-00 Mark, Signal Lamp |
692-85415-00-00 |
from US $7.34 |
||
| replacement | |||||
|
30
|
30
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
