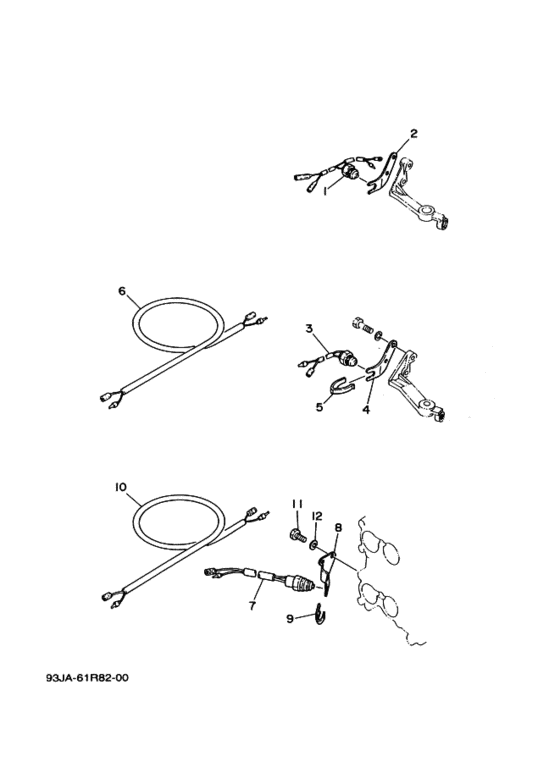

ｵﾌﾟｼﾖﾅﾙﾊﾟｰﾂ 3 (55B/85A/115B) Diagram Yamaha 85 ET(D)L/X
- Year
- 1993
- Model
- 85A
- Model code
- 688
- Year
- 1993
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 85
- Sales region
- Japan (010)
- Colour
- Dark Bluish Gray Solid 1 (DBGS1; 001D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
697-82540-01-00 Neutral Switch Assemblyニユートラルスイツチアセンブリ; ５５Ｂモデル |
697-82540-01-00 |
US $53.93 |
||
| replacement | |||||
|
1
|
1
697-82540-A9-00 Neutral Switch Assyニユートラルスイツチアセンブリ; ５５Ｂモデル |
697-82540-A9-00 |
US $53.93 |
||
|
2
|
2
663-82554-01-00 Stay, Neutral Switchステー，ニユートラルスイツチ; |
663-82554-01-00 |
from US $10.63 |
||
|
3
|
3
688-82540-11-00 Neutral Switch Ass'yニユートラルスイツチアセンブリ; ８５Ａモデル |
688-82540-11-00 |
US $39.24 |
||
| replacement | |||||
|
3
|
3
688-82540-12-00 Neutral Switch Assyニユートラルスイツチアセンブリ; ８５Ａモデル |
688-82540-12-00 |
from US $39.24 |
||
|
4
|
4
663-82554-01-00 Stay, Neutral Switchステー，ニユートラルスイツチ; |
663-82554-01-00 |
from US $10.63 |
||
|
5
|
5
663-82555-01-00 Damper, Main Switch 1ダンパ，メインスイツチ １; |
663-82555-01-00 |
from US $12.89 |
||
|
6
|
6
688-82541-10-00 Wire, Leadワイヤ，リード; |
688-82541-10-00 |
from US $18.14 |
||
|
7
|
7
688-82540-11-00 Neutral Switch Ass'yニユートラルスイツチアセンブリ; １１５Ｂモデル |
688-82540-11-00 |
US $39.24 |
||
| replacement | |||||
|
7
|
7
688-82540-12-00 Neutral Switch Assyニユートラルスイツチアセンブリ; １１５Ｂモデル |
688-82540-12-00 |
from US $39.24 |
||
|
8
|
8
6E5-82554-00-00 Stay, Neutral Switchステー，ニユートラルスイツチ; |
6E5-82554-00-00 |
from US $13.46 |
||
|
9
|
9
663-82555-01-00 Damper, Main Switch 1ダンパ，メインスイツチ １; |
663-82555-01-00 |
from US $12.89 |
||
|
10
|
10
688-82541-10-00 Wire, Leadワイヤ，リード; |
688-82541-10-00 |
from US $18.14 |
||
|
11
|
11
973-95060-16-00
Bolt, Hex
|
973-95060-16-00 |
— | ||
| replacements | |||||
|
11
|
11
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
|
11
|
11
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
12
|
12
929-90061-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-90061-00-00 |
— | ||
| replacement | |||||
|
12
|
12
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.97 |
||
