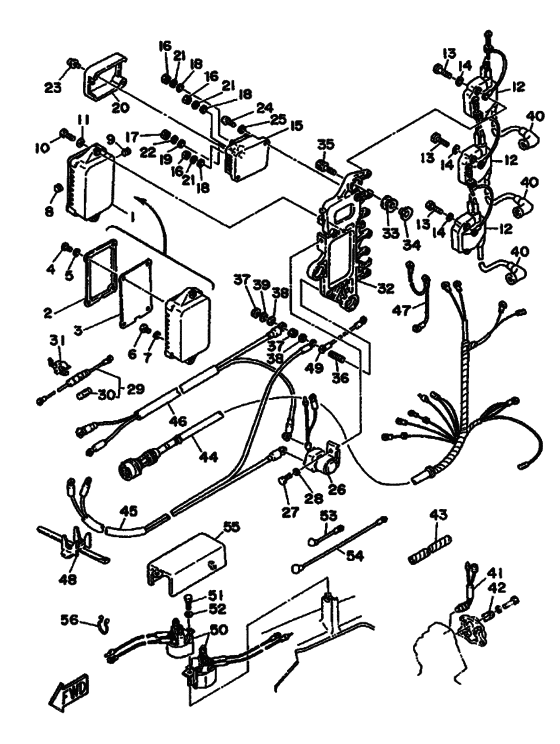

Electrical Diagram Yamaha 85 ET(D)L/X
- Year
- 1990
- Model
- 85A
- Model code
- 688
- Year
- 1990
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 85
- Sales region
- Europe (999)
- Colour
- Dark Bluish Gray Solid 1 (DBGS1; 001D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
688-85540-16-00
C.d.i. Unit Assembly
|
688-85540-16-00 |
— | ||
|
2
|
2
688-85537-12-00
Cover
|
688-85537-12-00 |
— | ||
|
3
|
3
6E5-85547-10-00
Damper
|
6E5-85547-10-00 |
— | ||
|
4
|
4
985-80050-10-00
Screw, Pan Head
|
985-80050-10-00 |
— | ||
| replacement | |||||
|
4
|
4
97885-05010-00 Screw, Pan Head |
97885-05010-00 |
from US $1.01 |
||
|
5
|
5
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
6
|
6
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.21 |
||
|
7
|
7
92990-07200-00
Washer
|
92990-07200-00 |
— | ||
|
8
|
8
90480-06157-00
Grommet
|
90480-06157-00 |
— | ||
|
9
|
9
663-81922-00-00 Grommet |
663-81922-00-00 |
US $18.23 |
||
|
10
|
10
97313-06025-00 Bolt |
97313-06025-00 |
US $1.35 |
||
| replacement | |||||
|
10
|
10
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.35 |
||
|
11
|
11
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
12
|
12
688-85570-10-00 Ignition Coil Assy |
688-85570-10-00 |
US $241.78 |
||
| replacement | |||||
|
12
|
12
688-85570-11-00 Ignition Coil Assembly |
688-85570-11-00 |
from US $191.36 |
||
|
13
|
13
97313-06030-00 Bolt |
97313-06030-00 |
from US $2.83 |
||
| replacement | |||||
|
13
|
13
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
14
|
14
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
15
|
15
6G5-81960-A0-00 Rectifier & Regulator Assy |
6G5-81960-A0-00 |
from US $163.94 |
||
|
16
|
16
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
17
|
17
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
18
|
18
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.36 |
||
|
19
|
19
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
|
20
|
20
688-81961-01-00 Cover |
688-81961-01-00 |
from US $16.70 |
||
|
21
|
21
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
22
|
22
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
22
|
22
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
23
|
23
97985-05225-00
Screw, With Washer
|
97985-05225-00 |
— | ||
| replacement | |||||
|
23
|
23
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
24
|
24
97313-06020-00 Bolt, Hexagon |
97313-06020-00 |
US $1.56 |
||
| replacement | |||||
|
24
|
24
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.56 |
||
|
25
|
25
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
26
|
26
688-81940-11-00 Starter Switch Assembly |
688-81940-11-00 |
from US $186.19 |
||
|
27
|
27
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
27
|
27
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
27
|
27
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
28
|
28
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
29
|
29
688-82150-01-00 Fuse Holder Assembly |
688-82150-01-00 |
US $35.92 |
||
| replacement | |||||
|
29
|
29
688-82150-02-00 FUSE HOLDER ASSY |
688-82150-02-00 |
from US $17.52 |
||
|
30
|
30
682-82151-00-00 Fuse |
682-82151-00-00 |
US $1.84 |
||
| replacements | |||||
|
30
|
30
682-82151-01-00 Fuse (20A) |
682-82151-01-00 |
US $1.84 |
||
|
30
|
30
682-82151-02-00 FUSE |
682-82151-02-00 |
from US $1.84 |
||
|
31
|
31
6G5-82152-00-00 Holder, Fuse |
6G5-82152-00-00 |
from US $2.02 |
||
|
32
|
32
688-85542-03-94
Bracket
|
688-85542-03-94 |
— | ||
| replacement | |||||
|
32
|
32
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
33
|
33
90480-09M12-00 Grommet |
90480-09M12-00 |
from US $2.02 |
||
|
34
|
34
90387-06M03-00 Collar |
90387-06M03-00 |
from US $5.81 |
||
|
35
|
35
90119-06M26-00 Bolt, With Washer |
90119-06M26-00 |
US $4.39 |
||
| replacements | |||||
|
35
|
35
90119-06M08-00 Bolt, With Washer |
90119-06M08-00 |
from US $4.39 |
||
|
35
|
35
90119-06295-00 Bolt, With Washer |
90119-06295-00 |
from US $4.39 |
||
|
36
|
36
90116-06M22-00 Bolt, Stud |
90116-06M22-00 |
from US $4.39 |
||
|
37
|
37
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.36 |
||
| replacement | |||||
|
37
|
37
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.42 |
||
|
38
|
38
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
|
39
|
39
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
39
|
39
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
40
|
40
6G1-82370-20-00 Plug Cap Asy |
6G1-82370-20-00 |
US $20.12 |
||
| replacement | |||||
|
40
|
40
6G1-82370-21-00 Plug Cap Assy |
6G1-82370-21-00 |
from US $20.12 |
||
|
41
|
41
688-82560-10-00 Thermo Switch Assy |
688-82560-10-00 |
from US $49.16 |
||
|
42
|
42
688-82588-01-00 Plate |
688-82588-01-00 |
from US $3.97 |
||
|
43
|
43
90446-10M01-00 Hose (L60) |
90446-10M01-00 |
from US $4.68 |
||
|
44
|
44
688-82590-03-00
Wire Harness Assembly
UR |
688-82590-03-00 |
— | ||
|
44
|
44
688-82590-12-00
Wire Harness Assembly (Cv85Et)
UR |
688-82590-12-00 |
— | ||
|
45
|
45
688-82105-02-00 Battery Cable |
688-82105-02-00 |
US $255.60 |
||
| replacements | |||||
|
45
|
45
64D-82105-01-00 element |
64D-82105-01-00 |
US $173.54 |
||
|
45
|
45
64D-82105-02-00 Battery Cable |
64D-82105-02-00 |
US $224.26 |
||
|
46
|
46
688-82531-01-00
Wire, Lead
|
688-82531-01-00 |
— | ||
|
47
|
47
697-82519-00-00 Wire, Earth Lead |
697-82519-00-00 |
from US $12.89 |
||
|
48
|
48
688-82594-00-00 Clamp |
688-82594-00-00 |
from US $3.72 |
||
|
49
|
49
688-83354-00-00
Wire, Earth Lead 1
|
688-83354-00-00 |
— | ||
| replacement | |||||
|
49
|
49
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
50
|
50
688-81950-10-00 Relay Assy |
688-81950-10-00 |
from US $165.79 |
||
|
51
|
51
97313-06020-00 Bolt, Hexagon |
97313-06020-00 |
US $1.56 |
||
| replacement | |||||
|
51
|
51
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.56 |
||
|
52
|
52
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
53
|
53
688-81949-00-00
Wire, Lead
|
688-81949-00-00 |
— | ||
|
54
|
54
688-85515-00-00
Lead Wire Assembly
|
688-85515-00-00 |
— | ||
|
55
|
55
6H3-82154-00-00
Case
|
6H3-82154-00-00 |
— | ||
|
56
|
56
90464-16039-00 Clamp (3Y2) |
90464-16039-00 |
from US $1.70 |
||
