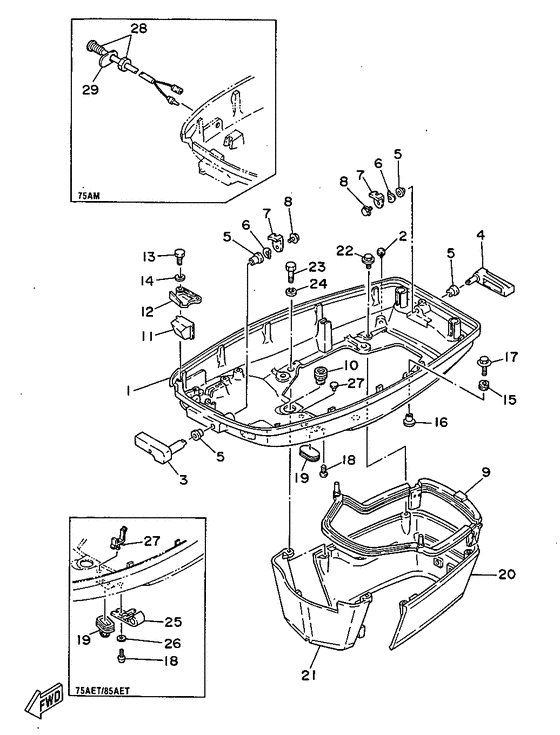

Bottom cowling Diagram Yamaha 85 ET(D)L/X
- Year
- 1997
- Model
- 85A
- Model code
- 688
- Year
- 1997
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 85
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
688-42711-04-4D
Cowling, Bottom 1
Ur 75ae(t)/85ae(t) |
688-42711-04-4D |
— | ||
| replacement | |||||
|
01
|
01
999-99043-31-00 Bottom Cowling & Bush (688-05)Ur 75ae(t)/85ae(t) |
999-99043-31-00 |
from US $557.88 |
||
|
01
|
01
692-42711-02-4D Cowling, Bottom 1Ur 75am |
692-42711-02-4D |
US $558.36 |
||
| replacement | |||||
|
01
|
01
99999-04332-00 Bottom Cowling & Bush (692-03)Ur 75am |
99999-04332-00 |
US $684.05 |
||
|
02
|
02
6H3-44391-01-00
Nipple, Hose
|
6H3-44391-01-00 |
— | ||
| replacement | |||||
|
02
|
02
6BL-44391-00-00 Nipple, Hose |
6BL-44391-00-00 |
from US $0.91 |
||
|
03
|
03
688-42815-01-4D Lever, Clamp |
688-42815-01-4D |
US $65.63 |
||
| replacement | |||||
|
03
|
03
688-42815-01-8D Lever, Clamp |
688-42815-01-8D |
from US $55.78 |
||
|
04
|
04
688-42817-01-4D Lever, Clamp |
688-42817-01-4D |
US $42.55 |
||
| replacement | |||||
|
04
|
04
688-42817-01-8D Lever, Clamp |
688-42817-01-8D |
from US $39.74 |
||
|
05
|
05
90386-13M38-00 Bush |
90386-13M38-00 |
from US $2.55 |
||
|
06
|
06
90206-13019-00 Washer, Wave |
90206-13019-00 |
from US $2.83 |
||
|
07
|
07
688-42816-00-00 Lever, Clamp |
688-42816-00-00 |
from US $11.76 |
||
|
08
|
08
90119-06M09-00 Bolt, With Washer |
90119-06M09-00 |
US $3.68 |
||
|
09
|
09
688-42716-02-00 Rubber, Seal 1 |
688-42716-02-00 |
US $58.58 |
||
| replacement | |||||
|
09
|
09
688-42716-03-00 RUBBER SEAL 1 |
688-42716-03-00 |
from US $58.58 |
||
|
10
|
10
663-42724-00-00 Grommet |
663-42724-00-00 |
US $8.22 |
||
| replacement | |||||
|
10
|
10
663-42724-01-00 Grommet |
663-42724-01-00 |
from US $8.22 |
||
|
11
|
11
688-42725-02-00 GrommetUr 75ae/85ae |
688-42725-02-00 |
from US $8.08 |
||
| replacement | |||||
|
11
|
11
688-42725-03-00 GROMMETUr 75ae/85ae |
688-42725-03-00 |
from US $12.18 |
||
|
11
|
11
688-42725-10-00 GrommetUr 75ae/85ae |
688-42725-10-00 |
US $12.18 |
||
|
11
|
11
692-42725-10-00 GrommetUr 75am |
692-42725-10-00 |
from US $32.30 |
||
|
12
|
12
688-42738-01-94 Plate, Fitting |
688-42738-01-94 |
US $9.35 |
||
| replacement | |||||
|
12
|
12
688-42738-01-8D Plate, Fitting |
688-42738-01-8D |
from US $9.35 |
||
|
13
|
13
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
| replacement | |||||
|
13
|
13
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
14
|
14
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
15
|
15
90480-09M12-00 Grommet |
90480-09M12-00 |
from US $2.36 |
||
|
16
|
16
90387-06M69-00 Collar |
90387-06M69-00 |
from US $4.11 |
||
|
17
|
17
901-1906M-61-00
Bolt, With Washer
|
901-1906M-61-00 |
— | ||
| replacements | |||||
|
17
|
17
90119-06M08-00 Bolt, With Washer |
90119-06M08-00 |
from US $4.39 |
||
|
17
|
17
90119-06295-00 Bolt, With Washer |
90119-06295-00 |
from US $4.86 |
||
|
18
|
18
90157-06M01-00 Screw, Pan HeadUr 75aet/85aet |
90157-06M01-00 |
from US $2.91 |
||
|
18
|
18
90338-05M03-00 PlugUr |
90338-05M03-00 |
from US $1.84 |
||
|
19
|
19
688-42726-10-00 GrommetUr 75aet/85aet |
688-42726-10-00 |
US $5 |
||
|
19
|
19
6H4-42726-00-00 GrommetUr |
6H4-42726-00-00 |
US $4.38 |
||
|
20
|
20
688-42741-01-4D Apron |
688-42741-01-4D |
US $135.26 |
||
| replacement | |||||
|
20
|
20
688-42741-01-8D Apron |
688-42741-01-8D |
from US $135.26 |
||
|
21
|
21
688-42771-01-4D
Apron
|
688-42771-01-4D |
— | ||
| replacement | |||||
|
21
|
21
688-42771-01-8D Apron |
688-42771-01-8D |
from US $86.90 |
||
|
22
|
22
97595-06420-00 Bolt, With Washer |
97595-06420-00 |
from US $1.07 |
||
| replacements | |||||
|
22
|
22
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
22
|
22
97E95-06420-00 |
97E95-06420-00 |
from US $0.88 |
||
|
23
|
23
970-95060-30-00
Bolt
|
970-95060-30-00 |
— | ||
| replacement | |||||
|
23
|
23
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
24
|
24
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
25
|
25
6E5-24367-01-00 Clamp, Fuel Pipe 275aet/85aet |
6E5-24367-01-00 |
from US $15.12 |
||
|
26
|
26
929-90066-00-00 Washer, Plain (646)75aet/85aet |
929-90066-00-00 |
from US $1.39 |
||
|
27
|
27
703-82119-00-00 Cover, Lead WireUr |
703-82119-00-00 |
from US $2.13 |
||
|
27
|
27
90464-15M08-00 ClampUr 75aet/85aet |
90464-15M08-00 |
from US $1.94 |
||
|
28
|
28
6H4-85411-00-00 Bracket, Signal Light75am |
6H4-85411-00-00 |
from US $49.21 |
||
|
29
|
29
692-85415-00-00 Mark, Signal Lamp75am |
692-85415-00-00 |
from US $7.34 |
||
| replacement | |||||
|
29
|
29
999-99999-99-00
Not Available
75am |
999-99999-99-00 |
— | ||
