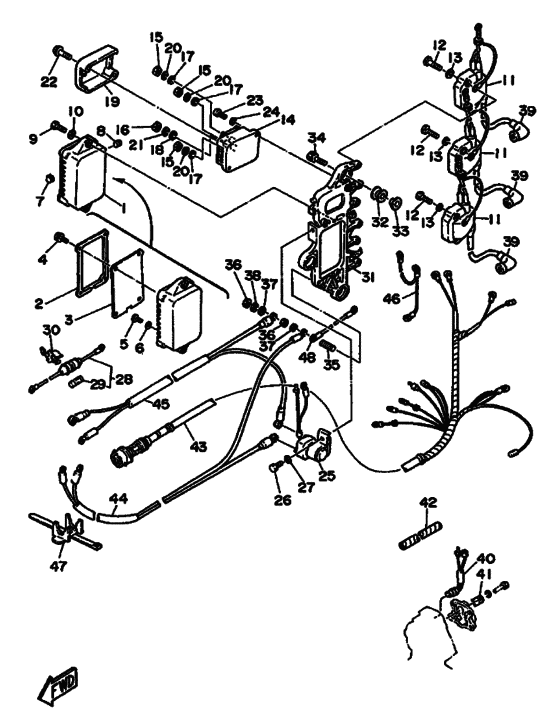

Partie electrique 2 Diagram Yamaha 85 ET(D)L/X
- Year
- 1996
- Model
- 85A
- Model code
- 688
- Year
- 1996
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 85
- Sales region
- Europe (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
688-85540-16-00
C.d.i. Unit Assembly
|
688-85540-16-00 |
— | ||
|
2
|
2
688-85537-12-00
Cover
|
688-85537-12-00 |
— | ||
|
3
|
3
6E5-85547-10-00
Damper
|
6E5-85547-10-00 |
— | ||
|
4
|
4
97985-05210-00 Screw, With Washer |
97985-05210-00 |
from US $1.98 |
||
|
5
|
5
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.21 |
||
|
6
|
6
92990-04200-00 Washer |
92990-04200-00 |
from US $1.21 |
||
|
7
|
7
90480-06157-00
Grommet
|
90480-06157-00 |
— | ||
|
8
|
8
663-81922-00-00 Grommet |
663-81922-00-00 |
US $18.23 |
||
|
9
|
9
970-95060-25-00
Bolt
|
970-95060-25-00 |
— | ||
| replacement | |||||
|
9
|
9
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.35 |
||
|
10
|
10
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
11
|
11
688-85570-11-00 Ignition Coil Assembly |
688-85570-11-00 |
from US $191.36 |
||
|
12
|
12
970-95060-30-00
Bolt
|
970-95060-30-00 |
— | ||
| replacement | |||||
|
12
|
12
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
13
|
13
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
14
|
14
6G5-81960-A0-00 Rectifier & Regulator Assy |
6G5-81960-A0-00 |
from US $163.94 |
||
|
15
|
15
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
16
|
16
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
17
|
17
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.36 |
||
|
18
|
18
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
|
19
|
19
688-81961-01-00 Cover |
688-81961-01-00 |
from US $16.70 |
||
|
20
|
20
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
21
|
21
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
22
|
22
97985-05225-00
Screw, With Washer
|
97985-05225-00 |
— | ||
| replacement | |||||
|
22
|
22
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
23
|
23
97095-06020-00 Bolt |
97095-06020-00 |
US $1.56 |
||
| replacement | |||||
|
23
|
23
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.56 |
||
|
24
|
24
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
25
|
25
688-81940-11-00 Starter Switch Assembly |
688-81940-11-00 |
from US $186.19 |
||
|
26
|
26
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
| replacement | |||||
|
26
|
26
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
27
|
27
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
28
|
28
688-82150-01-00 Fuse Holder Assembly |
688-82150-01-00 |
US $35.92 |
||
| replacement | |||||
|
28
|
28
688-82150-02-00 FUSE HOLDER ASSY |
688-82150-02-00 |
from US $17.52 |
||
|
29
|
29
682-82150-00-00 Fuse Holder Assy |
682-82150-00-00 |
US $26.74 |
||
| replacement | |||||
|
29
|
29
682-82150-01-00 Fuse Holder Assy |
682-82150-01-00 |
US $26.74 |
||
|
30
|
30
6G5-82152-00-00 Holder, Fuse |
6G5-82152-00-00 |
from US $2.02 |
||
|
31
|
31
688-85542-03-94
Bracket
|
688-85542-03-94 |
— | ||
| replacement | |||||
|
31
|
31
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
32
|
32
90480-09M12-00 Grommet |
90480-09M12-00 |
from US $2.02 |
||
|
33
|
33
90387-06M03-00 Collar |
90387-06M03-00 |
from US $5.81 |
||
|
34
|
34
90119-06M26-00 Bolt, With Washer |
90119-06M26-00 |
US $4.39 |
||
| replacements | |||||
|
34
|
34
90119-06M08-00 Bolt, With Washer |
90119-06M08-00 |
from US $4.39 |
||
|
34
|
34
90119-06295-00 Bolt, With Washer |
90119-06295-00 |
from US $4.39 |
||
|
35
|
35
90116-06M22-00 Bolt, Stud |
90116-06M22-00 |
from US $4.39 |
||
|
36
|
36
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.36 |
||
| replacement | |||||
|
36
|
36
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.42 |
||
|
37
|
37
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
|
38
|
38
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
39
|
39
6G1-82370-20-00 Plug Cap Asy |
6G1-82370-20-00 |
US $20.12 |
||
| replacement | |||||
|
39
|
39
6G1-82370-21-00 Plug Cap Assy |
6G1-82370-21-00 |
from US $20.12 |
||
|
40
|
40
688-82560-10-00 Thermo Switch Assy |
688-82560-10-00 |
from US $49.16 |
||
|
41
|
41
688-82588-01-00 Plate |
688-82588-01-00 |
from US $3.97 |
||
|
42
|
42
90446-10M01-00 Hose (L60) |
90446-10M01-00 |
from US $4.68 |
||
|
43
|
43
688-82590-03-00
Wire Harness Assembly
|
688-82590-03-00 |
— | ||
|
44
|
44
688-82105-03-00 Battery Cable |
688-82105-03-00 |
US $255.60 |
||
| replacements | |||||
|
44
|
44
64D-82105-01-00 element |
64D-82105-01-00 |
US $173.54 |
||
|
44
|
44
64D-82105-02-00 Battery Cable |
64D-82105-02-00 |
US $224.26 |
||
|
45
|
45
688-82531-01-00
Wire, Lead
|
688-82531-01-00 |
— | ||
|
46
|
46
697-82519-00-00 Wire, Earth Lead |
697-82519-00-00 |
from US $12.89 |
||
|
47
|
47
688-82594-00-00 Clamp |
688-82594-00-00 |
from US $3.72 |
||
|
48
|
48
61A-82519-00-00 Wire, Earth Lead(75AET/85AET) |
61A-82519-00-00 |
US $13.32 |
||
| replacement | |||||
|
48
|
48
6R3-82519-00-00 Wire, Earth Lead(75AET/85AET) |
6R3-82519-00-00 |
from US $9.10 |
||
