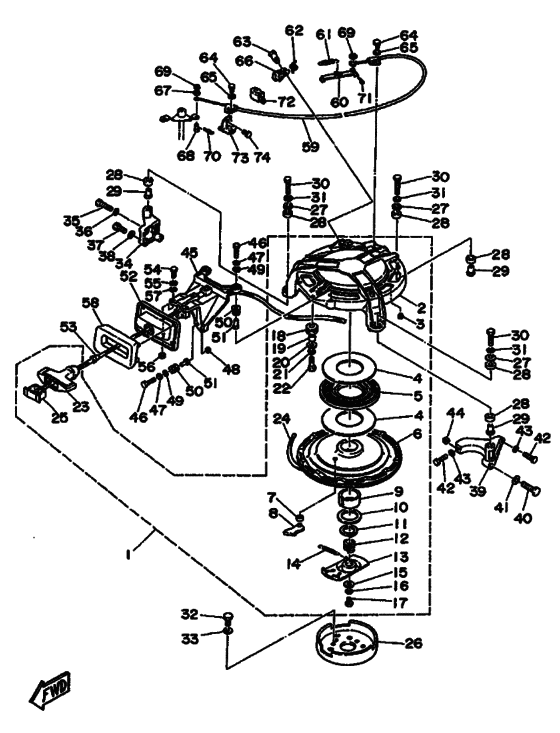

Starter Diagram Yamaha 85 ET(D)L/X
- Year
- 1996
- Model
- 85A
- Model code
- 688
- Year
- 1996
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 85
- Sales region
- Europe (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
692-W1571-02-00 Starter Assy |
692-W1571-02-00 |
US $484.22 |
||
| replacements | |||||
|
1
|
1
692-W1571-03-00 Starter Assy |
692-W1571-03-00 |
US $484.22 |
||
|
1
|
1
692-W1571-04-00 Starter Assy |
692-W1571-04-00 |
from US $484.22 |
||
|
2
|
2
692-15711-00-00 Case, Starter |
692-15711-00-00 |
US $123.10 |
||
|
3
|
3
648-15773-00-00 Stay 3 |
648-15773-00-00 |
from US $3.54 |
||
|
4
|
4
663-15739-00-00 Washer, Thrust |
663-15739-00-00 |
from US $5.95 |
||
|
5
|
5
663-15713-00-00 Spring, Starter |
663-15713-00-00 |
from US $63.97 |
||
|
6
|
6
663-15714-01-00 Drum, Sheave |
663-15714-01-00 |
from US $140.33 |
||
|
7
|
7
663-15764-00-00 Collar 1 |
663-15764-00-00 |
from US $2.55 |
||
|
8
|
8
663-15741-02-00 Pawl, Drive |
663-15741-02-00 |
from US $11.05 |
||
|
9
|
9
663-15754-00-00 Bush 2 |
663-15754-00-00 |
from US $14.45 |
||
|
10
|
10
663-15726-01-00 Washer, Flat |
663-15726-01-00 |
from US $6.94 |
||
|
11
|
11
663-15744-00-00 Circlip |
663-15744-00-00 |
from US $11.76 |
||
|
12
|
12
663-15715-00-00 Spring, Friction |
663-15715-00-00 |
from US $9.07 |
||
|
13
|
13
696-15716-00-00 Plate, Drive |
696-15716-00-00 |
from US $16.84 |
||
|
14
|
14
696-15734-00-00 Spring, Return |
696-15734-00-00 |
from US $10.20 |
||
|
15
|
15
663-15719-00-00 Washer, Thrust |
663-15719-00-00 |
from US $9.07 |
||
|
16
|
16
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
17
|
17
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
| replacement | |||||
|
17
|
17
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
18
|
18
663-15752-00-00 Roller, Wire |
663-15752-00-00 |
from US $7.76 |
||
|
19
|
19
6F5-15753-00-00 Bush |
6F5-15753-00-00 |
from US $1.70 |
||
|
20
|
20
6F5-15791-00-00 Washer, Lock |
6F5-15791-00-00 |
from US $2.13 |
||
|
21
|
21
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
22
|
22
970-11060-25-00
Bolt
|
970-11060-25-00 |
— | ||
| replacement | |||||
|
22
|
22
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
23
|
23
689-15755-01-00 Handle, Starter |
689-15755-01-00 |
US $10.63 |
||
| replacement | |||||
|
23
|
23
689-15755-02-00 HANDLE STARTER |
689-15755-02-00 |
from US $5.74 |
||
|
25
|
25
6F5-15779-02-00 Cover |
6F5-15779-02-00 |
from US $2.02 |
||
|
26
|
26
692-15723-00-00
Pulley, Starter
|
692-15723-00-00 |
— | ||
|
27
|
27
90201-08095-00 Washer, Plate |
90201-08095-00 |
from US $3.56 |
||
| replacement | |||||
|
27
|
27
90201-08455-00 Washer, Plate |
90201-08455-00 |
from US $4.11 |
||
|
28
|
28
90385-12M04-00 Bush |
90385-12M04-00 |
from US $2.02 |
||
|
29
|
29
90387-08M05-00 Collar |
90387-08M05-00 |
from US $2.70 |
||
|
30
|
30
97090-08035-00 Bolt |
97090-08035-00 |
from US $5.53 |
||
| replacements | |||||
|
30
|
30
97070-08035-00 Bolt |
97070-08035-00 |
from US $2.59 |
||
|
30
|
30
97095-08035-00 Bolt |
97095-08035-00 |
from US $5.40 |
||
|
31
|
31
92995-08100-00 Washer, Spring |
92995-08100-00 |
from US $1.56 |
||
| replacement | |||||
|
31
|
31
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.36 |
||
|
32
|
32
973-13080-20-00
Bolt (661)
|
973-13080-20-00 |
— | ||
| replacements | |||||
|
32
|
32
97080-08020-00 Bolt(6Td) |
97080-08020-00 |
from US $4.05 |
||
|
32
|
32
97013-08020-00 Bolt |
97013-08020-00 |
from US $1.64 |
||
|
33
|
33
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.36 |
||
|
34
|
34
692-15771-00-00 Stay 1 |
692-15771-00-00 |
from US $14.59 |
||
|
35
|
35
970-13060-35-00 Bolt, Hexagon |
970-13060-35-00 |
from US $2.09 |
||
| replacement | |||||
|
35
|
35
970-14060-35-00 Bolt, Hexagon |
970-14060-35-00 |
from US $2.41 |
||
|
36
|
36
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
37
|
37
970-95060-25-00
Bolt
|
970-95060-25-00 |
— | ||
| replacement | |||||
|
37
|
37
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.35 |
||
|
38
|
38
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
38
|
38
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
39
|
39
692-15772-00-00 Stay 2 |
692-15772-00-00 |
from US $22.10 |
||
|
40
|
40
97313-08040-00 Bolt, Hexagon |
97313-08040-00 |
US $5.29 |
||
| replacements | |||||
|
40
|
40
97014-08040-00 Bolt, Hexagon |
97014-08040-00 |
from US $2.13 |
||
|
40
|
40
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
41
|
41
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.36 |
||
|
42
|
42
970-95060-30-00
Bolt
|
970-95060-30-00 |
— | ||
| replacement | |||||
|
42
|
42
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
43
|
43
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
44
|
44
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
45
|
45
697-15787-00-94 Adaptor |
697-15787-00-94 |
US $22.53 |
||
| replacement | |||||
|
45
|
45
697-15787-00-00 TOP COWLING ASSY |
697-15787-00-00 |
from US $22.53 |
||
|
46
|
46
970-95060-30-00
Bolt
|
970-95060-30-00 |
— | ||
| replacement | |||||
|
46
|
46
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
47
|
47
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
48
|
48
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
49
|
49
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
|
50
|
50
6A0-82317-00-00 Damper, Ignition Coil |
6A0-82317-00-00 |
from US $4.53 |
||
| replacement | |||||
|
50
|
50
6A0-82317-01-00 DAMPER IGNITION COIL |
6A0-82317-01-00 |
from US $2.02 |
||
|
51
|
51
624-42542-00-00 Collar |
624-42542-00-00 |
US $6.23 |
||
| replacement | |||||
|
51
|
51
90387-06119-00 Collar |
90387-06119-00 |
from US $2.36 |
||
|
52
|
52
692-15758-00-94 Guide, Rope |
692-15758-00-94 |
US $54.16 |
||
| replacements | |||||
|
52
|
52
692-15758-01-94 Guide, Rope |
692-15758-01-94 |
US $54.16 |
||
|
52
|
52
692-15758-01-8D GUIDE ROPE |
692-15758-01-8D |
from US $50.16 |
||
|
53
|
53
697-15789-00-00 Damper |
697-15789-00-00 |
US $4.39 |
||
|
54
|
54
97095-06020-00 Bolt |
97095-06020-00 |
US $1.56 |
||
| replacement | |||||
|
54
|
54
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.56 |
||
|
55
|
55
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
56
|
56
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
57
|
57
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
58
|
58
697-15762-00-00 Seal, Rubber 2 |
697-15762-00-00 |
from US $23.99 |
||
|
59
|
59
692-15770-01-00 Cable Comp., Starter Stop |
692-15770-01-00 |
from US $18.83 |
||
|
60
|
60
663-15735-01-00 Guide, Cam |
663-15735-01-00 |
from US $26.35 |
||
|
61
|
61
90506-08M23-00 Spring, Tension |
90506-08M23-00 |
US $10.73 |
||
|
62
|
62
90508-12015-00 Spring, Torsion |
90508-12015-00 |
from US $2.41 |
||
|
63
|
63
90149-05095-00 Screw |
90149-05095-00 |
from US $8.64 |
||
|
64
|
64
97095-06012-00 Bolt |
97095-06012-00 |
from US $1.98 |
||
| replacement | |||||
|
64
|
64
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
65
|
65
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
66
|
66
663-15794-00-00 Stopper |
663-15794-00-00 |
from US $15.58 |
||
|
67
|
67
663-15736-00-00 Ring, Retaining 1 |
663-15736-00-00 |
US $5.24 |
||
|
68
|
68
90240-06M18-00 Pin, Clevis |
90240-06M18-00 |
from US $4.82 |
||
|
69
|
69
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
|
70
|
70
90468-18008-00 Clip |
90468-18008-00 |
from US $1.70 |
||
|
71
|
71
91490-16015-00 Pin. Cotter |
91490-16015-00 |
US $2.55 |
||
| replacement | |||||
|
71
|
71
914-90160-20-00 Pin, Cotter |
914-90160-20-00 |
from US $2.55 |
||
|
72
|
72
90465-06M28-00 Clamp |
90465-06M28-00 |
from US $3.12 |
||
|
73
|
73
663-15772-01-00 Stay 2 |
663-15772-01-00 |
from US $9.21 |
||
|
74
|
74
97313-08012-00 Bolt (661) |
97313-08012-00 |
from US $2.09 |
||
| replacements | |||||
|
74
|
74
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
74
|
74
97013-08012-00 Bolt |
97013-08012-00 |
from US $3.12 |
||
