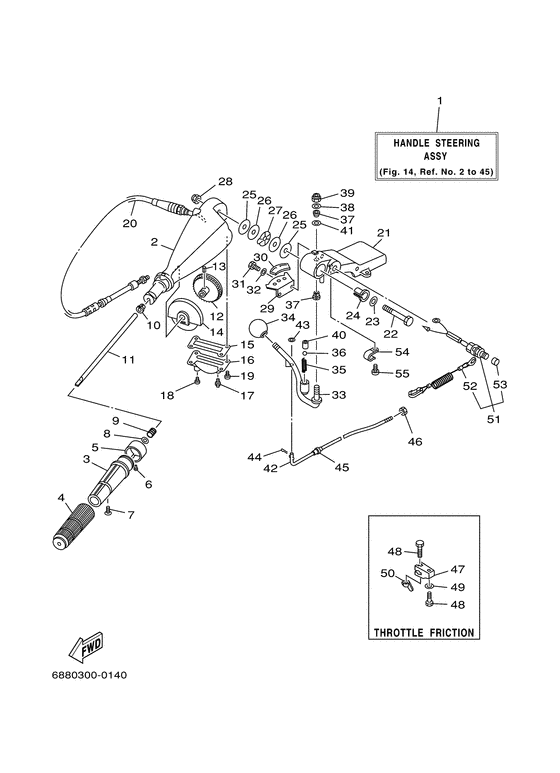

Steering Diagram Yamaha 85 ET(D)L/X
- Year
- 2000
- Model
- 85A
- Model code
- 688
- Year
- 2000
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 85
- Sales region
- Europe (General) (040)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
692-W0084-11-4D Handle Steering Assembly |
692-W0084-11-4D |
US $685.08 |
||
| replacements | |||||
|
01
|
01
692-W0084-11-8D Handle steering assy |
692-W0084-11-8D |
US $685.08 |
||
|
01
|
01
692-W0084-14-8D Handle Steering Assy |
692-W0084-14-8D |
US $749.05 |
||
|
02
|
02
692-42111-12-4D
Handle, Steering
|
692-42111-12-4D |
— | ||
| replacement | |||||
|
02
|
02
692-42111-12-8D BRACKET |
692-42111-12-8D |
from US $120.52 |
||
|
03
|
03
664-42119-00-00 Grip, Steering Handle |
664-42119-00-00 |
from US $21.22 |
||
|
04
|
04
6F6-42177-A0-00
Rubber, Handle
|
6F6-42177-A0-00 |
— | ||
| replacements | |||||
|
04
|
04
6G1-42177-00-00
Rubber, Handle
|
6G1-42177-00-00 |
— | ||
|
04
|
04
6G1-42177-01-00 RUBBER, HANDLE |
6G1-42177-01-00 |
from US $11.76 |
||
|
05
|
05
692-42137-02-00 Indicator, Throttle |
692-42137-02-00 |
US $10.06 |
||
| replacements | |||||
|
05
|
05
6H2-42137-10-00 Indicator, Throttle |
6H2-42137-10-00 |
US $4.82 |
||
|
05
|
05
6H2-42137-00-00 Indicator, Throttle |
6H2-42137-00-00 |
from US $10.06 |
||
|
06
|
06
90269-02M09-00 Rivet |
90269-02M09-00 |
from US $2.22 |
||
|
07
|
07
901-4905M-13-00
Screw
|
901-4905M-13-00 |
— | ||
| replacement | |||||
|
07
|
07
901-52050-11-00 Screw, Countersunk |
901-52050-11-00 |
from US $1.52 |
||
|
08
|
08
92903-10600-00 Washer, Plate |
92903-10600-00 |
US $1.07 |
||
| replacement | |||||
|
08
|
08
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $1.18 |
||
|
09
|
09
90501-23215-00 Spring, Compression |
90501-23215-00 |
from US $3.40 |
||
|
10
|
10
90386-08032-00 Bush |
90386-08032-00 |
from US $2.13 |
||
|
11
|
11
692-42115-00-00 Shaft, Steering Handle |
692-42115-00-00 |
from US $18.18 |
||
|
12
|
12
663-42138-00-00 Lever, Throttle |
663-42138-00-00 |
from US $33.68 |
||
|
13
|
13
91690-30216-00 Pin, Spring |
91690-30216-00 |
from US $5.10 |
||
|
14
|
14
692-42135-00-00 Housing, Throttle Lever |
692-42135-00-00 |
from US $18.86 |
||
|
15
|
15
663-42133-01-00 Gasket |
663-42133-01-00 |
from US $4.96 |
||
|
16
|
16
692-42134-03-94 Cover, Throttle Lever |
692-42134-03-94 |
US $30.18 |
||
| replacement | |||||
|
16
|
16
692-42134-03-8D element |
692-42134-03-8D |
from US $21.06 |
||
|
17
|
17
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $3.04 |
||
|
18
|
18
97885-06008-00 Screw, Pan Head |
97885-06008-00 |
from US $1.56 |
||
|
19
|
19
978-85050-12-00 Screw, Pan Head |
978-85050-12-00 |
from US $1.70 |
||
| replacement | |||||
|
19
|
19
98580-05012-00 Screw, Pan Head |
98580-05012-00 |
from US $2.13 |
||
|
20
|
20
692-26301-03-00 Throttle Cable Assy |
692-26301-03-00 |
from US $75.08 |
||
|
21
|
21
692-42121-01-4D Bracket |
692-42121-01-4D |
US $338.49 |
||
| replacements | |||||
|
21
|
21
692-WS421-00-4D Bracket |
692-WS421-00-4D |
US $338.49 |
||
|
21
|
21
692-WS421-00-8D BRACKET |
692-WS421-00-8D |
US $215.26 |
||
|
22
|
22
90101-12M06-00 Bolt |
90101-12M06-00 |
from US $13.46 |
||
| replacement | |||||
|
22
|
22
901-01120-75-00 Bolt |
901-01120-75-00 |
from US $13.46 |
||
|
23
|
23
929-90122-00-00 Washer, Plain |
929-90122-00-00 |
from US $1.70 |
||
|
24
|
24
90386-12089-00 Bush |
90386-12089-00 |
from US $5.24 |
||
|
25
|
25
90202-12092-00 Washer, Plate |
90202-12092-00 |
from US $2.55 |
||
|
26
|
26
90201-12537-00 Washer, Plate |
90201-12537-00 |
from US $5.06 |
||
|
27
|
27
90206-12054-00 Washer, Wave |
90206-12054-00 |
from US $3.26 |
||
|
28
|
28
90185-12058-00 Nut, Self-Locking |
90185-12058-00 |
from US $7.65 |
||
|
29
|
29
697-44113-00-00 Cam Plate, Handle |
697-44113-00-00 |
from US $26.49 |
||
|
30
|
30
6K5-44191-00-00 Indicator, Shift |
6K5-44191-00-00 |
from US $7.65 |
||
|
31
|
31
97013-06016-00 Bolt |
97013-06016-00 |
from US $1.39 |
||
| replacements | |||||
|
31
|
31
97095-06016-00 Bolt |
97095-06016-00 |
US $1.39 |
||
|
31
|
31
97014-06016-00 Bolt, Hexagon |
97014-06016-00 |
from US $1.39 |
||
|
31
|
31
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.39 |
||
|
32
|
32
92903-06100-00 Washer, Spring |
92903-06100-00 |
US $0.99 |
||
| replacement | |||||
|
32
|
32
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
33
|
33
692-44159-01-00 Handle, Gear Shift |
692-44159-01-00 |
from US $56.37 |
||
|
34
|
34
663-44173-00-00 Lever, Shift Control |
663-44173-00-00 |
from US $12.75 |
||
|
35
|
35
90501-16M17-00 Spring, Compression |
90501-16M17-00 |
from US $2.83 |
||
|
36
|
36
93515-32M01-00 Ball |
93515-32M01-00 |
from US $6.09 |
||
|
37
|
37
90386-10009-00 Bush |
90386-10009-00 |
from US $4.11 |
||
|
38
|
38
90201-10120-00 Washer, Plate |
90201-10120-00 |
US $3.12 |
||
| replacement | |||||
|
38
|
38
90201-10049-00 Washer, Plate |
90201-10049-00 |
from US $2.75 |
||
|
39
|
39
901-85100-51-00
Nut, Self-Locking
|
901-85100-51-00 |
— | ||
| replacement | |||||
|
39
|
39
90185-10027-00 Nut, Self-Locking |
90185-10027-00 |
from US $1.52 |
||
|
40
|
40
90387-12M30-00 Collar |
90387-12M30-00 |
from US $9.07 |
||
|
41
|
41
902-0112M-34-00 Washer, Plate |
902-0112M-34-00 |
from US $2.69 |
||
|
42
|
42
692-42164-00-00 Rod, Manual Shift |
692-42164-00-00 |
from US $20.88 |
||
|
43
|
43
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
44
|
44
91490-25012-00 Pin. Cotter |
91490-25012-00 |
from US $1.42 |
||
| replacement | |||||
|
44
|
44
91490-25020-00 Pin. Cotter |
91490-25020-00 |
from US $1.52 |
||
|
45
|
45
90386-06088-00 Bush |
90386-06088-00 |
from US $2.55 |
||
|
46
|
46
700-48339-00-00 Nut, Cable End |
700-48339-00-00 |
from US $1.70 |
||
|
47
|
47
663-42126-01-00 Throttle Friction |
663-42126-01-00 |
from US $11.33 |
||
|
48
|
48
97080-06025-00 Bolt, Hexagon |
97080-06025-00 |
US $1.35 |
||
| replacement | |||||
|
48
|
48
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.52 |
||
|
49
|
49
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
50
|
50
90175-06003-00 Nut, Wing |
90175-06003-00 |
from US $7.79 |
||
| replacements | |||||
|
50
|
50
901-75069-00-00 Nut, Wing (F87) |
901-75069-00-00 |
from US $9.07 |
||
|
50
|
50
90175-06015-00 Nut, Wing |
90175-06015-00 |
US $7.79 |
||
|
51
|
51
697-82575-00-00 Engine Stop Switch Assembly |
697-82575-00-00 |
US $73.92 |
||
| replacement | |||||
|
51
|
51
66T-82575-01-00 Engine Stop Switch Assy |
66T-82575-01-00 |
from US $73.92 |
||
|
52
|
52
682-82556-00-00 Lanyard, Stop Switch |
682-82556-00-00 |
from US $10.13 |
||
|
53
|
53
689-8257Y-00-00 Cap |
689-8257Y-00-00 |
from US $4.82 |
||
|
54
|
54
90465-06M90-00 Clamp |
90465-06M90-00 |
from US $3.60 |
||
|
55
|
55
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
